12
!
i
179

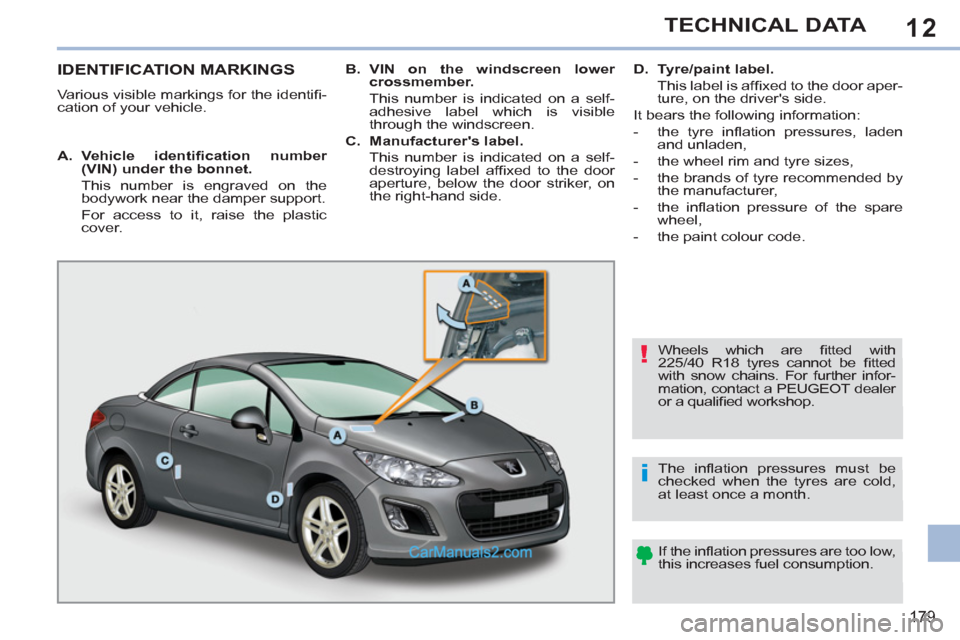

TECHNICAL DATA
IDENTIFICATION MARKINGS
Various visible markings for the identifi -
cation of your vehicle.
Wheels which are fi tted with
225/40 R18 tyres cannot be fi tted
with snow chains. For further infor-
mation, contact a PEUGEOT dealer
or a qualifi ed workshop.
If the infl ation pressures are too low,
this increases fuel consumption.
The infl ation pressures must be
checked when the tyres are cold,
at least once a month.
A.
Vehicle identifi cation number
(VIN) under the bonnet.
This number is engraved on the
bodywork near the damper support.
For access to it, raise the plastic
cover.
B.
VIN on the windscreen lower
crossmember.
This number is indicated on a self-
adhesive label which is visible
through the windscreen.
C.
Manufacturer's label.
This number is indicated on a self-
destroying label affi xed to the door
aperture, below the door striker, on
the right-hand side.
D.
Tyre/paint label.
This label is affi xed to the door aper-
ture, on the driver's side.
It bears the following information:
- the tyre infl ation pressures, laden
and unladen,
- the wheel rim and tyre sizes,
- the brands of tyre recommended by
the manufacturer,
- the infl ation pressure of the spare
wheel,
- the paint colour code.
286
ALPHABETICAL INDEX
SIM card ......................................... 216
Snow chains ................................... 179
Spare wheel ................................... 151
Speed limiter .................................. 131
Speedometer ............................... 22-24
Stability control (ESP) .................... 105
Starting the vehicle ................... 72, 125
Steering mounted controls ... 190, 231, 263
Stopping the vehicle ................. 72, 125
Stop & Start ......................... 52, 57, 83,
128, 138, 144, 166
Storage ....................................... 95, 97
Storage box .............................. 98, 100
Storage compartments ..................... 95
Storage net ....................................... 99
Storing the driving positions ............. 66
Stowing rings .................................... 99
Sun visor .......................................... 96
Synchronising the remote control ..... 73
Systems, ASR and ESP ................. 105 Satellite navigation system ..... 196, 235
Screen,
colour 16/9 .........191, 219, 232, 253
Screen, monochrome C ................... 50
Screen, multifunction (with audio
equipment) .................42, 45, 47, 49
Screen-wash reservoir ................... 143
Screen menu map .......... 219, 253, 274
Screenwash fluid level.............. 92, 143
Seat adjustment ......................... 62, 63
Seat belts ............................... 107, 109
Serial number, vehicle .................... 179
Service indicator ............................... 38
Servicing ........................................... 20
Setting the clock ............. 218, 252, 273
Short-cut menus ............. 192, 233, 234
Sidelamps ...................85, 87, 155, 158
Side repeater .................................. 157
Side spotlamps ......................... 89, 157Table of weights...................... 175, 177
Tables of engines ................... 174, 176
Tables of fuses ............................... 160
Tank, fuel .......................................... 84
Technical data ......................... 174-179
Telephone ...............182, 183, 213, 249
Temperature control
for heated seats ........................... 65
Temporary tyre repair kit ........ 100, 146
Third brake lamp ............................ 158 Resetting the service indicator ......... 39
Resetting the trip recorder ................ 40
Retractable colour screen .... 45, 47, 49
Retractable roof .......................... 6, 100
Rev counter ................................. 22-24
Reversing lamps ............................. 158
Roll-over bars ........................... 66, 106
Routine checks ....................... 144, 145
Routine maintenance ....................... 20
Running out of fuel (Diesel)............ 139
R
S
T
Radio .............................. 207, 245, 265
Rear armrest .................................... 66
Rear foglamps .......................... 86, 158
Rear head restraints ......................... 66
Rear lamps ..................................... 158
Rear parking sensors ..................... 135
Rear screen (demisting) ................... 56
Rear seats ................................ 66, 106
Rear view mirror ............................... 69
Recharging the battery ................... 167
Reduction of electrical load ............ 168
Refitting a wheel ............................. 154
Reinitialising partial opening
of the windows ............................. 78
Reinitialising the electric windows .... 78
Reinitialising the remote control ....... 73
Remote control ............................ 70-74
Removable screen (snow shield) ... 172
Removing a wheel .......................... 153
Removing the mat ............................ 98
Repair kit, puncture ................ 100, 146
Replacing bulbs ....................... 155-159
Replacing fuses ....................... 160-165
Replacing the air filter .................... 144
Replacing the oil filter ..................... 144
Replacing the particle
emission filter ............................. 144
Replacing the passenger
compartment filter ...................... 144
Replacing wiper blades ............ 93, 169
