CHECKS





































CHECKING LEVELS

Check all of these levels regularly and
top them up if necessary, unless other-
wise indicated.
If a level drops signifi cantly, have the
corresponding system checked by a
PEUGEOT dealer or a qualifi ed work-
shop.

Brake fluid level

Oil level

The check is carried out either
when the ignition is switched on
using the oil level indicator on
the instrument panel, or using
the dipstick.
This manual check will only be correct
if the vehicle is on level ground and
the engine has been off for more than
30 minutes.
After topping up the oil, the check when
switching on the ignition with the oil level
indicator in the instrument panel will only
be valid 30 minutes after topping up. The brake fl uid level should be
close to the "MAX" mark. If it is
not, check the brake pad wear.

Power steering fluid level

The power steering fl uid level
should be close to the "MAX"
mark. Unscrew the cap, with the
engine cold, to check the level.
It is normal to top up the oil level
between services. PEUGEOT
recommends that you check the oil
level and top up if necessary every
3 000 miles (5 000 kilometres).
Changing the fl uid
Refer to the Warranty and Maintenance
Record for details of the interval for this
operation. When the engine is warm, the tempera-
ture of the coolant is regulated by the fan.
This can operate with the ignition off.

On vehicles which are fi tted with a
particle emission fi lter, the fan may
operate after the vehicle has been
switched off, even if the engine is
cold.

In addition, as the cooling system is
pressurised, wait at least one hour after
switching off the engine before carrying
out any work.
To avoid any risk of scalding, unscrew
the cap by two turns to allow the pres-
sure to drop. When the pressure has
dropped, remove the cap and top up
the level.

Coolant level

The coolant level should be
close to the "MAX" mark but
should never exceed it.

Changing the coolant
The coolant does not have to be
changed.
When working under the bonnet,
take care, as certain areas of the
engine may be extremely hot (risk
of burns).

Fluid specifi cation
The coolant must conform to the manu-
facturer's recommendations.

Fluid specifi cation
The brake fl uid must conform to the
manufacturer's recommendations and
meet the DOT4 standard.

Oil specifi cation
The oil must be the correct grade for
your engine and conform to the manu-
facturer's recommendations.

Engine oil change
Refer to the Warranty and Maintenance
Record for details of the interval for this
operation.
In order to maintain the reliability of the
engine and emission control system,
the use of additives in the engine oil is
prohibited.

183
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK

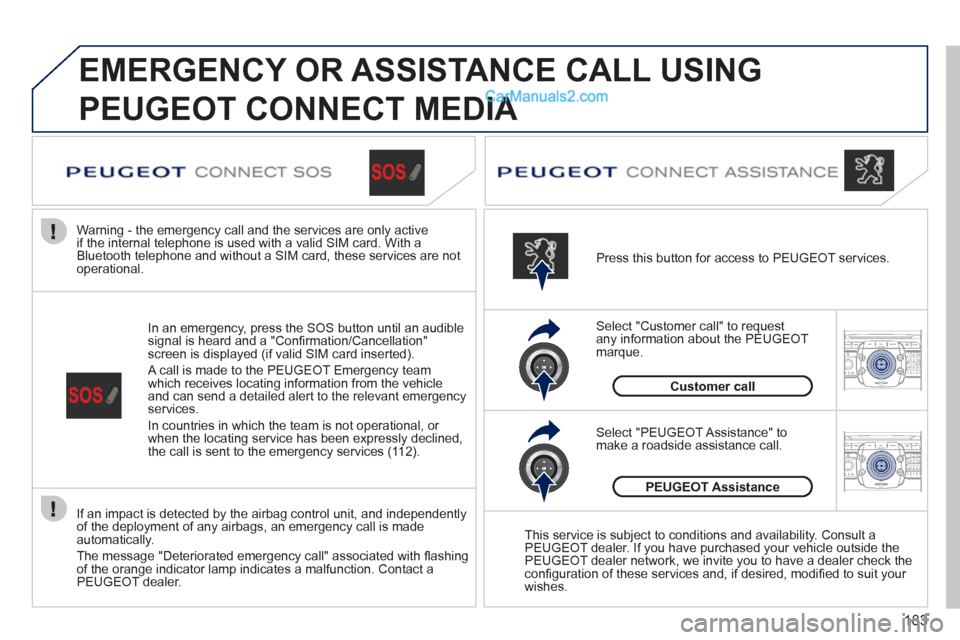

EMERGENCY OR ASSISTANCE CALL USING
PEUGEOT CONNECT MEDIA

If an impact is detected by the airbag control unit, and independently
of the deployment of any airbags, an emergency call is made
automatically.
The message "Deteriorated emergency call" associated with fl ashing
of the orange indicator lamp indicates a malfunction. Contact a
PEUGEOT dealer.

In an emergency, press the SOS button until an audible
signal is heard and a "Confi rmation/Cancellation"
screen is displayed (if valid SIM card inserted).
A call is made to the PEUGEOT Emergency team
which receives locating information from the vehicle
and can send a detailed alert to the relevant emergency
services.
In countries in which the team is not operational, or
when the locating service has been expressly declined,
the call is sent to the emergency services (112).









Warning - the emergency call and the services are only active
if the internal telephone is used with a valid SIM card. With a
Bluetooth telephone and without a SIM card, these services are not
operational.










Press this button for access to PEUGEOT services.

Customer call
Select "Customer call" to request
any information about the PEUGEOT
marque.
Select "PEUGEOT Assistance" to
make a roadside assistance call.

PEUGEOT Assistance




This service is subject to conditions and availability. Consult a
PEUGEOT dealer. If you have purchased your vehicle outside the
PEUGEOT dealer network, we invite you to have a dealer check the
confi guration of these services and, if desired, modifi ed to suit your
wishes.

281
VISUAL SEARCH
INSTRUMENTS AND CONTROLS


Instrument panels ..................22-25
Warning lamps .......................26-35
Indicators ...............................36-39
Buttons ..................................40-41


- Check/service indicator/trip
distance recorder

- lighting dimmer

Courtesy lamps........................... 93
Seat belt/passenger’s front airbag
warning lamps display ............ 107
Rear view mirror ......................... 69
Sun visor..................................... 96

Lighting controls ....................85-89

Ventilation ..............................53-54
Manual air conditioning..........55-56
Digital air conditioning ...........57-58
Peugeot Connect Media ....185-228
Setting the date/time................. 218

Peugeot Connect Navigation .....229-260
Setting the date/time................. 252
Peugeot Connect Sound .....261-278
Setting the date/time................. 273
Dashboard fuses ...............160-162
Opening the bonnet .................. 138
Speed limiter......................131-132
Cruise control ....................133-134
Multifunction screens .............42-49
Hazard warning lamps .............. 101
Switch panel ............................... 16
Emergency or
assistance call ................ 102, 181

Wiper controls........................91-93
Trip computer ........................50-52

Headlamp height adjustment ....89-90
Stop & Start .......................128-130

Door mirrors ...........................67-68
Electric windows ....................77-78

"AIRWAVE" system controls ....... 65
Retractable roof control .............6-7
Control for all four windows ........ 78

Parking brake ........................... 122
Manual gearbox .................122-124
Automatic gearbox.............125-127
Steering wheel adjustment ......... 69
Horn .......................................... 102

285
ALPHABETICAL INDEX
Oil filter ........................................... 144
Oil level ..................................... 37, 142 Navigation............................... 196, 235
Neck heater ...................................... 65
Neck heater control .......................... 65
Number plate lamps ....................... 158 Main beam ........................ 85, 155, 156
Manual gearbox ......122, 123, 128, 145
Manufacturer's identification
plates .......................................... 179
Map reading lamps ........................... 93
Markings, identification ................... 179
Mat.................................................... 98
Menu, main ..................................... 264
Mini fuel level.................................... 83
Misfuel prevention ............................ 84
Monochrome screen ............... 264, 274
Mountings for ISOFIX seats ........... 119
MP3 CD .......................... 208, 247, 267
Multifunction screen
(with audio equipment) ...42, 45, 47, 49
Music media players....... 208, 246, 266
Keeping children safe.... 109, 111, 114-121
Key in ignition warning ..................... 72
Key with remote control ............... 70-74 Jack ................................................ 151
Jukebox (copy) ............................... 210
Jukebox (playing) ........................... 211
Paint colour code............................ 179
Parking brake ......................... 122, 145
Particle emission filter ............ 143, 144
Passenger compartment filter ........ 144
Petrol engine ............................ 84, 140
PEUGEOT call button ............ 182, 183
PEUGEOT CONNECT
ASSISTANCE ............................. 182
Peugeot Connect
Media ......... 25, 47, 49, 50, 185-228
Peugeot Connect
Navigation ...............45, 49, 229-260
PEUGEOT CONNECT SOS .......... 182
Peugeot Connect
Sound ............................42, 261-278
PEUGEOT services ........................ 183
PIN code ......................................... 216
Player, CD MP3 .............. 208, 246, 267
Priming the fuel system .................. 139
Protecting children ... 109, 111, 114-121
Puncture ......................................... 146
J
M
K
L
N
Labels, identification ....................... 179
Lamps, warning
and indicator ............................ 26-35
Lateral airbags ........................ 112, 113
LED lamps ........................................ 87
Level, brake fluid ............................ 142
Level, headlamp wash.............. 92, 143
Level, power steering fluid ............. 142
Levels and checks ................... 140-143
Lighting, guide-me home ............ 87, 88
Lighting, interior .......................... 93, 94
Lighting bulbs (replacement) ... 155-159
Lighting dimmer ................................ 41
Lighting stalk .................................... 85
Loading ............................................. 20
Load reduction mode...................... 168
Locating your vehicle........................ 72
Locking from the inside .................... 80
Locking the boot ............................... 82Opening the bonnet ........................ 138
Opening the boot ........................ 70, 82
Opening the doors ................ 70, 79, 81
Opening the retractable roof .............. 6
Opening the retractable screen ........ 49
Opening the windows ....................... 77
Operation indicator lamps ........... 29-35
O
P
Luggage retaining net..................... 100
Luggage retaining strap.................... 99

286
ALPHABETICAL INDEX
SIM card ......................................... 216
Snow chains ................................... 179
Spare wheel ................................... 151
Speed limiter .................................. 131
Speedometer ............................... 22-24
Stability control (ESP) .................... 105
Starting the vehicle ................... 72, 125
Steering mounted controls ... 190, 231, 263
Stopping the vehicle ................. 72, 125
Stop & Start ......................... 52, 57, 83,
128, 138, 144, 166
Storage ....................................... 95, 97
Storage box .............................. 98, 100
Storage compartments ..................... 95
Storage net ....................................... 99
Storing the driving positions ............. 66
Stowing rings .................................... 99
Sun visor .......................................... 96
Synchronising the remote control ..... 73
Systems, ASR and ESP ................. 105 Satellite navigation system ..... 196, 235
Screen,
colour 16/9 .........191, 219, 232, 253
Screen, monochrome C ................... 50
Screen, multifunction (with audio
equipment) .................42, 45, 47, 49
Screen-wash reservoir ................... 143
Screen menu map .......... 219, 253, 274
Screenwash fluid level.............. 92, 143
Seat adjustment ......................... 62, 63
Seat belts ............................... 107, 109
Serial number, vehicle .................... 179
Service indicator ............................... 38
Servicing ........................................... 20
Setting the clock ............. 218, 252, 273
Short-cut menus ............. 192, 233, 234
Sidelamps ...................85, 87, 155, 158
Side repeater .................................. 157
Side spotlamps ......................... 89, 157Table of weights...................... 175, 177
Tables of engines ................... 174, 176
Tables of fuses ............................... 160
Tank, fuel .......................................... 84
Technical data ......................... 174-179
Telephone ...............182, 183, 213, 249
Temperature control
for heated seats ........................... 65
Temporary tyre repair kit ........ 100, 146
Third brake lamp ............................ 158 Resetting the service indicator ......... 39
Resetting the trip recorder ................ 40
Retractable colour screen .... 45, 47, 49
Retractable roof .......................... 6, 100
Rev counter ................................. 22-24
Reversing lamps ............................. 158
Roll-over bars ........................... 66, 106
Routine checks ....................... 144, 145
Routine maintenance ....................... 20
Running out of fuel (Diesel)............ 139
R
S
T
Radio .............................. 207, 245, 265
Rear armrest .................................... 66
Rear foglamps .......................... 86, 158
Rear head restraints ......................... 66
Rear lamps ..................................... 158
Rear parking sensors ..................... 135
Rear screen (demisting) ................... 56
Rear seats ................................ 66, 106
Rear view mirror ............................... 69
Recharging the battery ................... 167
Reduction of electrical load ............ 168
Refitting a wheel ............................. 154
Reinitialising partial opening
of the windows ............................. 78
Reinitialising the electric windows .... 78
Reinitialising the remote control ....... 73
Remote control ............................ 70-74
Removable screen (snow shield) ... 172
Removing a wheel .......................... 153
Removing the mat ............................ 98
Repair kit, puncture ................ 100, 146
Replacing bulbs ....................... 155-159
Replacing fuses ....................... 160-165
Replacing the air filter .................... 144
Replacing the oil filter ..................... 144
Replacing the particle
emission filter ............................. 144
Replacing the passenger
compartment filter ...................... 144
Replacing wiper blades ............ 93, 169
