2

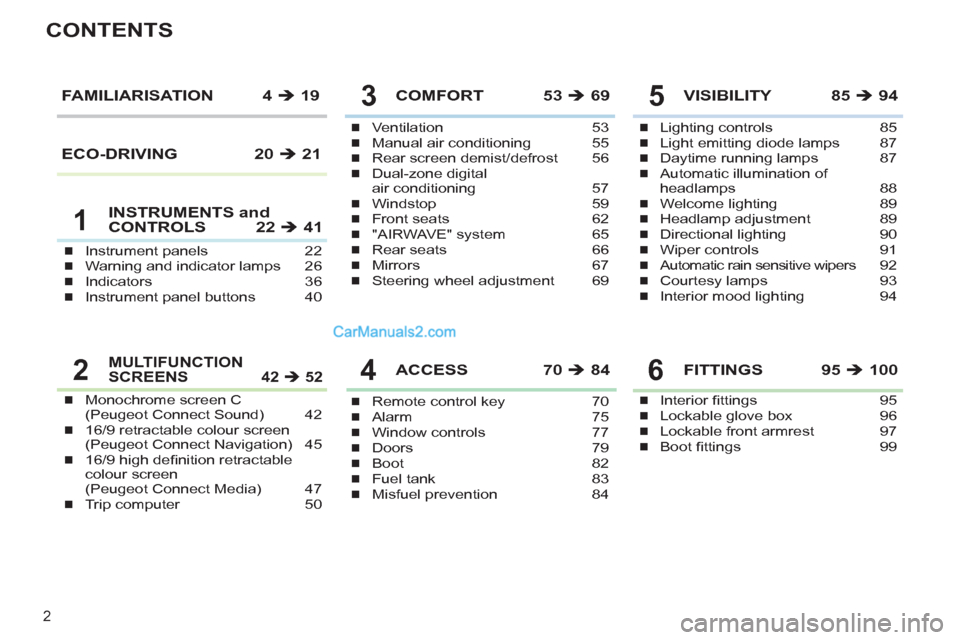

CONTENTS
Instrument panels 22
Warning and indicator lamps 26
Indicators 36
Instrument panel buttons 40 „
„
„
„
Ventilation 53
Manual air conditioning 55
Rear screen demist/defrost 56
Dual-zone digital
air conditioning 57
Windstop 59
Front seats 62
"AIRWAVE" system 65
Rear seats 66
Mirrors 67
Steering wheel adjustment 69 „
„
„
„
„
„
„
„
„
„
COMFORT 53 Î 69
Remote control key 70
Alarm 75
Window controls 77
Doors 79
Boot 82
Fuel tank 83
Misfuel prevention 84 „
„
„
„
„
„
„
ACCESS 70 Î 84
Lighting controls 85
Light emitting diode lamps 87
Daytime running lamps 87
Automatic illumination of
headlamps 88
Welcome lighting 89
Headlamp adjustment 89
Directional lighting 90
Wiper controls 91
Automatic rain sensitive wipers 92
Courtesy lamps 93
Interior mood lighting 94 „
„
„
„
„
„
„
„
„
„
„
VISIBILITY 85 Î 94 FAMILIARISATION 4 Î 19
INSTRUMENTS and
CONTROLS 22 Î 41
Monochrome screen C
(Peugeot Connect Sound) 42
16/9 retractable colour screen
(Peugeot Connect Navigation) 45
16/9 high defi nition retractable
colour screen
(Peugeot Connect Media) 47
Trip computer 50 „
„
„
„
MULTIFUNCTION
SCREENS 42 Î 52
Interior fi ttings 95
Lockable glove box 96
Lockable front armrest 97
Boot fi ttings 99 „
„
„
„
FITTINGS 95 Î 100
15
43
26
ECO-DRIVING 20 Î 21
Page 11 of 292
9
FAMILIARISATION
1.
Steering lock and ignition.
2.
Audio and telematics system
steering mounted control.
3.
Wipers/screenwash/trip computer
control stalk.
4.
Instrument panel.
5.
Driver’s airbag.
Horn.
6.
Gear lever.
7.
Parking brake.
8.
12 V accessory socket.
9.
Heated seat control.
10.
Door mirror controls.
Electric window controls.
11 .
Passenger’s airbag deactivation
switch.
12.
Manual headlamp height
adjustment.
Stop & Start button.
13.
Side adjustable air vent.
14.
Front side window demisting vent.
15.
Speaker (tweeter).
16.
Windscreen demisting vent.
INSTRUMENTS AND CONTROLS
Page 15 of 292
i
13
FAMILIARISATION

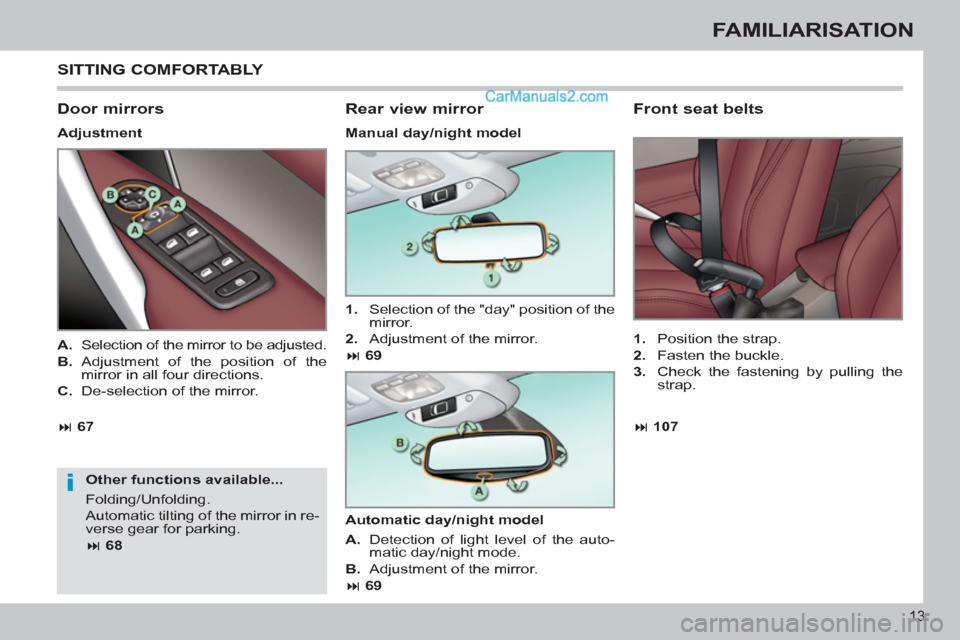

SITTING COMFORTABLY
Door mirrors
Adjustment
Other functions available...
Folding/Unfolding.
Automatic tilting of the mirror in re-
verse gear for parking.
68
Rear view mirror
1.
Selection of the "day" position of the
mirror.
2.
Adjustment of the mirror.
69
Front seat belts
1.
Position the strap.
2.
Fasten the buckle.
3.
Check the fastening by pulling the
strap.
A.
Selection of the mirror to be adjusted.
B.
Adjustment of the position of the
mirror in all four directions.
C.
De-selection of the mirror.
107
Manual day/night model
Automatic day/night model
A.
Detection of light level of the auto-
matic day/night mode.
B.
Adjustment of the mirror.
69
67
Page 58 of 292
3
i
i
i
56
COMFORT
The control button is located on
the heating or air conditioning
system control panel.

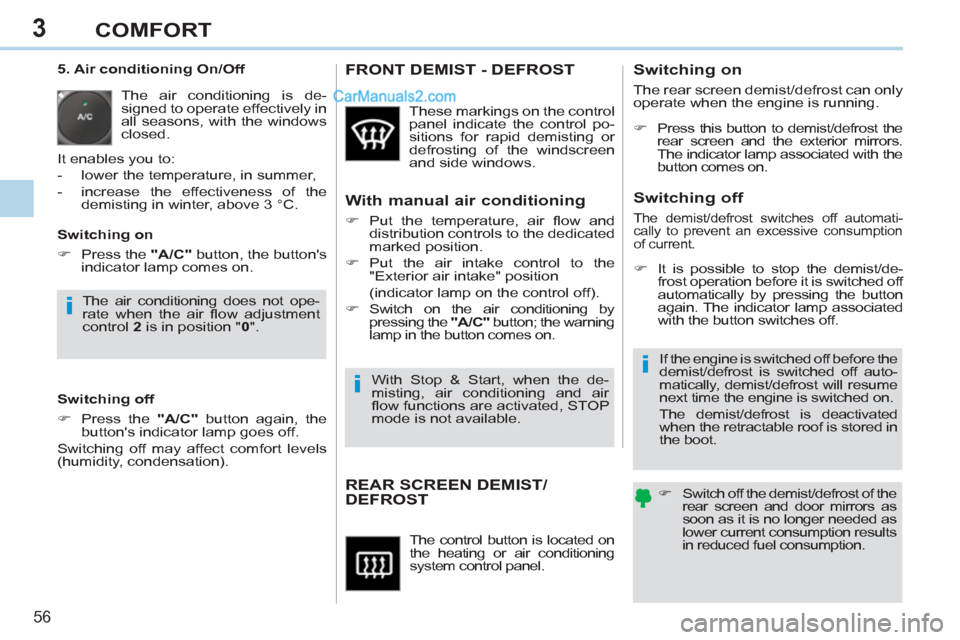

REAR SCREEN DEMIST/
DEFROST
)
Switch off the demist/defrost of the
rear screen and door mirrors as
soon as it is no longer needed as
lower current consumption results
in reduced fuel consumption.
If the engine is switched off before the
demist/defrost is switched off auto-
matically, demist/defrost will resume
next time the engine is switched on.
The demist/defrost is deactivated
when the retractable roof is stored in
the boot.
Switching on
The rear screen demist/defrost can only
operate when the engine is running.
Switching off
The demist/defrost switches off automati-
cally to prevent an excessive consumption
of current.
5. Air conditioning On/Off
The air conditioning is de-
signed to operate effectively in
all seasons, with the windows
closed.
It enables you to:
- lower the temperature, in summer,
- increase the effectiveness of the
demisting in winter, above 3 °C.
Switching off
)
Press the "A/C"
button again, the
button's indicator lamp goes off.
Switching off may affect comfort levels
(humidity, condensation).
)
Press this button to demist/defrost the
rear screen and the exterior mirrors.
The indicator lamp associated with the
button comes on.
)
It is possible to stop the demist/de-
frost operation before it is switched off
automatically by pressing the button
again. The indicator lamp associated
with the button switches off.
Switching on
)
Press the "A/C"
button, the button's
indicator lamp comes on.
FRONT DEMIST - DEFROST
These markings on the control
panel indicate the control po-
sitions for rapid demisting or
defrosting of the windscreen
and side windows.
With manual air conditioning
)
Put the temperature, air fl ow and
distribution controls to the dedicated
marked position.
)
Put the air intake control to the
"Exterior air intake" position
(indicator lamp on the control off).
)
Switch on the air conditioning by
pressing the "A/C"
button; the warning
lamp in the button comes on.
The air conditioning does not ope-
rate when the air fl ow adjustment
control 2
is in position " 0
".
With Stop & Start, when the de-
misting, air conditioning and air
fl ow functions are activated, STOP
mode is not available.
Page 68 of 292
3
!
!
66
COMFORT

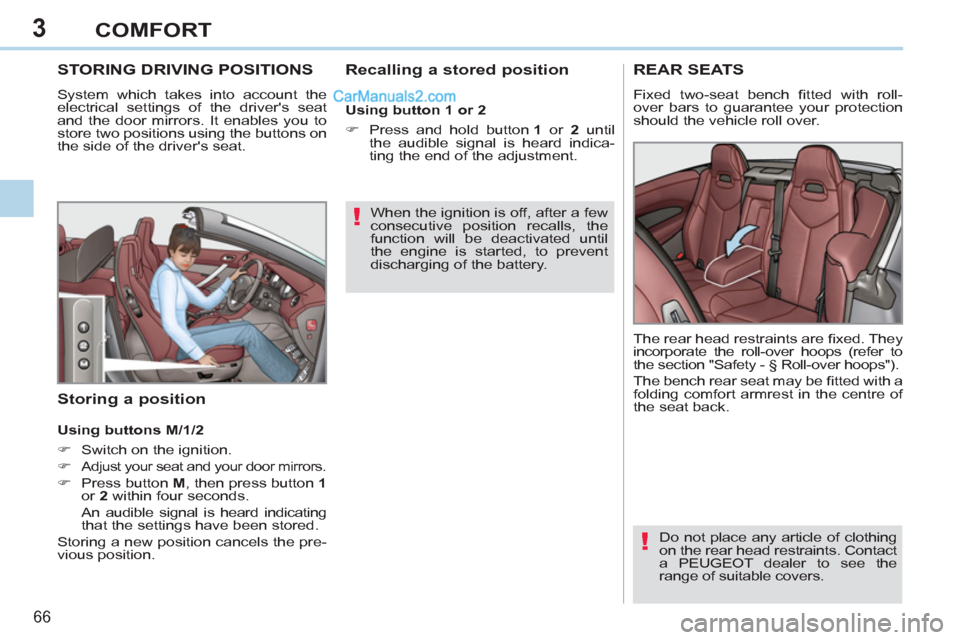

STORING DRIVING POSITIONS
System which takes into account the
electrical settings of the driver's seat
and the door mirrors. It enables you to
store two positions using the buttons on
the side of the driver's seat.
Recalling a stored position
Storing a position
When the ignition is off, after a few
consecutive position recalls, the
function will be deactivated until
the engine is started, to prevent
discharging of the battery.
Using buttons M/1/2
)
Switch on the ignition.
)
Adjust your seat and your door mirrors.
)
Press button M
, then press button 1
or 2
within four seconds.
An audible signal is heard indicating
that the settings have been stored.
Storing a new position cancels the pre-
vious position.
REAR SEATS
Fixed two-seat bench fi tted with roll-
over bars to guarantee your protection
should the vehicle roll over.
Do not place any article of clothing
on the rear head restraints. Contact
a PEUGEOT dealer to see the
range of suitable covers. The rear head restraints are fi xed. They
incorporate the roll-over hoops (refer to
the section "Safety - § Roll-over hoops").
The bench rear seat may be fi tted with a
folding comfort armrest in the centre of
the seat back.
Using button 1 or 2
)
Press and hold button 1
or 2
until
the audible signal is heard indica-
ting the end of the adjustment.
Page 69 of 292
3
!
i
i
!
67
COMFORT
The objects observed are, in reality,
closer than they appear.
Take this into account in order to
correctly judge the distance of
vehicles approaching from behind.

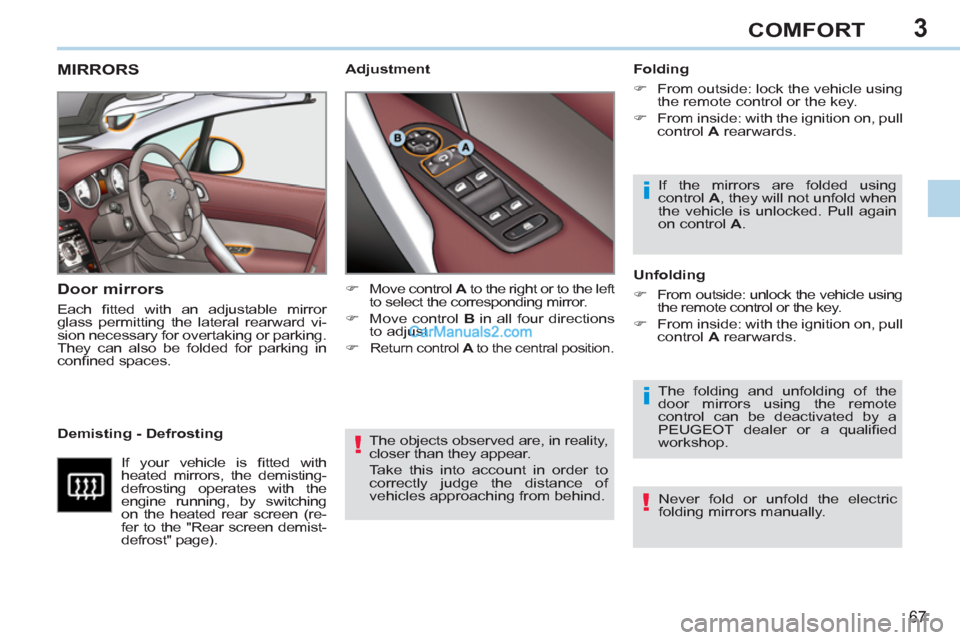

MIRRORS
Door mirrors
Each fi tted with an adjustable mirror
glass permitting the lateral rearward vi-
sion necessary for overtaking or parking.
They can also be folded for parking in
confi ned spaces.
Folding
)
From outside: lock the vehicle using
the remote control or the key.
)
From inside: with the ignition on, pull
control A
rearwards.
The folding and unfolding of the
door mirrors using the remote
control can be deactivated by a
PEUGEOT dealer or a qualifi ed
workshop.
Demisting - Defrosting
Unfolding
)
From outside: unlock the vehicle using
the remote control or the key.
)
From inside: with the ignition on, pull
control A
rearwards. If the mirrors are folded using
control A
, they will not unfold when
the vehicle is unlocked. Pull again
on control A
.
If your vehicle is fi tted with
heated mirrors, the demisting-
defrosting operates with the
engine running, by switching
on the heated rear screen (re-
fer to the "Rear screen demist-
defrost" page).
)
Move control A
to the right or to the left
to select the corresponding mirror.
)
Move control B
in all four directions
to adjust.
)
Return control A
to the central position.
Never fold or unfold the electric
folding mirrors manually.
Adjustment
Page 70 of 292
3
68
COMFORT

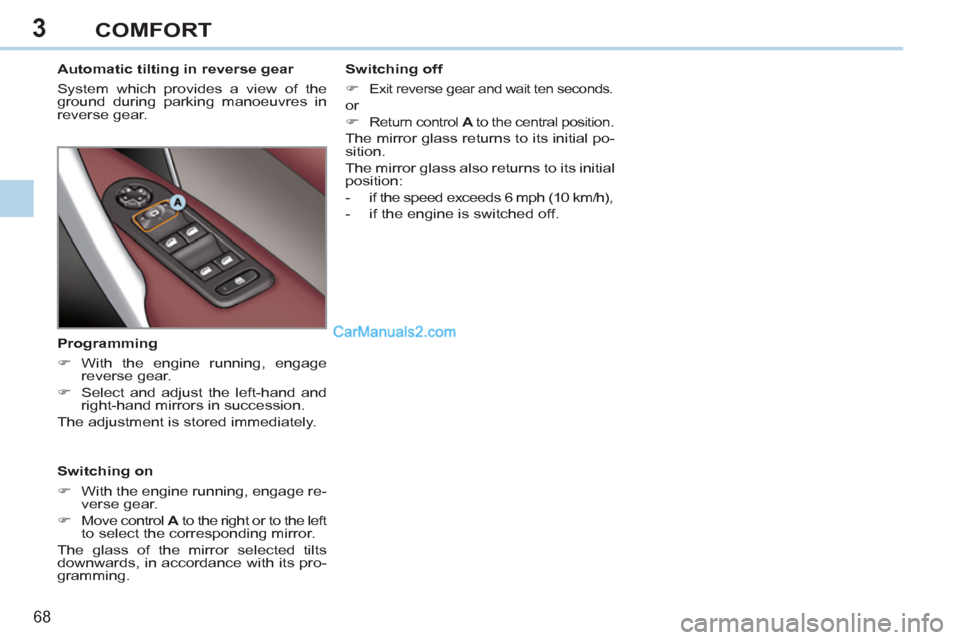

Automatic tilting in reverse gear
System which provides a view of the
ground during parking manoeuvres in
reverse gear.
Switching on
)
With the engine running, engage re-
verse gear.
)
Move control A
to the right or to the left
to select the corresponding mirror.
The glass of the mirror selected tilts
downwards, in accordance with its pro-
gramming.
Programming
)
With the engine running, engage
reverse gear.
)
Select and adjust the left-hand and
right-hand mirrors in succession.
The adjustment is stored immediately.
Switching off
)
Exit reverse gear and wait ten seconds.
or
)
Return control A
to the central position.
The mirror glass returns to its initial po-
sition.
The mirror glass also returns to its initial
position:
- if the speed exceeds 6 mph (10 km/h),
- if the engine is switched off.
Page 71 of 292
3
!
i
!
69
COMFORT

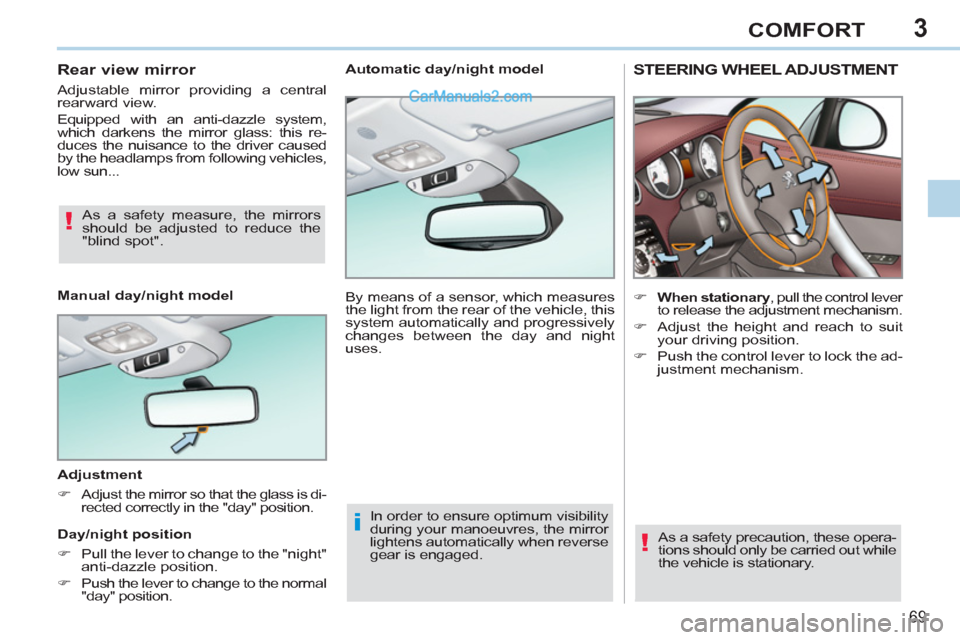

STEERING WHEEL ADJUSTMENT
)
When stationary
, pull the control lever
to release the adjustment mechanism.
)
Adjust the height and reach to suit
your driving position.
)
Push the control lever to lock the ad-
justment mechanism.
As a safety precaution, these opera-
tions should only be carried out while
the vehicle is stationary.
Automatic day/night model
By means of a sensor, which measures
the light from the rear of the vehicle, this
system automatically and progressively
changes between the day and night
uses.
In order to ensure optimum visibility
during your manoeuvres, the mirror
lightens automatically when reverse
gear is engaged.
Adjustment
)
Adjust the mirror so that the glass is di-
rected correctly in the "day" position.
As a safety measure, the mirrors
should be adjusted to reduce the
"blind spot".
Manual day/night model
Day/night position
)
Pull the lever to change to the "night"
anti-dazzle position.
)
Push the lever to change to the normal
"day" position.
Rear view mirror
Adjustable mirror providing a central
rearward view.
Equipped with an anti-dazzle system,
which darkens the mirror glass: this re-
duces the nuisance to the driver caused
by the headlamps from following vehicles,
low sun...
