SAFETY

PEUGEOT recommends
that chil-
dren should travel in the rear seats

of your vehicle:


- "rearwards-facing"
up to the age
of 2,

- "forwards-facing"
over the age
of 2.

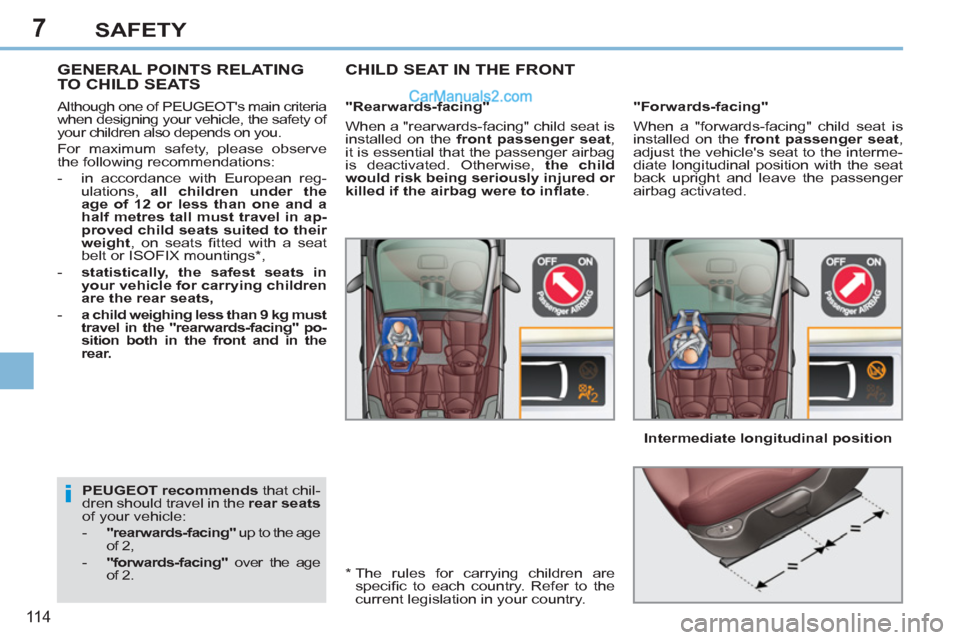

GENERAL POINTS RELATING
TO CHILD SEATS CHILD SEAT IN THE FRONT


"Forwards-facing"
When a "forwards-facing" child seat is
installed on the front passenger seat
,
adjust the vehicle's seat to the interme-
diate longitudinal position with the seat
back upright and leave the passenger
airbag activated.
"Rearwards-facing"
When a "rearwards-facing" child seat is
installed on the front passenger seat
,
it is essential that the passenger airbag
is deactivated. Otherwise, the child
would risk being seriously injured or
killed if the airbag were to infl ate
.

*
The rules for carrying children are
specifi c to each country. Refer to the
current legislation in your country. Although one of PEUGEOT's main criteria
when designing your vehicle, the safety of
your children also depends on you.
For maximum safety, please observe
the following recommendations:


- in accordance with European reg-
ulations, all children under the
age of 12 or less than one and a
half metres tall must travel in ap-
proved child seats suited to their
weight
, on seats fi tted with a seat
belt or ISOFIX mountings * ,

- statistically, the safest seats in
your vehicle for carrying children
are the rear seats,


- a child weighing less than 9 kg must
travel in the "rearwards-facing" po-
sition both in the front and in the
rear.


Intermediate longitudinal position

7
11 6
SAFETY

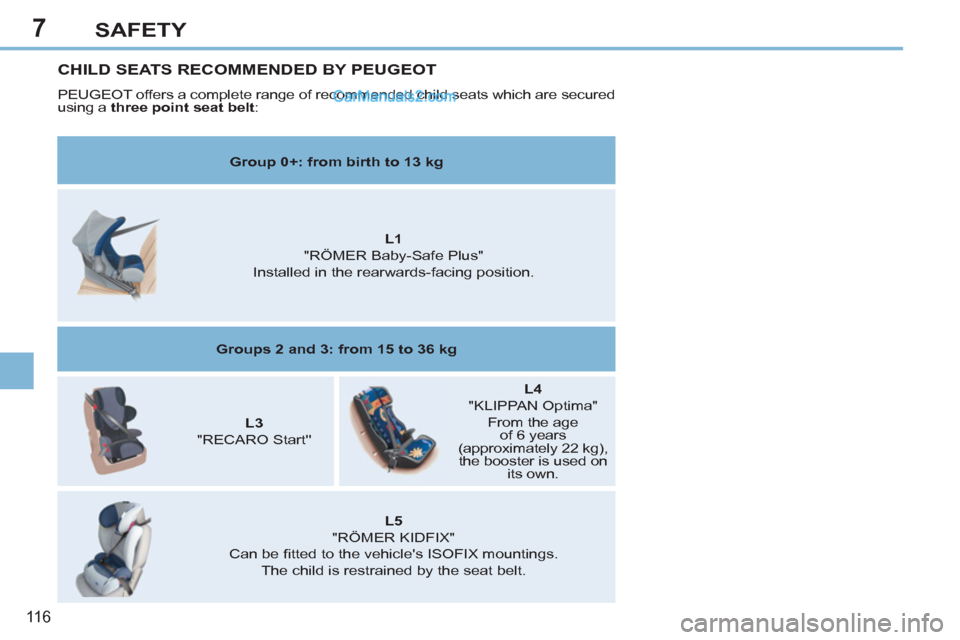

CHILD SEATS RECOMMENDED BY PEUGEOT

PEUGEOT offers a complete range of recommended child seats which are secured
using a three point seat belt
:


Group 0+: from birth to 13 kg









L1

"RÖMER Baby-Safe Plus"
Installed in the rearwards-facing position.


Groups 2 and 3: from 15 to 36 kg








L3

"RECARO Start''






L4

"KLIPPAN Optima"
From the age
of 6 years
(approximately 22 kg),
the booster is used on
its own.







L5

"RÖMER KIDFIX"
Can be fi tted to the vehicle's ISOFIX mountings.
The child is restrained by the seat belt.

7
!
i
11 9
SAFETY

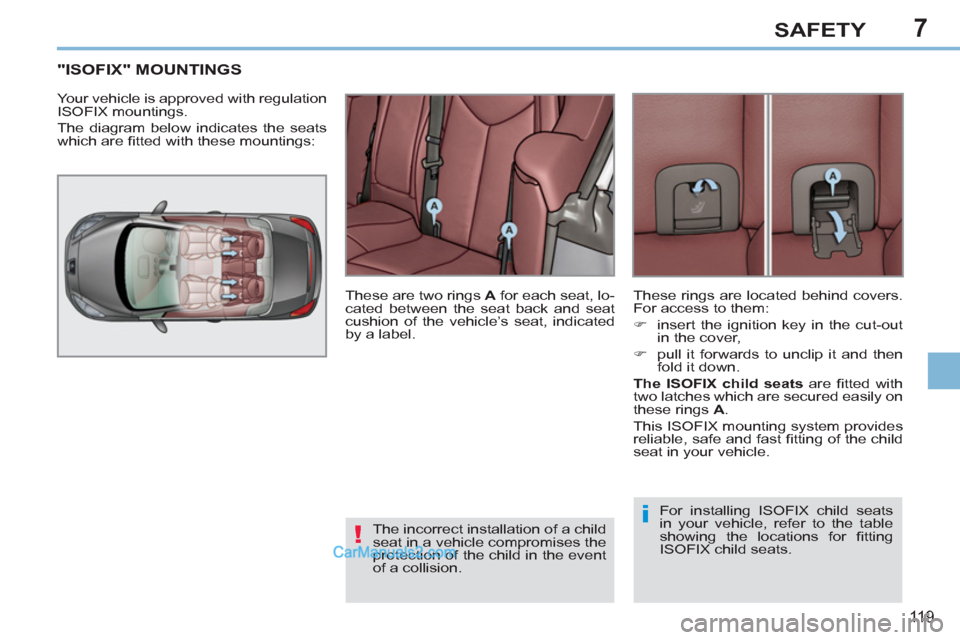

"ISOFIX" MOUNTINGS

Your vehicle is approved with regulation
ISOFIX mountings.
The diagram below indicates the seats
which are fi tted with these mountings:
These are two rings A
for each seat, lo-
cated between the seat back and seat
cushion of the vehicle’s seat, indicated
by a label.
The incorrect installation of a child
seat in a vehicle compromises the
protection of the child in the event
of a collision. For installing ISOFIX child seats
in your vehicle, refer to the table
showing the locations for fi tting
ISOFIX child seats. These rings are located behind covers.
For access to them:


)
insert the ignition key in the cut-out
in the cover,

)
pull it forwards to unclip it and then
fold it down.

The ISOFIX child seats
are fi tted with
two latches which are secured easily on
these rings A
.
This ISOFIX mounting system provides
reliable, safe and fast fi tting of the child
seat in your vehicle.

7
i
120
SAFETY

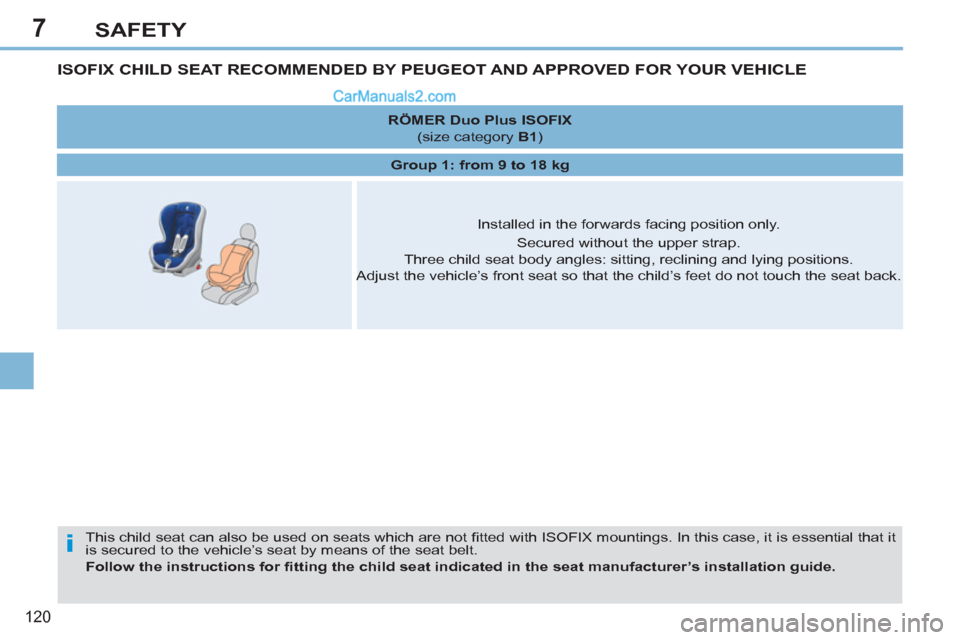

ISOFIX CHILD SEAT RECOMMENDED BY PEUGEOT AND APPROVED FOR YOUR VEHICLE

This child seat can also be used on seats which are not fi tted with ISOFIX mountings. In this case, it is essential that it
is secured to the vehicle’s seat by means of the seat belt.

Follow the instructions for fi tting the child seat indicated in the seat manufacturer’s installation guide.


RÖMER Duo Plus ISOFIX

(size category B1
)


Group 1: from 9 to 18 kg





Installed in the forwards facing position only.
Secured without the upper strap.
Three child seat body angles: sitting, reclining and lying positions.
Adjust the vehicle’s front seat so that the child’s feet do not touch the seat back.

7
121
SAFETY









LOCATIONS FOR FITTING ISOFIX CHILD SEATS

In accordance with European Regulations, this table indicates the options for installing ISOFIX child seats on seats in the
vehicle fi tted with ISOFIX mountings.
In the case of universal and semi-universal ISOFIX child seats, the ISOFIX size category, determined by a letter from A
to G
,
is indicated on the child seat next to the ISOFIX logo.

IL-SU:
seat suitable for the installation of an I
sofi x S
emi- U
niversal seat either:


- "rear facing" fi tted with a stay,

- "forward facing" fi tted with a stay.

X:
seat which is not suitable for the installation of an ISOFIX seat of the size category indicated.



Weight of the child
/indicative age


Less than 10 kg
(group 0)

Up to approx.
6 months

Less than 10 kg

(group 0)
Less than 13 kg

(group 0+)

Up to approx. 1 year

From 9 to 18 kg (group 1)

From approx. 1 to 3 years


Type of ISOFIX child seat



Infant car seat

*


"rear facing"



"rear facing"



"forward facing"




ISOFIX size category



F


G


C



D



E



C



D



A



B



B1




ISOFIX universal and
semi-universal child seats
which can be installed on the

outer rear seats



X



IL-SU



IL-SU



IL-SU



*
Infant car seats and "car" cots cannot be installed on the front passenger seat.
