2011 PEUGEOT 207 oil dipstick

1
i
INSTRUMENTS and CONTROLS
30
The level shown will only be cor-
rect if the vehicle is on level ground
and the engine has been off for
more than 30 minutes.

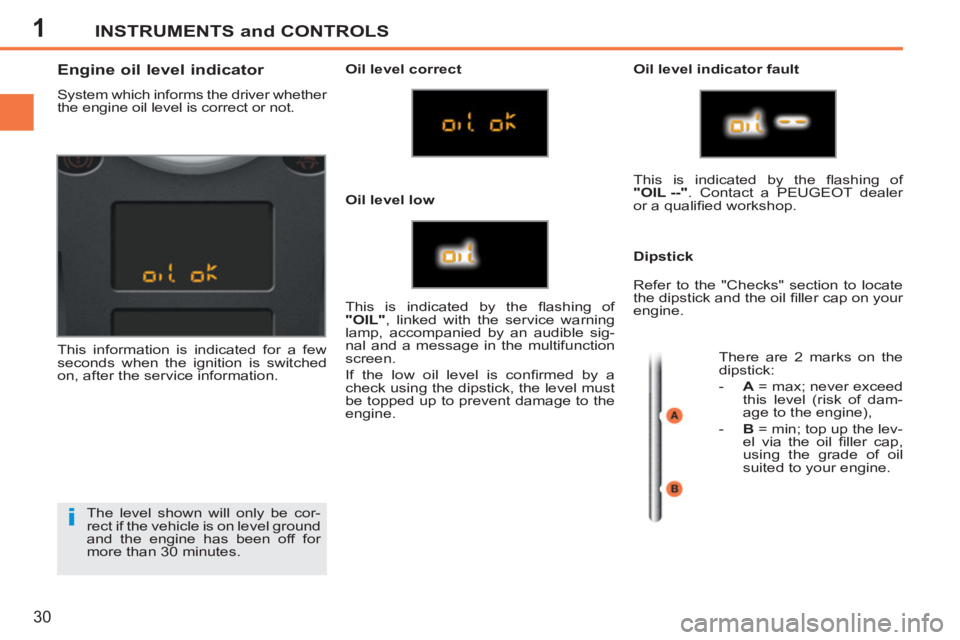

Engine oil level indicator

System which informs the driver whether
the engine oil level is correct or not.
This information is indicated for a few
seconds when the ignition is switched
on, after the service information.
Oil level correct
Oil level indicator fault

Dipstick
This is indicated by the fl ashing of
"OIL"
, linked with the service warning
lamp, accompanied by an audible sig-
nal and a message in the multifunction
screen.
If the low oil level is confi rmed by a
check using the dipstick, the level must
be topped up to prevent damage to the
engine. This is indicated by the fl ashing of
"OIL --"
. Contact a PEUGEOT dealer
or a qualifi ed workshop.
Refer to the "Checks" section to locate
the dipstick and the oil fi ller cap on your
engine.
There are 2 marks on the
dipstick:


- A
= max; never exceed
this level (risk of dam-
age to the engine),

- B
= min; top up the lev-
el via the oil fi ller cap,
using the grade of oil
suited to your engine.


Oil level low

8CHECKS
126
PETROL ENGINES
The caps and covers provide access for checking the levels of the various fl uids and to replace certain components.


1.
Coolant reservoir.

2.
Passenger compartment fi lter.

3.
Screenwash and headlamp wash
reservoir.
4.
Air fi lter.

5.
Brake fl uid reservoir.

6.
Fusebox.
7.
Battery.

8.
Engine oil dipstick.

9.
Engine oil fi ller cap.

8CHECKS
127
DIESEL ENGINES
The caps and covers provide access for checking the levels of the various fl uids, to replace certain components and to prime
the fuel system.


1.
Coolant reservoir.

2.
Passenger compartment fi lter.

3.
Screenwash and headlamp wash
reservoir.
4.
Priming pump.

5.
Brake fl uid reservoir.

6.
Fusebox.
7.
Battery.

8.
Engine oil dipstick.

9.
Engine oil fi ller cap.

10.
Air fi lter.

8CHECKS
128

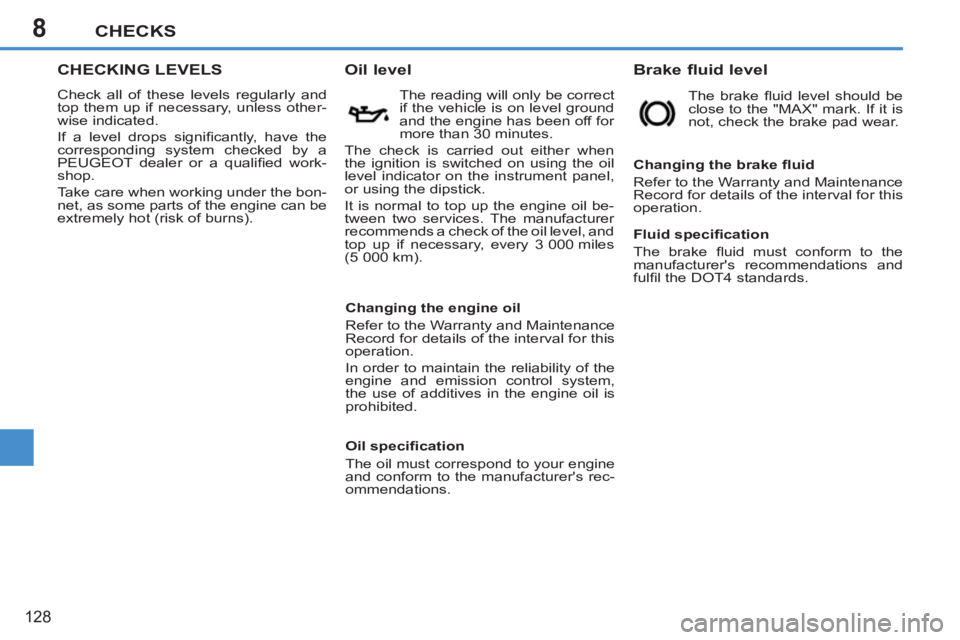

CHECKING LEVELS
Check all of these levels regularly and
top them up if necessary, unless other-
wise indicated.
If a level drops signifi cantly, have the
corresponding system checked by a
PEUGEOT dealer or a qualifi ed work-
shop.
Take care when working under the bon-
net, as some parts of the engine can be
extremely hot (risk of burns).

Brake fluid level

Oil level

The reading will only be correct
if the vehicle is on level ground
and the engine has been off for
more than 30 minutes.
The check is carried out either when
the ignition is switched on using the oil
level indicator on the instrument panel,
or using the dipstick.
It is normal to top up the engine oil be-
tween two services. The manufacturer
recommends a check of the oil level, and
top up if necessary, every 3 000 miles
(5 000 km). The brake fl uid level should be
close to the "MAX" mark. If it is
not, check the brake pad wear.

Changing the brake fl uid
Refer to the Warranty and Maintenance
Record for details of the interval for this
operation.

Changing the engine oil
Refer to the Warranty and Maintenance
Record for details of the interval for this
operation.
In order to maintain the reliability of the
engine and emission control system,
the use of additives in the engine oil is
prohibited.

Oil specifi cation
The oil must correspond to your engine
and conform to the manufacturer's rec-
ommendations.

Fluid specifi cation
The brake fl uid must conform to the
manufacturer's recommendations and
fulfi l the DOT4 standards.
