EC-592
< SERVICE INFORMATION >[MR18DE]
TROUBLE DIAGNOSIS
Symptom Matrix Chart
INFOID:0000000006341733
SYSTEM — BASIC ENGINE CONTROL SYSTEM
SYMPTOM
Reference
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR ACCELERATION
HIGH IDLE/LOW IDLE
ROUGH IDLE/HUNTING
IDLING VIBRATION
SLOW/NO RETURN TO IDLE
OVERHEATS/WATER TEMPERATURE HIGH
EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION
BATTERY DEAD (UNDER CHARGE)
Warranty symptom code AA AB AC AD AE AF AG AH AJ AK AL AM HA
Fuel Fuel pump circuit 11232 22 3 2EC-1014
Fuel pressure regulator system 334444444 4 EC-582
Fuel injector circuit11232 22 2EC-1009
Evaporative emission system 334444444 4 EC-526
Air Positive crankcase ventilation sys-
tem 334444444 41
EC-538
Incorrect idle speed adjustment 1 1 1 1 1EC-574
Electric throttle control actuator 112332222 2 2 EC-952,
EC-963
IgnitionIncorrect ignition timing adjustment33111 11 1EC-574
Ignition circuit 11222 22 2EC-1019
Main power supply and ground circuit 22333 33 23 EC-633
Mass air flow sensor circuit
1
12 2
222 2 EC-664,
EC-672
Engine coolant temperature sensor circuit
333
EC-683
,
EC-686
,
EC-696
Air fuel ratio (A/F) sensor 1 circuit EC-704
,
EC-710
,
EC-716
,
EC-750
,
EC-989
Throttle position sensor circuit
22EC-691
,
EC-778
,
EC-921
,
EC-923
,
EC-977
Accelerator pedal position sensor circuit 3 2 1 EC-898
,
EC-965
,
EC-970
,
EC-982
Knock sensor circuit 23EC-789
Crankshaft position sensor (POS) circuit 2 2 EC-793
Revision: May 20102011 Versa

TROUBLE DIAGNOSISEC-595
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
1 - 6: The numbers refer to the order of inspection. Va l v e
mecha-
nism
Timing chain
55555 55 5EM-160
Camshaft
EM-170
Intake valve timing controlEM-170
Intake valve
3EM-190
Exhaust valve
Exhaust Exhaust manifold/Tube/Muffler/ Gasket 55555 55 5EM-141
,
EX-10
Three way catalyst
Lubrica-
tion Oil pan/Oil strainer/Oil pump/Oil
filter/Oil gallery
55555 55 5EM-144
,
LU-21
Oil level (Low)/Filthy oil LU-17
Cooling Radiator/Hose/Radiator filler cap
55555 55 45 CO-40
Thermostat
5CO-47
Water control valve CO-51
Water pumpCO-45
Water galleryCO-34
Cooling fan
5CO-44
Coolant level (Low)/Contaminat-
ed coolant
CO-36
NVIS (NISSAN Vehicle
Immobilizer System-
NATS) 11
BL-257
SYMPTOM
Reference
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR ACCELERATION
HIGH IDLE/LOW IDLE
ROUGH IDLE/HUNTING
IDLING VIBRATION
SLOW/NO RETURN TO IDLE
OVERHEATS/WATER TEMPERATURE HIGH
EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION
BATTERY DEAD (UNDER CHARGE)
Warranty symptom code AA AB AC AD AE AF AG AH AJ AK AL AM HA
Revision: May 2010 2011 Versa

EC-596
< SERVICE INFORMATION >[MR18DE]
TROUBLE DIAGNOSIS
Engine Control Comp onent Parts Location
INFOID:0000000006341734

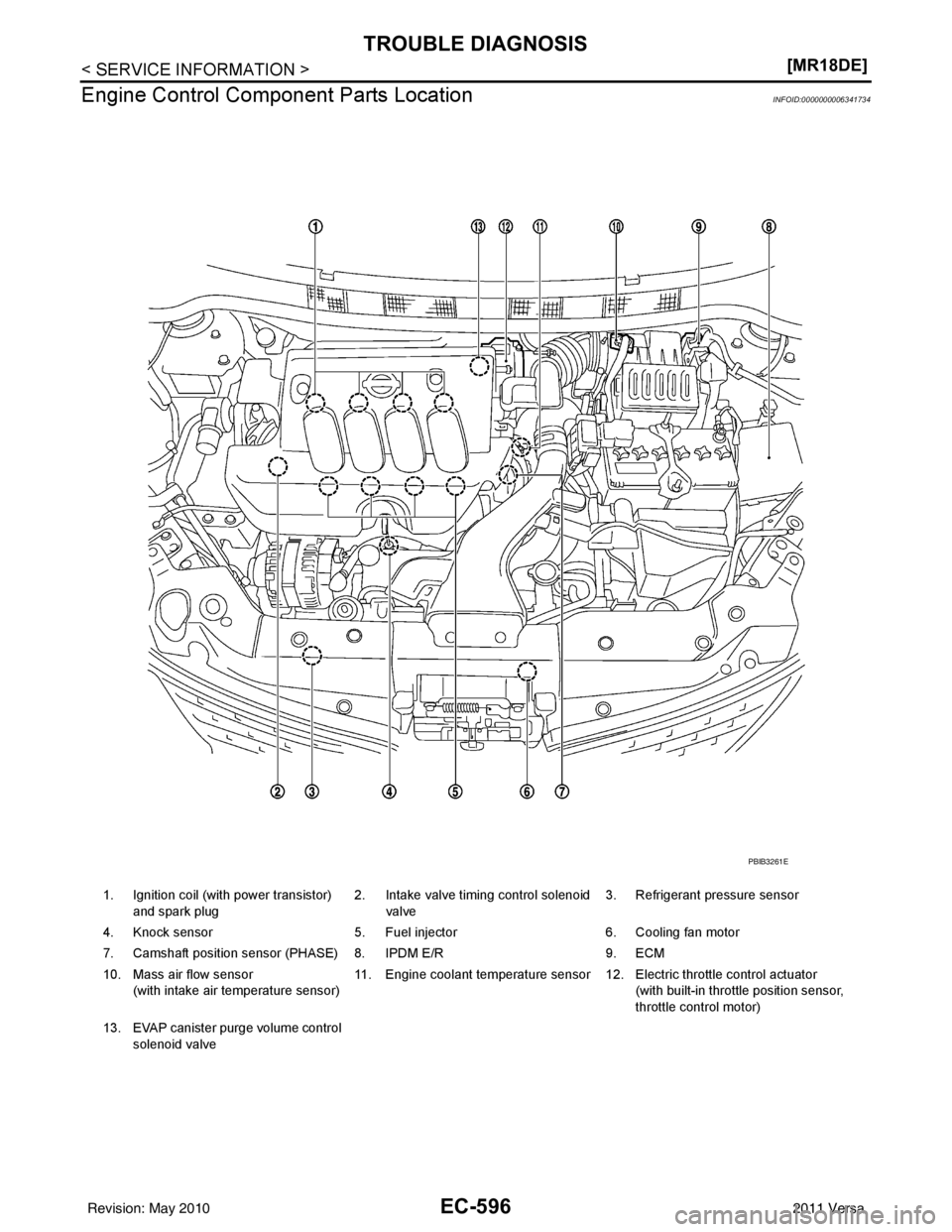

1. Ignition coil (with power transistor)
and spark plug 2. Intake valve timing control solenoid
valve 3. Refrigerant pressure sensor
4. Knock sensor 5. Fuel injector 6. Cooling fan motor
7. Camshaft position sensor (PHASE) 8. IPDM E/R 9. ECM
10. Mass air flow sensor (with intake air temperature sensor) 11. Engine coolant temperature sensor 12. Electric throttle control actuator
(with built-in throttle position sensor,
throttle control motor)
13. EVAP canister purge volume control solenoid valve
PBIB3261E
Revision: May 2010 2011 Versa

TROUBLE DIAGNOSISEC-597
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
: Vehicle front

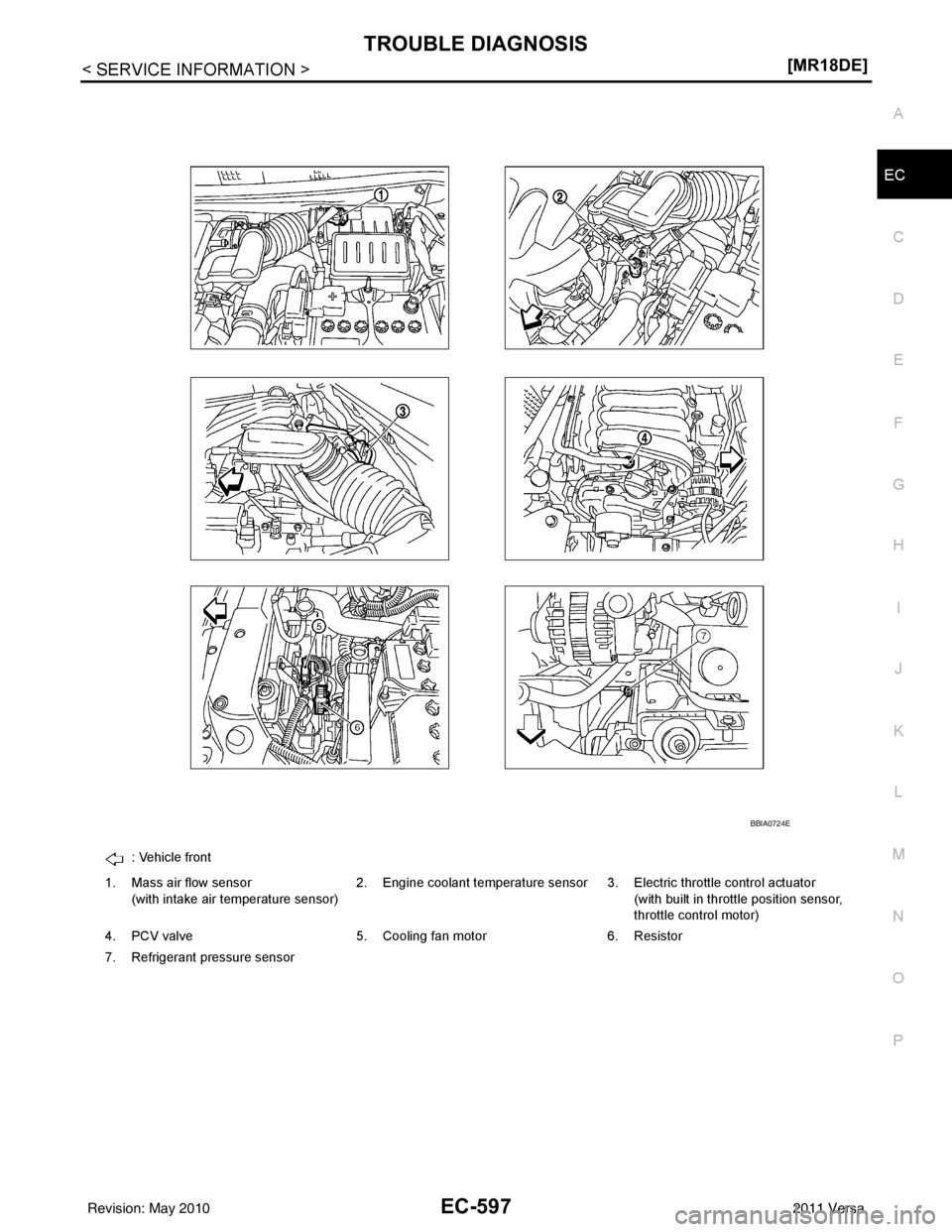

1. Mass air flow sensor (with intake air temperature sensor) 2. Engine coolant temperature sensor 3. Electric throttle control actuator
(with built in throttle position sensor,
throttle control motor)
4. PCV valve 5. Cooling fan motor6. Resistor
7. Refrigerant pressure sensor
BBIA0724E
Revision: May 2010 2011 Versa

EC-608
< SERVICE INFORMATION >[MR18DE]
TROUBLE DIAGNOSIS
33 LG Throttle position sensor 1[Ignition switch: ON]
• Engine stopped
• Shift lever: D (A/T, CVT), 1st (M/T)
• Accelerator pedal: Fully released
More than 0.36 V
[Ignition switch: ON]
• Engine stopped
• Shift lever: D (A/T, CVT), 1st (M/T)
• Accelerator pedal: Fully depressed Less than 4.75 V
34 O Throttle position sensor 2 [Ignition switch: ON]
• Engine stopped
• Shift lever: D (A/T, CVT), 1st (M/T)
• Accelerator pedal: Fully released
Less than 4.75 V
[Ignition switch: ON]
• Engine stopped
• Shift lever: D (A/T, CVT), 1st (M/T)
• Accelerator pedal: Fully depressed More than 0.36 V
36 Y Sensor ground
(Throttle position sensor) [Engine is running]
•
Warm-up condition
• Idle speed Approximately 0 V
37 W Knock sensor [Engine is running]
• Idle speed Approximately 2.5 V
38 P Engine coolant temperature
sensor [Engine is running] Approximately 0 - 4.8 V
Output voltage varies with en- gine coolant temperature.
40 — Sensor ground
(Knock sensor) [Engine is running]
•
Warm-up condition
• Idle speed Approximately 0 V
41 GR Refrigerant pressure sensor [Engine is running]
•
Warm-up condition
• Both A/C switch and blower fan switch: ON
(Compressor operates.) 1.0 - 4.0 V
42 V EVAP control system pres-
sure sensor [Ignition switch: ON]
Approximately 1.8 - 4.8 V
43 P Fuel tank temperature sen-
sor [Engine is running] Approximately 0 - 4.8 V
Output voltage varies with fuel
tank temperature
44 B Sensor ground
(Engine coolant temperature
sensor) [Engine is running]
•
Warm-up condition
• Idle speed Approximately 0 V
45 G Mass air flow sensor [Engine is running]
•
Warm-up condition
• Idle speed 0.9 - 1.2 V
[Engine is running]
• Warm-up condition
• Engine speed: 2,500 rpm 1.5 - 1.8 V
46 V Intake air temperature
sensor [Engine is running] Approximately 0 - 4.8 V
Output voltage varies with intake air temperature.
48 BR Sensor ground
(Refrigerant pressure sen-
sor) [Engine is running]
•
Warm-up condition
• Idle speed Approximately 0 V
49 W A/F sensor 1 [Engine is running]
• Warm-up condition
• E

ngine speed: 2,000 rpm Approximately 1.8 V
Output voltage varies with air fuel ratio.
Te r m i -
nal No. Wire
color Item
Condition Data (DC Voltage)
Revision: May 2010 2011 Versa

TROUBLE DIAGNOSISEC-613
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O*: This function is not necessary in the usual service procedure.
SELF-DIAG RESULTS MODE
Self Diagnostic Item
Regarding items of DTC and 1st trip DTC, refer to EC-542, "Emission-related Diagnostic Information".
Freeze Frame Data and 1st Trip Freeze Frame Data
*: The items are the same as those of 1st trip freeze frame data.
DATA MONITOR MODE
Monitored Item
TARGET IGN TIM ADJ*
• IDLE CONDITION When adjusting target ignition tim-
ing
VIN REGISTRATION • IN THIS MODE, VIN IS REGISTERED IN ECM. When registering VIN in ECM
Work item
Condition Usage
Freeze frame data item* Description
DIAG TROUBLE CODE
[PXXXX] • The engine control com
ponent part/control system has a trouble code, it is displayed as PXXXX.
(Refer to EC-504
)
FUEL SYS-B1 • “Fuel injection system status” at the moment a malfunction is detected is displayed.
• One mode in the following is displayed.
Mode2: Open loop due to detected system malfunction
Mode3: Open loop due to driving conditions (power enrichment, deceleration enleanment)
Mode4: Closed loop - using oxygen sensor(s) as feedback for fuel control
Mode5: Open loop - has not yet satisfied condition to go to closed loop
CAL/LD VALUE [%] • The calculated load value at the moment a malfunction is detected is displayed.
COOLANT TEMP
[ ° C] or [ °F] • The engine coolant temperature at the moment a malfunction is detected is displayed.
L-FUEL TRM-B1 [%] • “Long-term fuel trim” at the moment a malfunction is detected is displayed.
• The long-term fuel trim indicates much more gradual feedback compensation to the base fuel schedule
than short-term fuel trim.
S-FUEL TRM-B1 [%] • “Short-term fuel trim” at the moment a malfunction is detected is displayed.
• The short-term fuel trim indicates dynamic or instantaneous feedback compensation to the base fuel
schedule.
ENGINE SPEED [rpm] • The engine sp eed at the moment a malfunction is de tected is displayed.
VEHICL SPEED
[km/h] or [mph] • The vehicle speed at the moment a malfunction is detected is displayed.
ABSOL TH-P/S [%] • The throttle valve opening angle at the moment a malfunction is detected is displayed.
B/FUEL SCHDL [ms] • The ba se fuel schedule at the moment a malfunction is detected is displayed.
INT/A TEMP SE
[ ° C] or [ °F] • The intake air temperature at the moment a malfunction is detected is displayed.
FUEL SYS-B2
• These items are displayed but are not applicable to this model.
L-FUEL TRM-B2 [%]
S-FUEL TRM-B2 [%]
INT MANI PRES [kPa]
COMBUST CONDITION
Revision: May 2010
2011 Versa

EC-614
< SERVICE INFORMATION >[MR18DE]
TROUBLE DIAGNOSIS
Monitored item [Unit]
Description Remarks
ENG SPEED
[rpm] • Indicates the engine speed computed from the signals of the
crankshaft position sensor (POS) and camshaft position sen-
sor (PHASE). • Accuracy becomes poor if engine speed
drops below the idle rpm.
• If the signal is interrupted while the engine is
running, an abnormal value may be indicat-
ed.
MAS A/F SE-B1
[V] • The signal voltage of the mass air flow sensor is displayed. • When the engine is stopped, a certain value
is indicated.
• When engine is running, specification range is indicated in "SPEC".
B/FUEL SCHDL
[ms] • “Base fuel schedule” indicates the fuel injection pulse width
programmed into ECM, prior to any learned on board correc-
tion. • When engine is running, specification range
is indicated in "SPEC".
A/F ALPHA-B1
[%] • The mean value of the air-fuel ratio feedback correction fac-
tor per cycle is indicated. • When the engine is stopped, a certain value
is indicated.
• This data also includes the data for the air/
fuel ratio learning control.
• When engine is running, specification range is indicated in "SPEC".
COOLAN TEMP/S
[ ° C] or [ °F] • The engine coolant temperature (determined by the signal
voltage of the engine coolant temperature sensor) is dis-
played. • When the engine coolant temperature sen-
sor is open or short-circuited, ECM enters
fail-safe mode. The engine coolant temper-
ature determined by the ECM is displayed.
A/F SEN1 (B1)
[V] • The A/F signal computed from the input signal of the A/F sen-
sor 1 is displayed.
HO2S2 (B1)
[V] • The signal voltage of the heated oxygen sensor 2 is dis-
played.
HO2S2 MNTR(B1)
[RICH/LEAN] • Display of heated oxygen sensor 2 signal:
RICH: means the amount of oxygen after three way catalyst
is relatively small.
LEAN: means the amount of oxygen after three way catalyst
is relatively large. • When the engine is stopped, a certain value
is indicated.
VHCL SPEED SE
[km/h] or [mph] • The vehicle speed computed from the vehicle speed signal is
displayed.
BATTERY VOLT
[V] • The power supply voltage of ECM is displayed.
ACCEL SEN 1
[V] • The accelerator pedal position sensor signal voltage is dis-
played. • ACCEL SEN 2 signal is converted by ECM
internally. Thus, it differs from ECM terminal
voltage signal.
ACCEL SEN 2
[V]
TP SEN 1-B1
[V]
• The throttle position sensor signal voltage is displayed. • TP SEN 2-B1 signal is converted by ECM in-
ternally. Thus, it differs from ECM terminal
voltage signal.
TP SEN 2-B1
[V]
FUEL T/TMP SE
[
° C] or [ °F] • The fuel temperature (determined by the signal voltage of the
fuel tank temperature sensor) is displayed.
INT/A TEMP SE
[ ° C] or [ °F] • The intake air temperature (determined by the signal voltage
of the intake air temperature sensor) is indicated.
EVAP SYS PRES
[V ] •
T
he signal voltage of EVAP control system pressure sensor
is displayed.
FUEL LEVEL SE
[V] • The signal voltage of the fuel level sensor is displayed.
START SIGNAL
[ON/OFF] • Indicates start signal status [ON/OFF] computed by the ECM
according to the signals of engine speed and battery voltage. • After starting the engine, [OFF] is displayed
regardless of the starter signal.
CLSD THL POS
[ON/OFF] • Indicates idle position [ON/OFF] computed by the ECM ac-
cording to the accelerator pedal position sensor signal.
Revision: May 2010 2011 Versa

TROUBLE DIAGNOSISEC-617
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
NOTE:
Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.
ACTIVE TEST MODE
Test Item
HO2 S2 DIAG2 (B1)
[INCMP/CMPLT]
• Indicates DTC P0139 self-diagnosis (slow response) condi-
tion.
INCMP: Self-diagnosis is incomplete.
CMPLT: Self-diagnosis is complete.
A/F SEN1
DIAG1(B1)
[INCMP/CMPLT] • Indicates DTC P015A or P015B self-diagnosis condition.
INCMP: Self-diagnosis is incomplete.
CMPLT: Self-diagnosis is complete.
A/F SEN1
DIAG2(B1)
[INCMP/CMPLT] • Indicates DTC P014C or P014D self-diagnosis condition.
INCMP: Self-diagnosis is incomplete.
CMPLT: Self-diagnosis is complete.
A/F SEN1
DIAG3(B1)
[ABSNT/PRSNT] • Indicates DTC P014C, P014D, P015A or P015B self-diagno-
sis condition.
ABSNT: The vehicle condition is not within the diagnosis
range.
PRSNT: The vehicle condition is within the diagnosis range.
Monitored item [Unit]
Description Remarks
Test itemCondition JudgmentCheck item (Remedy)
FUEL INJEC-
TION • Engine: Return to the original
trouble condition
• Change the amount of fuel injec- tion using CONSULT-III. If trouble symptom disappears, see
CHECK ITEM.
• Harness and connectors
• Fuel injector
• Air fuel ratio (A/F) sensor 1
IGNITION TIM-
ING • Engine: Return to the original
trouble condition
• Timing light: Set
• Retard the ignition timing using CONSULT-III. If trouble symptom disappears, see
CHECK ITEM.
• Perform Idle Air Volume Learning.
POWER BAL-
ANCE • Engine: After warming up, idle the
engine.
• A/C switch OFF
• Shift lever: P or N (A/T, CVT), Neutral (M/T)
• Cut off each fuel injector signal one at a time using CONSULT-III. Engine runs rough or dies.
• Harness and connectors
• Compression
• Fuel injector
• Power transistor
•Spark plug
• Ignition coil
COOLING FAN* • Ignition switch: ON
• Turn the cooling fan “LOW”, “HI”
and “OFF” with CONSULT-III. Cooling fan moves and stops.
• Harness and connectors
• Cooling fan relay
• Cooling fan motor
ENG COOLANT
TEMP • Engine: Return to the original
trouble condition
• Change the engine coolant tem-
perature using CONSULT-III. If trouble symptom disappears, see
CHECK ITEM. • Harness and connectors
• Engine coolant temperature sen-
sor
• Fuel injector
FUEL PUMP RE-
LAY • Ignition switch: ON
(Engine stopped)
• Turn the fuel pump relay ON and
OFF using CONSULT-III and lis-
ten to operating sound. Fuel pump relay makes the operat-
ing sound.
• Harness and connectors
• Fuel pump relay
PURG VOL
CONT/V • Engine: After warming up, run en-
gine at 1,500 rpm.
• Change the EVAP canister purge volume control solenoid valve
opening percent using CON-
SULT-III. Engine speed changes according to
the opening percent.
• Harness and connectors
• EVAP canister purge volume con-
trol solenoid valve
FUEL/T TEMP
SEN • Change the fuel tank temperature using CONSULT-III.
Revision: May 2010
2011 Versa
