2011 NISSAN LATIO hatch back

HARNESSPG-49
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
PG
N
O P
BODY NO. 2 HARNESS (HATCHBACK)
C3 B7 — : Body ground A4 B23 W/16 : To M15
C4 B8 W/3 : Front door switch LH A4 B24 W/24 : To M16
B3 B9 Y/12 : Air bag diagnosis sensor unit G4 B25 BR/6 : Rear combination lamp LH
B3 B10 Y/2 : Front LH side air bag module E3 B26 Y/2 : LH side curtain air bag module
B4 B13 W/4 : Seat belt buckle switch LH F3 B32 BR/2 : Intelligent key warning buzzer (trunk)
ABMIA1595GB
Revision: May 2010 2011 Versa

HARNESSPG-57
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
PG
N
O P
BACK DOOR HARNESS (HATCHBACK)
ABMIA2325GB
G3 D400 W/2 : To B133 D4 D408 BR/2 : Back door opener switch
G3 D401 W/12 : To B134 E4 D409 B/1 : Condenser-1
E4 D402 — : Body ground C2 D410 — : Body ground
D3 D404 W/3 : Rear wiper mo torE3 D411 B/1 : Condenser-1
D4 D405 W/4 : Back door lock assembly E1 D412 B/1 : Rear window defogger
Revision: May 2010 2011 Versa

SUNROOFRF-29
< ON-VEHICLE REPAIR >
C
DE
F
G H
J
K L
M A
B
RF
N
O P

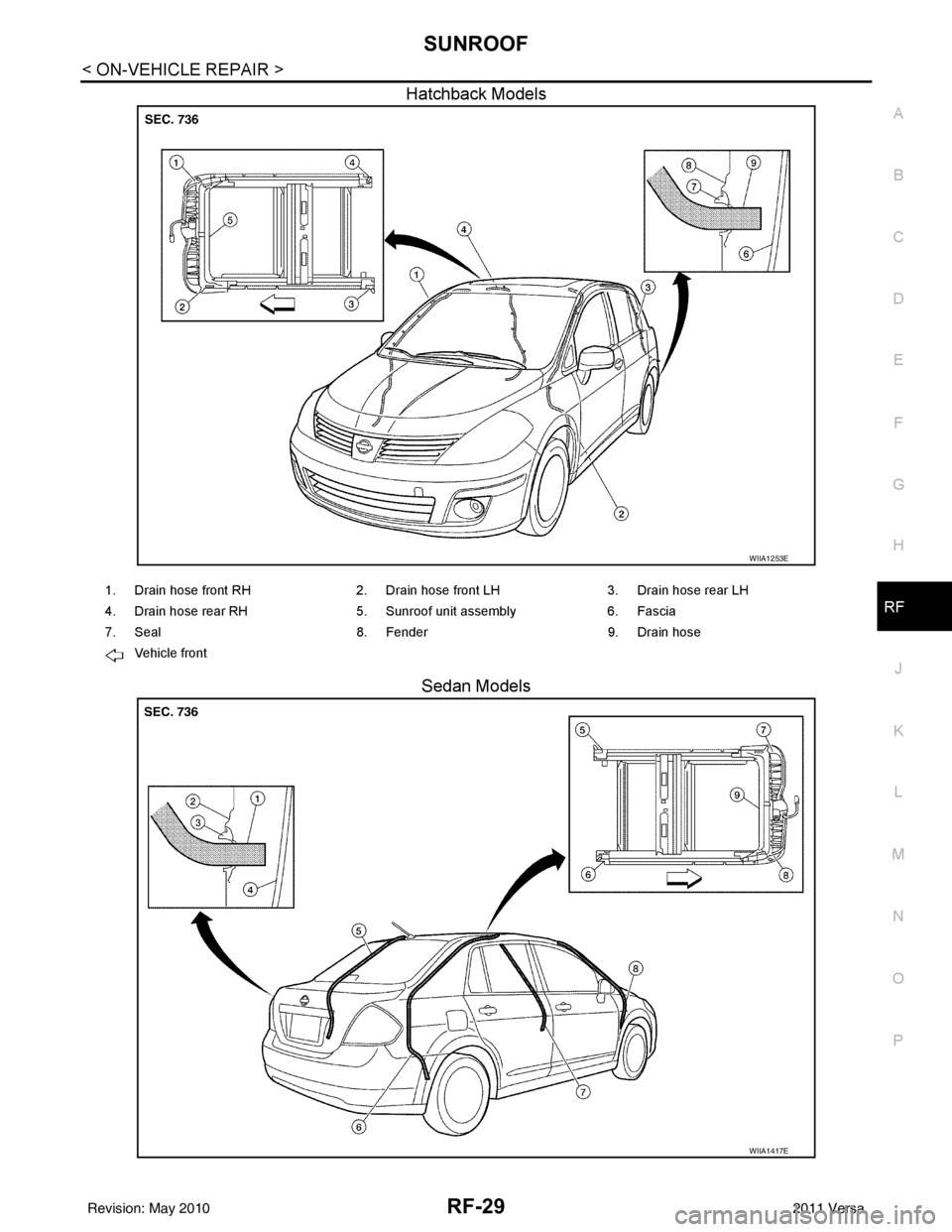

Hatchback Models
Sedan Models
WIIA1253E
1. Drain hose front RH 2. Drain hose front LH3. Drain hose rear LH
4. Drain hose rear RH 5. Sunroof unit assembly 6. Fascia
7. Seal 8. Fender9. Drain hose
Vehicle front
WIIA1417E
Revision: May 2010 2011 Versa

SB-6
< ON-VEHICLE REPAIR >
SEAT BELTS
Removal and Installation of Rear Seat Belt
INFOID:0000000005929622

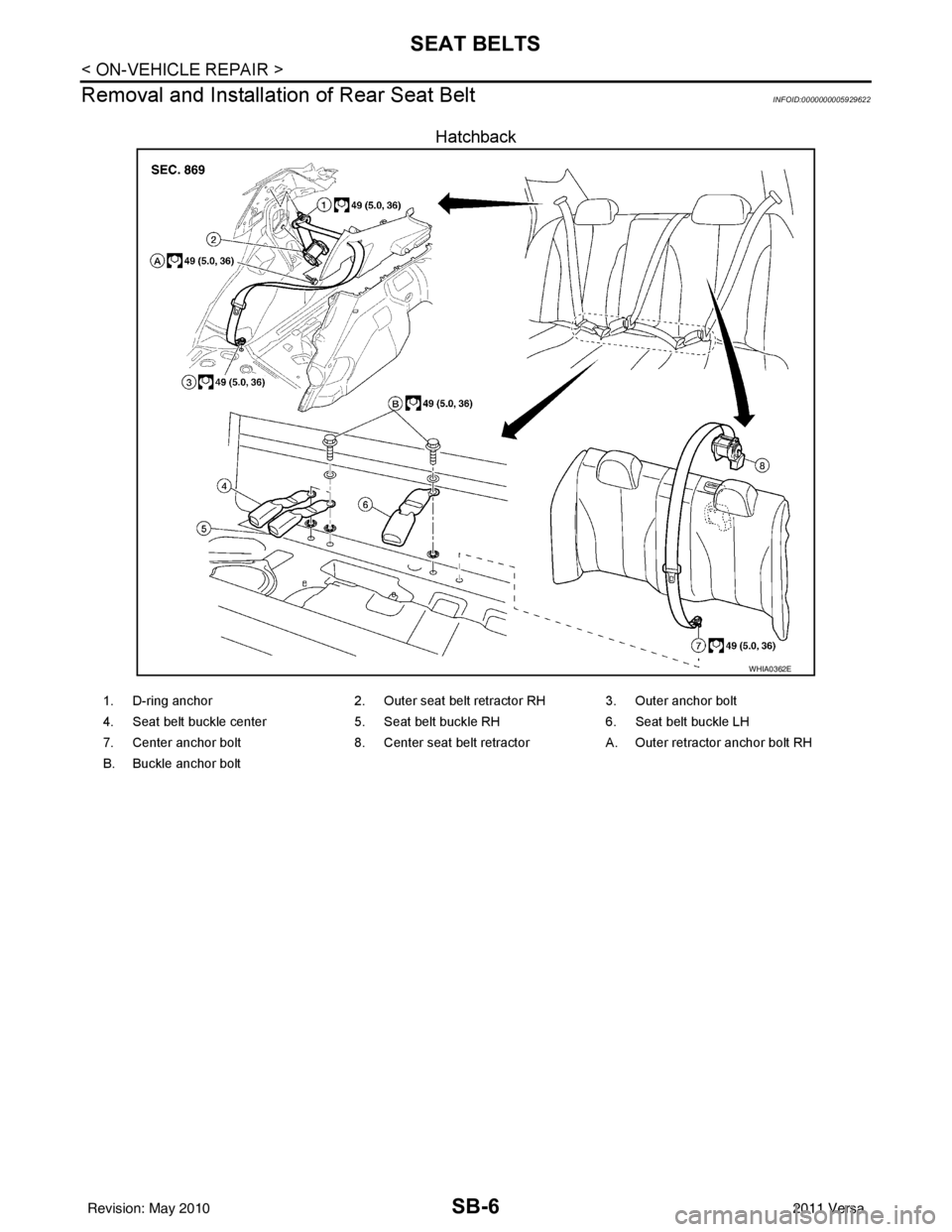

Hatchback
WHIA0362E
1. D-ring anchor 2. Outer seat belt retractor RH 3. Outer anchor bolt
4. Seat belt buckle center 5. Seat belt buckle RH 6. Seat belt buckle LH
7. Center anchor bolt 8. Center seat belt retractorA. Outer retractor anchor bolt RH
B. Buckle anchor bolt
Revision: May 2010 2011 Versa

SEAT BELTSSB-7
< ON-VEHICLE REPAIR >
C
DE
F
G
I
J
K L
M A
B
SB
N
O P

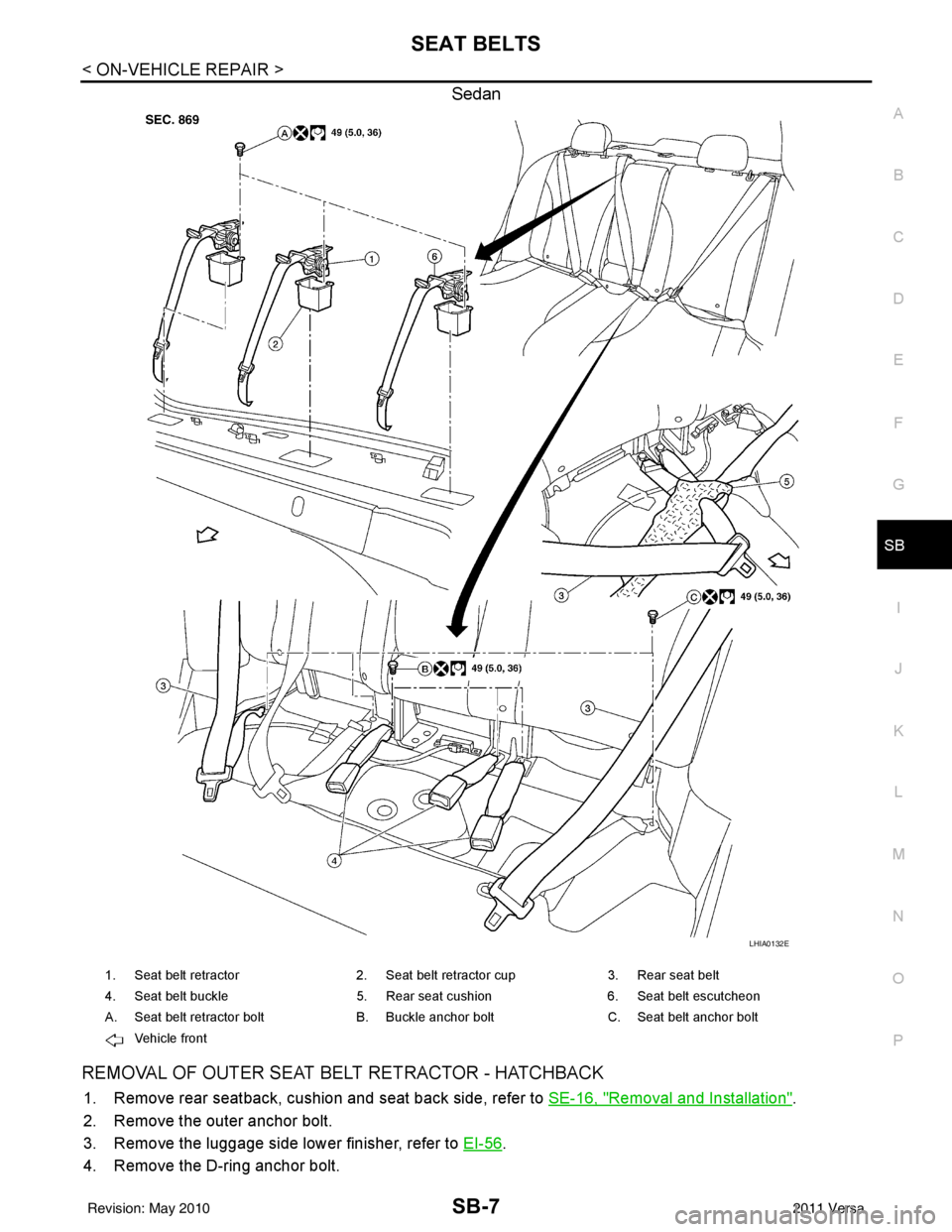

Sedan
REMOVAL OF OUTER SEAT BELT RETRACTOR - HATCHBACK
1. Remove rear seatback, cushion and seat back side, refer to SE-16, "Removal and Installation".
2. Remove the outer anchor bolt.
3. Remove the luggage side lower finisher, refer to EI-56
.
4. Remove the D-ring anchor bolt.
LHIA0132E
1. Seat belt retractor 2. Seat belt retractor cup3. Rear seat belt
4. Seat belt buckle 5. Rear seat cushion6. Seat belt escutcheon
A. Seat belt retractor bolt B. Buckle anchor boltC. Seat belt anchor bolt
Vehicle front
Revision: May 2010 2011 Versa

SB-8
< ON-VEHICLE REPAIR >
SEAT BELTS
5. Remove the outer retractor anchor bolt, then remove outer seat belt retractor.
INSTALLATION OF OUTER SEAT BELT RETRACTOR - HATCHBACK
Installation is in the reverse order of removal.
REMOVAL OF OUTER SEAT BELT RETRACTOR - SEDAN
1. Remove rear seat cushion, refer to SE-22, "Removal and Installation".
2. Remove outer seat belt anchor bolt.
3. Release the seat belt escutcheon, then remove from belt.
4. Remove rear parcel shelf finisher, refer to EI-47, "
Removal and Installation".
5. Remove outer seat belt retractor bolt, then remove outer seat belt retractor.
INSTALLATION OF OUTER SEAT BELT RETRACTOR - SEDAN
Installation is in the reverse order of removal. Refer to EI-47, "Removal and Installation".
REMOVAL OF CENTER SEAT BELT RETRACTOR - HATCHBACK
1. Remove and disassemble the rear seat cushion, refer to SE-16, "Removal and Installation".
2. Remove the center seat belt retractor.
INSTALLATION OF CENTER SEAT BELT RETRACTOR - HATCHBACK
Installation is in the reverse order of removal.
REMOVAL OF CENTER SEAT BELT RETRACTOR - SEDAN
1. Lift front edge of rear seat cushion and slide forward.
2. Remove center seat belt anchor bolt (A), then pull center seat
belt through rear seat cushion (1).
3. Release the seat belt escutcheon, then remove from belt.
4. Remove rear parcel shelf finisher, refer to EI-47, "
Removal and
Installation".
5. Remove the bolt, then remove center seat belt retractor.
INSTALLATION OF CENTER SEAT BELT RETRACTOR - SEDAN
Installation is in the reverse order of removal.
REMOVAL OF SEAT BELT BUCKLE
1. Remove rear seat cushion, refer to SE-16, "Removal and Installation" (60:40 Split Fold Down Seat -
Hatchback), SE-22, "
Removal and Installation" (60:40 Split Fold Down Seat - Sedan).
2. Remove buckle anchor bolt, then remove seat belt buckle.
INSTALLATION OF SEAT BELT BUCKLE
Installation is in the reverse order of removal.
Seat Belt InspectionINFOID:0000000005929623
AFTER A COLLISION
WARNING:
Inspect all seat belt assemblies in cluding retractors and attaching hardware after any collision.
NISSAN recommends that all seat belt assemblies in use during a collision be replaced unless the col-
lision was minor and the belts show no damage and continue to operate properly. Failure to do so
could result in serious personal injury in an acci dent. Seat belt assemblies not in use during a colli-
sion should also be replaced if either damage or im proper operation is noted. Seat belt pre-tensioner
should be replaced even if the seat belts are not in use during a frontal collision in which the air bags
are deployed.
Replace any seat belt assembly (including anchor bolts) if:
WIIA1380E
Revision: May 2010 2011 Versa

REAR SEATSE-15
< SERVICE INFORMATION >
C
DE
F
G H
J
K L
M A
B
SE
N
O P
REAR SEAT

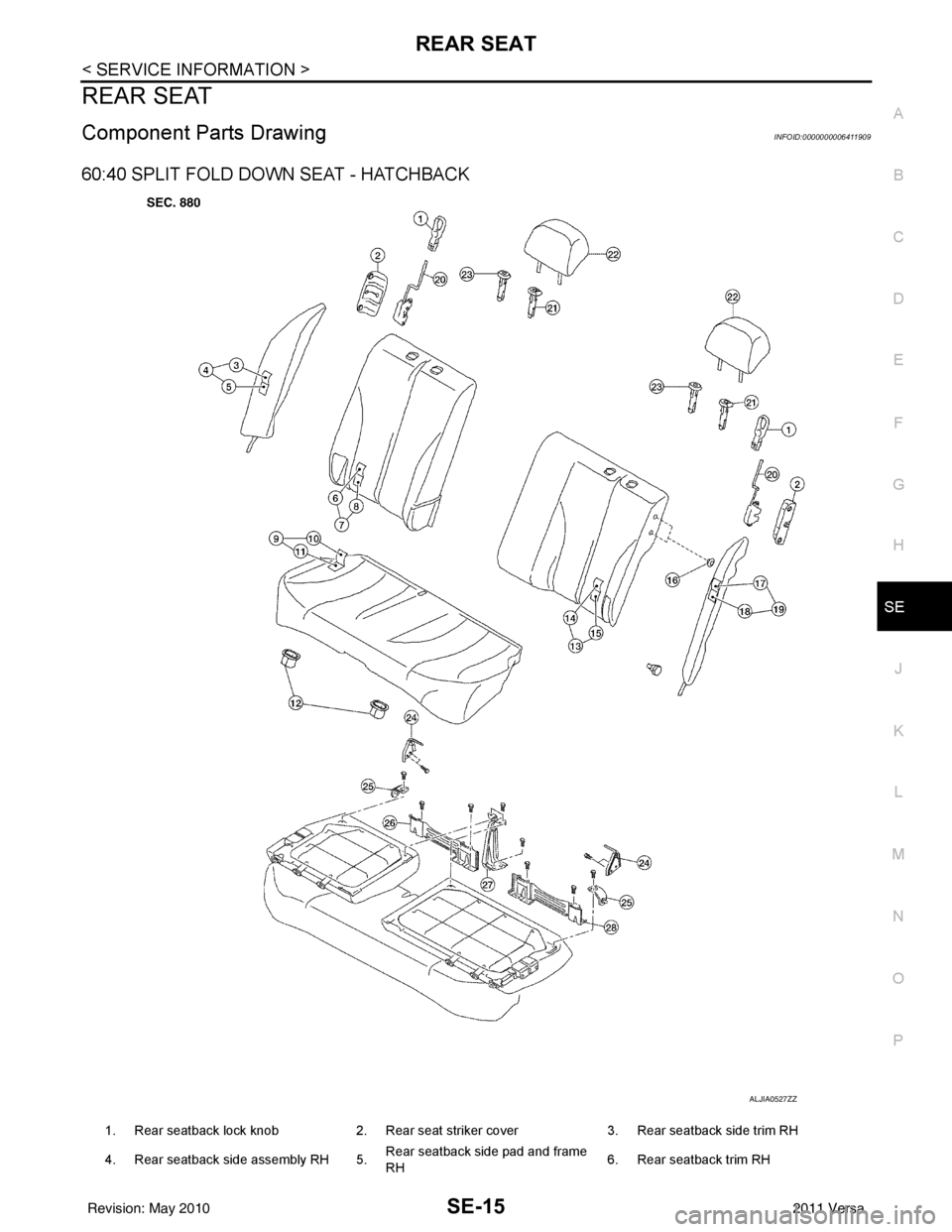

Component Parts DrawingINFOID:0000000006411909
60:40 SPLIT FOLD DOWN SEAT - HATCHBACK
ALJIA0527ZZ
1. Rear seatback lock knob 2. Rear seat striker cover3. Rear seatback side trim RH
4. Rear seatback side assembly RH 5. Rear seatback side pad and frame
RH6. Rear seatback trim RH
Revision: May 2010
2011 Versa

SE-16
< SERVICE INFORMATION >
REAR SEAT
Removal and Installation
INFOID:0000000006415821
CAUTION:
When removing and in stalling, use shop cloths to protect parts from damage.
60:40 SPLIT FOLD DOWN SEAT - HATCHBACK
Removal
1. Pull seat cushion up, then remove the seat cushion from the
seat cushion hook.
2. Remove the center seatbelt anchor bolt (A) from under the seat.
3. Remove the seatback mounting bolts in the reverse order as shown from the right rear seat back brackets.
7. Rear seatback assembly RH 8. Rear seatback pad RH 9. Seat cushion assembly
10. Rear seat cushion trim 11. Rear seat cushion pad and frame 12. Rear seat cushion hook (body)
13. Rear seatback assembly LH 14. Rear seatback trim LH 15. Rear seatback pad LH
16. Trim clip 17. Rear seatback side trim RH 18. Rear seatback side pad and frame
LH
19. Rear seatback side assembly LH 20. Rear seat lock assembly 21. Locking headrest holder
22. Rear headrest 23. Free headrest holder 24. Rear seat cushion hook (seat)
25. Rear seatback side bracket 26. Rear seat striker RH 27. Rear seatback center bracket
28. Rear seat striker LH
PIIB4085J
WIIA1234E
WIIA1287E
Revision: May 2010 2011 Versa
