Panel listThere is a difference between the items that you
can select as large or small panels.No.Item Large panel Small panel
1 Engine Coolant Temperature **
2 Engine Oil Temperature **
3 Engine Oil Pressure **
4 Transmission Oil Temperature **
5 Transmission Oil Pressure **
6 Boost **
7 Speed —*
8 Fuel/Range **
9 Fuel Flow **
10 Recent Fuel Economy **
11 Torque split —*
12 Accel pedal —*
13 Brake pedal —*
14 Steering —*
15 Cornering g-force **
16 Accel/Braking g-force **
17 Total g-force **
18 Clock —*
19 Reset the CUSTOM VIEW #(1-4) to Default *
*
INFO:
. Each panel selected will be saved
. Panels will remain saved in the system even
after the engine is turned off.
. Two of the same panels cannot be displayed
at the same time.
. Two of the same panels of different sizes
cannot be displayed at the same time.
. Panels that have not been assigned a
display item remain empty.
Initializing displayThe modified display will return to the screen
that was first configured.1. Display the screen you would like to initialize
and push .
Multi function meter
9-9

Black plate (258,1)
Model "R35-N" EDITED: 2009/ 10/ 30
2. Select the panel and push.3. Highlight [Reset the CUSTOM VIEW 1 to
Default] and push .
INFO:
When operating the touch panel to initialize the
display, the same procedure used to select a
meter is performed.“Select using touch panel” page 9-8
PERFORMANCE AND VEHICLE IN-
FORMATION PANELThe appearance of each panel varies. The way
that large panels and small panels are displayed
also differs, even when the same mechanical
information is displayed.Engine coolant temperatureDisplays the temperature of the engine coolant.
Large panel screenSmall panel screen
INFO:
. When this meter displays in red, reduce the
operating speed of the engine (RPMs) and
drive at a reduced speed.
. Driving while the engine coolant tempera-
ture is high may cause engine damage.
. When screens other than the FUNCTION
screen are displayed, the screen will not
change, even if the meter values register red
zone readings.
9-10
Multi function meter

Black plate (259,1)
Model "R35-N" EDITED: 2009/ 10/ 30
Engine oil temperatureDisplays the engine oil temperature reading.
Large panel screenSmall panel screen
INFO:
. When this meter displays in red, reduce the
operating speed of the engine (RPMs) and
drive at a reduced speed.
. Driving while the engine oil temperature is
high may cause engine damage.
. When screens other than the FUNCTION
screen are displayed, the screen will not
change, even if the meter values register red
zone readings.
Engine oil pressureDisplays the engine oil pressure. The reading on
this dial will change based on the engine speed
(RPM) and oil temperature.
Large panel screenSmall panel screen
Multi function meter
9-11

Black plate (260,1)
Model "R35-N" EDITED: 2009/ 10/ 30
Transmission oil temperatureDisplays the transmission oil temperature.
Large panel screenSmall panel screen
INFO:
. When this meter displays in red, reduce the
vehicle speed and drive at a reduced speed.
. Driving while the transmission oil tempera-
ture is high may cause transmission da-
mage.
. After first starting the engine, it may take a
short period of time for the oil pressure to
stabilize. This is not a malfunction.
. When screens other than the FUNCTION
screen are displayed, the screen will not
change, even if the meter values register red
zone readings.
Transmission oil pressureDisplays the transmission oil pressure.
Large panel screenSmall panel screen
9-12
Multi function meter

Black plate (261,1)
Model "R35-N" EDITED: 2009/ 10/ 30
INFO:
. The oil pressure gauge may momentarily
have a high reading, but this is a result of oil
pressure suppression and does not indicate
a malfunction.
. If the meter reads red frequently, have your
vehicle inspected at your NISSAN dealer or
GT-R certified NISSAN dealer.
. When screens other than the FUNCTION
screen are displayed, the screen will not
change, even if the meter values register red
zone readings.
BoostDisplays engine charging pressure.
Large panel screenSmall panel screen
SpeedDisplays the vehicle speed. This can only be
displayed as a small panel.
Small panel screen
Multi function meter
9-13

Black plate (262,1)
Model "R35-N" EDITED: 2009/ 10/ 30
Fuel/RangeDisplay the amount of fuel remaining and the
estimated cruising range.
Large panel screenSmall panel screen
NOTICE
Even when traveling a distance for
which there is a sufficient amount of
fuel, refuel when the gas gauge ap-
proaches empty or when the fuel warn-
ing light illuminates.
Fuel flowDisplays the amount of fuel injected into the
engine by the fuel injector.
Large panel screenSmall panel screen
Recent fuel economyIn the large panel, this meter displays the
timeline of fuel consumption for each minute
over the past twenty minutes. In the small panel,
this meter displays fuel consumption readings
over the past twenty seconds.
Large panel screenSmall panel screen
9-14
Multi function meter

Black plate (268,1)
Model "R35-N" EDITED: 2009/ 10/ 30

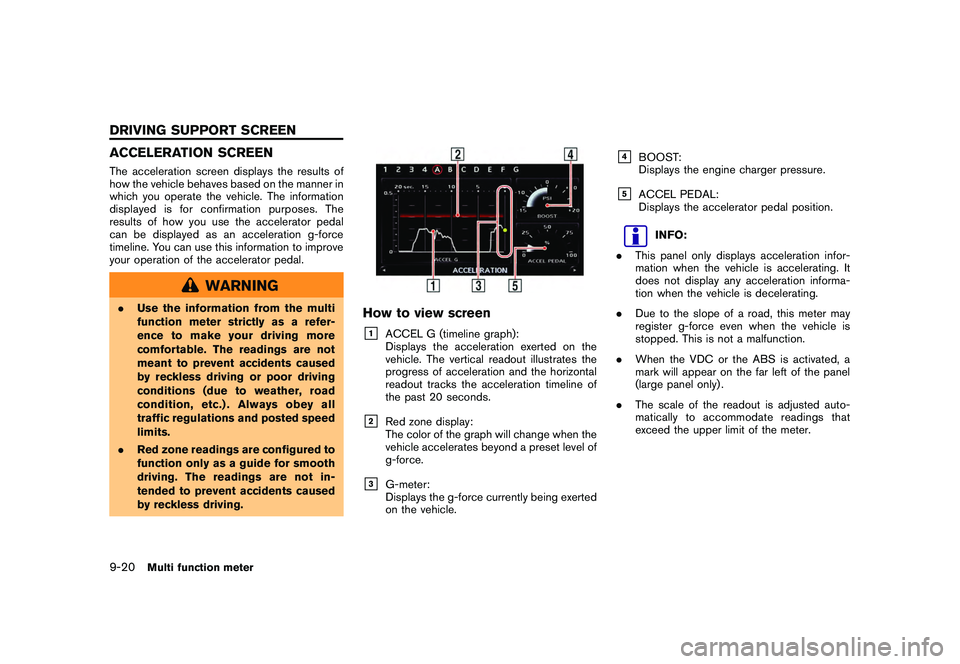

ACCELERATION SCREENThe acceleration screen displays the results of
how the vehicle behaves based on the manner in
which you operate the vehicle. The information
displayed is for confirmation purposes. The
results of how you use the accelerator pedal
can be displayed as an acceleration g-force
timeline. You can use this information to improve
your operation of the accelerator pedal.
WARNING
.Use the information from the multi
function meter strictly as a refer-
ence to make your driving more
comfortable. The readings are not
meant to prevent accidents caused
by reckless driving or poor driving
conditions (due to weather, road
condition, etc.) . Always obey all
traffic regulations and posted speed
limits.
. Red zone readings are configured to
function only as a guide for smooth
driving. The readings are not in-
tended to prevent accidents caused
by reckless driving.
How to view screen&1
ACCEL G (timeline graph):
Displays the acceleration exerted on the
vehicle. The vertical readout illustrates the
progress of acceleration and the horizontal
readout tracks the acceleration timeline of
the past 20 seconds.
&2
Red zone display:
The color of the graph will change when the
vehicle accelerates beyond a preset level of
g-force.
&3
G-meter:
Displays the g-force currently being exerted
on the vehicle.
&4
BOOST:
Displays the engine charger pressure.
&5
ACCEL PEDAL:
Displays the accelerator pedal position.
INFO:
. This panel only displays acceleration infor-
mation when the vehicle is accelerating. It
does not display any acceleration informa-
tion when the vehicle is decelerating.
. Due to the slope of a road, this meter may
register g-force even when the vehicle is
stopped. This is not a malfunction.
. When the VDC or the ABS is activated, a
mark will appear on the far left of the panel
(large panel only) .
. The scale of the readout is adjusted auto-
matically to accommodate readings that
exceed the upper limit of the meter.
9-20
Multi function meter
DRIVING SUPPORT SCREEN

Black plate (275,1)
Model "R35-N" EDITED: 2009/ 10/ 30
Changing gears for engine braking or
power:&1
The best gear for driving power is selected,
but in this example, it is also the least fuel
efficient gear.
FUEL ECONOMY SCREENThe FUEL ECONOMY screen allows you to
verify the fuel efficiency of your driving. Use this
information to make your driving more fuel
efficient.How to view screen&1
FUEL EFFICIENCY (timeline of fuel econ-
omy):
Displays the fuel economy timeline of the
past 20 minutes. The vertical readout
displays the fuel economy (on a scale of
10) and the horizontal readout displays the
timeline of the last 20 minutes.
&2
RECENT FUEL ECON. (fuel economy over
a given section):
Displays the fuel economy for the past 20
seconds while the vehicle is being driven.
&3
FUEL EFFICIENCY (fuel economy level (real
time)):
Displays the current fuel economy level
(measured on a scale of 10) . The higher
this value is, the better the fuel economy
level.
INFO:
Driving at a constant speed (no acceleration or
deceleration) will result in improved fuel econ-
omy.
Using result screens to improve
drivingThis section explains how to use the timeline
information confirmed from the result screens.
Use this information to make your driving more
fuel efficient.
INFO:
The eco driving level readings are estimations.
The actual fuel economy may differ.
Multi function meter
