2011 NISSAN FRONTIER Owner´s Manual

Electric control type (if so equipped)
The outside mirror remote control will operate
only when the ignition switch is placed in the
ACC or ON position.
Move the small switch
1to select the right or left
mirror. Adjust each mirror to the desired position
using the large switch
2.
Heated mirrors (if so equipped)
Some outside mirrors can be heated to defrost,
defog, or de-ice for improved visibility. For addi-
tional information, see “Rear window and outside
mirror defroster switch” in the “Instruments and
controls” section of this manual.
Foldable outside mirrors
Pull the outside mirror toward the door to fold it.
TAILGATE
Opening the tailgate
Pull the tailgate handle upward and lower the
tailgate. The support cables hold the tailgate
open.
When closing the tailgate, make sure the latches
are securely locked.
Do not drive the vehicle with the tailgate
down, unless equipped with NISSAN’s Bed
Extender (accessory) or equivalent in the
extended position.
LPD0237LPD0259LPD0270
TRUCK BOX
3-16Pre-driving checks and adjustments

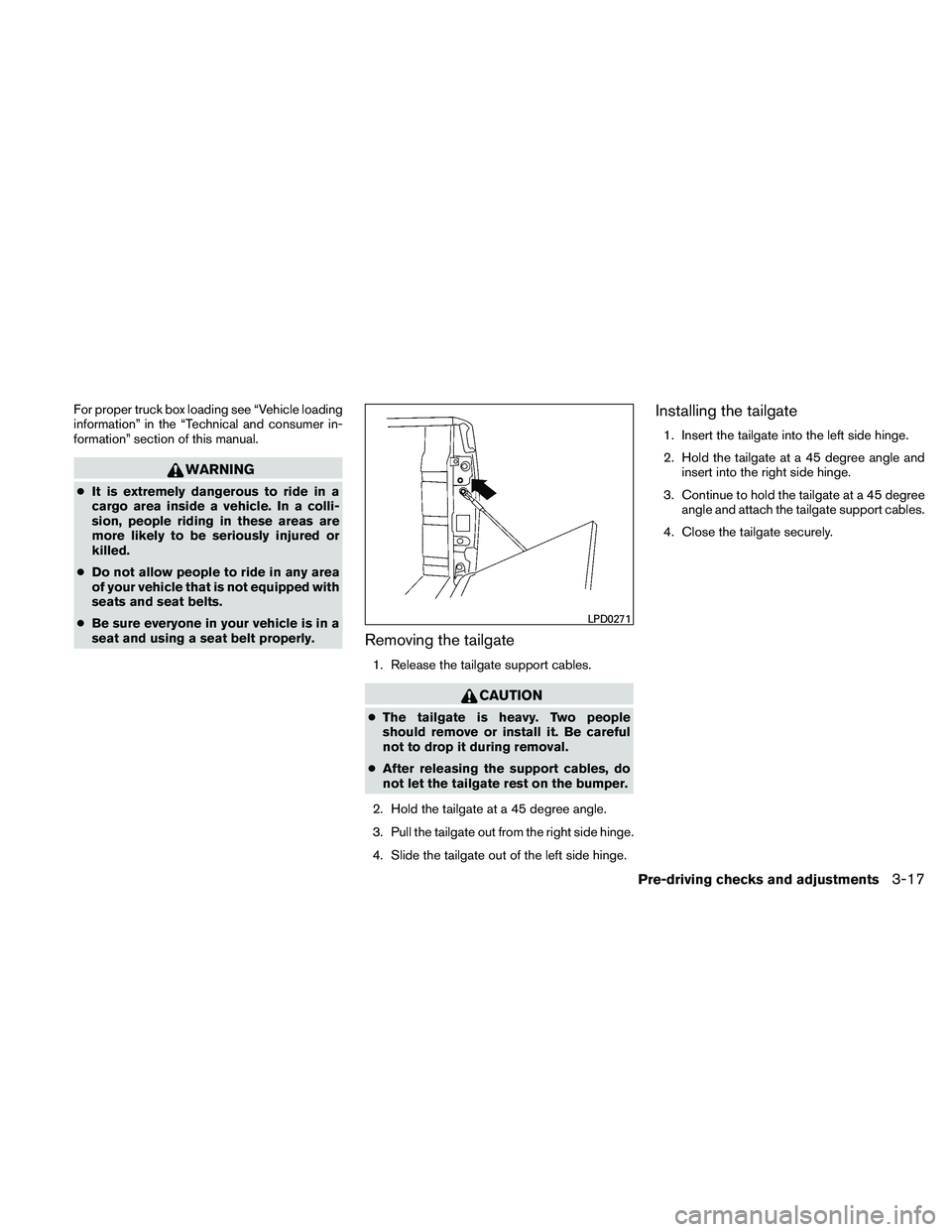

For proper truck box loading see “Vehicle loading
information” in the “Technical and consumer in-
formation” section of this manual.
WARNING
●It is extremely dangerous to ride in a
cargo area inside a vehicle. In a colli-
sion, people riding in these areas are
more likely to be seriously injured or
killed.
● Do not allow people to ride in any area
of your vehicle that is not equipped with
seats and seat belts.
● Be sure everyone in your vehicle is in a
seat and using a seat belt properly.
Removing the tailgate
1. Release the tailgate support cables.
CAUTION
● The tailgate is heavy. Two people
should remove or install it. Be careful
not to drop it during removal.
● After releasing the support cables, do
not let the tailgate rest on the bumper.
2. Hold the tailgate at a 45 degree angle.
3. Pull the tailgate out from the right side hinge.
4. Slide the tailgate out of the left side hinge.
Installing the tailgate
1. Insert the tailgate into the left side hinge.
2. Hold the tailgate at a 45 degree angle and insert into the right side hinge.
3. Continue to hold the tailgate at a 45 degree angle and attach the tailgate support cables.
4. Close the tailgate securely.
LPD0271
Pre-driving checks and adjustments3-17

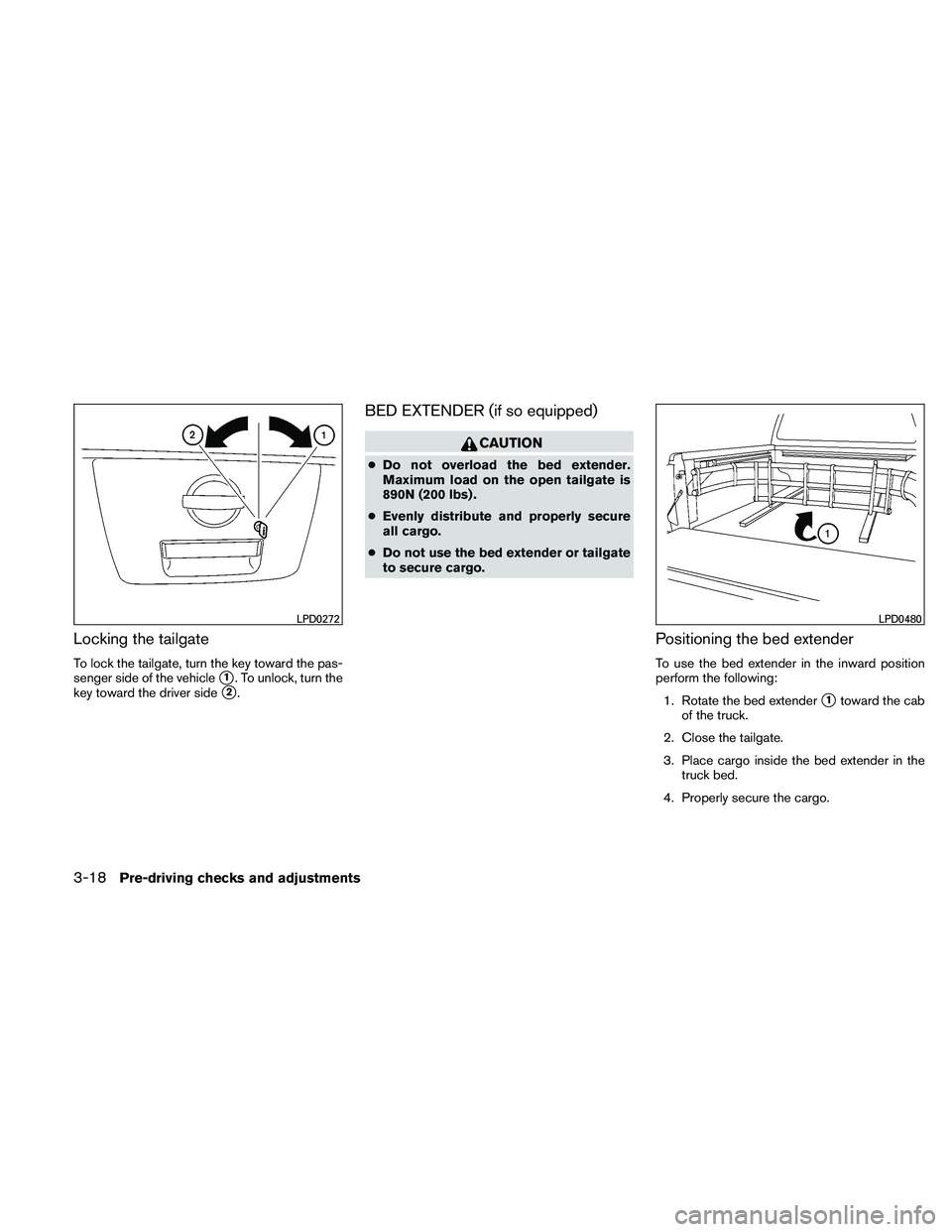

Locking the tailgate
To lock the tailgate, turn the key toward the pas-
senger side of the vehicle
1. To unlock, turn the
key toward the driver side
2.
BED EXTENDER (if so equipped)
CAUTION
● Do not overload the bed extender.
Maximum load on the open tailgate is
890N (200 lbs) .
● Evenly distribute and properly secure
all cargo.
● Do not use the bed extender or tailgate
to secure cargo.
Positioning the bed extender
To use the bed extender in the inward position
perform the following:
1. Rotate the bed extender
1toward the cab
of the truck.
2. Close the tailgate.
3. Place cargo inside the bed extender in the truck bed.
4. Properly secure the cargo.
LPD0272LPD0480
3-18Pre-driving checks and adjustments

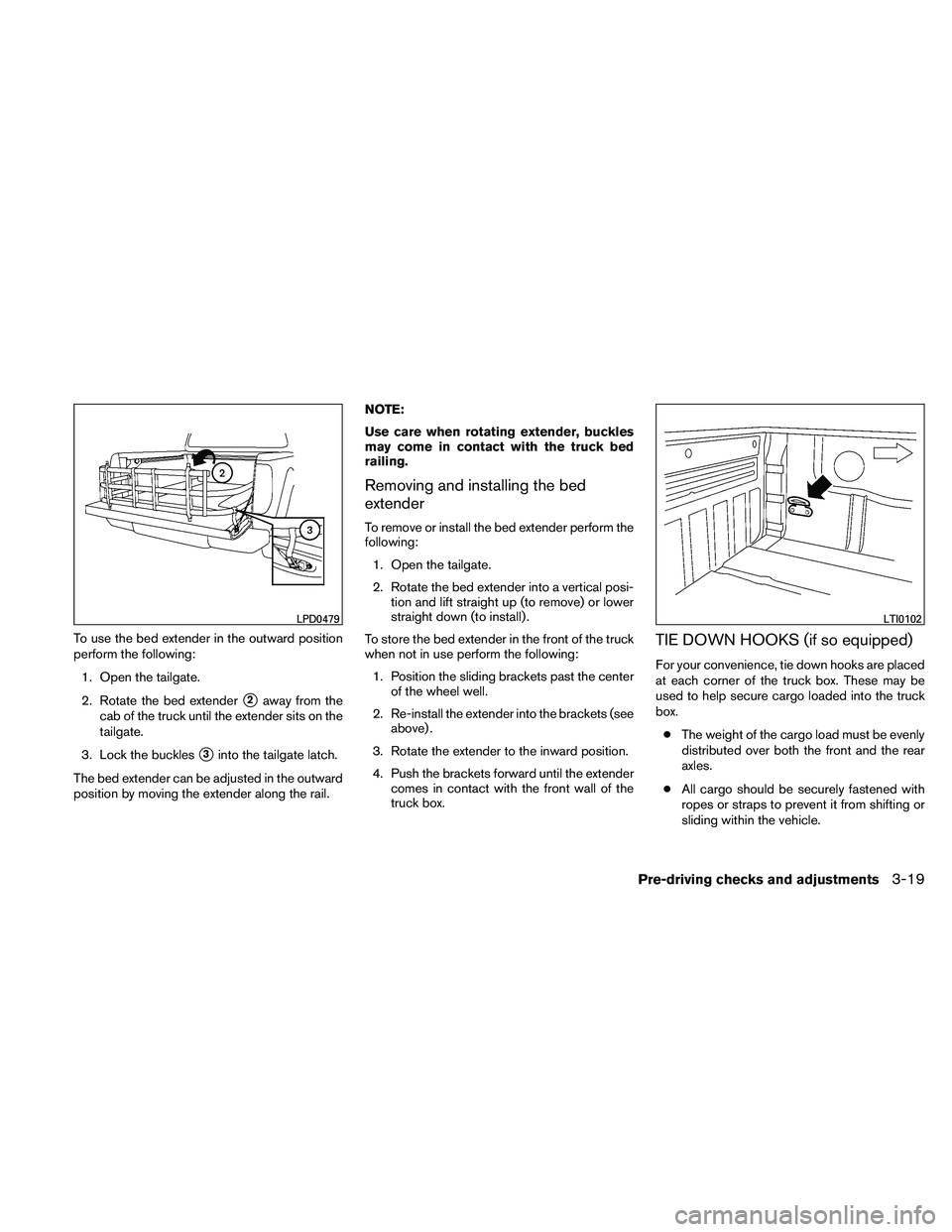

To use the bed extender in the outward position
perform the following:1. Open the tailgate.
2. Rotate the bed extender
2away from the
cab of the truck until the extender sits on the
tailgate.
3. Lock the buckles
3into the tailgate latch.
The bed extender can be adjusted in the outward
position by moving the extender along the rail. NOTE:
Use care when rotating extender, buckles
may come in contact with the truck bed
railing.
Removing and installing the bed
extender
To remove or install the bed extender perform the
following:
1. Open the tailgate.
2. Rotate the bed extender into a vertical posi- tion and lift straight up (to remove) or lower
straight down (to install) .
To store the bed extender in the front of the truck
when not in use perform the following: 1. Position the sliding brackets past the center of the wheel well.
2. Re-install the extender into the brackets (see above) .
3. Rotate the extender to the inward position.
4. Push the brackets forward until the extender comes in contact with the front wall of the
truck box.
TIE DOWN HOOKS (if so equipped)
For your convenience, tie down hooks are placed
at each corner of the truck box. These may be
used to help secure cargo loaded into the truck
box.
● The weight of the cargo load must be evenly
distributed over both the front and the rear
axles.
● All cargo should be securely fastened with
ropes or straps to prevent it from shifting or
sliding within the vehicle.
LPD0479LTI0102
Pre-driving checks and adjustments3-19

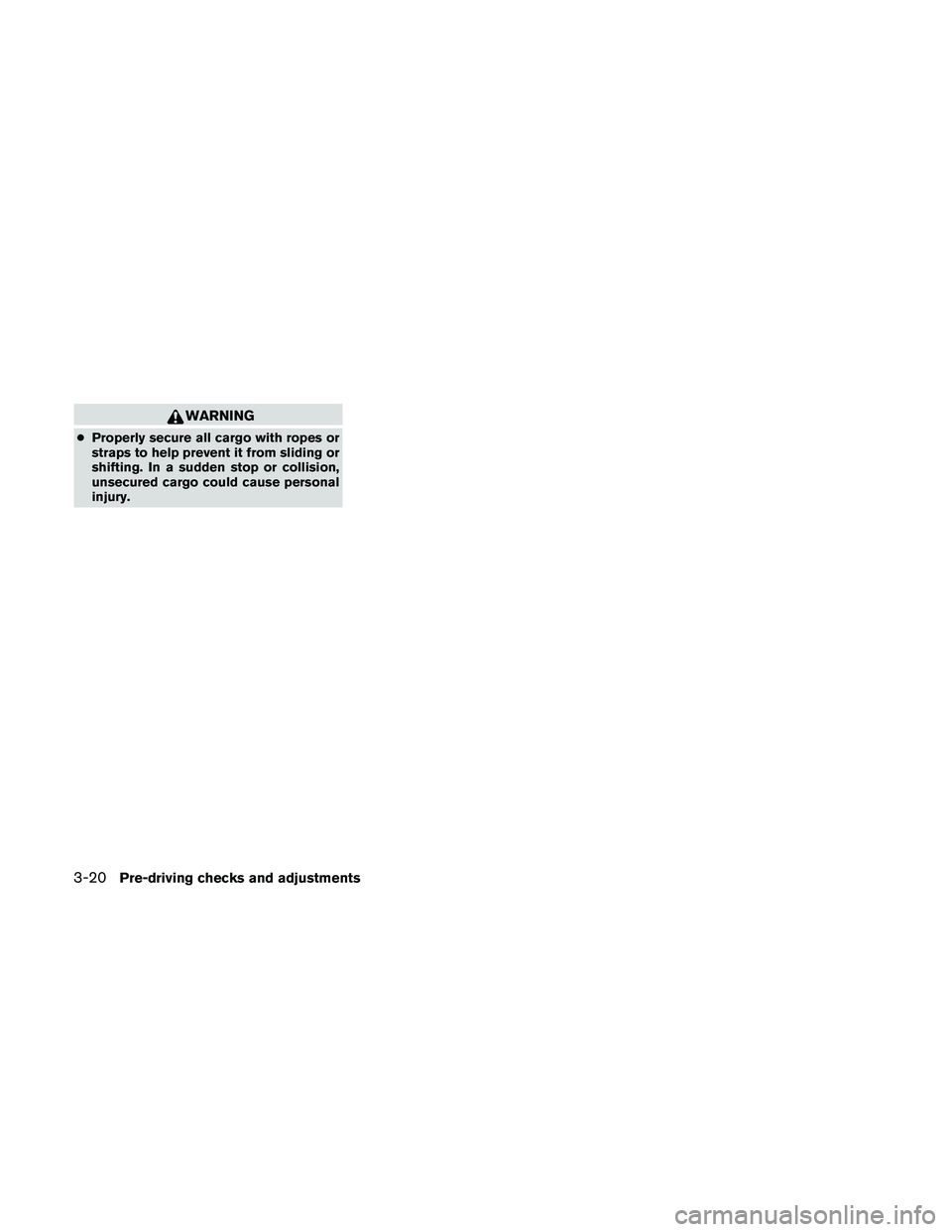

WARNING
●Properly secure all cargo with ropes or
straps to help prevent it from sliding or
shifting. In a sudden stop or collision,
unsecured cargo could cause personal
injury.
3-20Pre-driving checks and adjustments

4 Heater, air conditioner, audio and phone
systems
Vents............................................4-2
Heater and air conditioner (manual) (Type A) ..........4-2
Controls .......................................4-3
Heater operation ...............................4-4
Air conditioner operation (if so equipped) .........4-5
Air flow charts ..................................4-7
Heater and air conditioner (manual) (Type B) .........4-10
Controls ...................................... 4-10
Heater operation .............................. 4-11
Air conditioner operation .......................4-12
Air flow charts ................................. 4-14
Servicing air conditioner (if so equipped) ............4-17
Audio system .................................... 4-17
Radio (if so equipped) ......................... 4-17
FM radio reception ............................ 4-17
AM radio reception ............................ 4-18
Satellite radio reception (if so equipped) .........4-18
Audio operation precautions ....................4-18FM/AM radio with compact disc (CD) player
(Type A and B) (if so equipped)
.................4-25
FM/AM/SAT radio with compact disc (CD)
changer (if so equipped) .......................4-29
CD care and cleaning .......................... 4-35
Steering wheel switch for audio control
(if so equipped) ............................... 4-35
Antenna ...................................... 4-36
Car phone or CB radio ............................ 4-36
Bluetooth Hands-Free Phone System
(if so equipped) .................................. 4-37
Regulatory Information ......................... 4-39
Using the system .............................. 4-39
Control buttons ............................... 4-41
Getting started ................................ 4-42
List of voice commands ........................ 4-44
Speaker Adaptation (SA) mode .................4-48
Manual control ................................ 4-50
Troubleshooting guide ......................... 4-51

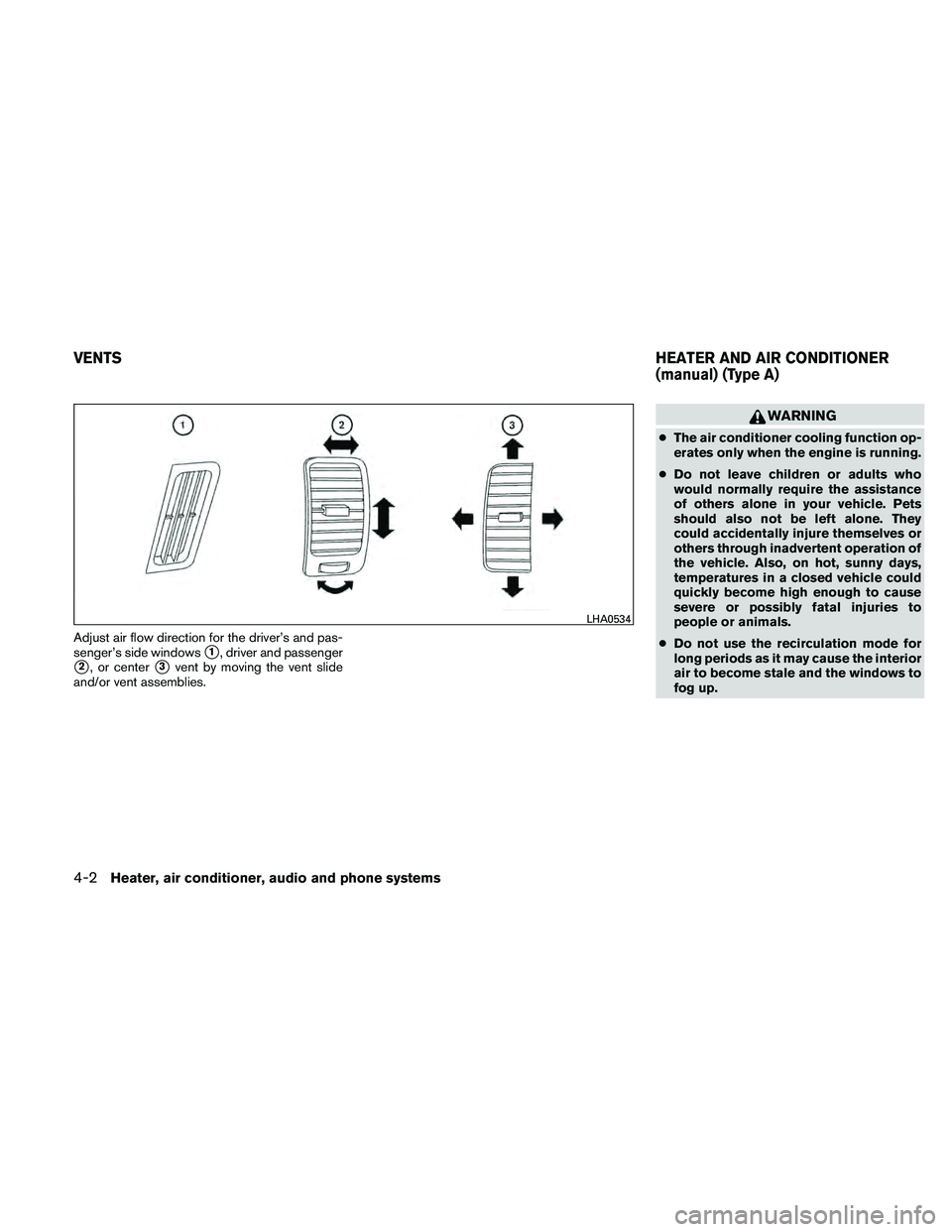

Adjust air flow direction for the driver’s and pas-
senger’s side windows
1, driver and passenger
2, or center3vent by moving the vent slide
and/or vent assemblies.
WARNING
● The air conditioner cooling function op-
erates only when the engine is running.
● Do not leave children or adults who
would normally require the assistance
of others alone in your vehicle. Pets
should also not be left alone. They
could accidentally injure themselves or
others through inadvertent operation of
the vehicle. Also, on hot, sunny days,
temperatures in a closed vehicle could
quickly become high enough to cause
severe or possibly fatal injuries to
people or animals.
● Do not use the recirculation mode for
long periods as it may cause the interior
air to become stale and the windows to
fog up.
LHA0534
VENTS HEATER AND AIR CONDITIONER
(manual) (Type A)
4-2Heater, air conditioner, audio and phone systems

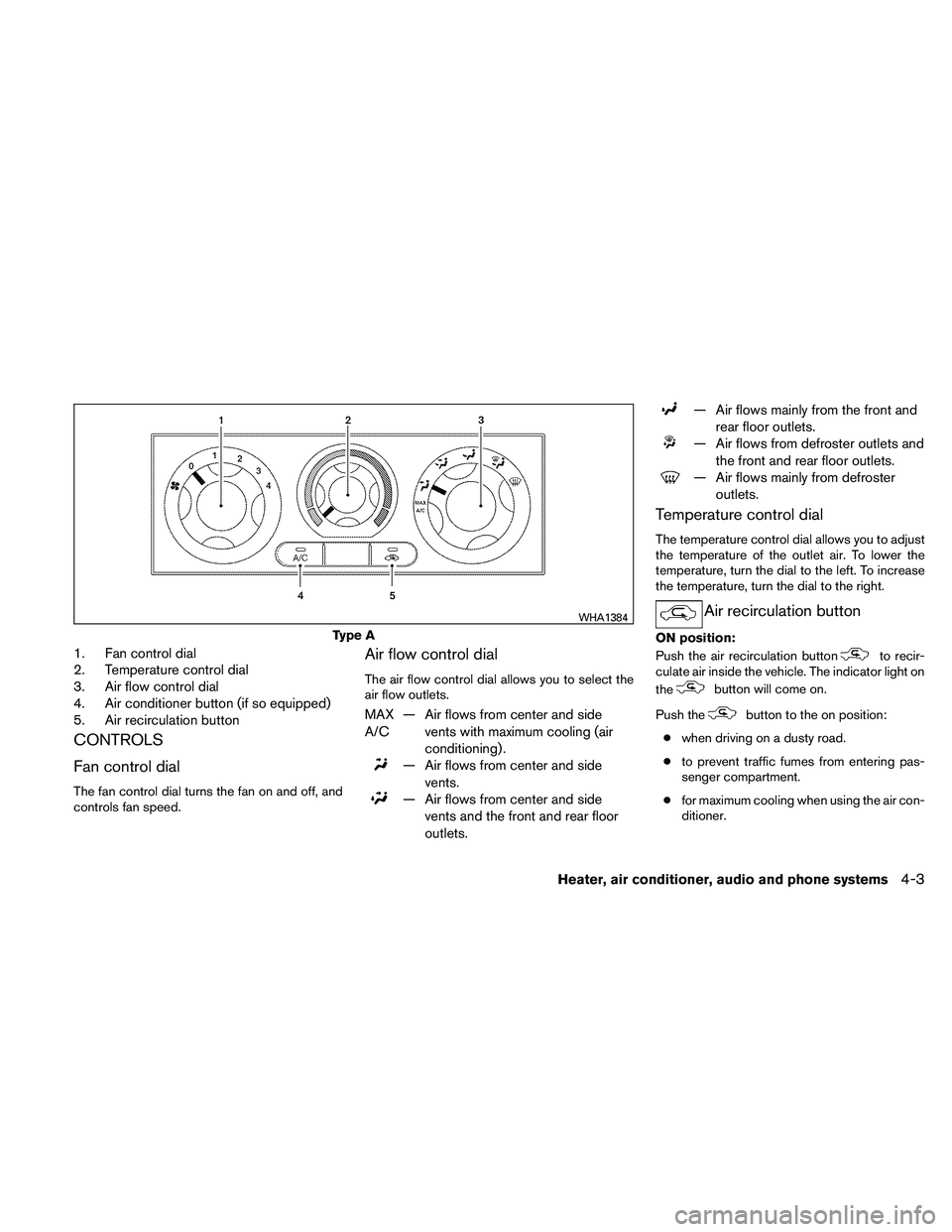

1. Fan control dial
2. Temperature control dial
3. Air flow control dial
4. Air conditioner button (if so equipped)
5. Air recirculation button
CONTROLS
Fan control dial
The fan control dial turns the fan on and off, and
controls fan speed.
Air flow control dial
The air flow control dial allows you to select the
air flow outlets.
MAX
A/C— Air flows from center and side
vents with maximum cooling (air
conditioning) .
— Air flows from center and sidevents.
— Air flows from center and sidevents and the front and rear floor
outlets.
— Air flows mainly from the front andrear floor outlets.
— Air flows from defroster outlets andthe front and rear floor outlets.
— Air flows mainly from defrosteroutlets.
Temperature control dial
The temperature control dial allows you to adjust
the temperature of the outlet air. To lower the
temperature, turn the dial to the left. To increase
the temperature, turn the dial to the right.
Air recirculation button
ON position:
Push the air recirculation button
to recir-
culate air inside the vehicle. The indicator light on
the
button will come on.
Push the
button to the on position:
● when driving on a dusty road.
● to prevent traffic fumes from entering pas-
senger compartment.
● for maximum cooling when using the air con-
ditioner.
Type A
WHA1384
Heater, air conditioner, audio and phone systems4-3
