2011 NISSAN FRONTIER seats

Table of
ContentsIllustrated table of contents
Safety—Seats, seat belts and supplemental restraint system
Instruments and controls
Pre-driving checks and adjustments
Heater, air conditioner, audio and phone systems
Starting and driving
In case of emergency
Appearance and care
Maintenance and do-it-yourself
Technical and consumer information
Index
0
1
2
3
4
5
6
7
8
9
10

1. 2nd row seat belts (P. 1-13)
2. Roof-mounted curtain side-impact androllover supplemental air bag (P. 1-61)
3. Front seat belts (P. 1-13)
4. Head restraints (P. 1-6)
5. Supplemental front-impact air
bags (P. 1-68)
6. Seats (P. 1-2)
7. Occupant classification sensor
(pressure sensor) (P. 1-68)
8. Seat belt with pretensioners (P. 1-74)
9. Front seat-mounted side-impact
supplemental air bag (P. 1-61)
10. LATCH (Lower Anchors and Tethers for
CHildren) system (P. 1-25)
11. Top tether strap anchor (P. 1-27)
See the page number indicated in paren-
theses for operating details.
WII0135
AIR BAGS, SEAT BELTS AND CHILD
RESTRAINTS
0-2Illustrated table of contents

1. Map lights (if so equipped) (P. 2-52)
2. Sun visors (P. 3-13)
3. Rearview mirror (if soequipped) (P. 3-14)
4. Vents (P. 4-2)
5. Glove box (P. 2-41)
6. Shift selector (automatic transmission, if
so equipped) (P. 5-13)
7. Cup holders (P. 2-43)
8. Front seats (P. 1-2)
9. Console box (P. 2-41)
10. Rear seats (P. 1-11)
11. Flat tire/Jacking equipment
storage (P. 6-3)
See the page number indicated in paren-
theses for operating details.
WII0054
PASSENGER COMPARTMENT
Illustrated table of contents0-5

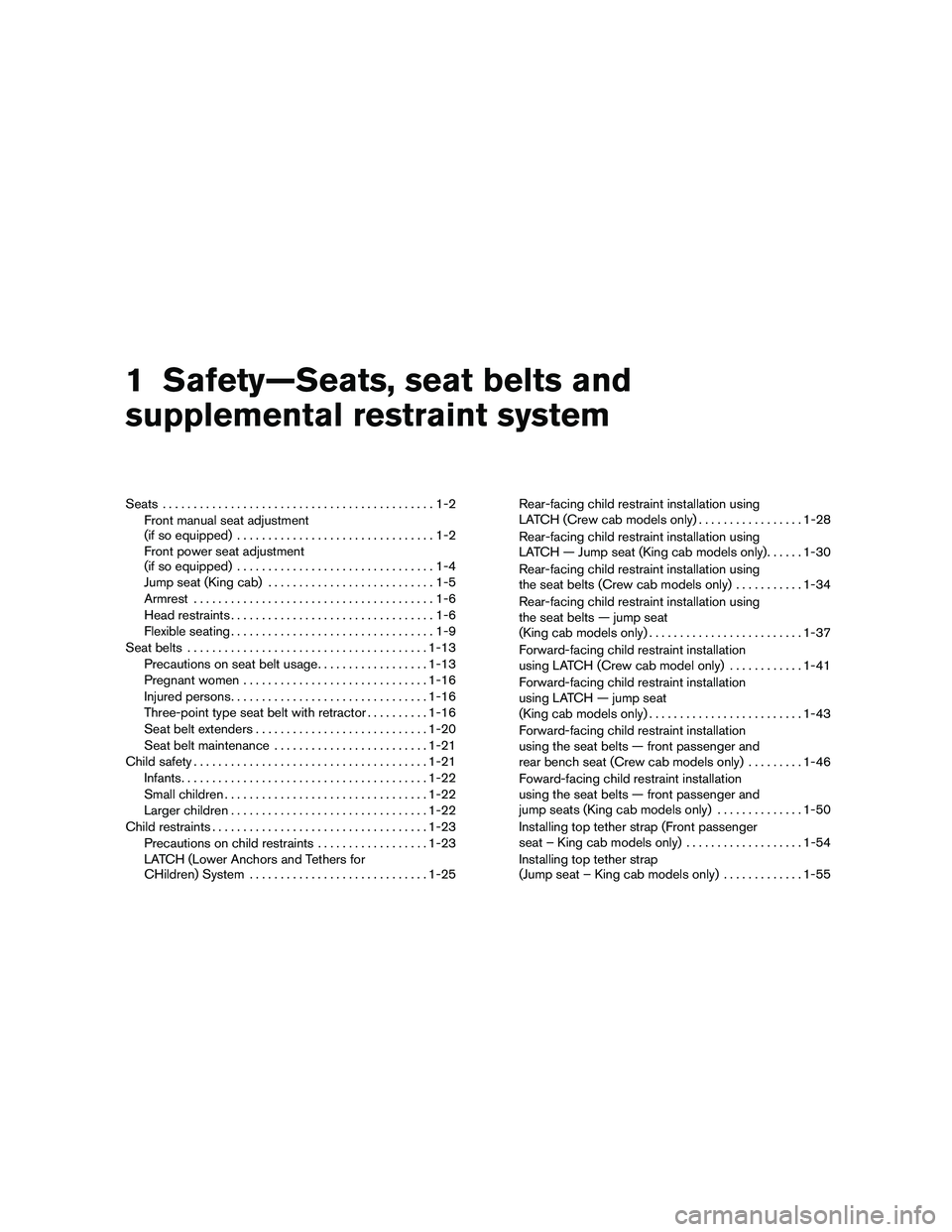

1 Safety—Seats, seat belts and
supplemental restraint system
Seats............................................1-2
Front manual seat adjustment
(if so equipped) ................................1-2
Front power seat adjustment
(if so equipped) ................................1-4
Jump seat (King cab) ...........................1-5
Armrest .......................................1-6
Head restraints .................................1-6
Flexible seating .................................1-9
Seat belts ....................................... 1-13
Precautions on seat belt usage ..................1-13
Pregnant women .............................. 1-16
Injured persons ................................ 1-16
Three-point type seat belt with retractor ..........1-16
Seat belt extenders ............................ 1-20
Seat belt maintenance ......................... 1-21
Child safety ...................................... 1-21
Infants ........................................ 1-22
Small children ................................. 1-22
Larger children ................................ 1-22
Child restraints ................................... 1-23
Precautions on child restraints ..................1-23
LATCH (Lower Anchors and Tethers for
CHildren) System ............................. 1-25Rear-facing child restraint installation using
LATCH (Crew cab models only)
.................1-28
Rear-facing child restraint installation using
LATCH — Jump seat (King cab models only) ......1-30
Rear-facing child restraint installation using
the seat belts (Crew cab models only) ...........1-34
Rear-facing child restraint installation using
the seat belts — jump seat
(King cab models only) ......................... 1-37
Forward-facing child restraint installation
using LATCH (Crew cab model only) ............1-41
Forward-facing child restraint installation
using LATCH — jump seat
(King cab models only) ......................... 1-43
Forward-facing child restraint installation
using the seat belts — front passenger and
rear bench seat (Crew cab models only) .........1-46
Foward-facing child restraint installation
using the seat belts — front passenger and
jump seats (King cab models only) ..............1-50
Installing top tether strap (Front passenger
seat – King cab models only) ...................1-54
Installing top tether strap
(Jump seat – King cab models only) .............1-55

Installing top tether strap
(Rear bench seat – Crew cab models only).......1-55
Booster seats ................................. 1-56
Supplemental restraint system .....................1-61Precautions on supplemental restraint
system
....................................... 1-61
Supplemental air bag warning labels .............1-75
Supplemental air bag warning light ..............1-76

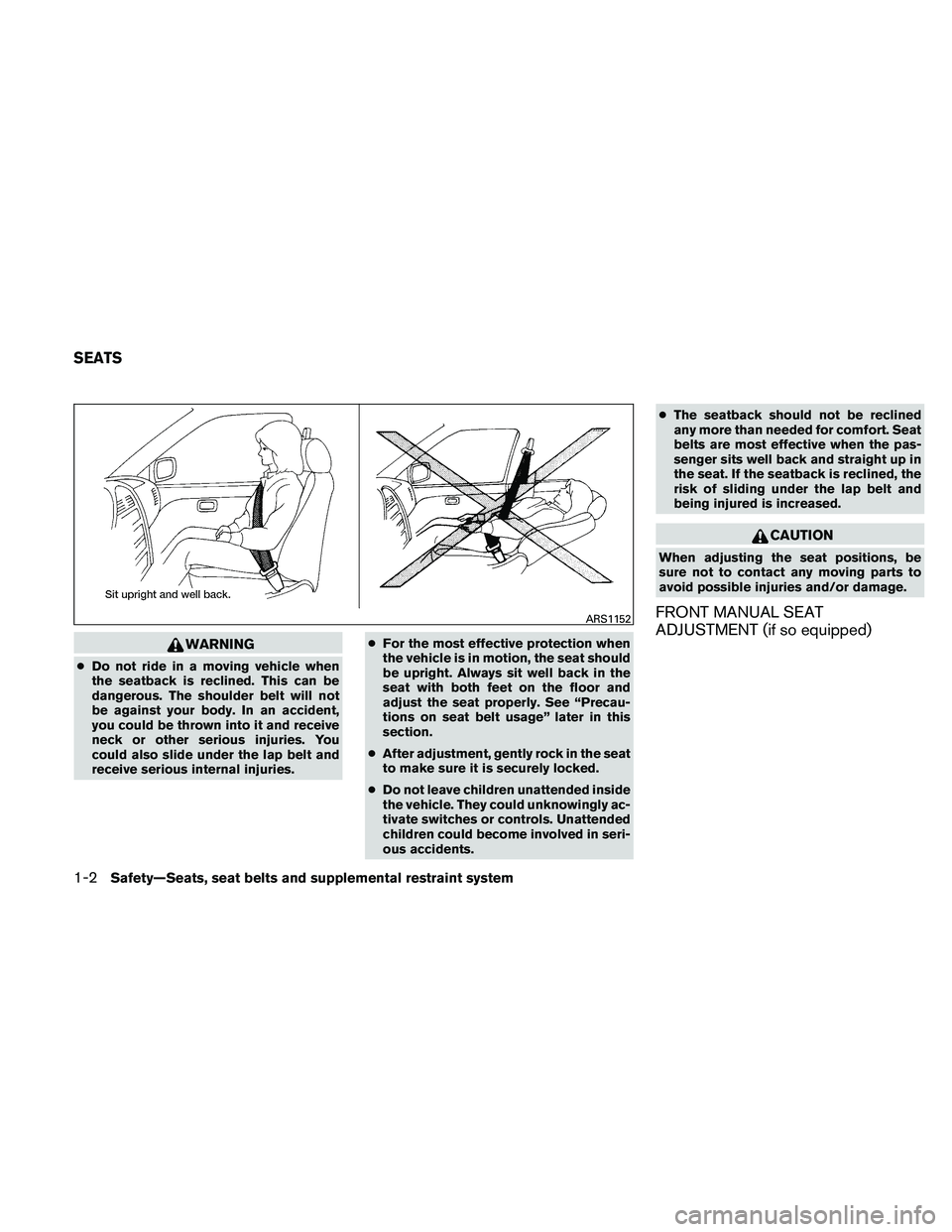

WARNING
●Do not ride in a moving vehicle when
the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and receive
neck or other serious injuries. You
could also slide under the lap belt and
receive serious internal injuries. ●
For the most effective protection when
the vehicle is in motion, the seat should
be upright. Always sit well back in the
seat with both feet on the floor and
adjust the seat properly. See “Precau-
tions on seat belt usage” later in this
section.
● After adjustment, gently rock in the seat
to make sure it is securely locked.
● Do not leave children unattended inside
the vehicle. They could unknowingly ac-
tivate switches or controls. Unattended
children could become involved in seri-
ous accidents. ●
The seatback should not be reclined
any more than needed for comfort. Seat
belts are most effective when the pas-
senger sits well back and straight up in
the seat. If the seatback is reclined, the
risk of sliding under the lap belt and
being injured is increased.
CAUTION
When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or damage.
FRONT MANUAL SEAT
ADJUSTMENT (if so equipped)ARS1152
SEATS
1-2Safety—Seats, seat belts and supplemental restraint system

Forward and backward
Pull the lever up and hold it while you slide the
seat forward or backward to the desired position.
Release the lever to lock the seat in position.
Reclining
To recline the seatback, pull the lever up and lean
back. To bring the seatback forward, pull the lever
up and lean your body forward. Release the lever
to lock the seatback in position.
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. See “Precautions on seat belt usage” later
in this section. Also, the seatback can be reclined
to allow occupants to rest when the vehicle is
stopped and the transmission is in P (Park) or N
(Neutral) position with the parking brake fully
applied.
Seat lifter (if so equipped for driver’s
seat)
Turn either dial to adjust the angle and height of
the seat cushion to the desired position.
WRS0175WRS0176WRS0131
Safety—Seats, seat belts and supplemental restraint system1-3

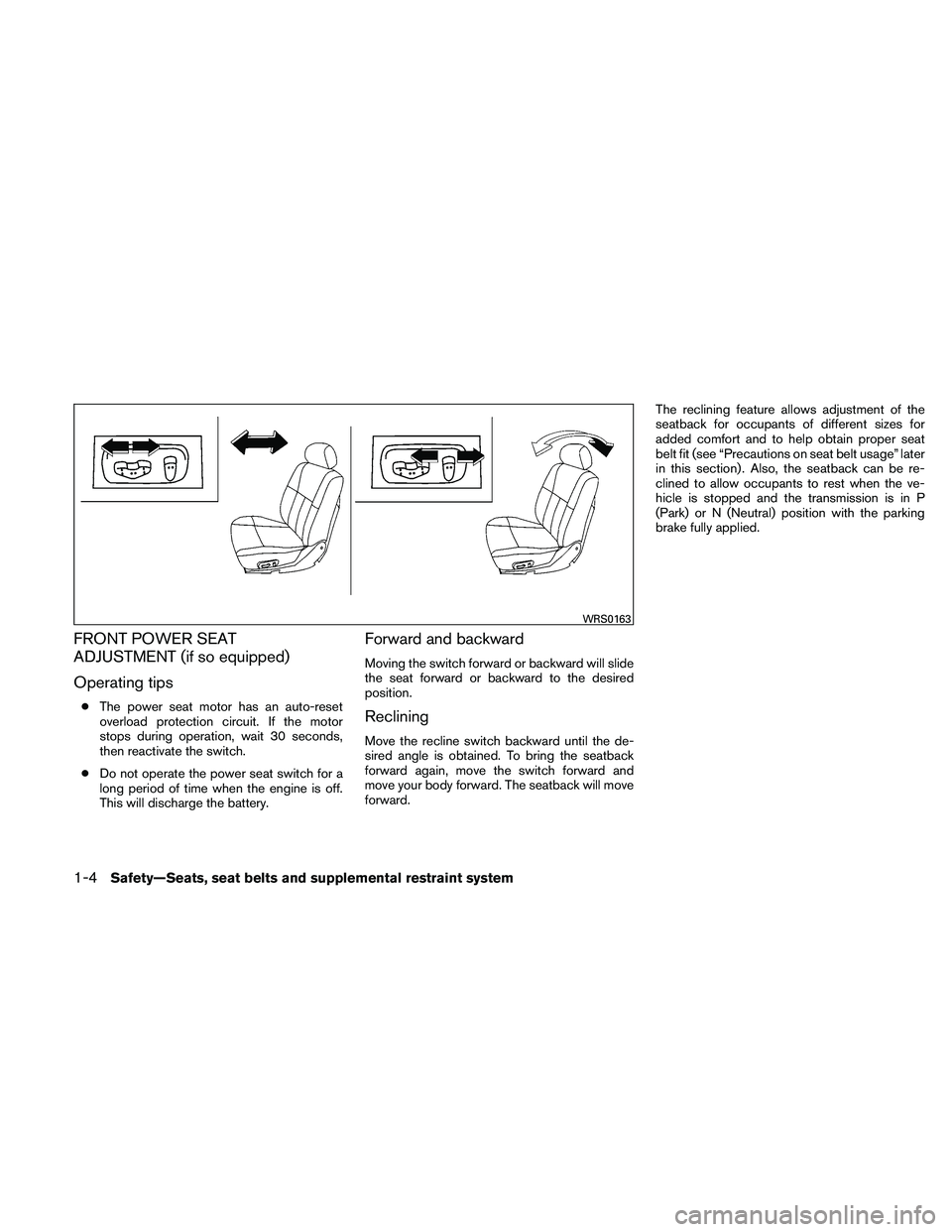

FRONT POWER SEAT
ADJUSTMENT (if so equipped)
Operating tips
●The power seat motor has an auto-reset
overload protection circuit. If the motor
stops during operation, wait 30 seconds,
then reactivate the switch.
● Do not operate the power seat switch for a
long period of time when the engine is off.
This will discharge the battery.
Forward and backward
Moving the switch forward or backward will slide
the seat forward or backward to the desired
position.
Reclining
Move the recline switch backward until the de-
sired angle is obtained. To bring the seatback
forward again, move the switch forward and
move your body forward. The seatback will move
forward. The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit (see “Precautions on seat belt usage” later
in this section) . Also, the seatback can be re-
clined to allow occupants to rest when the ve-
hicle is stopped and the transmission is in P
(Park) or N (Neutral) position with the parking
brake fully applied.
WRS0163
1-4Safety—Seats, seat belts and supplemental restraint system
