1. Vents (P. 4-18)
2. Headlight/turn signal switch (P. 2-30)
3. Steering wheel switch for audio control(if so equipped)/Bluetooth Hands-free
Phone System (if so
equipped)(P. 4-81, 4-85) 4. Meters and gauges (P. 2-3)
5. Driver supplemental air bag/horn
(P. 1-35, 2-34)
6. Cruise control main/set switch
(P. 5-15) 7. Windshield wiper/washer switch
(P. 2-29)
8. Ignition switch (P. 5-7)
9. Hazard warning flasher switch (P. 2-34)
10. Front passenger air bag status light
(P. 2-15)
11. Front passenger supplemental air bag
(P. 1-35)
12. Glove box (P. 2-39)
13. Navigation system* (if so equipped)
(P. 4-2)
14. Heater and air conditioner (P. 4-19)
15. Shift selector (P. 5-11)
16. Covered storage box (P. 2-40)
17. Audio system controls (P. 4-22)
18. Tilt/telescopic steering wheel
controls (P. 3-22)
19. Vehicle information display controls
(P. 2-18)
20. Hood release (P. 3-18)
21. NISSAN Intelligent Key™ port (P. 3-2) Trunk opener (P. 3-18)*: Refer to the separate Navigation System Own-
er’s Manual (if so equipped) .
See the page number indicated in paren-
theses for operating details.
WIC1601
INSTRUMENT PANEL
0-6Illustrated table of contents

1. Brake fluid reservoir (P. 1-22)
2. Engine oil filler cap (P. 8-11)
3. Air cleaner (P. 8-17)
4. Fuse/fusible link box/jump-start location(P. 8-20)
5. Fuse box (P. 8-20)
6. Inverter coolant reservoir (P. 8-10)
7. Engine oil dipstick (P. 8-11)
8. Radiator cap (P. 8-8)
9. Drive belt location (P. 8-16)
10. Engine coolant reservoir (P. 8-8)
11. Windshield-washer fluid reservoir
(P. 8-15)
See the page number indicated in paren-
theses for operating details.
LDI0577
ENGINE COMPARTMENT CHECK
LOCATIONS
Illustrated table of contents0-7

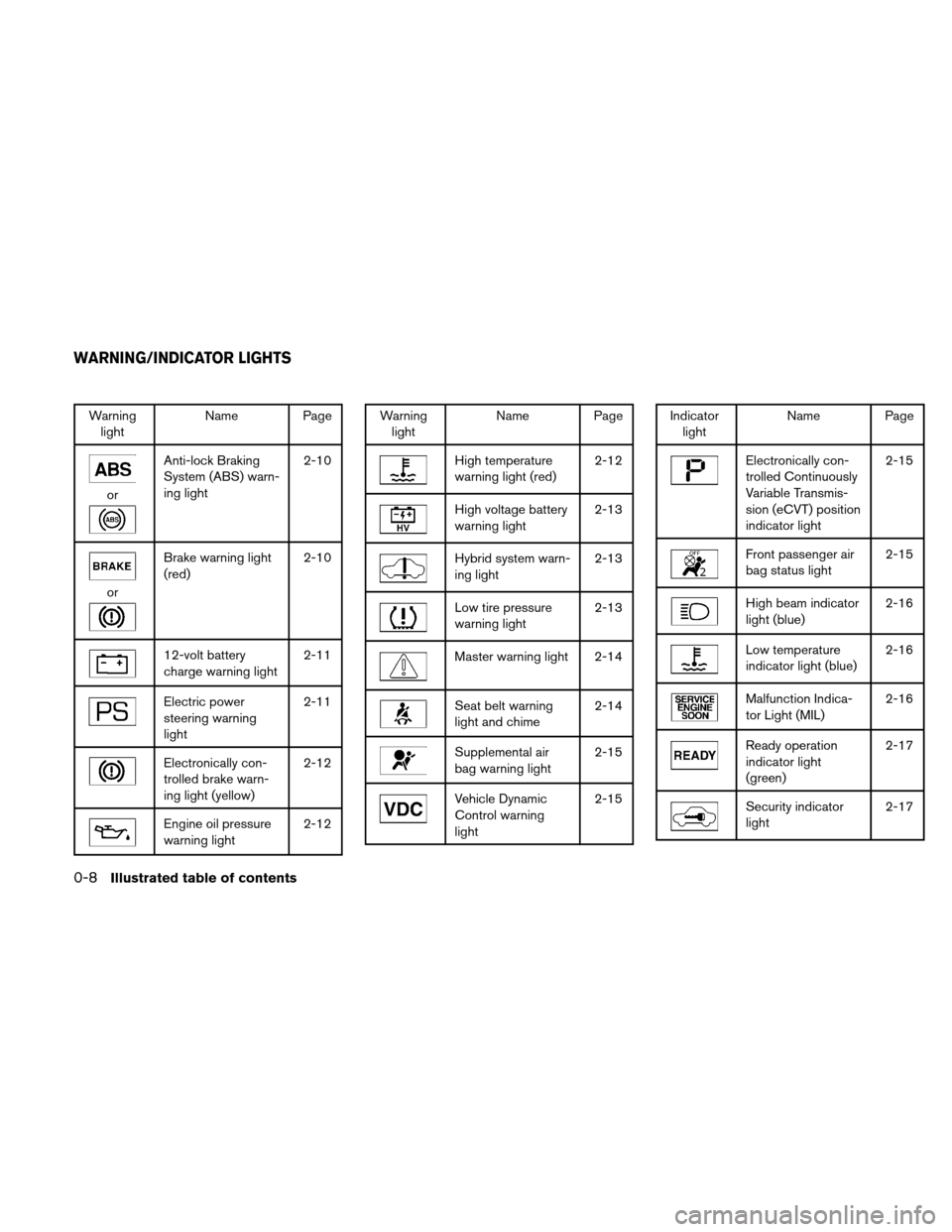

Warninglight Name Page
or
Anti-lock Braking
System (ABS) warn-
ing light 2-10
or
Brake warning light
(red)
2-10
12-volt battery
charge warning light2-11
Electric power
steering warning
light2-11
Electronically con-
trolled brake warn-
ing light (yellow)2-12
Engine oil pressure
warning light
2-12
Warning
light Name Page
High temperature
warning light (red) 2-12
High voltage battery
warning light2-13
Hybrid system warn-
ing light2-13
Low tire pressure
warning light2-13
Master warning light 2-14
Seat belt warning
light and chime2-14
Supplemental air
bag warning light2-15
Vehicle Dynamic
Control warning
light2-15
Indicator
light Name Page
Electronically con-
trolled Continuously
Variable Transmis-
sion (eCVT) position
indicator light 2-15
Front passenger air
bag status light
2-15
High beam indicator
light (blue)2-16
Low temperature
indicator light (blue)2-16
Malfunction Indica-
tor Light (MIL)2-16
Ready operation
indicator light
(green)2-17
Security indicator
light
2-17
WARNING/INDICATOR LIGHTS
0-8Illustrated table of contents

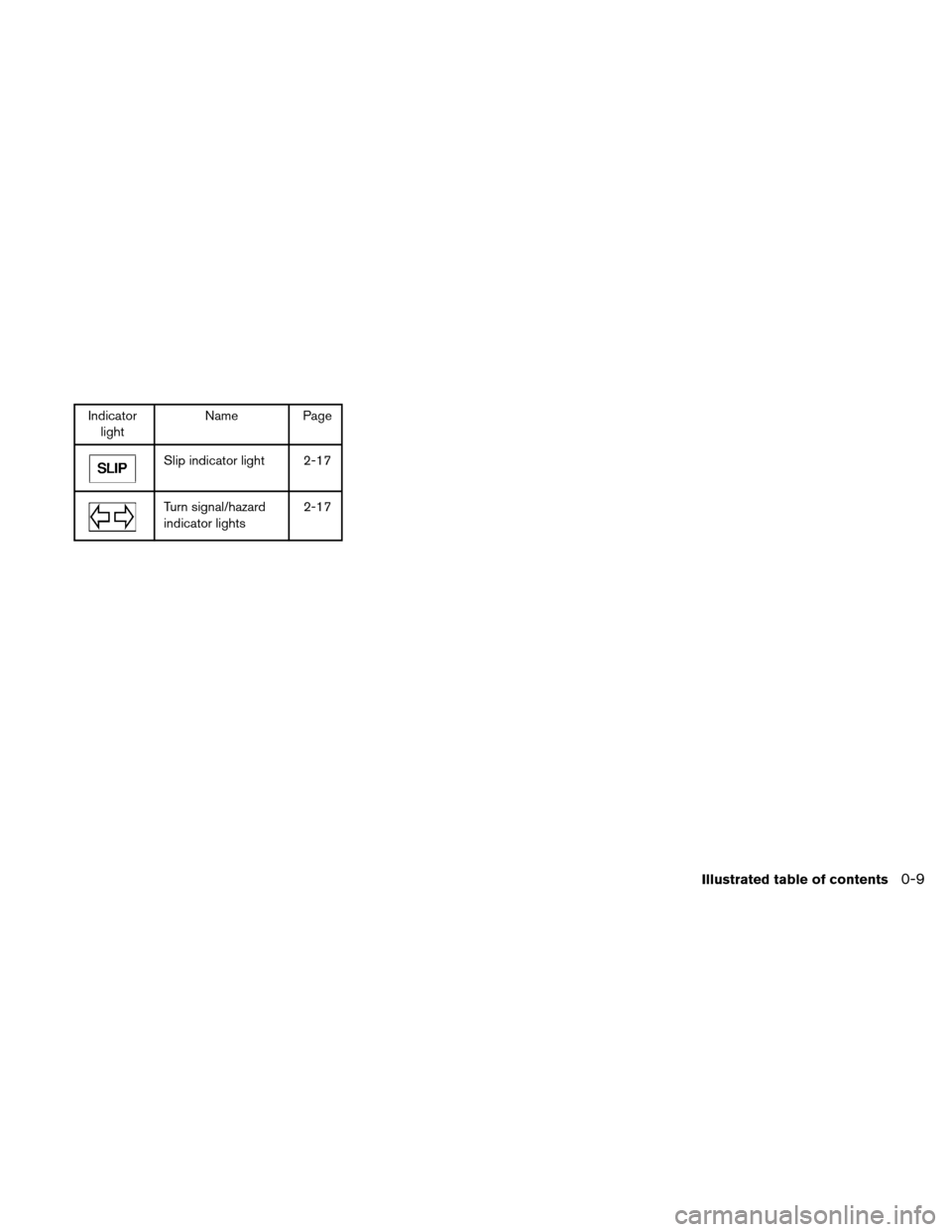

Indicatorlight Name Page
Slip indicator light 2-17
Turn signal/hazard
indicator lights 2-17
Illustrated table of contents0-9

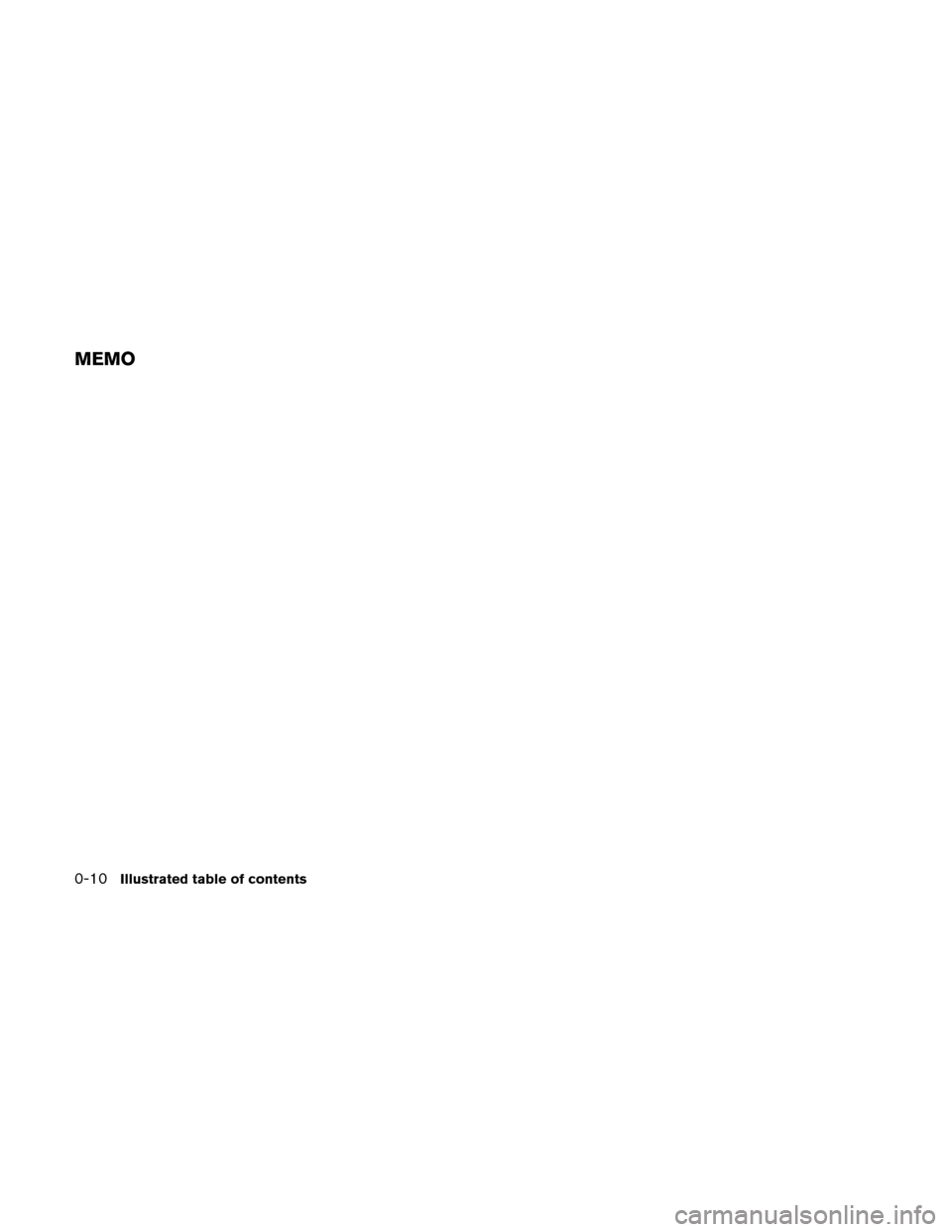

MEMO
0-10Illustrated table of contents

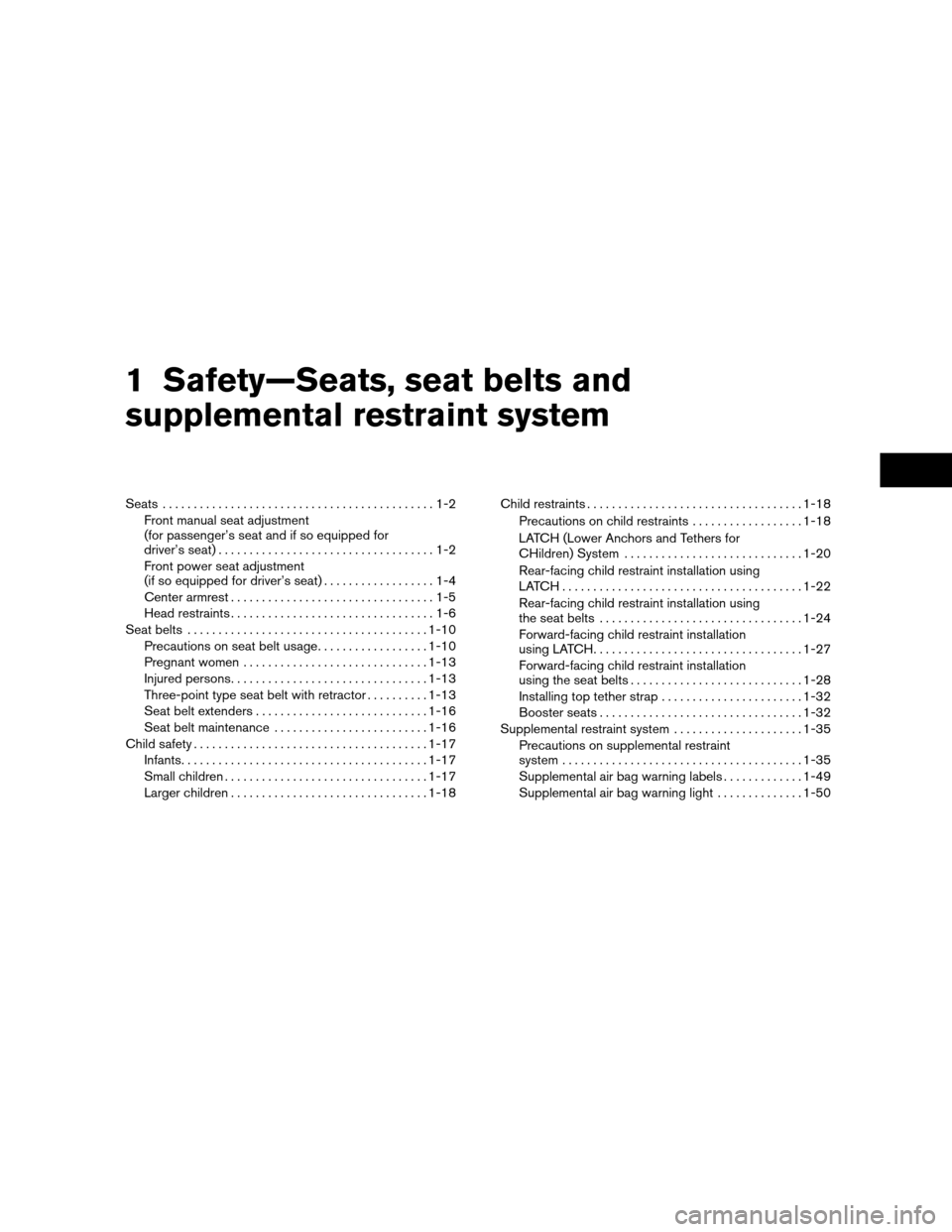

1 Safety—Seats, seat belts and
supplemental restraint system
Seats............................................1-2
Front manual seat adjustment
(for passenger’s seat and if so equipped for
driver’s seat) ...................................1-2
Front power seat adjustment
(if so equipped for driver’s seat) ..................1-4
Center armrest .................................1-5
Head restraints .................................1-6
Seat belts ....................................... 1-10
Precautions on seat belt usage ..................1-10
Pregnant women .............................. 1-13
Injured persons ................................ 1-13
Three-point type seat belt with retractor ..........1-13
Seat belt extenders ............................ 1-16
Seat belt maintenance ......................... 1-16
Child safety ...................................... 1-17
Infants ........................................ 1-17
Small children ................................. 1-17
Larger children ................................ 1-18Child restraints
................................... 1-18
Precautions on child restraints ..................1-18
LATCH (Lower Anchors and Tethers for
CHildren) System ............................. 1-20
Rear-facing child restraint installation using
LATCH....................................... 1-22
Rear-facing child restraint installation using
the seat belts ................................. 1-24
Forward-facing child restraint installation
using LATCH .................................. 1-27
Forward-facing child restraint installation
using the seat belts ............................ 1-28
Installing top tether strap .......................1-32
Booster seats ................................. 1-32
Supplemental restraint system .....................1-35
Precautions on supplemental restraint
system ....................................... 1-35
Supplemental air bag warning labels .............1-49
Supplemental air bag warning light ..............1-50

WARNING
●Do not ride in a moving vehicle when
the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and receive
neck or other serious injuries. You
could also slide under the lap belt and
receive serious internal injuries. ●
For the most effective protection when
the vehicle is in motion, the seat should
be upright. Always sit well back in the
seat with both feet on the floor and
adjust the seat properly. See “Precau-
tions on seat belt usage” later in this
section.
● After adjustment, gently rock in the seat
to make sure it is securely locked.
● Do not leave children unattended inside
the vehicle. They could unknowingly ac-
tivate switches or controls. Unattended
children could become involved in seri-
ous accidents. ●
The seatback should not be reclined
any more than needed for comfort. Seat
belts are most effective when the pas-
senger sits well back and straight up in
the seat. If the seatback is reclined, the
risk of sliding under the lap belt and
being injured is increased.
CAUTION
When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or damage.
FRONT MANUAL SEAT
ADJUSTMENT (for passenger’s seat
and if so equipped for driver’s seat)ARS1152
SEATS
1-2Safety—Seats, seat belts and supplemental restraint system

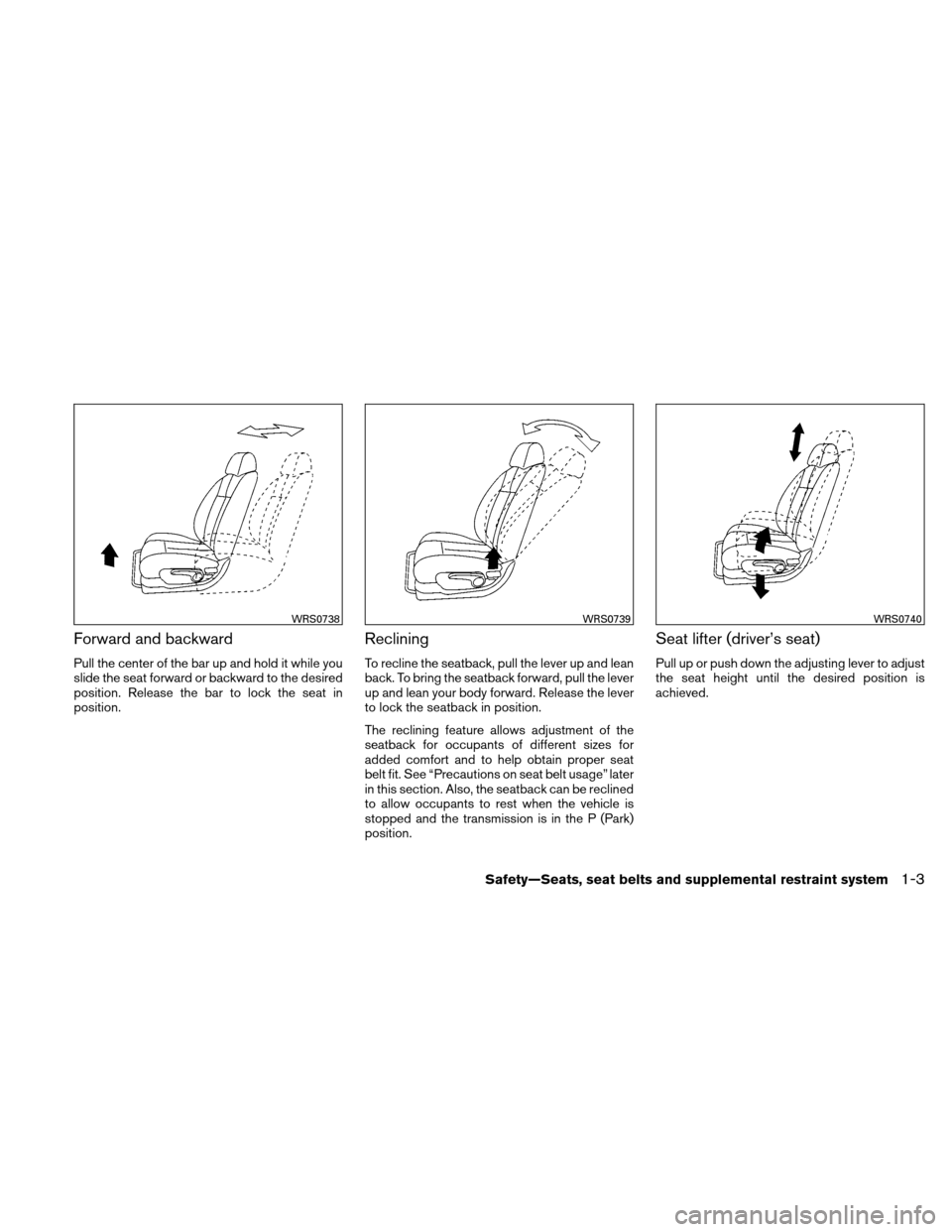

Forward and backward
Pull the center of the bar up and hold it while you
slide the seat forward or backward to the desired
position. Release the bar to lock the seat in
position.
Reclining
To recline the seatback, pull the lever up and lean
back. To bring the seatback forward, pull the lever
up and lean your body forward. Release the lever
to lock the seatback in position.
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. See “Precautions on seat belt usage” later
in this section. Also, the seatback can be reclined
to allow occupants to rest when the vehicle is
stopped and the transmission is in the P (Park)
position.
Seat lifter (driver’s seat)
Pull up or push down the adjusting lever to adjust
the seat height until the desired position is
achieved.
WRS0738WRS0739WRS0740
