2011 NISSAN ALTIMA HYBRID ESP

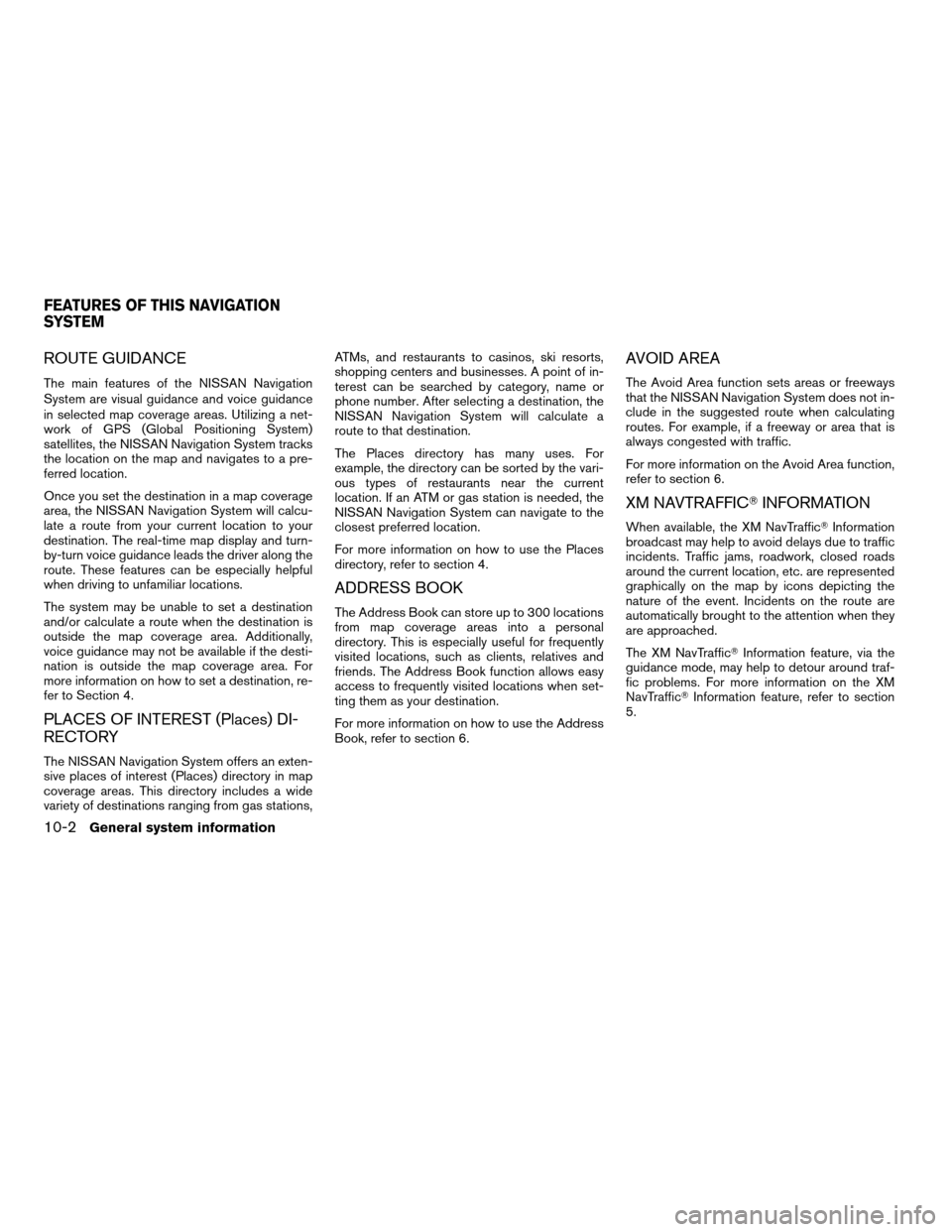

ROUTE GUIDANCE
The main features of the NISSAN Navigation
System are visual guidance and voice guidance
in selected map coverage areas. Utilizing a net-
work of GPS (Global Positioning System)
satellites, the NISSAN Navigation System tracks
the location on the map and navigates to a pre-
ferred location.
Once you set the destination in a map coverage
area, the NISSAN Navigation System will calcu-
late a route from your current location to your
destination. The real-time map display and turn-
by-turn voice guidance leads the driver along the
route. These features can be especially helpful
when driving to unfamiliar locations.
The system may be unable to set a destination
and/or calculate a route when the destination is
outside the map coverage area. Additionally,
voice guidance may not be available if the desti-
nation is outside the map coverage area. For
more information on how to set a destination, re-
fer to Section 4.
PLACES OF INTEREST (Places) DI-
RECTORY
The NISSAN Navigation System offers an exten-
sive places of interest (Places) directory in map
coverage areas. This directory includes a wide
variety of destinations ranging from gas stations,ATMs, and restaurants to casinos, ski resorts,
shopping centers and businesses. A point of in-
terest can be searched by category, name or
phone number. After selecting a destination, the
NISSAN Navigation System will calculate a
route to that destination.
The Places directory has many uses. For
example, the directory can be sorted by the vari-
ous types of restaurants near the current
location. If an ATM or gas station is needed, the
NISSAN Navigation System can navigate to the
closest preferred location.
For more information on how to use the Places
directory, refer to section 4.
ADDRESS BOOK
The Address Book can store up to 300 locations
from map coverage areas into a personal
directory. This is especially useful for frequently
visited locations, such as clients, relatives and
friends. The Address Book function allows easy
access to frequently visited locations when set-
ting them as your destination.
For more information on how to use the Address
Book, refer to section 6.
AVOID AREA
The Avoid Area function sets areas or freeways
that the NISSAN Navigation System does not in-
clude in the suggested route when calculating
routes. For example, if a freeway or area that is
always congested with traffic.
For more information on the Avoid Area function,
refer to section 6.
XM NAVTRAFFIC
INFORMATION
When available, the XM NavTraffic Information
broadcast may help to avoid delays due to traffic
incidents. Traffic jams, roadwork, closed roads
around the current location, etc. are represented
graphically on the map by icons depicting the
nature of the event. Incidents on the route are
automatically brought to the attention when they
are approached.
The XM NavTraffic Information feature, via the
guidance mode, may help to detour around traf-
fic problems. For more information on the XM
NavTraffic Information feature, refer to section
5.
FEATURES OF THIS NAVIGATION
SYSTEM
10-2General system information

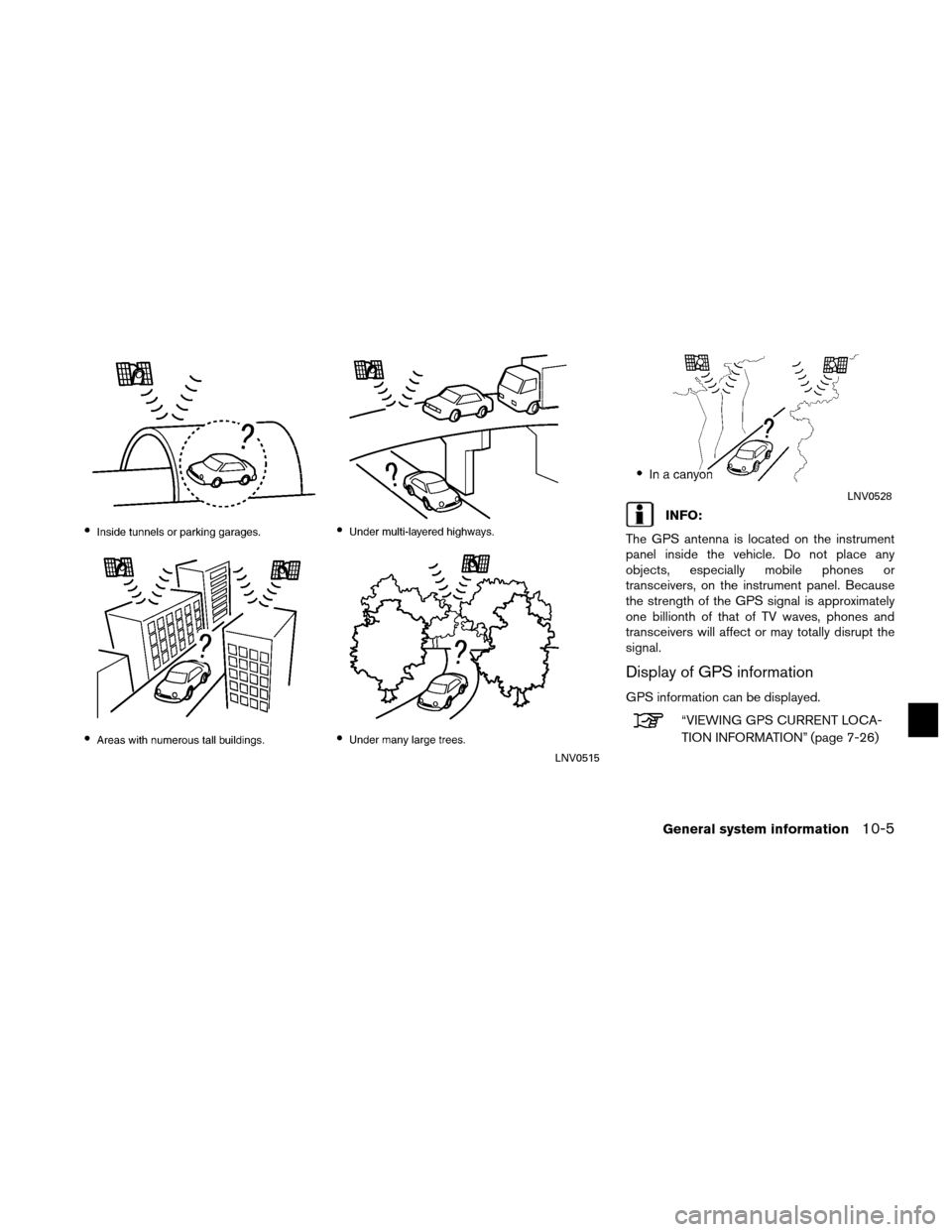

INFO:
The GPS antenna is located on the instrument
panel inside the vehicle. Do not place any
objects, especially mobile phones or
transceivers, on the instrument panel. Because
the strength of the GPS signal is approximately
one billionth of that of TV waves, phones and
transceivers will affect or may totally disrupt the
signal.
Display of GPS information
GPS information can be displayed.
“VIEWING GPS CURRENT LOCA-
TION INFORMATION” (page 7-26)
LNV0515
LNV0528
General system information10-5

NOTE:
Route guidance provided by the navigation
system does not take carpool lane driving
into consideration, especially when car-
pool lanes are separated from other road
lanes.

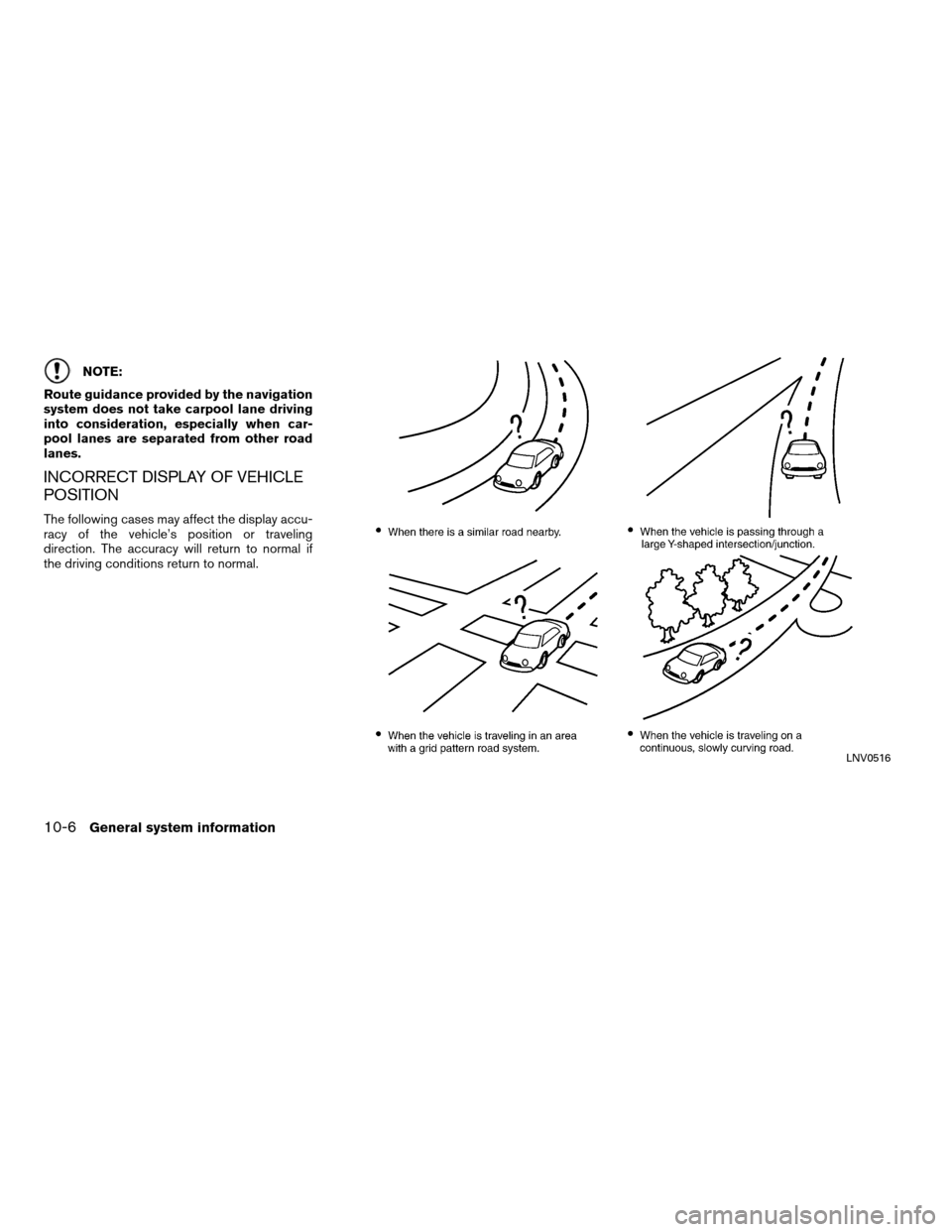

INCORRECT DISPLAY OF VEHICLE
POSITION
The following cases may affect the display accu-
racy of the vehicle’s position or traveling
direction. The accuracy will return to normal if
the driving conditions return to normal.
LNV0516
10-6General system information

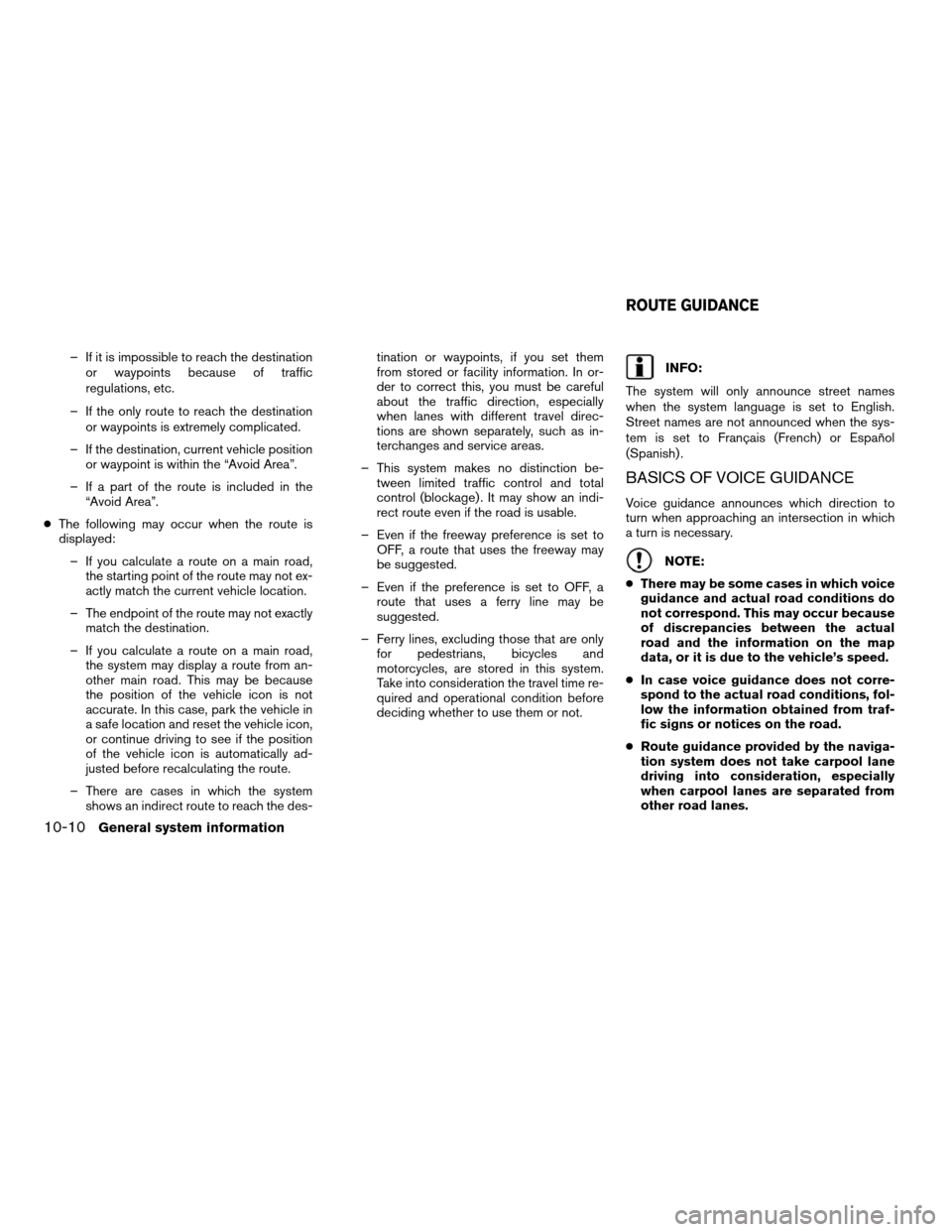

– If it is impossible to reach the destinationor waypoints because of traffic
regulations, etc.
– If the only route to reach the destination or waypoints is extremely complicated.
– If the destination, current vehicle position or waypoint is within the “Avoid Area”.
– If a part of the route is included in the “Avoid Area”.
● The following may occur when the route is
displayed:
– If you calculate a route on a main road, the starting point of the route may not ex-
actly match the current vehicle location.
– The endpoint of the route may not exactly match the destination.
– If you calculate a route on a main road, the system may display a route from an-
other main road. This may be because
the position of the vehicle icon is not
accurate. In this case, park the vehicle in
a safe location and reset the vehicle icon,
or continue driving to see if the position
of the vehicle icon is automatically ad-
justed before recalculating the route.
– There are cases in which the system shows an indirect route to reach the des- tination or waypoints, if you set them
from stored or facility information. In or-
der to correct this, you must be careful
about the traffic direction, especially
when lanes with different travel direc-
tions are shown separately, such as in-
terchanges and service areas.
– This system makes no distinction be- tween limited traffic control and total
control (blockage) . It may show an indi-
rect route even if the road is usable.
– Even if the freeway preference is set to OFF, a route that uses the freeway may
be suggested.
– Even if the preference is set to OFF, a route that uses a ferry line may be
suggested.
– Ferry lines, excluding those that are only for pedestrians, bicycles and
motorcycles, are stored in this system.
Take into consideration the travel time re-
quired and operational condition before
deciding whether to use them or not.INFO:
The system will only announce street names
when the system language is set to English.
Street names are not announced when the sys-
tem is set to Français (French) or Español
(Spanish) .
BASICS OF VOICE GUIDANCE
Voice guidance announces which direction to
turn when approaching an intersection in which
a turn is necessary.
NOTE:
● There may be some cases in which voice
guidance and actual road conditions do
not correspond. This may occur because
of discrepancies between the actual
road and the information on the map
data, or it is due to the vehicle’s speed.
● In case voice guidance does not corre-
spond to the actual road conditions, fol-
low the information obtained from traf-
fic signs or notices on the road.
● Route guidance provided by the naviga-
tion system does not take carpool lane
driving into consideration, especially
when carpool lanes are separated from
other road lanes.
ROUTE GUIDANCE
10-10General system information

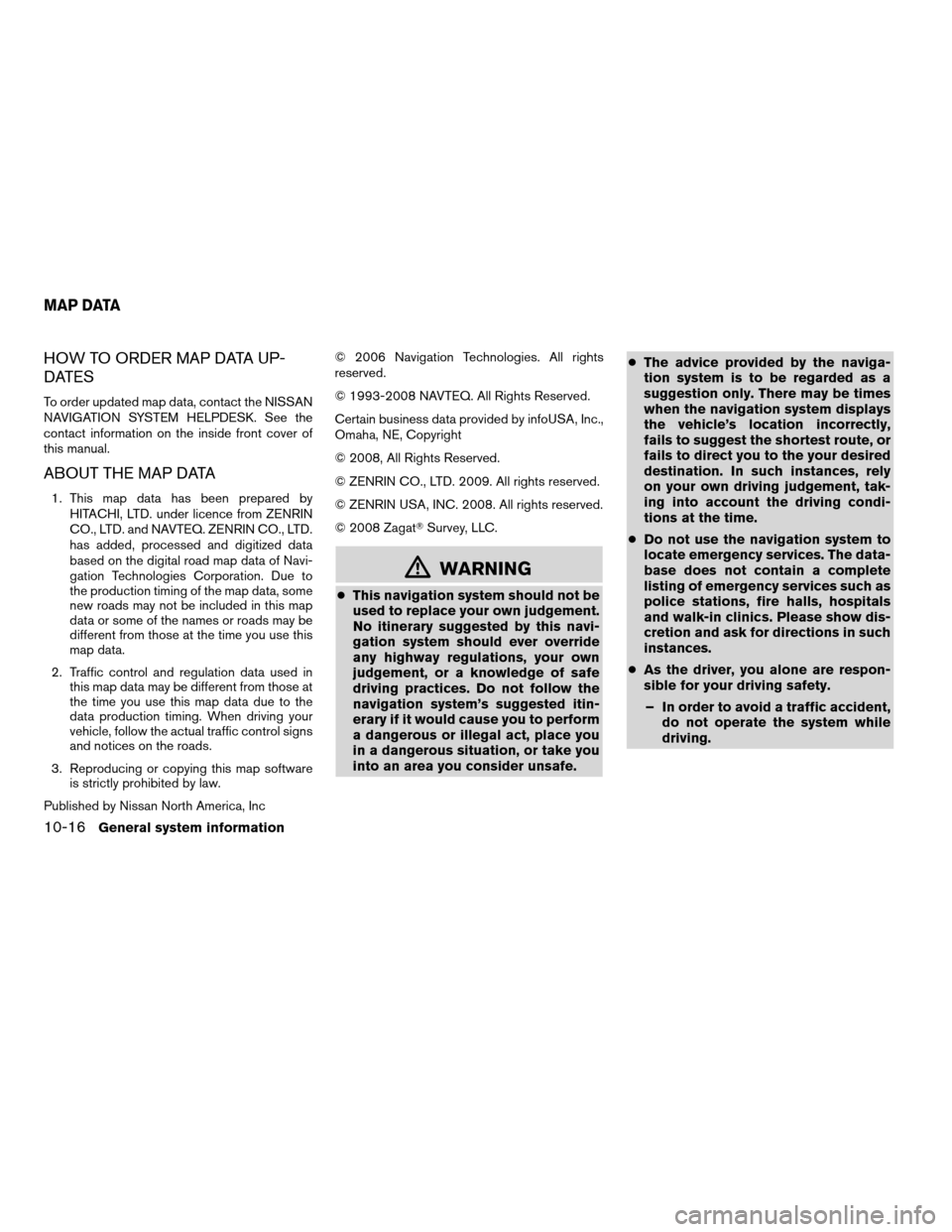

HOW TO ORDER MAP DATA UP-
DATES
To order updated map data, contact the NISSAN
NAVIGATION SYSTEM HELPDESK. See the
contact information on the inside front cover of
this manual.
ABOUT THE MAP DATA
1. This map data has been prepared byHITACHI, LTD. under licence from ZENRIN
CO., LTD. and NAVTEQ. ZENRIN CO., LTD.
has added, processed and digitized data
based on the digital road map data of Navi-
gation Technologies Corporation. Due to
the production timing of the map data, some
new roads may not be included in this map
data or some of the names or roads may be
different from those at the time you use this
map data.
2. Traffic control and regulation data used in this map data may be different from those at
the time you use this map data due to the
data production timing. When driving your
vehicle, follow the actual traffic control signs
and notices on the roads.
3. Reproducing or copying this map software is strictly prohibited by law.
Published by Nissan North America, Inc © 2006 Navigation Technologies. All rights
reserved.
© 1993-2008 NAVTEQ. All Rights Reserved.
Certain business data provided by infoUSA, Inc.,
Omaha, NE, Copyright
© 2008, All Rights Reserved.
© ZENRIN CO., LTD. 2009. All rights reserved.
© ZENRIN USA, INC. 2008. All rights reserved.
© 2008 Zagat
Survey, LLC.
WARNING
●This navigation system should not be
used to replace your own judgement.
No itinerary suggested by this navi-
gation system should ever override
any highway regulations, your own
judgement, or a knowledge of safe
driving practices. Do not follow the
navigation system’s suggested itin-
erary if it would cause you to perform
a dangerous or illegal act, place you
in a dangerous situation, or take you
into an area you consider unsafe. ●
The advice provided by the naviga-
tion system is to be regarded as a
suggestion only. There may be times
when the navigation system displays
the vehicle’s location incorrectly,
fails to suggest the shortest route, or
fails to direct you to the your desired
destination. In such instances, rely
on your own driving judgement, tak-
ing into account the driving condi-
tions at the time.
● Do not use the navigation system to
locate emergency services. The data-
base does not contain a complete
listing of emergency services such as
police stations, fire halls, hospitals
and walk-in clinics. Please show dis-
cretion and ask for directions in such
instances.
● As the driver, you alone are respon-
sible for your driving safety.
– In order to avoid a traffic accident, do not operate the system while
driving.
MAP DATA
10-16General system information

– In order to avoid a traffic accident,operate the system only when the
vehicle is stopped at a safe place
and the parking brake is on.
– In order to avoid a traffic accident or traffic offence, remember that
actual road conditions and traffic
regulations take precedence over
the information contained on the
navigation system.
– The Software may contain inaccu- rate or incomplete information
due to the passage of time,
changing circumstances, and the
sources of information used.
Please respect current traffic con-
ditions and regulations at all
times while driving.
– Where actual road conditions and highway regulations differ from
the information contained on the
navigation system, abide by the
highway regulations.
– Keep the amount of time spent viewing the screen while driving
to a strict minimum.The navigation system does not provide,
nor represent in any way information on:
traffic and highway regulations; technical
aspects of the vehicle including weight,
height, width, load and speed limits; road
conditions including grade, percentage of
incline and surface conditions; obstacles
such as the height and width of bridges
and tunnels; and other current driving or
road conditions. Always rely on your own
judgement when driving a car, taking into
account current driving conditions.
The marks of companies displayed by this prod-
uct to indicate business locations are the marks
of their respective owners. The use of such
marks in this product does not imply any
sponsorship, approval, or endorsement by such
companies of this product.
END-USER TERMS
The Map Data Disc (Data) is provided for your
personal, internal use only and not for resale. It is
protected by copyright, and is subject to the fol-
lowing terms (this End- User License Agree-
ment) and conditions which are agreed to by
you, on the one hand, and NAVTEQ North
America, LLC (NT) and its licensors (including
their licensors and suppliers) on the other hand.
The Data for areas of Canada includes informa-
tion taken with permission from Canadian authorities, including: ©Her Majesty the Queen
in Right of Canada, ©Queen’s Printer for
Ontario, ©Canada Post Corporation, GeoBase
NT holds a non-exclusive license from the United
States Postal Service
to publish and sell
ZIP+4 information.
©United States Postal Service 2009. Prices
are not established, controlled or approved by
the United States Postal Service. The following
trademarks and registrations are owned by the
USPS: United States Postal Service, USPS, and
ZIP+4.
The Data may include or reflect data of licensors,
including Her Majesty the Queen in the Right of
Canada (“Her Majesty”) , Canada Post
Corporation (“Canada Post”) and the Depart-
ment of Natural Resources Canada (“NRCan”) .
Such data is licensed on an “as is” basis. The
licensors, including Her Majesty, Canada Post
and NRCan, make no guarantees, representa-
tions or warranties respecting such data, either
express or implied, arising by law or otherwise,
including but not limited to, effectiveness,
completeness, accuracy or fitness for a particu-
lar purpose.
The licensors, including Her Majesty, Canada
Post and NRCan, shall not be liable in respect of
any claim, demand or action, irrespective of the
nature of the cause of the claim, demand or ac-
General system information10-17

tion alleging any loss, injury or damages, direct
or indirect, which may result from the use or pos-
session of the data or the Data. The licensors, in-
cluding Her Majesty, Canada Post and NRCan,
shall not be liable in any way for loss of revenues
or contracts, or any other consequential loss of
any kind resulting from any defect in the data or
the Data.
End User shall indemnify and save harmless the
licensors, including Her Majesty, Canada Post
and NRCan, and their officers, employees and
agents from and against any claim, demand or
action, irrespective of the nature of the cause of
the claim, demand or action, alleging loss, costs,
expenses, damages or injuries (including injuries
resulting in death) arising out of the use or pos-
session of the data or the Data.
Terms and conditions
Personal Use Only You agree to use this Data forthe solely personal, non-commercial purposes
for which you were licensed, and not for service
bureau, time-sharing or other similar purposes.
Accordingly, but subject to the restrictions set
forth in the following paragraphs of this End-
User License Agreement, you may copy this
Data only as necessary for your personal use to
(i) view it, and (ii) save it, provided that you do
not remove any copyright notices that appear
and do not modify the Data in any way. Except asotherwise set forth herein, you agree not to oth-
erwise reproduce, copy, modify, decompile, dis-
assemble or reverse engineer any portion of this
Data, and may not transfer or distribute it in any
form, for any purpose, except to the extent per-
mitted by mandatory laws. You may transfer the
Data and all accompanying materials on a per-
manent basis if you retain no copies and the re-
cipient agrees to the terms of this End-User Li-
cense Agreement. Multidisc sets may only be
transferred or sold as a complete set as provided
to you and not as a subset thereof.
Restrictions Except where you have been spe-
cifically licensed to do so by NT and without lim-
iting the preceding paragraph, you may not (a)
use this Data with any products, systems, or ap-
plications installed or otherwise connected to or
in communication with vehicles capable of ve-
hicle navigation, positioning, dispatch, real time
route guidance, fleet management or similar ap-
plications; or (b) with, or in communication with,
including without limitation, cellular phones,
palmtop and handheld computers, pagers, and
personal digital-assistants or PDAs.
Warning This Data may contain inaccurate or in-
complete information due to the passage of time,
changing circumstances, sources used and the
nature of collecting comprehensive geographic
data, any of which may lead to incorrect results.No Warranty This Data is provided to you
as is,
and you agree to use it at your own risk. NT and
its licensors (and their licensors and suppliers)
make no guarantees, representations or warran-
ties of any kind, express or implied, arising by law
or otherwise, including but not limited to,
content, quality, accuracy, completeness,
effectiveness, reliability, fitness for a particular
purpose, usefulness, use or results to be ob-
tained from this Data, or that the Data or server
will be uninterrupted or error-free.
Disclaimer of Warranty: NT AND ITS LICEN-
SORS (INCLUDING THEIR LICENSORS AND
SUPPLIERS) DISCLAIM ANY WARRANTIES,
EXPRESS OR IMPLIED, OF QUALITY,
PERFORMANCE, MERCHANTABILITY, FIT-
NESS FOR A PARTICULAR PURPOSE OR
NON-INFRINGEMENT. Some States, Territories
and Countries do not allow certain warranty
exclusions, so to that extent the above exclusion
may not apply to you.
Disclaimer of Liability: NT AND ITS LICENSORS
(INCLUDING THEIR LICENSORS AND SUP-
PLIERS) SHALL NOT BE LIABLE TO YOU IN
RESPECT OF ANY CLAIM, DEMAND OR
ACTION, IRRESPECTIVE OF THE NATURE OF
THE CAUSE OF THE CLAIM, DEMAND OR
ACTION ALLEGING ANY LOSS, INJURY OR
DAMAGES, DIRECT OR INDIRECT, WHICH
MAY RESULT FROM THE USE OR POSSES-
10-18General system information

SION OF THIS DATA; OR FOR ANY LOSS OF
PROFIT, REVENUE, CONTRACTS OR
SAVINGS, OR ANY OTHER DIRECT,
INDIRECT, INCIDENTAL, SPECIAL OR CON-
SEQUENTIAL DAMAGES ARISING OUT OF
YOUR USE OF OR INABILITY TO USE THIS
DATA, ANY DEFECT IN THIS DATA, OR THE
BREACH OF THESE TERMS OR
CONDITIONS, WHETHER IN AN ACTION IN
CONTRACT OR TORT OR BASED ON A
WARRANTY, EVEN IF NT OR ITS LICENSORS
HAVE BEEN ADVISED OF THE POSSIBILITY
OF SUCH DAMAGES. Some States, Territories
and Countries do not allow certain liability exclu-
sions or damages limitations, so to that extent
the above may not apply to you.
Export Control You agree not to export from any-
where any part of the Data provided to you or
any direct product thereof except in compliance
with, and with all licenses and approvals re-
quired under, applicable export laws, rules and
regulations.
Entire Agreement These terms and conditions
constitute the entire agreement between NT
(and its licensors, including their licensors and
suppliers) and you pertaining to the subject mat-
ter hereof, and supersedes in their entirety any
and all written or oral agreements previously ex-
isting between us with respect to such subject
matter.Governing Law The above terms and conditions
shall be governed by the laws of the State of
Illinois, without giving effect to (i) its conflict of
laws provisions, or (ii) the United Nations Con-
vention for Contracts for the International Sale of
Goods, which is explicitly excluded. You agree to
submit to the jurisdiction of the State of Illinois
for any and all disputes, claims and actions aris-
ing from or in connection with the Data provided
to you hereunder.
Government End Users If the Data is being ac-
quired by or on behalf of the United States gov-
ernment or any other entity seeking or applying
rights similar to those customarily claimed by the
United States government, this Data is a
com-
mercial item as that term is defined at 48 C.F.R.
(FAR ) 2.101, is licensed in accordance with
this End-User License Agreement, and each
copy of Data delivered or otherwise furnished
shall be marked and embedded as appropriate
with the following Notice of Use,and be
treated in accordance with such Notice:
NOTICE OF USE
CONTRACTOR(MANUFACTURER/ SUPPLIER)
NAME: NAVTEQ
CONTRACTOR (MANUFACTURER/SUPPLIER)
ADDRESS: 425 West Randolph Street, Chicago,
IL 60606. This Data is a commercial item as defined in FAR 2.101 and is subject to the End-User License
Agreement under which this Data was provided. © 2009 NAVTEQ. All rights reserved.
If the Contracting Officer, federal government
agency, or any federal official refuses to use the
legend provided herein, the Contracting Officer,
federal government agency, or any federal official
must notify NAVTEQ prior to seeking additional
or alternative rights in the Data.
©2009 NAVTEQ. All Rights Reserved.
General system information10-19
