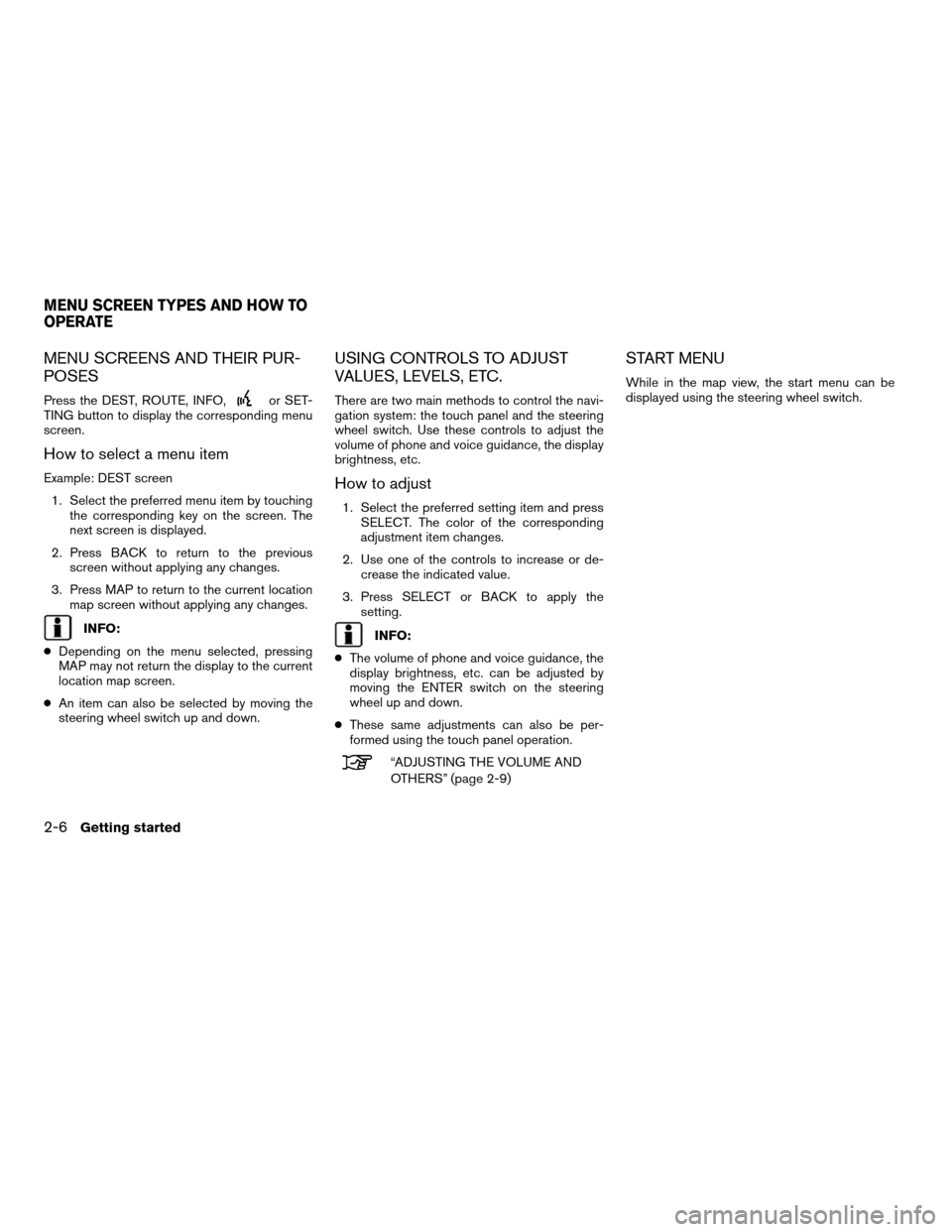

2011 NISSAN ALTIMA HYBRID ESP

MENU SCREENS AND THEIR PUR-
POSES
Press the DEST, ROUTE, INFO,or SET-
TING button to display the corresponding menu
screen.
How to select a menu item
Example: DEST screen
1. Select the preferred menu item by touching the corresponding key on the screen. The
next screen is displayed.
2. Press BACK to return to the previous screen without applying any changes.
3. Press MAP to return to the current location map screen without applying any changes.
INFO:
● Depending on the menu selected, pressing
MAP may not return the display to the current
location map screen.
● An item can also be selected by moving the
steering wheel switch up and down.
USING CONTROLS TO ADJUST
VALUES, LEVELS, ETC.
There are two main methods to control the navi-
gation system: the touch panel and the steering
wheel switch. Use these controls to adjust the
volume of phone and voice guidance, the display
brightness, etc.
How to adjust
1. Select the preferred setting item and press SELECT. The color of the corresponding
adjustment item changes.
2. Use one of the controls to increase or de- crease the indicated value.
3. Press SELECT or BACK to apply the setting.
INFO:
● The volume of phone and voice guidance, the
display brightness, etc. can be adjusted by
moving the ENTER switch on the steering
wheel up and down.
● These same adjustments can also be per-
formed using the touch panel operation.
“ADJUSTING THE VOLUME AND
OTHERS” (page 2-9)
START MENU
While in the map view, the start menu can be
displayed using the steering wheel switch.
MENU SCREEN TYPES AND HOW TO
OPERATE
2-6Getting started

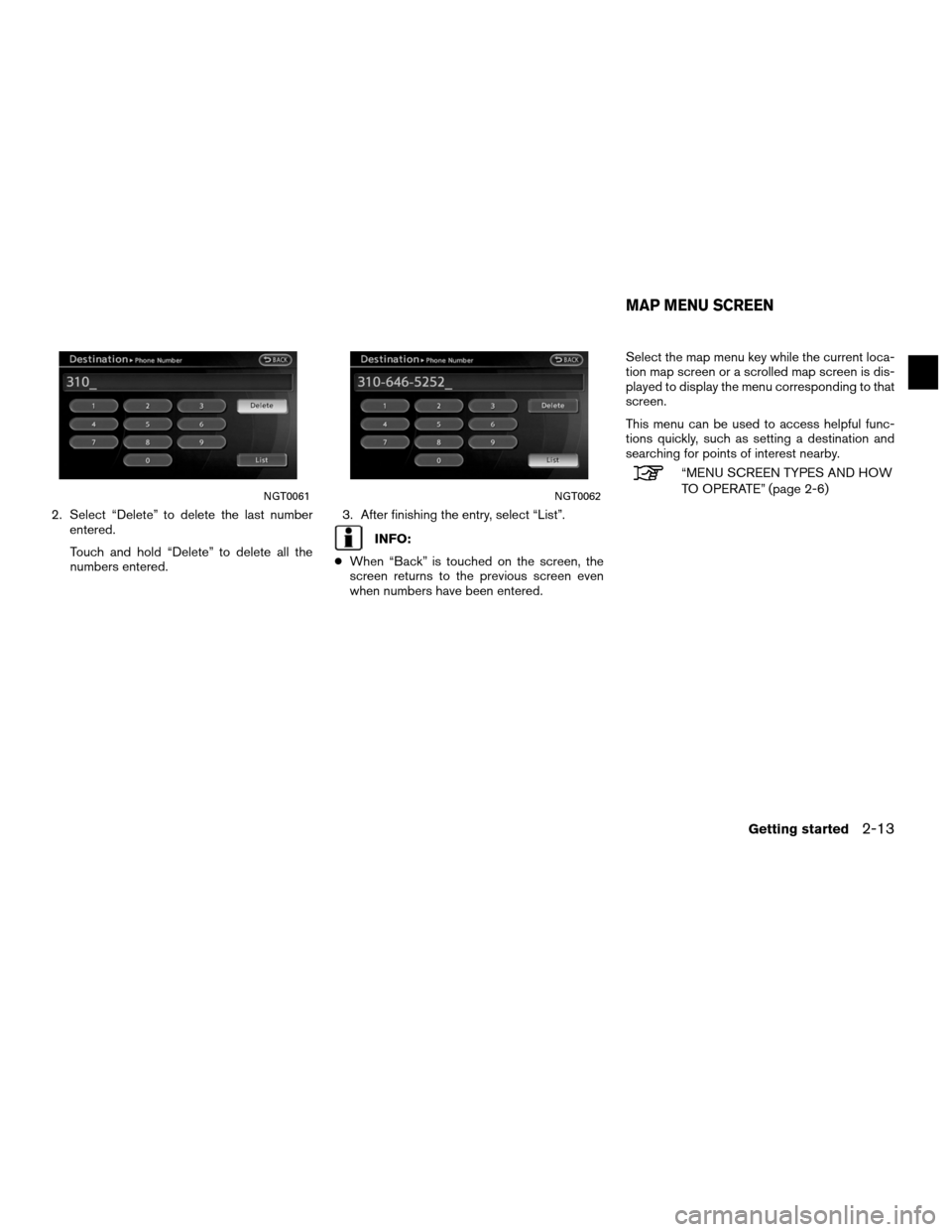

2. Select “Delete” to delete the last numberentered.
Touch and hold “Delete” to delete all the
numbers entered. 3. After finishing the entry, select “List”.
INFO:
● When “Back” is touched on the screen, the
screen returns to the previous screen even
when numbers have been entered. Select the map menu key while the current loca-
tion map screen or a scrolled map screen is dis-
played to display the menu corresponding to that
screen.
This menu can be used to access helpful func-
tions quickly, such as setting a destination and
searching for points of interest nearby.
“MENU SCREEN TYPES AND HOW
TO OPERATE” (page 2-6)
NGT0061NGT0062
MAP MENU SCREEN
Getting started2-13

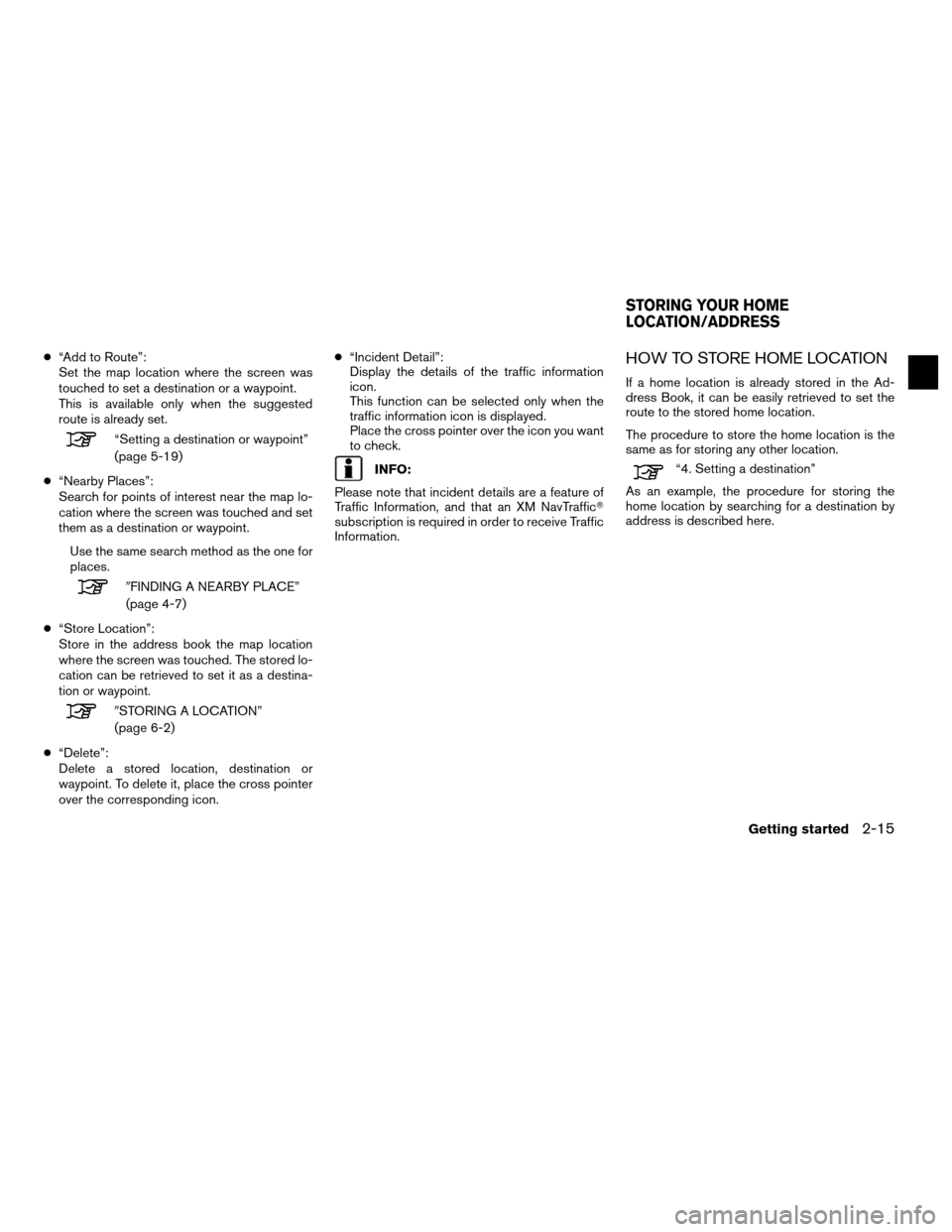

●“Add to Route”:
Set the map location where the screen was
touched to set a destination or a waypoint.
This is available only when the suggested
route is already set.
“Setting a destination or waypoint”
(page 5-19)
● “Nearby Places”:
Search for points of interest near the map lo-
cation where the screen was touched and set
them as a destination or waypoint.
Use the same search method as the one for
places.
FINDING A NEARBY PLACE”
(page 4-7)
● “Store Location”:
Store in the address book the map location
where the screen was touched. The stored lo-
cation can be retrieved to set it as a destina-
tion or waypoint.
STORING A LOCATION”
(page 6-2)
● “Delete”:
Delete a stored location, destination or
waypoint. To delete it, place the cross pointer
over the corresponding icon. ●
“Incident Detail”:
Display the details of the traffic information
icon.
This function can be selected only when the
traffic information icon is displayed.
Place the cross pointer over the icon you want
to check.
INFO:
Please note that incident details are a feature of
Traffic Information, and that an XM NavTraffic
subscription is required in order to receive Traffic
Information.
HOW TO STORE HOME LOCATION
If a home location is already stored in the Ad-
dress Book, it can be easily retrieved to set the
route to the stored home location.
The procedure to store the home location is the
same as for storing any other location.
“4. Setting a destination”
As an example, the procedure for storing the
home location by searching for a destination by
address is described here.
STORING YOUR HOME
LOCATION/ADDRESS
Getting started2-15

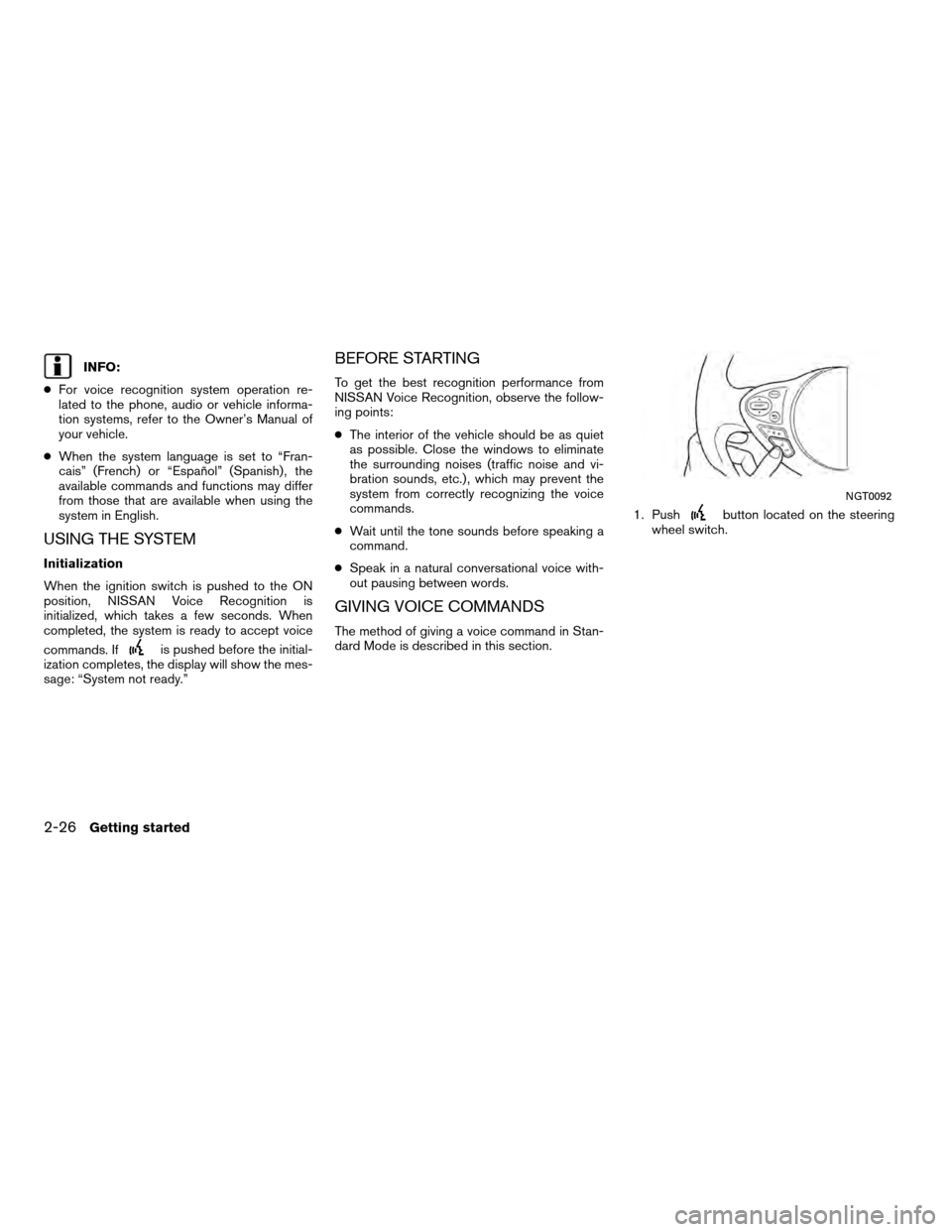

INFO:
● For voice recognition system operation re-
lated to the phone, audio or vehicle informa-
tion systems, refer to the Owner’s Manual of
your vehicle.
● When the system language is set to “Fran-
cais” (French) or “Español” (Spanish) , the
available commands and functions may differ
from those that are available when using the
system in English.
USING THE SYSTEM
Initialization
When the ignition switch is pushed to the ON
position, NISSAN Voice Recognition is
initialized, which takes a few seconds. When
completed, the system is ready to accept voice
commands. If
is pushed before the initial-
ization completes, the display will show the mes-
sage: “System not ready.”
BEFORE STARTING
To get the best recognition performance from
NISSAN Voice Recognition, observe the follow-
ing points:
● The interior of the vehicle should be as quiet
as possible. Close the windows to eliminate
the surrounding noises (traffic noise and vi-
bration sounds, etc.) , which may prevent the
system from correctly recognizing the voice
commands.
● Wait until the tone sounds before speaking a
command.
● Speak in a natural conversational voice with-
out pausing between words.
GIVING VOICE COMMANDS
The method of giving a voice command in Stan-
dard Mode is described in this section. 1. Push
button located on the steering
wheel switch.
NGT0092
2-26Getting started

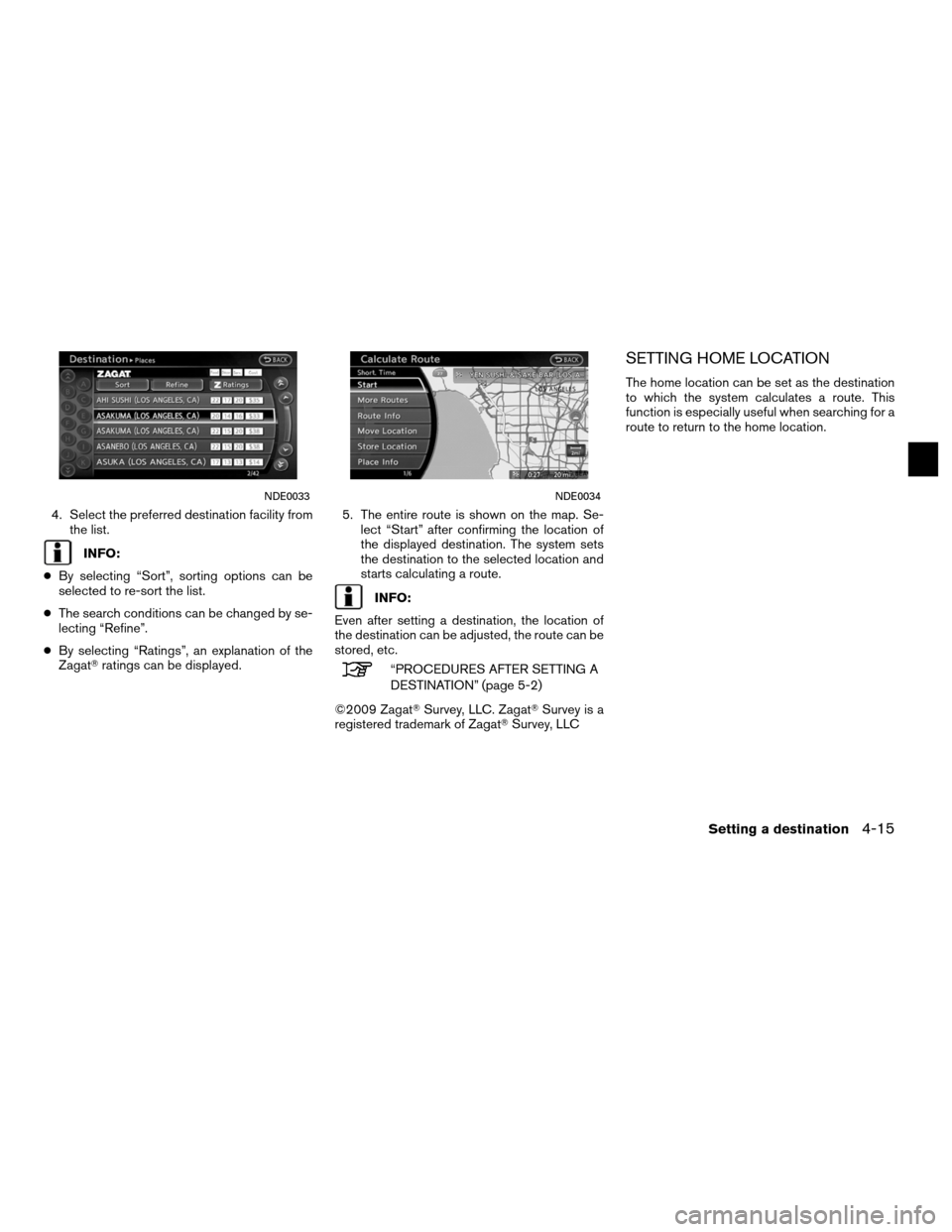

4. Select the preferred destination facility fromthe list.
INFO:
● By selecting “Sort”, sorting options can be
selected to re-sort the list.
● The search conditions can be changed by se-
lecting “Refine”.
● By selecting “Ratings”, an explanation of the
Zagat ratings can be displayed. 5. The entire route is shown on the map. Se-
lect “Start” after confirming the location of
the displayed destination. The system sets
the destination to the selected location and
starts calculating a route.
INFO:
Even after setting a destination, the location of
the destination can be adjusted, the route can be
stored, etc.
“PROCEDURES AFTER SETTING A
DESTINATION” (page 5-2)
©2009 Zagat Survey, LLC. Zagat Survey is a
registered trademark of Zagat Survey, LLC
SETTING HOME LOCATION
The home location can be set as the destination
to which the system calculates a route. This
function is especially useful when searching for a
route to return to the home location.
NDE0033NDE0034
Setting a destination4-15

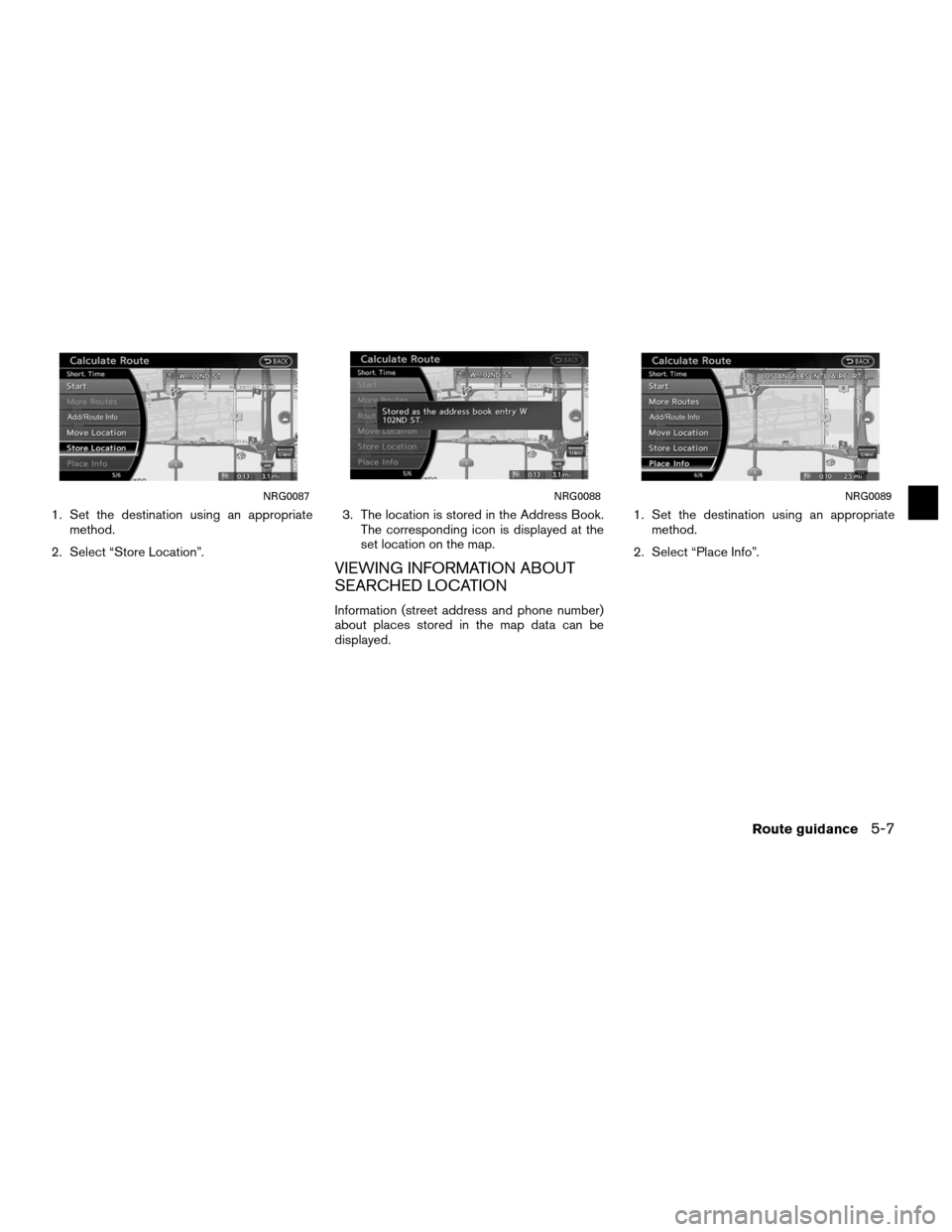

1. Set the destination using an appropriatemethod.
2. Select “Store Location”. 3. The location is stored in the Address Book.
The corresponding icon is displayed at the
set location on the map.
VIEWING INFORMATION ABOUT
SEARCHED LOCATION
Information (street address and phone number)
about places stored in the map data can be
displayed. 1. Set the destination using an appropriate
method.
2. Select “Place Info”.
NRG0087NRG0088NRG0089
Route guidance5-7

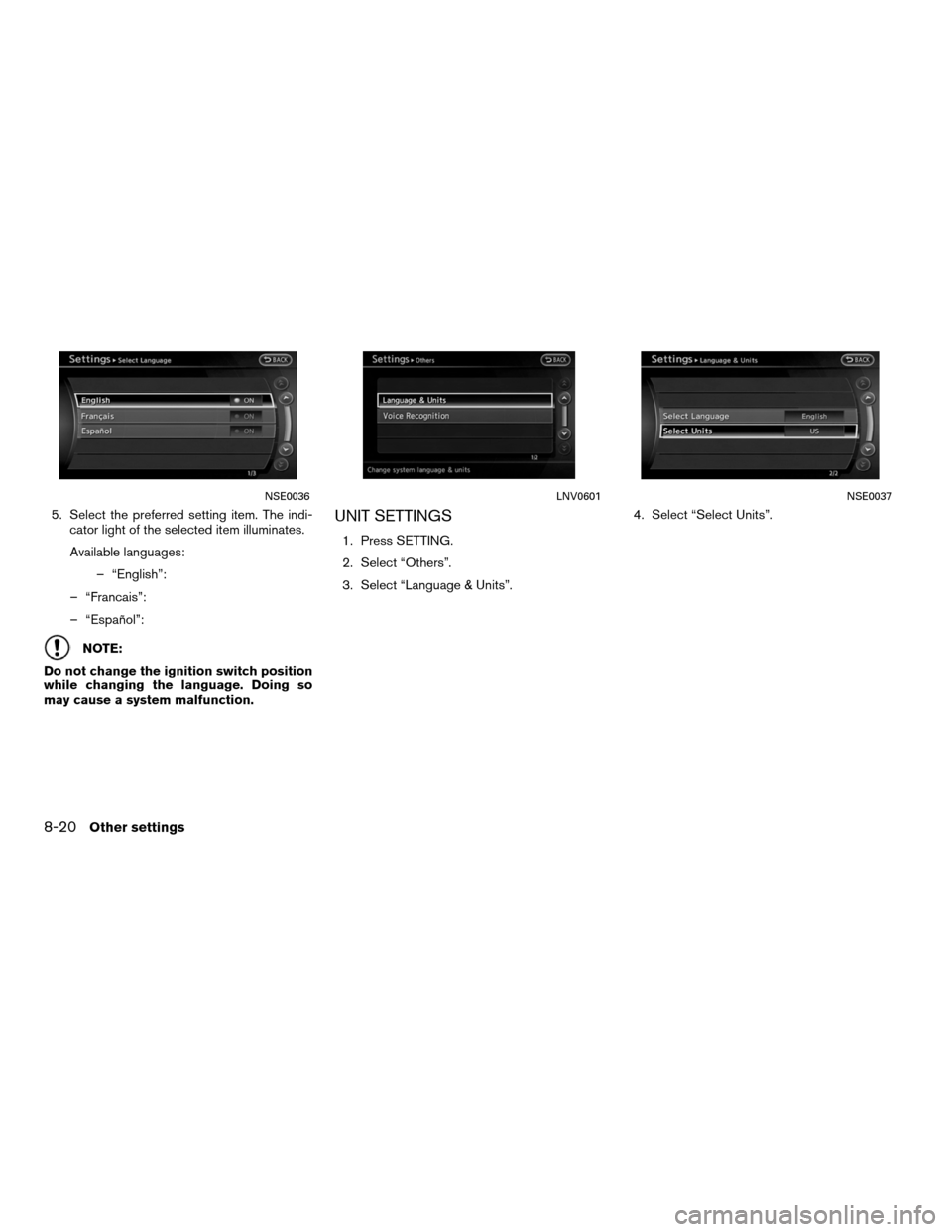

5. Select the preferred setting item. The indi-cator light of the selected item illuminates.
Available languages: – “English”:
– “Francais”:
– “Español”:
NOTE:
Do not change the ignition switch position
while changing the language. Doing so
may cause a system malfunction.
UNIT SETTINGS
1. Press SETTING.
2. Select “Others”.
3. Select “Language & Units”. 4. Select “Select Units”.
NSE0036LNV0601NSE0037
8-20Other settings

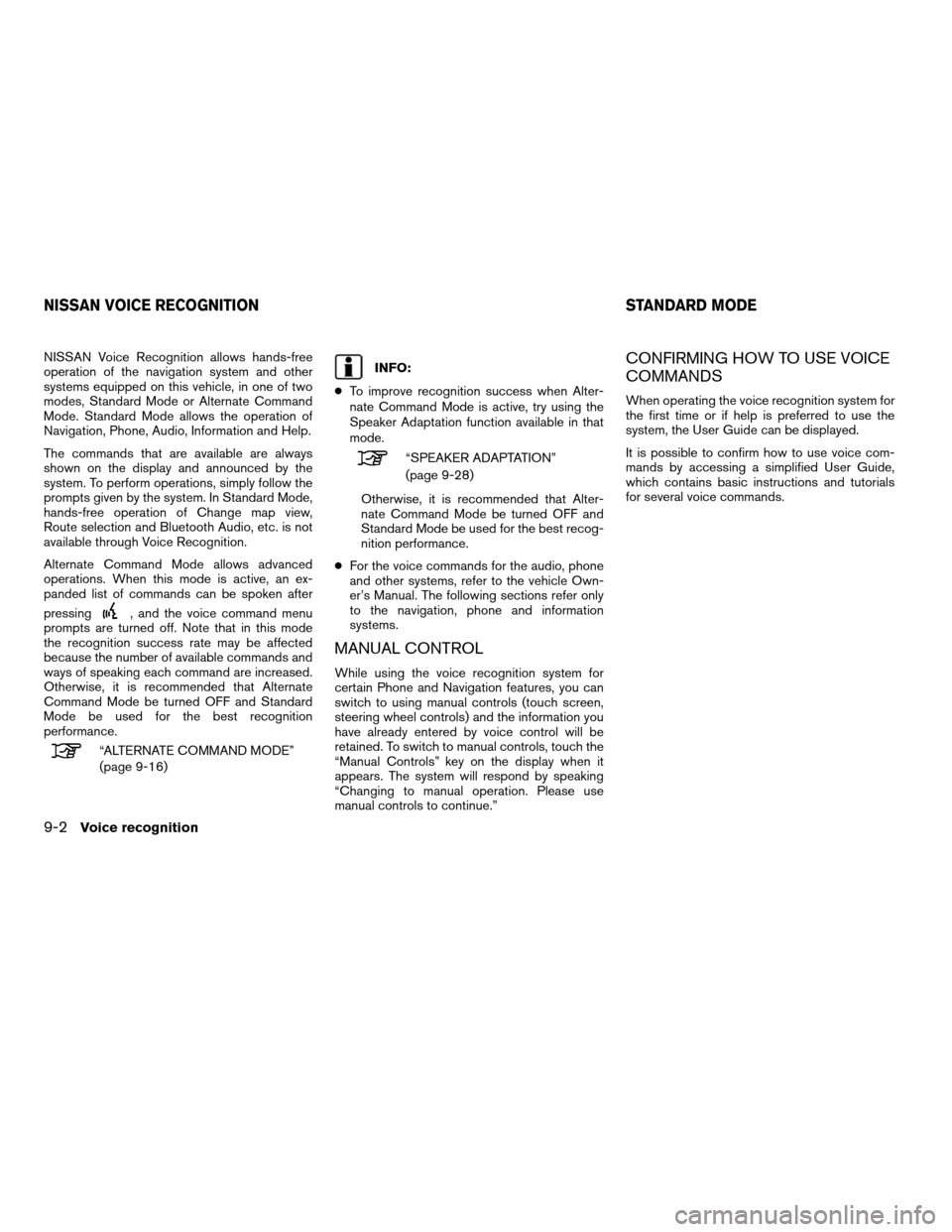

NISSAN Voice Recognition allows hands-free
operation of the navigation system and other
systems equipped on this vehicle, in one of two
modes, Standard Mode or Alternate Command
Mode. Standard Mode allows the operation of
Navigation, Phone, Audio, Information and Help.
The commands that are available are always
shown on the display and announced by the
system. To perform operations, simply follow the
prompts given by the system. In Standard Mode,
hands-free operation of Change map view,
Route selection and Bluetooth Audio, etc. is not
available through Voice Recognition.
Alternate Command Mode allows advanced
operations. When this mode is active, an ex-
panded list of commands can be spoken after
pressing
, and the voice command menu
prompts are turned off. Note that in this mode
the recognition success rate may be affected
because the number of available commands and
ways of speaking each command are increased.
Otherwise, it is recommended that Alternate
Command Mode be turned OFF and Standard
Mode be used for the best recognition
performance.
“ALTERNATE COMMAND MODE”
(page 9-16)
INFO:
● To improve recognition success when Alter-
nate Command Mode is active, try using the
Speaker Adaptation function available in that
mode.
“SPEAKER ADAPTATION”
(page 9-28)
Otherwise, it is recommended that Alter-
nate Command Mode be turned OFF and
Standard Mode be used for the best recog-
nition performance.
● For the voice commands for the audio, phone
and other systems, refer to the vehicle Own-
er’s Manual. The following sections refer only
to the navigation, phone and information
systems.
MANUAL CONTROL
While using the voice recognition system for
certain Phone and Navigation features, you can
switch to using manual controls (touch screen,
steering wheel controls) and the information you
have already entered by voice control will be
retained. To switch to manual controls, touch the
“Manual Controls” key on the display when it
appears. The system will respond by speaking
“Changing to manual operation. Please use
manual controls to continue.”
CONFIRMING HOW TO USE VOICE
COMMANDS
When operating the voice recognition system for
the first time or if help is preferred to use the
system, the User Guide can be displayed.
It is possible to confirm how to use voice com-
mands by accessing a simplified User Guide,
which contains basic instructions and tutorials
for several voice commands.
NISSAN VOICE RECOGNITION STANDARD MODE
9-2Voice recognition
