WARNING
.Do not drive with the trunk lid open.
This could allow dangerous exhaust
gases to be drawn into the vehicle.
See “EXHAUST GAS (carbon mon-
oxide)” in the “5. Starting and driv-
ing” section of this manual.
. Closely supervise children when
they are around cars to prevent
them from playing and becoming
locked in the trunk where they could
be seriously injured. Keep the car
locked, with the trunk closed, when
not in use, and prevent children’s
access to Intelligent Keys.
SPA2692
TRUNK LID OPENER SWITCHThe trunk lid can be opened by pushing the
trunk lid opener switch when the Intelligent Key
is within the operating range of the trunk lock/
unlock function regardless of the inside lock
knob position. (See “INTELLIGENT KEY SYS-
TEM” earlier in this section.)
SPA2681
TRUNK RELEASE POWER CANCEL
SWITCHWhen the switch located inside the glove box is
in the OFF position
*A
, the power to the trunk
lid will be canceled and the trunk lid cannot be
opened by the trunk lid opener or trunk request
switch.
When you have to leave the vehicle with a valet
and want to keep your belongings safe in the
glove box and the trunk, push this switch to OFF
and lock the glove box with the mechanical key.
Then leave the vehicle and the Intelligent Key
with the valet and keep the mechanical key with
you.
TRUNK LID (Roadster models)
Pre-driving checks and adjustments
3-19

Black plate (130,1)
Model "Z34-D" EDITED: 2010/ 7/ 27
See “KEYS” earlier in this section.
To connect the power to the trunk lid, push the
switch to the ON
*B
position.
SPA2682
INTERIOR TRUNK LID RELEASE
WARNING
Closely supervise children when they
are around cars to prevent them from
playing and becoming locked in the
trunk where they could be seriously
injured. Keep the car locked, with the
trunk lid securely latched, when not in
use, and prevent children’s access to
Intelligent Keys.
The interior trunk lid release mechanism allows
opening of the trunk lid in the event that people become locked inside the trunk.
Releasing inside the trunkTo open the trunk lid from the inside, pull the
release handle
*A
until the lock releases and
push up on the trunk lid. The release lever is
made of a material that glows in the dark after a
brief exposure to ambient light.
The handle
*A
is located inside the trunk
compartment as illustrated.
3-20
Pre-driving checks and adjustments

Black plate (131,1)
Model "Z34-D" EDITED: 2010/ 7/ 27
SPA2683
SECONDARY TRUNK LID RELEASEThe secondary trunk lid release mechanism
allows opening the trunk lid in the event of
discharged battery or emergency.
1. Open the rear parcel box.
2. Remove the cap
*1
with a suitable tool
*2.
3. Insert the key into the key cylinder and turn it counterclockwise. The trunk lid will open.
SPA2685
Interior/exterior view
1. Soft top indicator light (on the combination meter)
2. Soft top operating switch
3. Top lock hole
4. Soft top
5. Top storage lid
6. Trunk lid
7. Rear window
BEFORE OPERATING THE TOPThe soft top of this vehicle is electrically
operated. You can fully open or close the top
only by pressing the operating switch located on
the center console.
The soft top operating switch must be operated
under all of the following conditions:
.When the trunk is closed.
. When the vehicle is stopped.
. When the engine is running.
. When the ignition switch is in the ON
position.
SOFT TOP (Roadster models)
Pre-driving checks and adjustments
3-21

Black plate (134,1)
Model "Z34-D" EDITED: 2010/ 7/ 27
NOTE:
.In case of low battery or low tempera-
ture, the top may temporarily stop
moving during the operation. This func-
tions to protect the top control me-
chanism, and it is not a malfunction.
. If the top is opened and closed repeat-
edly in a short period of time or the top
operation is stopped while opening or
closing, the top operation may be
automatically stopped to protect the
system. Wait for approximately 5 min-
utes before operating the top again.
SPA1691
Soft top indicator lightThe soft top indicator light in the instrument
panel shows the conditions of top operation.
The light illuminates when the soft top is being
operated or if it is stopped before reaching the
fully opened or closed position. When the top is
fully opened or closed, the light will turn off.
The light blinks while the soft top is not fully
opened or closed under the following condi-
tions:
.When the vehicle is driven.
. When the selector lever or shift lever is in
the R (Reverse) position. Be sure to fully open or close the soft top when
driving the vehicle.
When the soft top is operating, and any of the
following conditions occur, the top will stop
operating.
.
When the selector lever or shift lever is in
the R (Reverse) position.
. When the vehicle moves at a speed of 3
MPH (5 km/h) or more.
. When the battery voltage is extremely low.
. When the temperature of the soft top
system becomes extremely high.
Release the soft top operating switch, and push
the switch again to move the top to the fully
opened or closed position. The soft top indicator
light will turn off when the top operation is
completely finished.
If the soft top indicator light illuminates with the
ignition switch ON (whether the top is operated
or not, and when the top is engaged) , it may
indicate the top operating system is not
functioning properly. Have your vehicle checked
by a NISSAN dealer as soon as possible.
Automatic window loweringWhen the soft top operating switch is pressed,
the power windows will automatically be low-
ered completely. The windows do not rise
3-24
Pre-driving checks and adjustments

Black plate (135,1)
Model "Z34-D" EDITED: 2010/ 7/ 27
automatically after the top operation is com-
pleted. Use the power window switches to raise
them.
SPA2632
OPENING THE TOP1. Start the engine.
2. Push OPEN on the soft top operating switchand hold it until the top is fully opened.
.The soft top indicator light will illuminate
while the top is in motion. (In about 20
seconds, the opening movement will
finish and the indicator light turns off.)
. Windows will automatically be fully
opened.
3. Release the switch when the top is fully opened. (The indicator light turns off.) NOTE:
If you release the switch and press it again
while the top is being opened, the top will
slightly move to the closing direction, then
start moving to the opening direction
again. The top is designed to move in this
way. It is not a malfunction.
Pre-driving checks and adjustments
3-25

Black plate (136,1)
Model "Z34-D" EDITED: 2010/ 7/ 27
SPA2633
CLOSING THE TOP1. Start the engine.
2. Push CLOSE on the soft top operatingswitch and hold it until the top is fully closed.
.The soft top indicator light will illuminate
while the top is in motion. (In about 20
seconds, the closing movement will
finish.)
. Windows will automatically be fully
opened.
3. Release the switch when the top is fully closed. (The indicator light will turn off.)
SPA2570
OPENING THE TOP USING THE IN-
TELLIGENT KEYThe soft top can be opened using the request
switch.Opening the soft topPush the ignition switch to the OFF position and
make sure to carry the Intelligent Key with you.
Push the door handle request switch (driver’s or
passenger’s)
*A
and hold it until the soft top is
fully open.
3-26
Pre-driving checks and adjustments

Black plate (138,1)
Model "Z34-D" EDITED: 2010/ 7/ 27

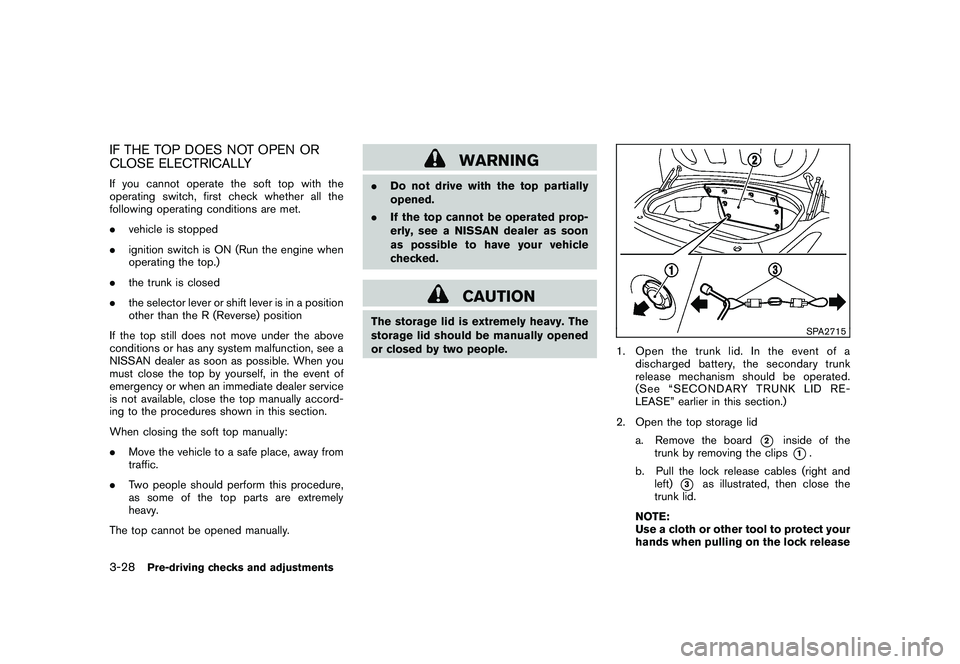

IF THE TOP DOES NOT OPEN OR
CLOSE ELECTRICALLYIf you cannot operate the soft top with the
operating switch, first check whether all the
following operating conditions are met.
.vehicle is stopped
. ignition switch is ON (Run the engine when
operating the top.)
. the trunk is closed
. the selector lever or shift lever is in a position
other than the R (Reverse) position
If the top still does not move under the above
conditions or has any system malfunction, see a
NISSAN dealer as soon as possible. When you
must close the top by yourself, in the event of
emergency or when an immediate dealer service
is not available, close the top manually accord-
ing to the procedures shown in this section.
When closing the soft top manually:
. Move the vehicle to a safe place, away from
traffic.
. Two people should perform this procedure,
as some of the top parts are extremely
heavy.
The top cannot be opened manually.
WARNING
. Do not drive with the top partially
opened.
. If the top cannot be operated prop-
erly, see a NISSAN dealer as soon
as possible to have your vehicle
checked.
CAUTION
The storage lid is extremely heavy. The
storage lid should be manually opened
or closed by two people.
SPA2715
1. Open the trunk lid. In the event of a
discharged battery, the secondary trunk
release mechanism should be operated.
(See “SECONDARY TRUNK LID RE-
LEASE” earlier in this section.)
2. Open the top storage lid a. Remove the board
*2
inside of the
trunk by removing the clips*1.
b. Pull the lock release cables (right and left)
*3
as illustrated, then close the
trunk lid.
NOTE:
Use a cloth or other tool to protect your
hands when pulling on the lock release
3-28
Pre-driving checks and adjustments

Black plate (145,1)
Model "Z34-D" EDITED: 2010/ 7/ 27

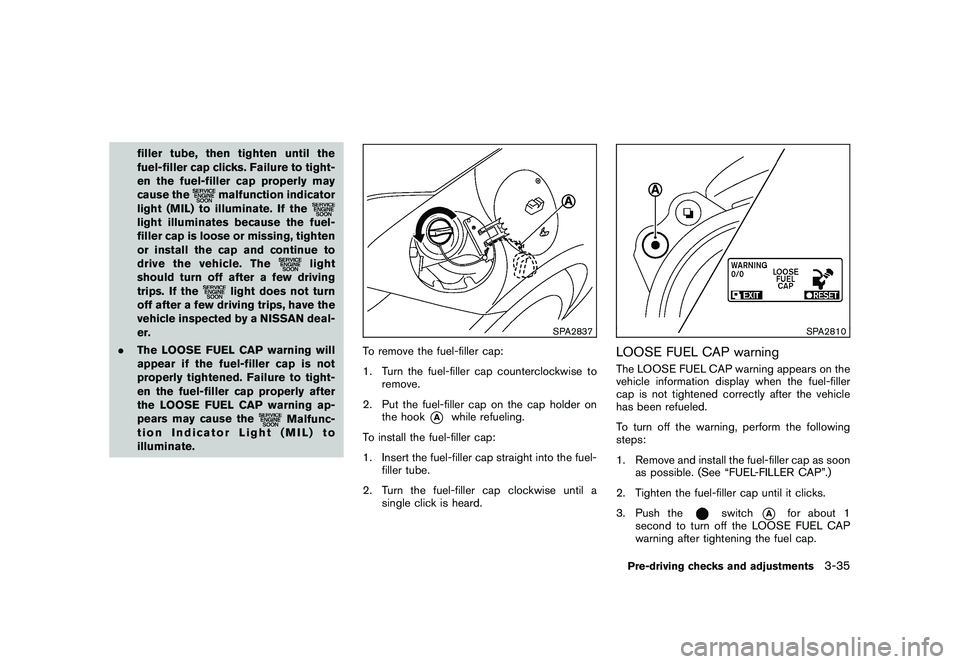

filler tube, then tighten until the
fuel-filler cap clicks. Failure to tight-
en the fuel-filler cap properly may
cause the
malfunction indicator
light (MIL) to illuminate. If the
light illuminates because the fuel-
filler cap is loose or missing, tighten
or install the cap and continue to
drive the vehicle. The
light
should turn off after a few driving
trips. If the
light does not turn
off after a few driving trips, have the
vehicle inspected by a NISSAN deal-
er.
. The LOOSE FUEL CAP warning will
appear if the fuel-filler cap is not
properly tightened. Failure to tight-
en the fuel-filler cap properly after
the LOOSE FUEL CAP warning ap-
pears may cause the
Malfunc-
tion Indicator Light (MIL) to
illuminate.
SPA2837
To remove the fuel-filler cap:
1. Turn the fuel-filler cap counterclockwise to remove.
2. Put the fuel-filler cap on the cap holder on the hook
*A
while refueling.
To install the fuel-filler cap:
1. Insert the fuel-filler cap straight into the fuel- filler tube.
2. Turn the fuel-filler cap clockwise until a single click is heard.
SPA2810
LOOSE FUEL CAP warningThe LOOSE FUEL CAP warning appears on the
vehicle information display when the fuel-filler
cap is not tightened correctly after the vehicle
has been refueled.
To turn off the warning, perform the following
steps:
1. Remove and install the fuel-filler cap as soonas possible. (See “FUEL-FILLER CAP”.)
2. Tighten the fuel-filler cap until it clicks.
3. Push the
switch
*A
for about 1
second to turn off the LOOSE FUEL CAP
warning after tightening the fuel cap.
