ENGINE COMPARTMENT
CAUTION
Never use a fuse of a higher or lower
amperage rating than that specified on
the fuse box cover. This could damage
the electrical system or cause a fire.
If any electrical equipment does not operate,
check for an open fuse.
1. Be sure the ignition switch is pushed to the OFF or LOCK position and the headlight
switch is turned to OFF. 2. Open the engine hood and remove the
cover on the battery and the fuse/fusible link
holder.
3. Remove the fuse/fusible link holder cover.
4. Remove the fuse with the fuse puller located in the passenger compartment fuse box.
SDI1754
5. If the fuse is open
*A
, replace it with a new
fuse
*B. Spare fuses are stored in the
passenger compartment fuse box.
6. If a new fuse also opens, have the electrical system checked and repaired by a NISSAN
dealer.
Fusible linksIf any electrical equipment does not operate and
fuses are in good condition, check the fusible
links. If any of these fusible links are melted,
replace only with genuine NISSAN parts.
FUSES
Maintenance and do-it-yourself
8-21

Black plate (366,1)
Model "Z34-D" EDITED: 2011/ 1/ 21
SDI2361
PASSENGER COMPARTMENT
CAUTION
Never use a fuse of a higher or lower
amperage rating than that specified on
the fuse box cover. This could damage
the electrical system or cause a fire.
If any electrical equipment does not operate,
check for an open fuse.
1. Be sure the ignition switch is pushed to the OFF or LOCK position and the headlight
switch is turned to OFF. 2. Open the fuse box lid.
3. Remove the fuse with the fuse puller
*A
.
4. If the fuse is open, replace it with a new fuse. Spare fuses are stored in the fuse box.
5. If a new fuse also opens, have the electrical system checked and repaired by a NISSAN
dealer.
SDI2704
Extended storage switch (if so equipped)To reduce battery drain, the extended storage
switch comes from the factory switched off.
Prior to delivery of your vehicle, the switch is
pushed in (switched on) and should always
remain on.
If any electrical equipment does not operate,
remove the extended storage switch and check
for an open fuse.
NOTE:
If the extended storage switch malfunc-
tions, or if the fuse is open, it is not
necessary to replace the switch. In this
case, remove the extended storage switch
8-22
Maintenance and do-it-yourself

Black plate (367,1)
Model "Z34-D" EDITED: 2011/ 1/ 21
and replace it with a new fuse of the same
rating.
How to remove the extended storage
switch:
1. To remove the extended storage switch, besure the ignition switch is in the OFF or
LOCK position.
2. Be sure the headlight switch is in the OFF position.
3. Remove the fuse box cover.
4. Pinch the locking tabs
*1
found on each
side of the storage switch.
5. Pull the storage switch straight out from the fuse box
*2.
SDI2451
CAUTION
Be careful not to allow children to
swallow the battery and removed parts. Replace the battery as follows:
1. Remove the mechanical key from the key.
2. Insert a small screwdriver into the slit of the
corner and twist it to separate the upper part
from the lower part. Use a cloth to protect
the casing.
3. Replace the battery with a new one. Recommended battery:
CR2032 or equivalent
.Do not touch the internal circuit and
electric terminals as doing so could
cause a malfunction.
. Hold the battery by the edges. Holding
the battery across the contact points will
seriously deplete the storage capacity.
. Make sure that the +side faces the
bottom case.INTELLIGENT KEY BATTERY
REPLACEMENT
Maintenance and do-it-yourself
8-23

Black plate (389,1)
Model "Z34-D" EDITED: 2010/ 7/ 27
vehicles.
If any undesirable driveability problems such as
engine stalling or hard hot starting are experi-
enced after using oxygenate-blend fuels, im-
mediately change to a non-oxygenate fuel or a
fuel with a low blend of MTBE.
Take care not to spill gasoline during
refueling. Gasoline containing oxygenates
can cause paint damage.
E-85 fuelE-85 fuel is a mixture of approximately 85% fuel
ethanol and 15% unleaded gasoline. E-85 can
only be used in a Flexible Fuel Vehicle (FFV) . Do
not use E-85 fuel in your vehicle. U.S. govern-
ment regulations require fuel ethanol dispensing
pumps to be identified by a small, square,
orange and black label with the common
abbreviation or the appropriate percentage for
that region.Aftermarket fuel additivesNISSAN does not recommend the use of any
aftermarket fuel additives (Example: fuel injector
cleaner, octane booster, intake valve deposit
removers, etc.) which are sold commercially.
Many of these additives intended for gum,
varnish or deposit removal may contain active
solvent or similar ingredients that can be harmful
to the fuel system and engine.
Octane rating tipsUsing unleaded gasoline with an octane
rating lower than recommended above can
cause persistent, heavy spark knock.
(Spark knock is a metallic rapping noise.)
If severe, this can lead to engine damage.
If you detect a persistent heavy spark
knock even when using gasoline of the
stated octane rating, or if you hear steady
spark knock while holding a steady speed
on level roads, have a NISSAN dealer
correct the condition. Failure to correct
the condition is misuse of the vehicle, for
which NISSAN is not responsible.
Incorrect ignition timing will result in knocking,
after-run or overheating. This in turn may cause
excessive fuel consumption or damage to the
engine. If any of the above symptoms are
encountered, have your vehicle checked at a
NISSAN dealer or other competent service
facility.
However, now and then you may notice
light spark knock for a short time while
accelerating or driving up hills. This is no
cause for concern, because you get the
greatest fuel benefit when there is light
spark knock for a short time under heavy
engine load.
Technical and consumer information
9-5

Black plate (392,1)
Model "Z34-D" EDITED: 2010/ 7/ 27

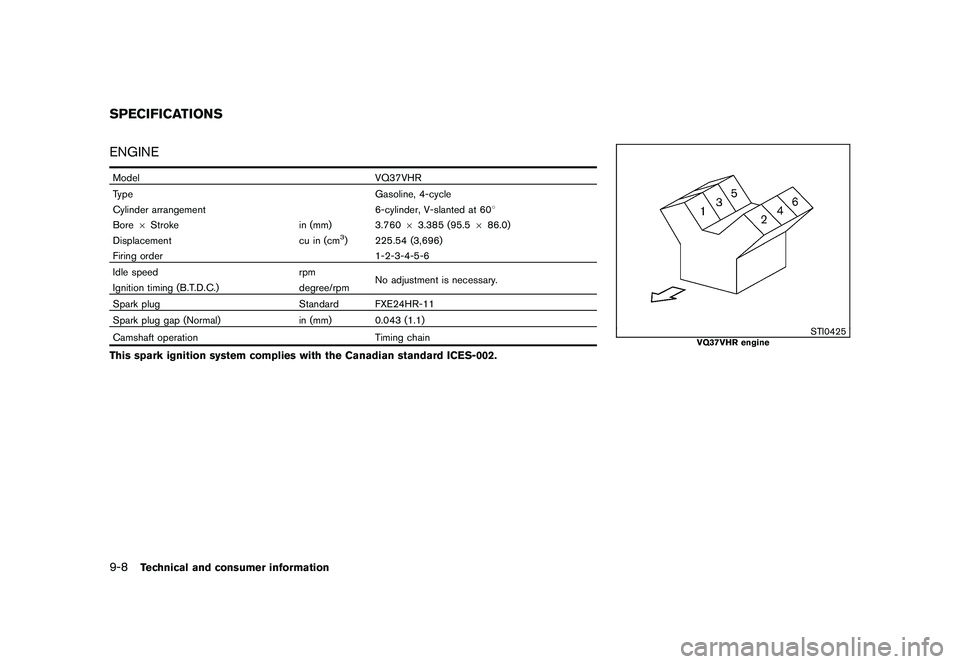

ENGINEModelVQ37VHR
Type Gasoline, 4-cycle
Cylinder arrangement 6-cylinder, V-slanted at 608
Bore 6Stroke in (mm) 3.76063.385 (95.5 686.0)
Displacement cu in (cm
3) 225.54 (3,696)
Firing order 1-2-3-4-5-6
Idle speed rpm
No adjustment is necessary.
Ignition timing (B.T.D.C.) degree/rpm
Spark plug Standard FXE24HR-11
Spark plug gap (Normal) in (mm) 0.043 (1.1)
Camshaft operation Timing chain
This spark ignition system complies with the Canadian standard ICES-002.
STI0425
VQ37VHR engine
SPECIFICATIONS9-8
Technical and consumer information

Black plate (408,1)
Model "Z34-D" EDITED: 2010/ 7/ 27
A vehicle equipped with All-Wheel Drive (AWD)
should never be tested using a two wheel
dynamometer (such as the dynamometers used
by some states for emissions testing) , or similar
equipment. Make sure you inform test facility
personnel that your vehicle is equipped with
AWD before it is placed on a dynamometer.
Using the wrong test equipment may result in
transmission damage or unexpected vehicle
movement which could result in serious vehicle
damage or personal injury.
Due to legal requirements in some states and
Canadian Provinces, your vehicle may be
required to be in what is called the “ready
condition” for an Inspection/Maintenance (I/M)
test of the emission control system.
The vehicle is set to the “ready condition” when
it is driven through certain driving patterns.
Usually, the “ready condition” can be obtained
by ordinary usage of the vehicle.
If a powertrain system component is repaired or
the battery is disconnected, the vehicle may be
reset to a “not ready condition”. Before taking
the I/M test, check the vehicle’s inspection/
maintenance test readiness condition. Place the
ignition switch in the ON position without
starting the engine. If the Malfunction Indicator
Light (MIL) comes on steady for 20 seconds and
then blinks for 10 seconds, the I/M test
condition is “not ready”. If the MIL does not
blink after 20 seconds, the I/M test condition is“ready”.
Contact a NISSAN dealer to set “ready condi-
tion” or to prepare the vehicle for testing.
This vehicle is equipped with an Event
Data Recorder (EDR) . The main purpose of
an EDR is to record, in certain crash or near
crash-like situations, such as an air bag
deployment or hitting a road obstacle, data
that will assist in understanding how a
vehicle’s systems performed. The EDR is
designed to record data related to vehicle
dynamics and safety systems for a short
period of time, typically 30 seconds or less.
The EDR in this vehicle is designed to
record such data as:
.
How various systems in your vehicle
were operating;
. Whether or not the driver and passen-
ger safety belts were buckled/fas-
tened;
. How far (if at all) the driver was
depressing the accelerator and/or
brake pedal; and,
. How fast the vehicle was traveling.
. Sounds are not recorded.
Thesedatacanhelpprovideabetter
understanding of the circumstances in
which crashes and injuries occur. NOTE:
EDR data are recorded by your vehicle only
if a nontrivial crash situation occurs; no
data are recorded by the EDR under
normal driving conditions and no personalREADINESS FOR INSPECTION/
MAINTENANCE (I/M) TEST EVENT DATA RECORDERS (EDR)9-24
Technical and consumer information

Black plate (3,1)
FuelCapacities and recommended
fuel/lubricants .................................... 9-2
Fuel economy .................................. 5-23
Fuel economy information (display) ............. 4-8
Fuel octane rating ................................ 9-4
Fuel recommendation ............................ 9-4
Fuel-filler cap ................................... 3-34
Fuel-filler door .................................. 3-34
Gauge ............................................ 2-6
LOOSE FUEL CAP warning .................. 3-35
Fuses ............................................... 8-21
Fusible links ........................................ 8-21
G
Garage door opener, HomeLink
®Universal
Transceiver ......................................... 2-47
Gas cap ............................................ 3-34
Gauge ................................................ 2-4
Engine coolant temperature gauge ............. 2-6
Fuel gauge ....................................... 2-6
Odometer ......................................... 2-5
Speedometer ..................................... 2-5
Tachometer ....................................... 2-5
Trip computer .................................. 2-20
General maintenance ................................ 8-2
Glove box. .......................................... 2-39
H
Hands-free phone system, Bluetooth®
(models with navigation system) .................. 4-80
Hands-free phone system, Bluetooth
®
(models without navigation system) .............. 4-91
Hatch, Rear hatch ................................. 3-17 Hazard warning flasher switch
.................... 2-33
Head restraints ....................................... 1-5
Headlights Bulb replacement .............................. 8-27
Headlight switch ............................... 2-30
Xenon headlights .............................. 2-29
Heated seats ....................................... 2-34
Heater Engine block heater ........................... 5-32
Heater and air conditioner operation ......... 4-24
HomeLink
®Universal Transceiver ................. 2-47
Hood release ....................................... 3-16
Horn ................................................ 2-34
I
Ignition switch (Push-button) .................................... 5-7
Manual transmission models .................. 5-16
Immobilizer system ................................. 2-26
In-cabin microfilter ................................. 4-29
Indicator lights ..................................... 2-12
INFO button .......................................... 4-6
Inside mirror ........................................ 3-37
Inspection/maintenance (I/M) test ................ 9-24
Instrument brightness control ..................... 2-32
Instrument panel ..................................... 2-3
Instrument pocket .................................. 2-38
Intelligent Key ........................................ 3-2
Intelligent Key battery discharge indicator ....... 2-17
Intelligent Key removal indicator .................. 2-17
Intelligent Key system ............................... 3-6
Battery replacement ........................... 8-23
Intelligent Key system warning light .......... 2-10
Key operating range ............................. 3-8 Key operation
.................................... 3-9
Warning signals ................................ 3-11
Interior light control switch ........................ 2-44
Interior light replacement .......................... 8-27
Interior lights ....................................... 2-44
Interior trunk lid release ........................... 3-20
iPod
®player operation ............................. 4-67
J
Jump starting ....................................... 6-13
K
Keyless entry
(See remote keyless entry system) ............... 3-13
Keys................................................... 3-2 For Intelligent Key system ....................... 3-6
L
Labels Air bag warning labels ......................... 1-38
Air conditioner specification label ............ 9-13
Emission control information label ............ 9-12
Engine serial number .......................... 9-12
F.M.V.S.S./C.M.V.S.S. certification label. ..... 9-12
Tire and Loading information label .... 8-30, 9-13
Vehicle identification number (VIN) ........... 9-11
License plate, Installing front license plate. ...... 9-14
Light Air bag warning light .......................... 1-38
Bulb replacement .............................. 8-25
Cargo area courtesy light ..................... 2-46
Cargo light ..................................... 2-46
Fog light switch ................................ 2-33
10-3
Model "Z34-D" EDITED: 2010/ 7/ 28

Black plate (5,1)
Maintenance...................................... 8-5
Seat belt usage .................................. 1-8
Supplemental restraint system ................ 1-26
When starting and driving ....................... 5-2
Push starting ....................................... 6-15
Push warning
(Automatic Transmission models) ................. 2-17
Push-button ignition switch ................... 5-7, 5-8
R
Radio ............................................... 4-30
Car phone or CB radio ........................ 4-80
FM-AM radio with Compact Disc (CD)
player ........................................... 4-42
FM-AM-SAT radio with compact disc
(CD) changer (models without navigation
system) ......................................... 4-47
FM-AM-SAT radio with compact disc
(CD) player (models with navigation
system) ......................................... 4-51
Rapid air pressure loss .............................. 5-6
Readiness for inspection/maintenance (I/M)
test .................................................. 9-24
Rear hatch .......................................... 3-17
Rear hatch opener ................................. 3-17
Rear hatch opener switch ......................... 3-17
Rear parcel box .................................... 2-40
Rear window defroster switch .................... 2-29
RearView monitor
(models with navigation system) .................. 4-17
Recorders, Event data ............................. 9-24
Registering your vehicle in another country ...... 9-11
Remote keyless entry system ..................... 3-13
Repairing flat tire
(with emergency tire puncture repair kit) ........... 6-7Reporting safety defects
.......................... 9-23
Rollover ............................................... 5-5
Roof, Soft top ...................................... 3-21
S
Safety, Child seat belts ............................ 1-15
Satellite radio operation .................... 4-47, 4-52
Seat adjustment Front manual seat adjustment. .................. 1-4
Front power seat adjustment ................... 1-3
Front seats ....................................... 1-3
Seat belt(s) Child safety ..................................... 1-15
Infants ........................................... 1-15
Injured persons ................................. 1-11
Larger children ................................. 1-15
Precautions on seat belt usage ................. 1-8
Pregnant women ............................... 1-11
Seat belt cleaning ............................... 7-7
Seat belt extenders ............................ 1-14
Seat belt maintenance ......................... 1-14
Seat belt warning light and chime ............ 2-11
Seat belts ........................................ 1-8
Seat belts with pretensioners ................. 1-37
Three-point type ............................... 1-11
Seat(s) Climate controlled seats. ...................... 2-36
Heated seats ................................... 2-34
Seats .............................................. 1-2
Secondary rear hatch release ..................... 3-18
Secondary trunk lid release ....................... 3-21
Security system, Vehicle security system ........ 2-25
Security system (NISSAN Vehicle Immobilizer
System) , Engine start .............................. 2-26 Selector lever, Shift lock release
................. 5-15
Servicing air conditioner ........................... 4-30
SETTING button ................................... 4-10
Shift “P” warning
(Automatic Transmission models) ................. 2-17
Shift lock release, Transmission .................. 5-15
Shifting Automatic transmission ........................ 5-12
Manual transmission ........................... 5-16
Soft top Care and cleaning ............................... 7-3
If the top does not open or close ............ 3-28
Opening using the Intelligent Key ............ 3-26
Soft top indicator light .................. 2-14, 3-24
Soft top operation ............................. 3-21
Spare tire ............................................. 9-9
Spark plugs ........................................ 8-17
Speedometer ......................................... 2-5
Starting Before starting the engine .................... 5-10
Jump starting ................................... 6-13
Precautions when starting and driving ......... 5-2
Push starting ................................... 6-15
Starting the engine ............................ 5-11
STATUS button ...................................... 4-6
Status light, Front passenger air bag ............ 1-33
Steering Power steering fluid ........................... 8-12
Power steering system ........................ 5-25
Steering lock ..................................... 5-9
Steering lock release malfunction
indicator ........................................ 2-16
Steering-wheel-mounted controls for
audio ............................................ 4-77
Storage ............................................. 2-38
10-5
Model "Z34-D" EDITED: 2010/ 7/ 28
