2011 MITSUBISHI OUTLANDER display

Music CD/MP3/WMA
54
Music CD/MP3/WMA
●

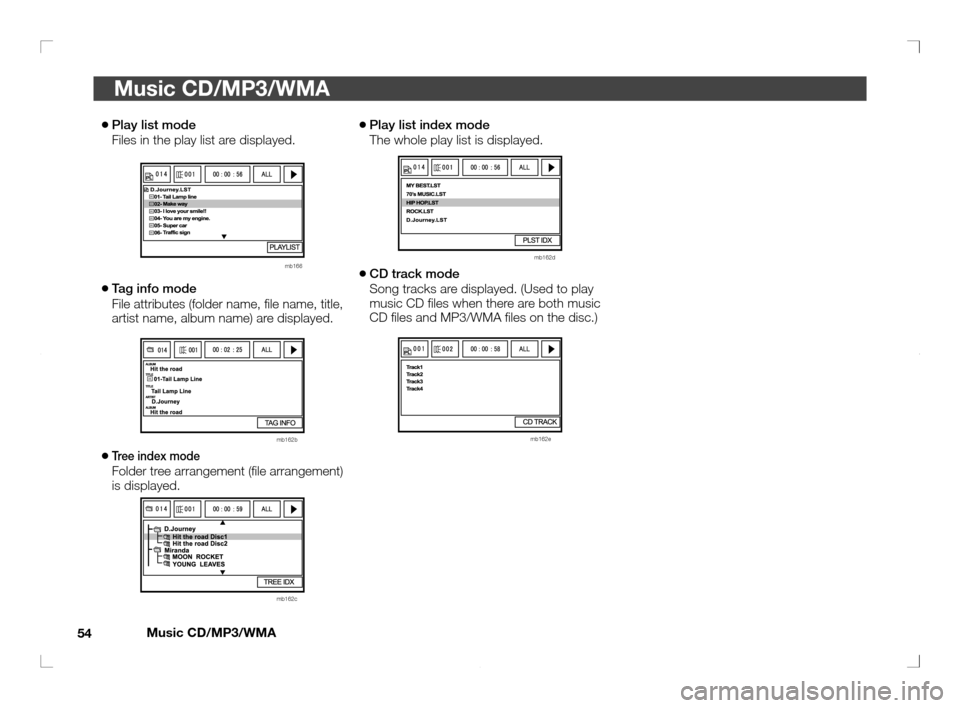

Play list mode
Files in the play list are displayed.
mb166
●
Tag info mode
File attributes (folder name, le name, title,
artist name, album name) are displayed.
mb162b
● Tree index mode
Folder tree arrangement ( le arrangement)
is displayed.
mb162c
● Play list index mode
The whole play list is displayed.
mb162d
● CD track mode
Song tracks are displayed. (Used to play
music CD les when there are both music
CD les and MP3/WMA les on the disc.)
mb162e





Music CD/MP3/WMA
55
Music CD/MP3/WMA

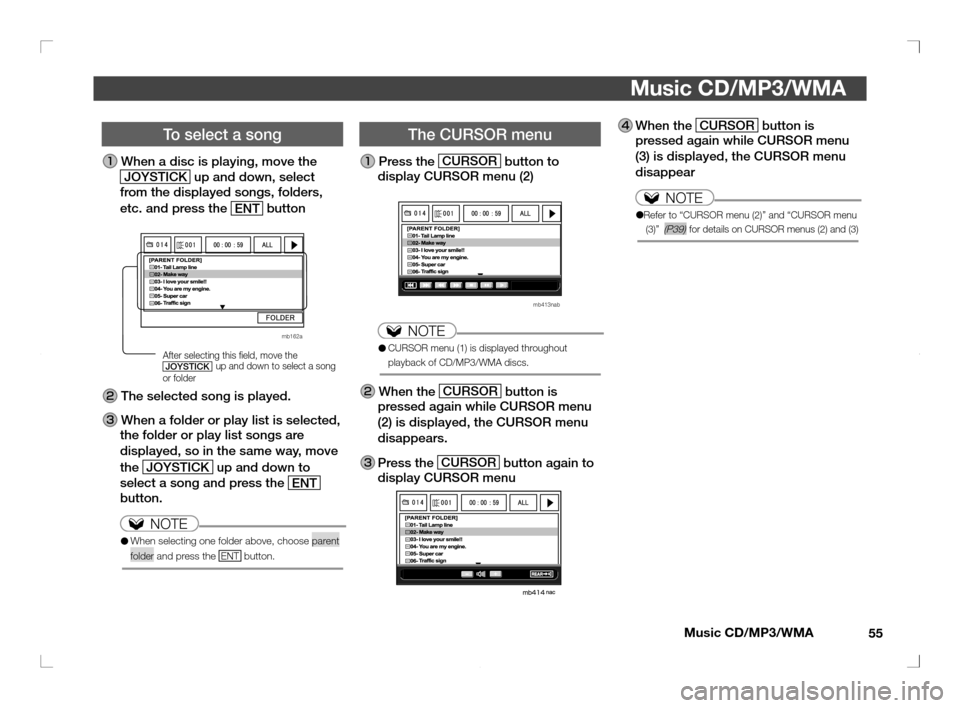

To select a song
When a disc is playing, move the
JOYSTICK
up and down, select
from the displayed songs, folders,
etc. and press the
ENT button
MMMMM
M
mb162a
After selecting this eld, move the JOYSTICK up and down to select a song
or folder
The selected song is played.
When a folder or play list is selected,
the folder or play list songs are
displayed, so in the same way, move
the JOYSTICK up and down to
select a song and press the
ENT
button.
NOTE
● When selecting one folder above, choose parent
folder and press the ENT button.
The CURSOR menu
Press the CURSOR button to
display CURSOR menu (2)
mb413nab
NOTE
● CURSOR menu (1) is displayed throughout
playback of CD/MP3/WMA discs.
When the CURSOR
button is
pressed again while CURSOR menu
(2) is displayed, the CURSOR menu
disappears.
Press the CURSOR
button again to
display CURSOR menu
MMMMM
M
When the CURSOR button is
pressed again while CURSOR menu
(3) is displayed, the CURSOR menu
disappear
NOTE
●Refer to “CURSOR menu (2)” and “CURSOR menu
(3)” (P39) for details on CURSOR menus (2) and (3)





Video CD
56
Video CD
mb159
Move the JOYSTICK up and down
to select a number from 0 to 9
Press the
ENT or
PLAY buttons
to begin playing the desired track
number

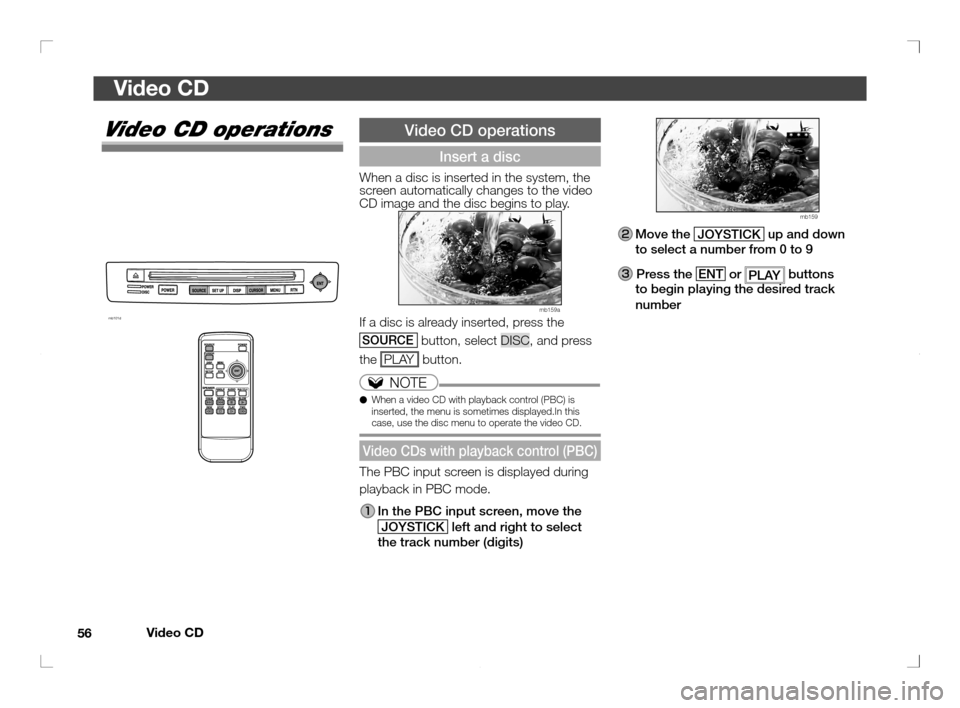

Video CD operations
mb101d
Video CD operations
Insert a disc
When a disc is inserted in the system, the
screen automatically changes to the video
CD image and the disc begins to play.
mb159a
If a disc is already inserted, press the
SOURCE button, select DISC, and press
the PLAY button.
NOTE
● When a video CD with playback control (PBC) is
inserted, the menu is sometimes displayed.In this
case, use the disc menu to operate the video CD.

Video CDs with playback control (PBC)
The PBC input screen is displayed during
playback in PBC mode.
In the PBC input screen, move the
JOYSTICK left and right to select
the track number (digits)





Video CD
57
Video CD
Playback status:

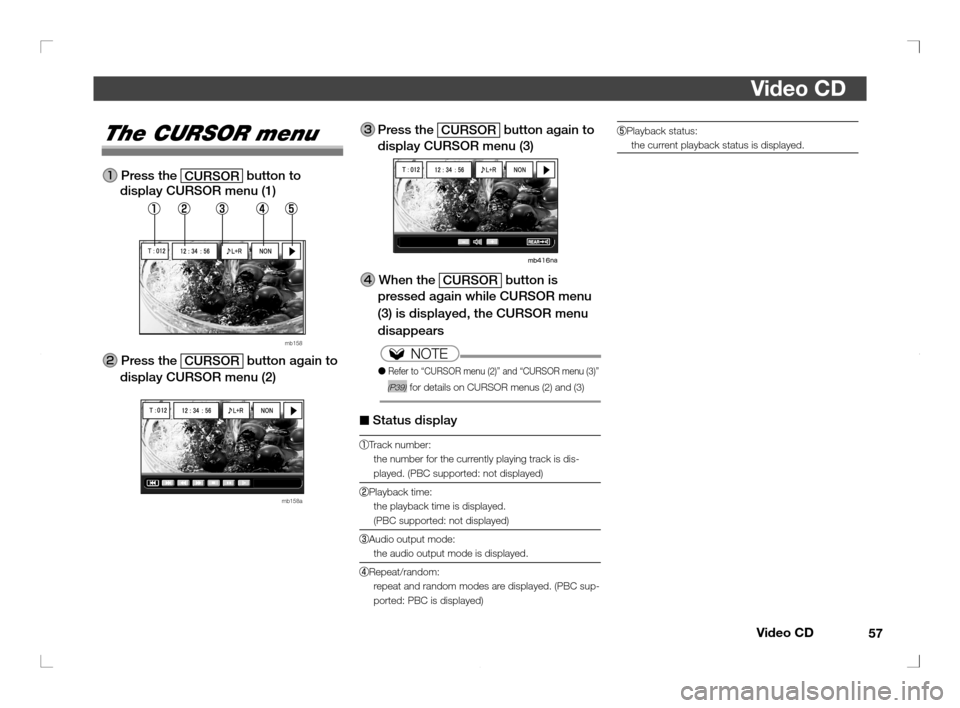

the current playback status is displayed.The CURSOR menu
Press the
CURSOR button to
display CURSOR menu (1)
mb158
Press the
CURSOR button again to
display CURSOR menu (2)
mb158a
Press the
CURSOR button again to
display CURSOR menu (3)
When the
CURSOR button is
pressed again while CURSOR menu
(3) is displayed, the CURSOR menu
disappears
NOTE
● Refer to “CURSOR menu (2)” and “CURSOR menu (3)”
(P39) for details on CURSOR menus (2) and (3)on
■ Status display
Track number:
the number for the currently playing track is dis-
played. (PBC supported: not displayed)
Playback time:
the playback time is displayed.
(PBC supported: not displayed)
Audio output mode:
the audio output mode is displayed.
Repeat/random:
repeat and random modes are displayed. (PBC sup-
ported: PBC is displayed)



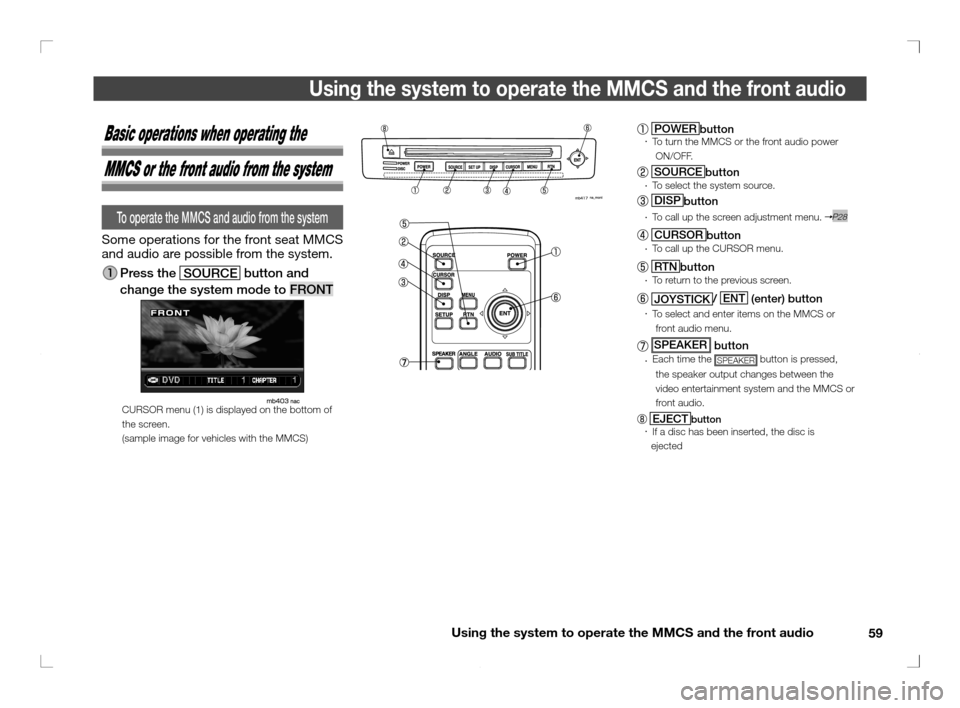

Using the system to operate the MMCS and the front audio
59
Using the system to operate the MMCS and the front audio
POWER
button To turn the MMCS or the front audio power

yON/OFF.
SOURCE
button To select the system source.
DISP
button

To call up the screen adjustment menu. P28
CURSOR
button
To call up the CURSOR menu.
RTN
button
To return to the previous screen.

JOYSTICK/ ENT
(enter) button
To select and enter items on the MMCS or
front audio menu.
SPEAKER button Each time the SPEAKER button is pressed,
the speaker output changes between the
video entertainment system and the MMCS or
front audio.

EJECTbutton
If a disc has been inserted, the disc is



ejected
Basic operations when operating the
MMCS or the front audio from the system
To operate the MMCS and audio from the system
Some operations for the front seat MMCS
and audio are possible from the system.
Press the
SOURCE button and
change the system mode to FRONT
CURSOR menu (1) is displayed on the bottom of
the screen.
(sample image for vehicles with the MMCS)





Using the system to operate the MMCS and the front audio
60
Using the system to operate the MMCS and the front audio

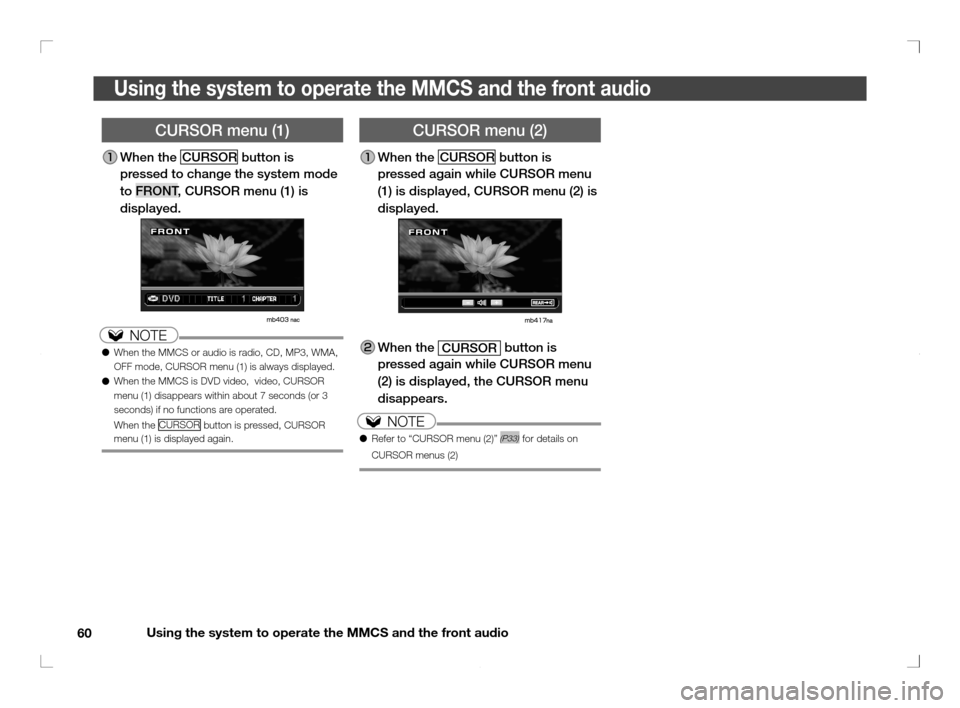

CURSOR menu (1)
When the CURSOR button is
pressed to change the system mode
to FRONT, CURSOR menu (1) is
displayed.
NOTE
● When the MMCS or audio is radio, CD, MP3, WMA,
OFF mode, CURSOR menu (1) is always displayed.
● When the MMCS is DVD video, video, CURSOR
menu (1) disappears within about 7 seconds (or 3
seconds) if no functions are operated.
When the CURSOR
button is pressed, CURSOR
menu (1) is displayed again.
CURSOR menu (2)
When the CURSOR button is
pressed again while CURSOR menu
(1) is displayed, CURSOR menu (2) is
displayed.
When the
CURSOR button is
pressed again while CURSOR menu
(2) is displayed, the CURSOR menu
disappears.
NOTE
● Refer to “CURSOR menu (2)” (P33) for details on
CURSOR menus (2)
on





Using the system to operate the MMCS and the front audio
61
Using the system to operate the MMCS and the front audio
OFF
Turning the power ON and OFF
Power ON (the front audio only)
Press the ENT
button while OFF is
displayed on CURSOR menu.
The power comes ON.
Power OFF(MMCS,the front audio)
Press and hold the ENT
button until
the power goes off
The power goes OFF.
NOTE
● The power can be switched On/Off on only the front
audio.The MMCS unit cannot be switched On/Off by
the video netertainment system.
(
*Vehicles equipped with the MMCS)

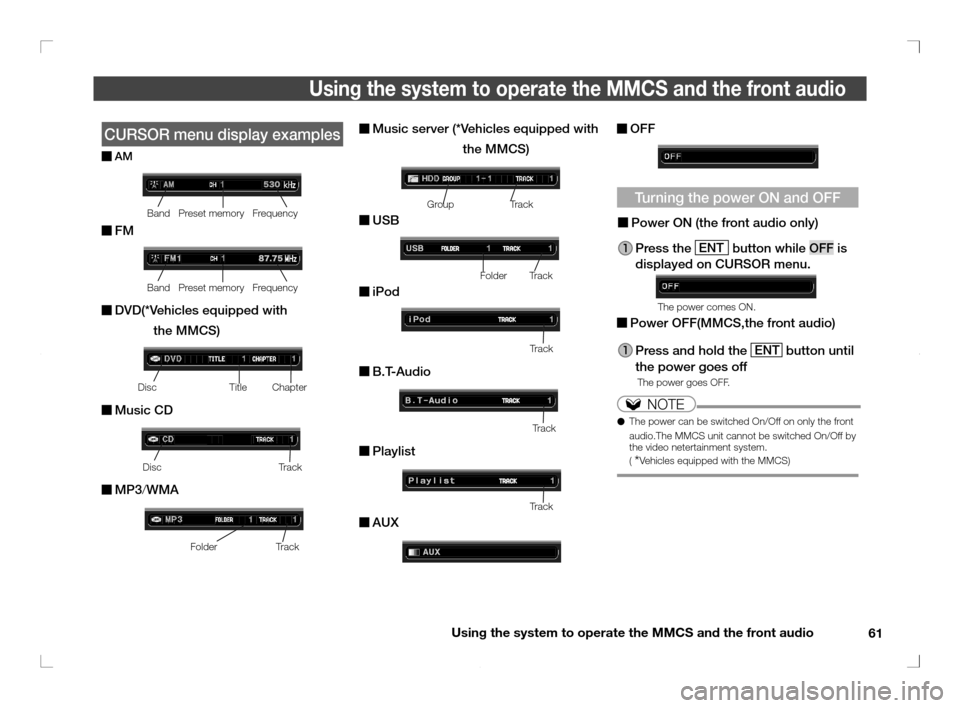

CURSOR menu display examples
AM


Band Preset memory Frequency
FM


Band Preset memory Frequency
DVD(*Vehicles equipped with
the MMCS)
Disc Title Chapter
Music CD
Disc Track
MP3/WMA
Folder Track
Music server (*Vehicles equipped with
the MMCS)
Group Track
USB
Folder


Track
iPod












































Tr a c k
B.T-Audio
Track
Playlist
Track
AUX





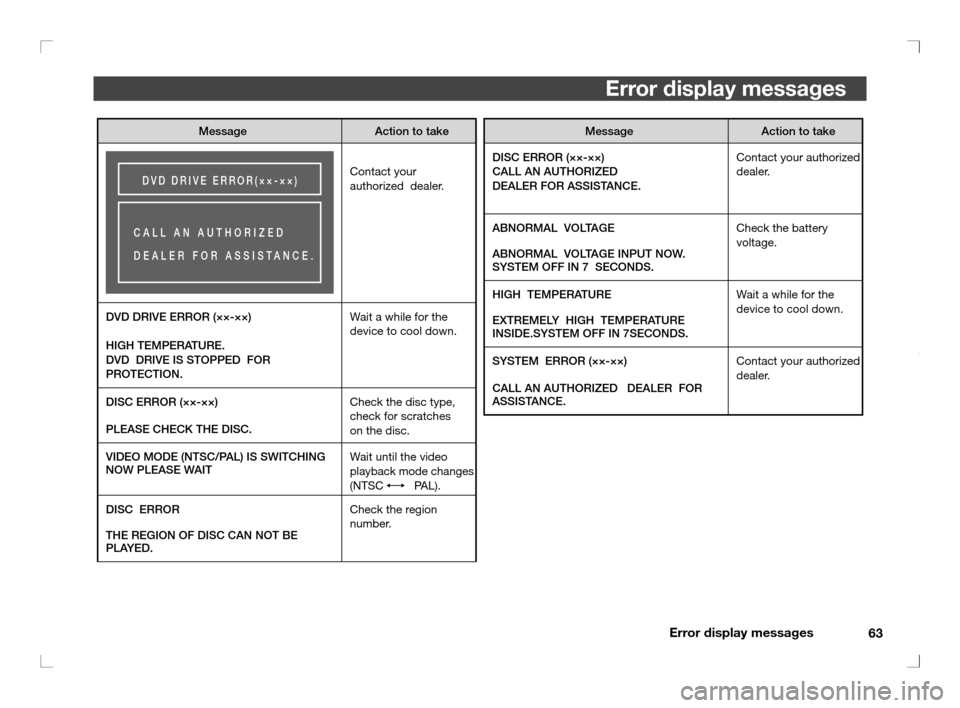

Error display messages
63
Error display messages
Message Action to take
DISC ERROR (-)
CALL AN AUTHORIZED
DEALER FOR ASSISTANCE.Contact your authorized
dealer.
ABNORMAL VOLTAGE
ABNORMAL VOLTAGE INPUT NOW.
SYSTEM OFF IN 7 SECONDS.Check the battery
voltage.
HIGH TEMPERATURE
EXTREMELY HIGH TEMPERATURE
INSIDE.SYSTEM OFF IN 7SECONDS.Wait a while for the
device to cool down.
SYSTEM ERROR (-)
CALL AN AUTHORIZED DEALER FOR
ASSISTANCE.Contact your authorized
dealer.Message Action to take
DVD DRIVE ERROR(-)
CALL AN AUTHORIZED
DEALER FOR ASSISTANCE.
Contact your
authorized dealer.
DVD DRIVE ERROR (-)
HIGH TEMPERATURE.
DVD DRIVE IS STOPPED FOR
PROTECTION.Wait a while for the
device to cool down.
DISC ERROR (-)
PLEASE CHECK THE DISC.Check the disc type,
check for scratches
on the disc.
VIDEO MODE (NTSC/PAL) IS SWITCHING
NOW PLEASE WAITWait until the video
playback mode changes
(NTSC
PAL).
DISC ERROR
THE REGION OF DISC CAN NOT BE
PLAYED.Check the region
number.
