14Names and functions of parts

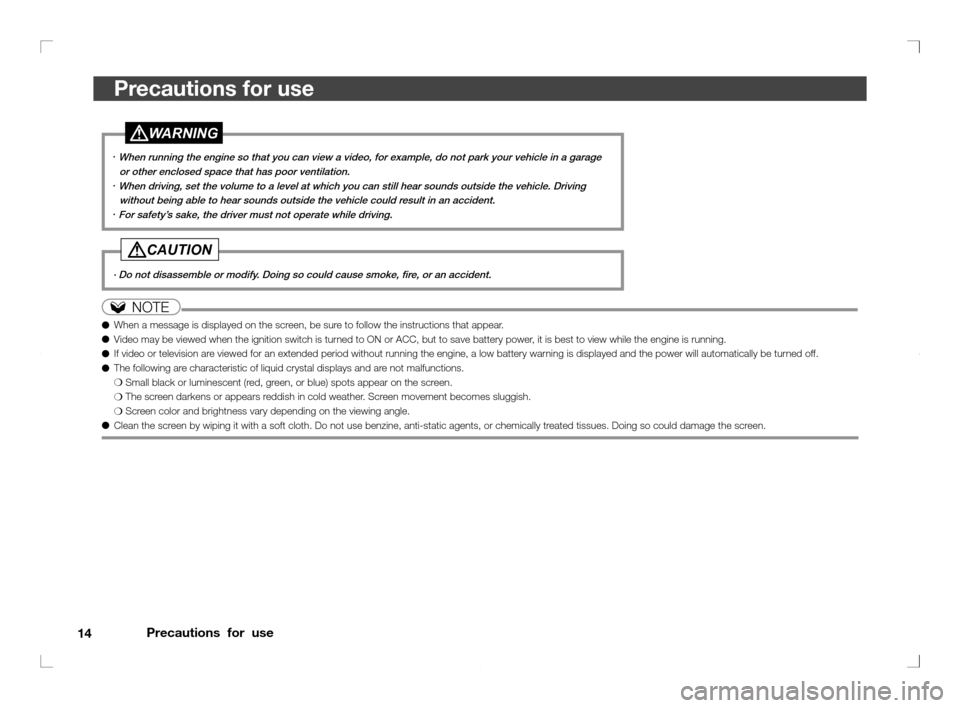

Names and functions of partsPrecautions for use
Precautions for use
·
When running the engine so that you can view a video, for example, do not park your vehicle in a garage
or other enclosed space that has poor ventilation.
·
When driving, set the volume to a level at which you can still hear sounds outside the vehicle. Driving
without being able to hear sounds outside the vehicle could result in an accident.
·
For safety’s sake, the driver must not operate while driving.
WARNING
· Do not disassemble or modify. Doing so could cause smoke, fi re, or an accident.
CAUTION
NOTE
● When a message is displayed on the screen, be sure to follow the instructions that appear.
● Video may be viewed when the ignition switch is turned to ON or ACC, but to save battery power, it is best to view while the engine is running.
● If video or television are viewed for an extended period without running the engine, a low battery warning is displayed and the power will automatically be turned off.
● The following are characteristic of liquid crystal displays and are not malfunctions.

P Small black or luminescent (red, green, or blue) spots appear on the screen.

P The screen darkens or appears reddish in cold weather. Screen movement becomes sluggish.

P Screen color and brightness vary depending on the viewing angle.
● Clean the screen by wiping it with a soft cloth. Do not use benzine, anti-static agents, or chemically treated tissues. Doing so could damage the screen.



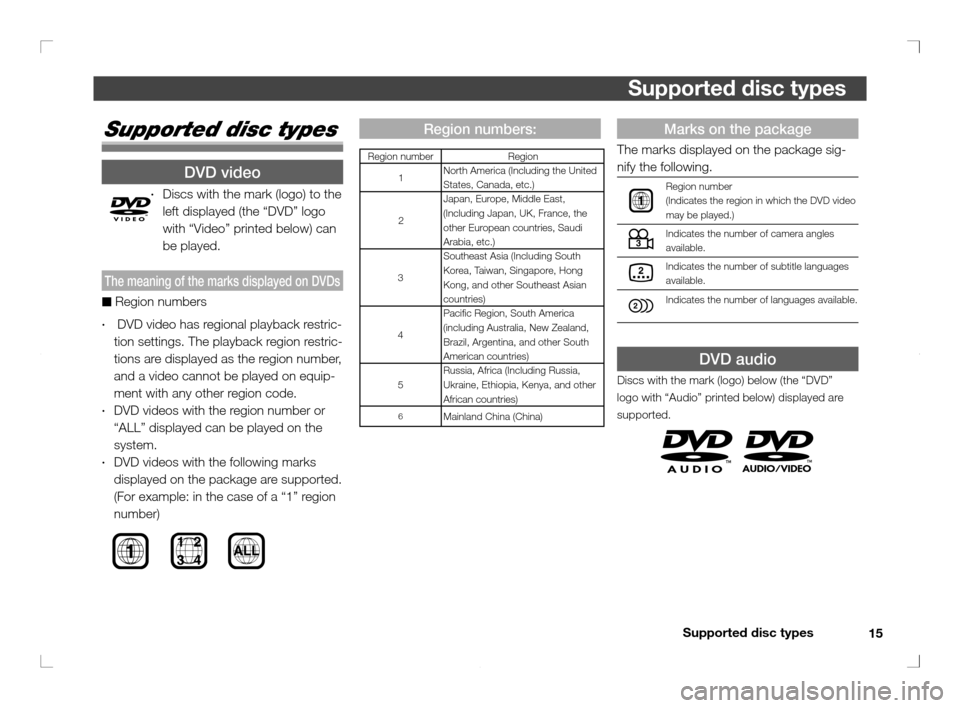

Supported disc types
15
Supported disc types
Supported disc types
DVD video
· Discs with the mark (logo) to the
left displayed (the “DVD” logo
with “Video” printed below) can
be played.
The meaning of the marks displayed on DVDs

■ Region numbers
· DVD video has regional playback restric-
tion settings. The playback region restric-
tions are displayed as the region number,
and a video cannot be played on equip-
ment with any other region code.
· DVD videos with the region number or
“ALL” displayed can be played on the
system.
· DVD videos with the following marks
displayed on the package are supported.
(For example: in the case of a “1” region
number)

Marks on the package
The marks displayed on the package sig-
nify the following.
Region number
(Indicates the region in which the DVD video
may be played.)
Indicates the number of camera angles
available.
Indicates the number of subtitle languages
available.

Indicates the number of languages available.
DVD audio
Discs with the mark (logo) below (the “DVD”
logo with “Audio” printed below) displayed are
supported.


Region numbers:
Region numberRegion
1North America (Including the United
States, Canada, etc.)
2Japan, Europe, Middle East,
(Including Japan, UK, France, the
other European countries, Saudi
Arabia, etc.)
3Southeast Asia (Including South
Korea, Taiwan, Singapore, Hong
Kong, and other Southeast Asian
countries)
4Paci c Region, South America
(including Australia, New Zealand,
Brazil, Argentina, and other South
American countries)
5Russia, Africa (Including Russia,
Ukraine, Ethiopia, Kenya, and other
African countries)
6Mainland China (China)





Supported disc types
16
Supported disc types
settings. In such cases, add either “.mp3” or “.wma”
extensions and then write to disc.
● Unsupported MP3 and WMA les may not playback
properly, and le and folder names may not be
displayed properly.Music CD

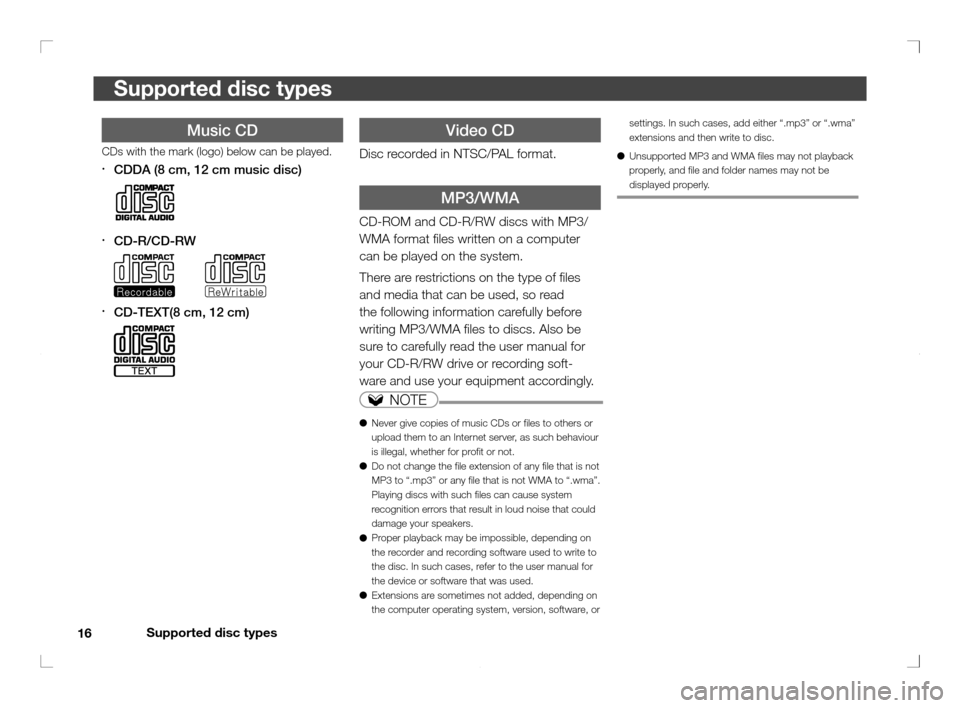

CDs with the mark (logo) below can be played.
·
CDDA (8 cm, 12 cm music disc)

·
CD-R/CD-RW


·
CD-TEXT(8 cm, 12 cm)

Video CD
Disc recorded in NTSC/PAL format.



MP3/WMA
CD-ROM and CD-R/RW discs with MP3/
WMA format les written on a computer
can be played on the system.
There are restrictions on the type of les
and media that can be used, so read
the following information carefully before
writing MP3/WMA les to discs. Also be
sure to carefully read the user manual for
your CD-R/RW drive or recording soft-
ware and use your equipment accordingly.
NOTE
● Never give copies of music CDs or les to others or
upload them to an Internet server, as such behaviour
is illegal, whether for pro t or not.
● Do not change the le extension of any le that is not
MP3 to “.mp3” or any le that is not WMA to “.wma”.
Playing discs with such les can cause system
recognition errors that result in loud noise that could
damage your speakers.
● Proper playback may be impossible, depending on
the recorder and recording software used to write to
the disc. In such cases, refer to the user manual for
the device or software that was used.
● Extensions are sometimes not added, depending on
the computer operating system, version, software, or





Supported disc types
18
Supported disc types

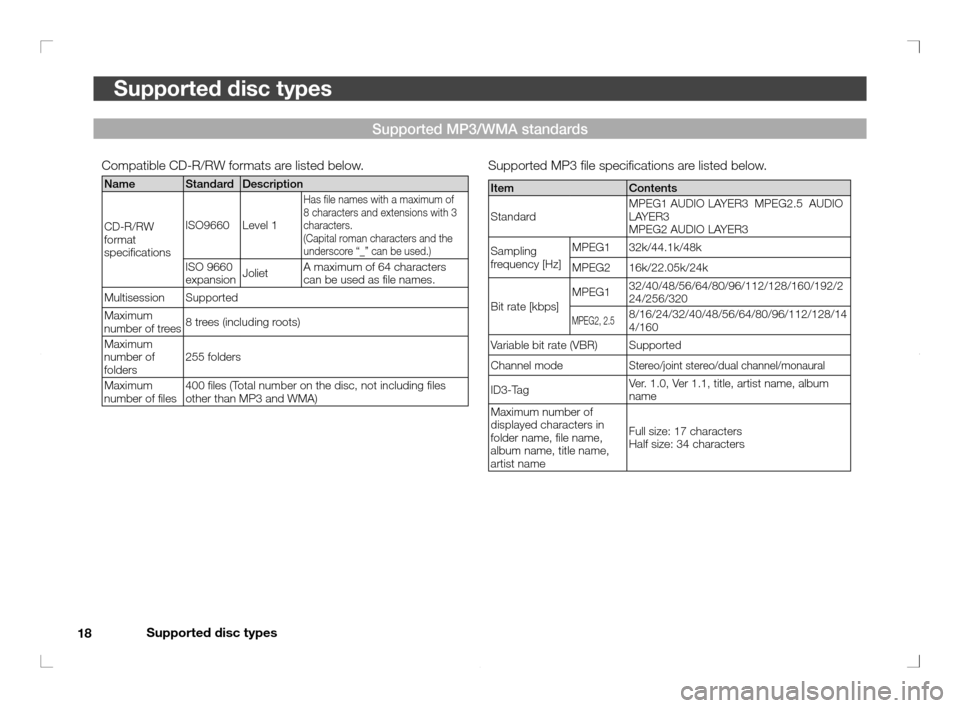

Supported MP3 le speci cations are listed below.
Item Contents
StandardMPEG1 AUDIO LAYER3 MPEG2.5 AUDIO
LAYER3
MPEG2 AUDIO LAYER3
Sampling
frequency [Hz]MPEG1 32k/44.1k/48k
MPEG2 16k/22.05k/24k
Bit rate [kbps]MPEG132/40/48/56/64/80/96/112/128/160/192/2
24/256/320
MPEG2, 2.58/16/24/32/40/48/56/64/80/96/112/128/14
4/160
Variable bit rate (VBR) Supported
Channel mode
Stereo/joint stereo/dual channel/monaural
ID3-TagVer. 1.0, Ver 1.1, title, artist name, album
name
Maximum number of
displayed characters in
folder name, le name,
album name, title name,
artist nameFull size: 17 characters
Half size: 34 characters
Compatible CD-R/RW formats are listed below.
Name Standard Description
CD-R/RW
format
speci cationsISO9660 Level 1
Has le names with a maximum of
8 characters and extensions with 3
characters.
(Capital roman characters and the
underscore “_” can be used.)
ISO 9660
expansionJolietA maximum of 64 characters
can be used as le names.
Multisession Supported
Maximum
number of trees8 trees (including roots)
Maximum
number of
folders255 folders
Maximum
number of les400 les (Total number on the disc, not including les
other than MP3 and WMA)
Supported MP3/WMA standards





Supported disc types
19
Supported disc types

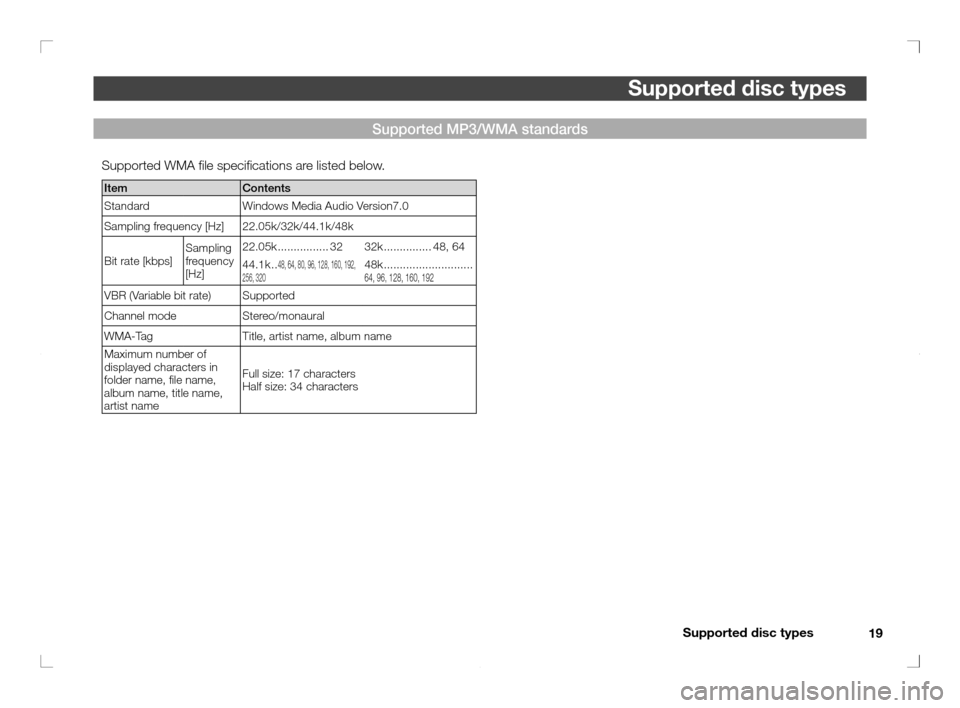

Supported WMA le speci cations are listed below.
Item Contents
Standard Windows Media Audio Version7.0
Sampling frequency [Hz] 22.05k/32k/44.1k/48k
Bit rate [kbps]Sampling
frequency
[Hz]22.05k ................ 32 32k ............... 48, 64
44.1k ..
48, 64, 80, 96, 128, 160, 192,
256, 32048k ............................64, 96, 128, 160, 192
VBR (Variable bit rate) Supported
Channel mode Stereo/monaural
WMA-Tag Title, artist name, album name
Maximum number of
displayed characters in
folder name, le name,
album name, title name,
artist nameFull size: 17 characters
Half size: 34 characters
Supported MP3/WMA standards





Supported disc types
20
Supported disc types

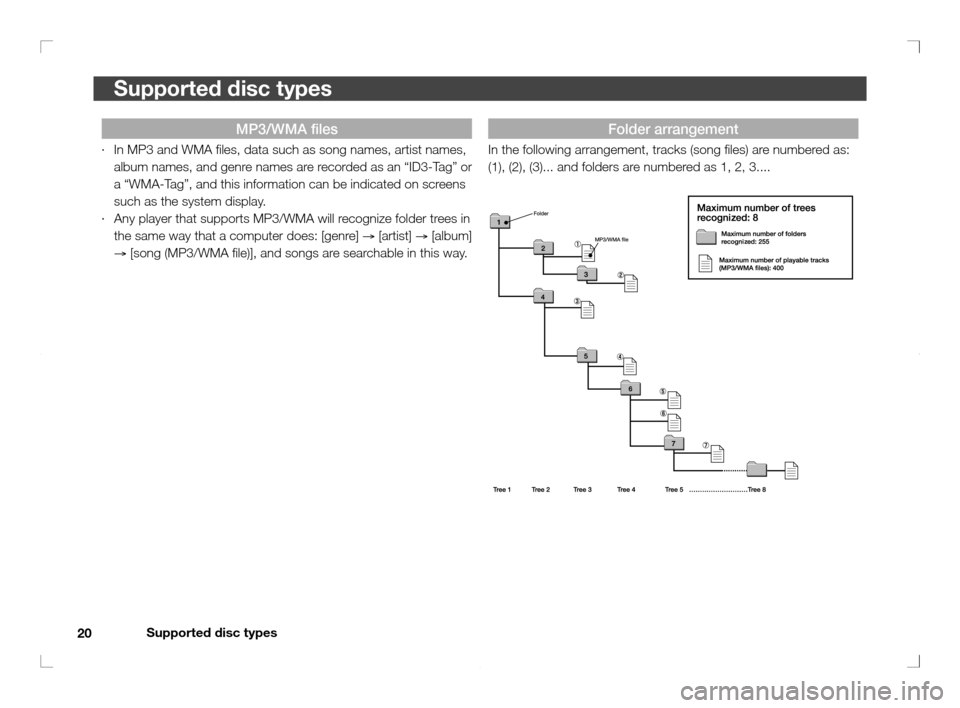

Folder arrangement
In the following arrangement, tracks (song les) are numbered as:
(1), (2), (3)... and folders are numbered as 1, 2, 3....

MP3/WMA fi les
· In MP3 and WMA les, data such as song names, artist names,
album names, and genre names are recorded as an “ID3-Tag” or
a “WMA-Tag”, and this information can be indicated on screens
such as the system display.
· Any player that supports MP3/WMA will recognize folder trees in
the same way that a computer does: [genre]
→ [artist]
→ [album]
→ [song (MP3/WMA le)], and songs are searchable in this way.



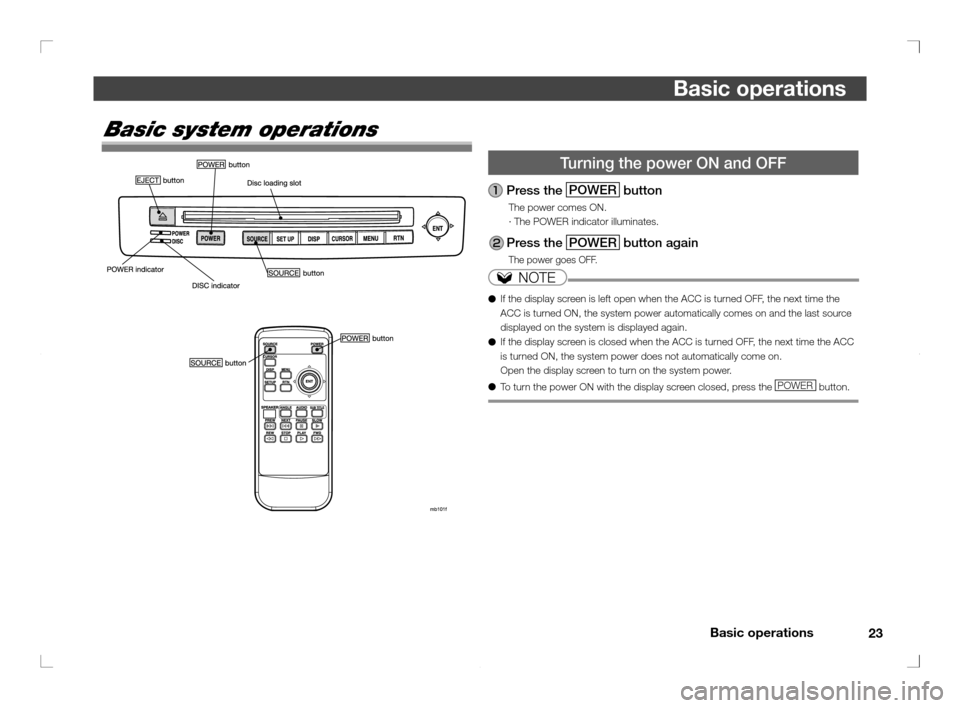

23 Basic operations
Basic operations
Turning the power ON and OFF
Press the POWER button
The power comes ON.
· The POWER indicator illuminates.
Press the POWER
button again
The power goes OFF.
NOTE
● If the display screen is left open when the ACC is turned OFF, the next time the
ACC is turned ON, the system power automatically comes on and the last source
displayed on the system is displayed again.
● If the display screen is closed when the ACC is turned OFF, the next time the ACC
is turned ON, the system power does not automatically come on.
Open the display screen to turn on the system power.
● To turn the power ON with the display screen closed, press the POWER
button.

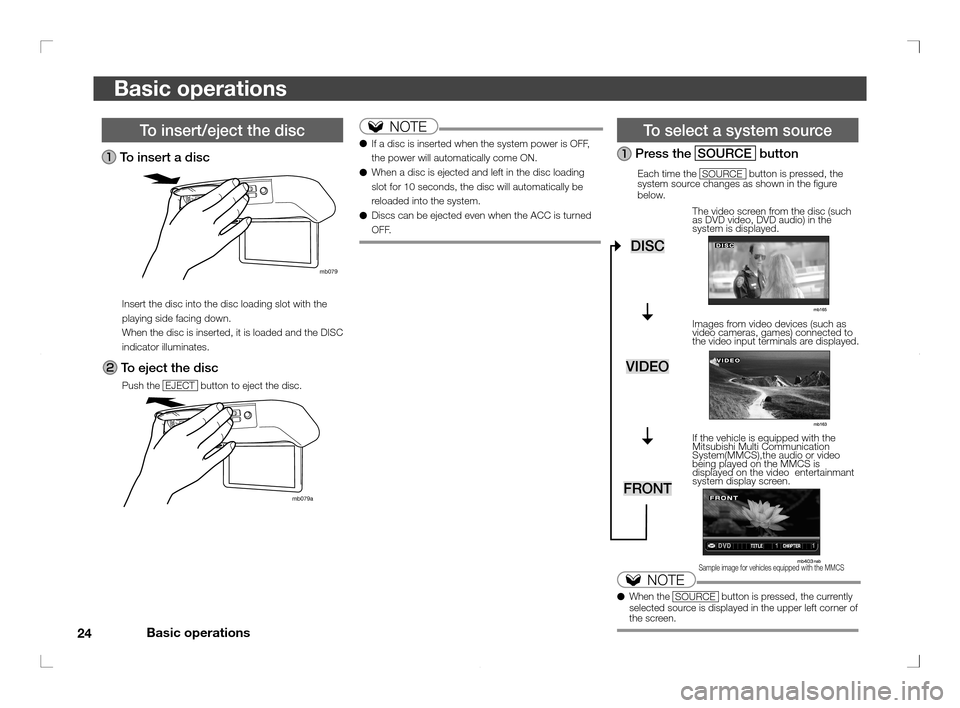

Basic system operations





24Basic operations
Basic operations
To insert/eject the disc
To insert a disc
mb079
Insert the disc into the disc loading slot with the
playing side facing down.
When the disc is inserted, it is loaded and the DISC
indicator illuminates.
To eject the disc
Push the EJECT button to eject the disc.
mb079a
NOTE
● If a disc is inserted when the system power is OFF,
the power will automatically come ON.
● When a disc is ejected and left in the disc loading
slot for 10 seconds, the disc will automatically be
reloaded into the system.
● Discs can be ejected even when the ACC is turned
OFF.
Sample image for vehicles equipped with the MMCS

To select a system source
Press the SOURCE button
Each time the
SOURCE button is pressed, the
system source changes as shown in the gure
below.
DISC
The video screen from the disc (such
as DVD video, DVD audio) in the
system is displayed.

VIDEO
Images from video devices (such as
video cameras, games) connected to
the video input terminals are displayed.

FRONT
If the vehicle is equipped with the
Mitsubishi Multi Communication
System(MMCS),the audio or video
being played on the MMCS is
displayed on the video entertainmant
system display screen.
NOTE
● When the SOURCE
button is pressed, the currently
selected source is displayed in the upper left corner of
the screen.
