2011 MITSUBISHI GALANT low beam

3-34 Features and controls

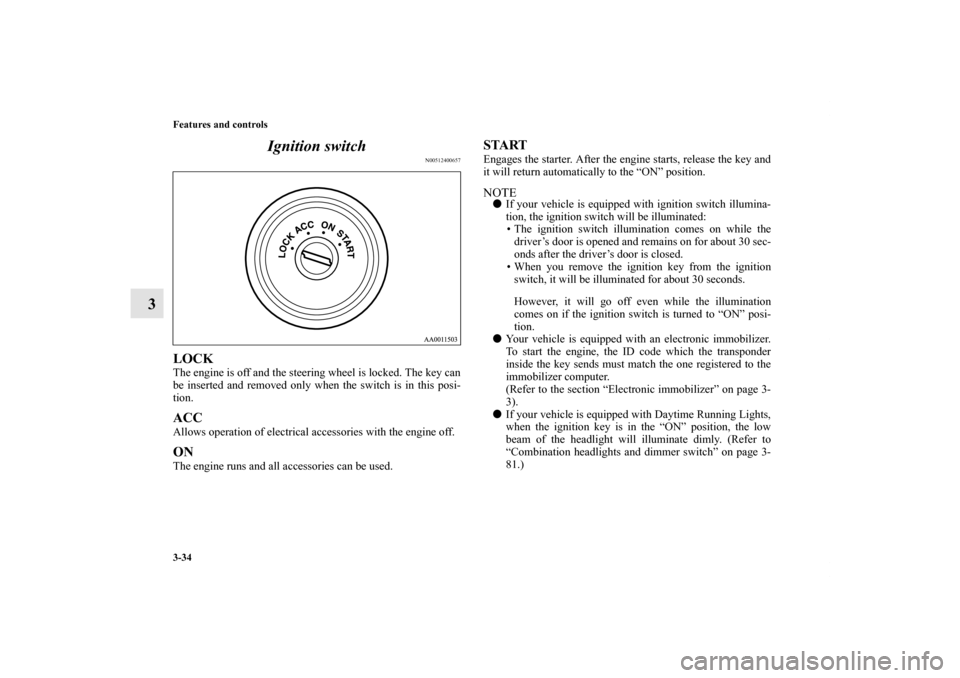

3Ignition switch
N00512400657
LOCKThe engine is off and the steering wheel is locked. The key can
be inserted and removed only when the switch is in this posi-
tion. ACCAllows operation of electrical accessories with the engine off. ON The engine runs and all accessories can be used.
START Engages the starter. After the engine starts, release the key and
it will return automatically to the “ON” position.NOTE
If your vehicle is equipped with ignition switch illumina-
tion, the ignition switch will be illuminated:
• The ignition switch illumination comes on while the
driver’s door is opened and remains on for about 30 sec-
onds after the driver’s door is closed.
• When you remove the ignition key from the ignition
switch, it will be illuminated for about 30 seconds.
However, it will go off even while the illumination
comes on if the ignition switch is turned to “ON” posi-
tion.

Your vehicle is equipped with an electronic immobilizer.
To start the engine, the ID code which the transponder
inside the key sends must match the one registered to the
immobilizer computer.
(Refer to the section “Electronic immobilizer” on page 3-
3).

If your vehicle is equipped with Daytime Running Lights,
when the ignition key is in the “ON” position, the low
beam of the headlight will illuminate dimly. (Refer to
“Combination headlights and dimmer switch” on page 3-
81.)
BK0121200US.book 34 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

Features and controls
3-77

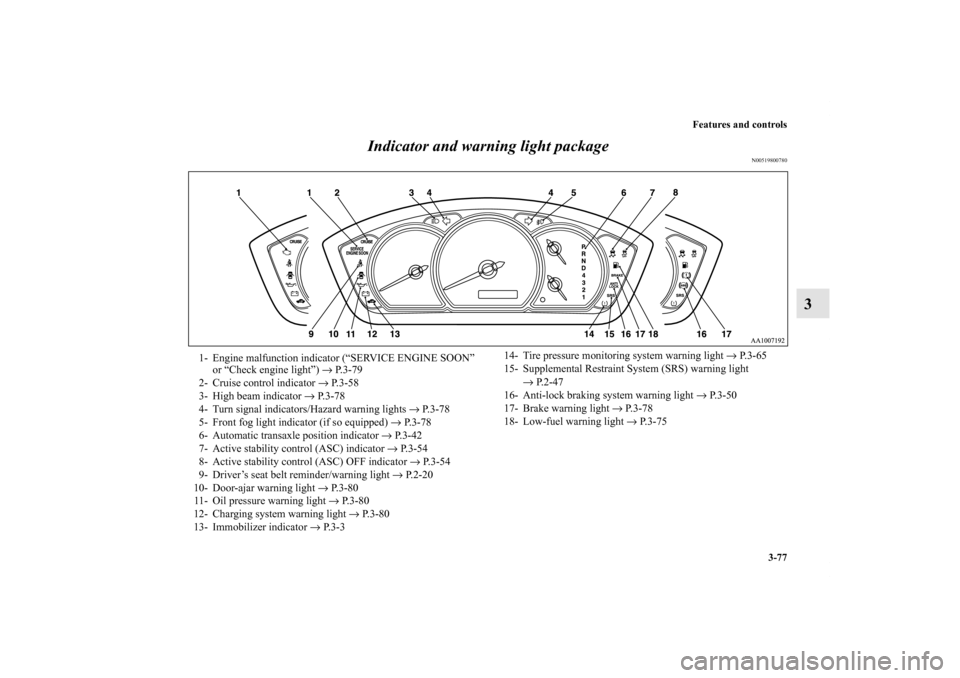

3 Indicator and warning light package
N00519800780
1- Engine malfunction indicator (“SERVICE ENGINE SOON”
or “Check engine light”) → P.3-79
2- Cruise control indicator → P.3-58
3- High beam indicator → P.3-78
4- Turn signal indicators/Hazard warning lights → P.3-78
5- Front fog light indicator (if so equipped) → P.3-78
6- Automatic transaxle position indicator → P.3-42
7- Active stability control (ASC) indicator → P. 3 - 5 4
8- Active stability control (ASC) OFF indicator → P.3-54
9- Driver’s seat belt reminder/warning light → P. 2 - 2 0
10- Door-ajar warning light → P. 3 - 8 0
11- Oil pressure warning light → P.3-80
12- Charging system warning light → P.3-80
13- Immobilizer indicator → P. 3 - 314- Tire pressure monitoring system warning light → P.3-65
15- Supplemental Restraint System (SRS) warning light
→ P. 2 - 4 7
16- Anti-lock braking system warning light → P.3-50
17- Brake warning light → P.3-78
18- Low-fuel warning light → P.3-75
BK0121200US.book 77 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

3-78 Features and controls
3Indicator
N00519900042

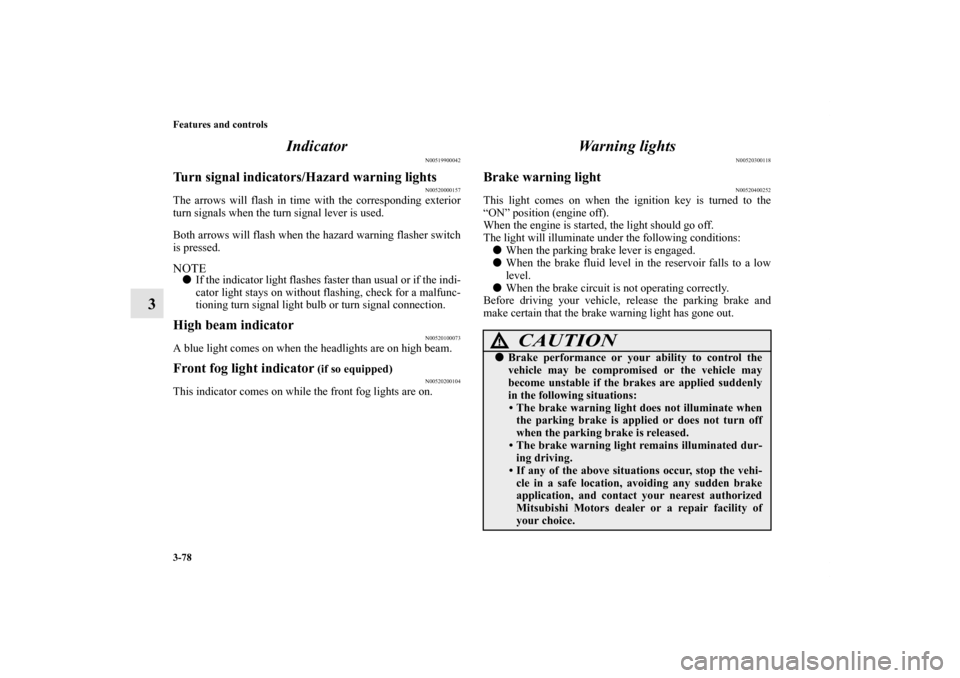

Turn signal indicators/Hazard warning lights
N00520000157
The arrows will flash in time with the corresponding exterior
turn signals when the turn signal lever is used.
Both arrows will flash when the hazard warning flasher switch
is pressed. NOTE
If the indicator light flashes faster than usual or if the indi-
cator light stays on without flashing, check for a malfunc-
tioning turn signal light bulb or turn signal connection.High beam indicator
N00520100073
A blue light comes on when the headlights are on high beam.Front fog light indicator
(if so equipped)
N00520200104
This indicator comes on while the front fog lights are on.
Warning lights
N00520300118
Brake warning light
N00520400252
This light comes on when the ignition key is turned to the
“ON” position (engine off).
When the engine is started, the light should go off.
The light will illuminate under the following conditions:

When the parking brake lever is engaged.

When the brake fluid level in the reservoir falls to a low
level.

When the brake circuit is not operating correctly.
Before driving your vehicle, release the parking brake and
make certain that the brake warning light has gone out.
CAUTION
!
Brake performance or your ability to control the
vehicle may be compromised or the vehicle may
become unstable if the brakes are applied suddenly
in the following situations:
• The brake warning light does not illuminate when
the parking brake is applied or does not turn off
when the parking brake is released.
• The brake warning light remains illuminated dur-
ing driving.
• If any of the above situations occur, stop the vehi-
cle in a safe location, avoiding any sudden brake
application, and contact your nearest authorized
Mitsubishi Motors dealer or a repair facility of
your choice.
BK0121200US.book 78 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

Features and controls
3-83
3
3. The light will automatically turn off after 3 minutes.NOTE
When the driver’s door is opened, a continuous high-
pitched tone will sound if the key has been removed; a
continuous low-pitched tone will sound if the key is in the
ignition switch.
The tone stops sounding when the driver’s door is closed.Headlight reminder buzzer
N00549800141
If the driver’s door is opened with the key in the “LOCK” or
“ACC” position or removed from the ignition switch while the
lights are on, the tone will sound to remind you to turn off the
lights. The lights will turn off automatically and so will the
tone. Or you can turn the light switch to the “OFF” position to
stop the tone.

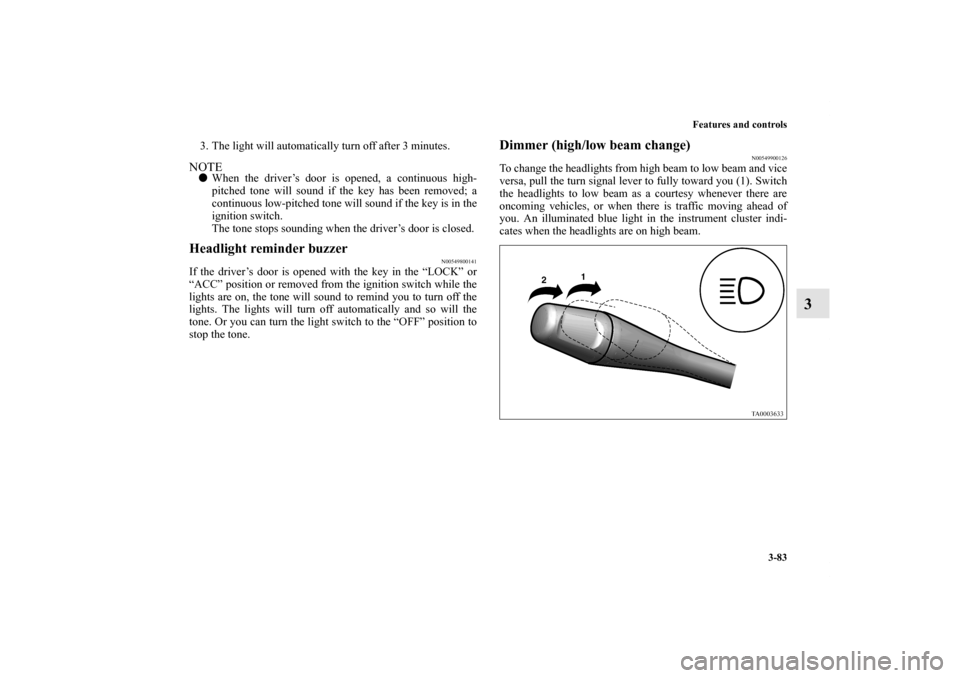

Dimmer (high/low beam change)
N00549900126
To change the headlights from high beam to low beam and vice
versa, pull the turn signal lever to fully toward you (1). Switch
the headlights to low beam as a courtesy whenever there are
oncoming vehicles, or when there is traffic moving ahead of
you. An illuminated blue light in the instrument cluster indi-
cates when the headlights are on high beam.
BK0121200US.book 83 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

3-84 Features and controls
3
Headlight flasher
N00550000169
You can flash the high beams by pulling the lever gently
toward you (2). The lights will go back to normal when you let
go. While the high beam is on, you will see a blue light on the
instrument panel.NOTE
You can flash the high beams by pulling the lever toward
you, even if the light switch is off.

If you turn the lights off with the headlights set to high-
beam illumination, the headlights are automatically
returned to their low-beam setting when the light switch is
next turned to the “ ” position.

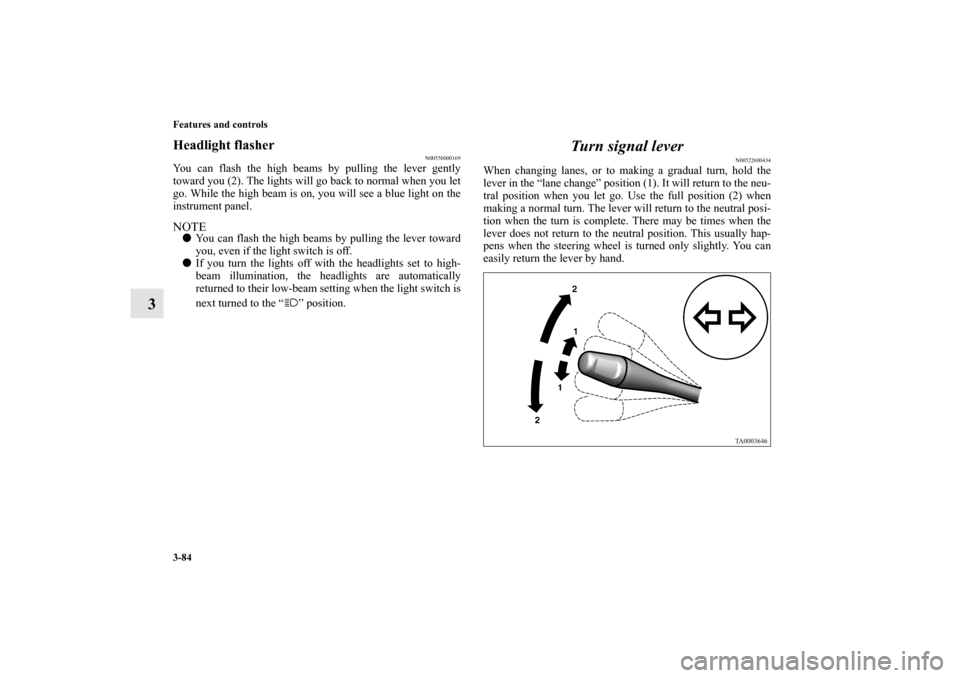

Turn signal lever
N00522600434
When changing lanes, or to making a gradual turn, hold the
lever in the “lane change” position (1). It will return to the neu-
tral position when you let go. Use the full position (2) when
making a normal turn. The lever will return to the neutral posi-
tion when the turn is complete. There may be times when the
lever does not return to the neutral position. This usually hap-
pens when the steering wheel is turned only slightly. You can
easily return the lever by hand.
BK0121200US.book 84 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

3-86 Features and controls

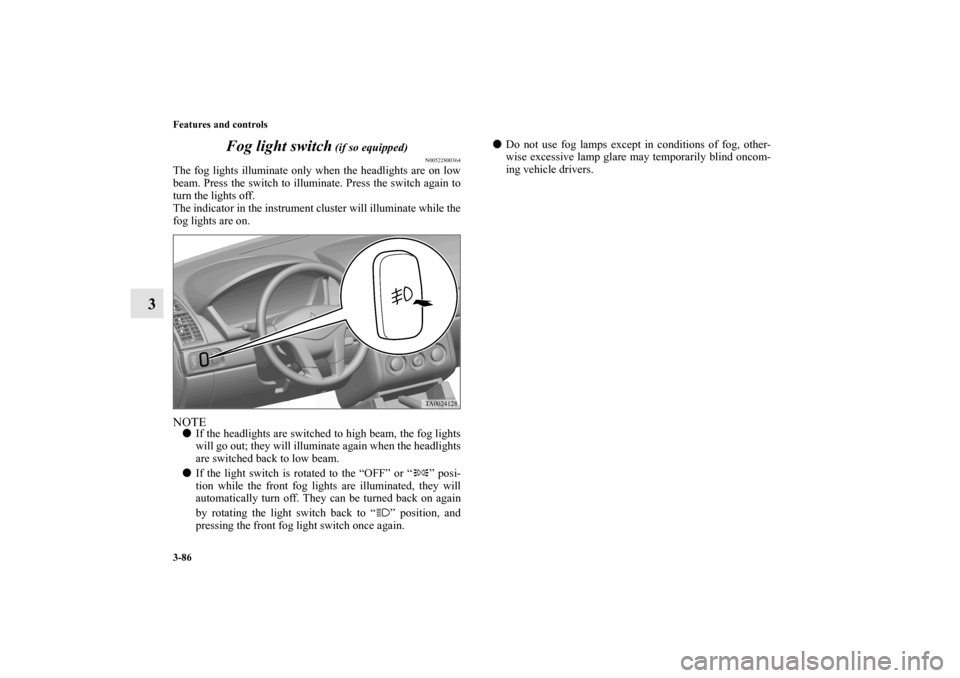

3Fog light switch
(if so equipped)
N00522800364
The fog lights illuminate only when the headlights are on low
beam. Press the switch to illuminate. Press the switch again to
turn the lights off.
The indicator in the instrument cluster will illuminate while the
fog lights are on.NOTE
If the headlights are switched to high beam, the fog lights
will go out; they will illuminate again when the headlights
are switched back to low beam.

If the light switch is rotated to the “OFF” or “ ” posi-
tion while the front fog lights are illuminated, they will
automatically turn off. They can be turned back on again
by rotating the light switch back to “ ” position, and
pressing the front fog light switch once again.
Do not use fog lamps except in conditions of fog, other-
wise excessive lamp glare may temporarily blind oncom-
ing vehicle drivers.
BK0121200US.book 86 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

4-4 Driving safety
4
Defrosters Check these by selecting the defroster mode, and set the blower
switch on high. You should be able to feel the air blowing
against the windshield.
(Refer to “Defrosting or defogging the windshield and door
windows” on page 5-12, 5-19.)
Tires Check all the tires for heavy tread wear or uneven wear pat-
terns. Look for stones, nails, glass, or other objects stuck in the
tread. Look for any tread cuts or sidewall cracks. Check the
wheel nuts for tightness, and the tires (including spare tire) for
proper pressures. Replace your tires before they are heavily
worn out.
As your vehicle is equipped with a tire pressure monitoring
system, there is a risk of damage to the tire inflation pressure
sensors when the tire is replaced on the rim. Tire replacement
should, therefore, be performed only by an authorized
Mitsubishi Motors dealer.Lights Have someone watch while you turn all the exterior lights on
and off. Also check the turn signal indicators and high-beam
indicators on the instrument panel. Fluid leaks Check the ground under the vehicle after parking overnight, for
fuel, water, oil, or other leaks. Make sure all the fluid levels are
correct. Also, if you can smell fuel, you need to find out why
immediately and have it fixed.
BK0121200US.book 4 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

7-40 Vehicle care and maintenance
7

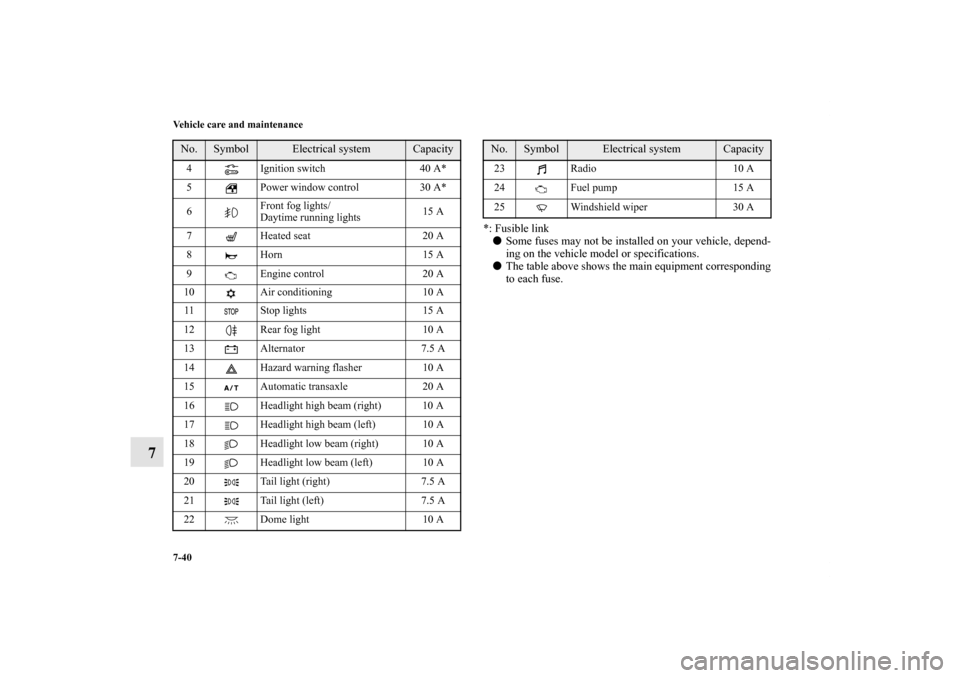

*: Fusible link

Some fuses may not be installed on your vehicle, depend-
ing on the vehicle model or specifications.

The table above shows the main equipment corresponding
to each fuse.
4 Ignition switch 40 A*
5 Power window control 30 A*
6Front fog lights/
Daytime running lights15 A
7 Heated seat 20 A
8 Horn 15 A
9 Engine control 20 A
10 Air conditioning 10 A
11 Stop lights 15 A
12 Rear fog light 10 A
13 Alternator 7.5 A
14 Hazard warning flasher 10 A
15 Automatic transaxle 20 A
16 Headlight high beam (right) 10 A
17 Headlight high beam (left) 10 A
18 Headlight low beam (right) 10 A
19 Headlight low beam (left) 10 A
20 Tail light (right) 7.5 A
21 Tail light (left) 7.5 A
22 Dome light 10 A No.
Symbol
Electrical system
Capacity
23 Radio 10 A
24
Fuel pump 15 A
