REFERENCETechnical data
224
Technical data
Engine data
Cooper Cooper S
Displacementcu in/cmμ 97.5/1,598 97.5/1,598
Number of cylinders 44
Maximum power out-
put hp
121181
At engine speed rpm 6,0005,500
Maximum torque
with overboost lb ft/Nm
114/155
– 177/240
192/260
At engine speed
with overboost rpm
4,250
– 1,600-5,000
1,700-4,500
Overboost briefly raises the maximum torque at high rates of acceleration, e. g. when passing.

Technical dataREFERENCE
225
Dimensions
All dimensions in inches/mm. Minimum turning radius dia.: 38.1 ft/11.6 m.Information after the semicolon: different values for MINI Cooper S.

REFERENCETechnical data
226
Weights
Never exceed either the approved axle loads or
the gross vehicle weight.
Capacities
CooperCooper SCooper S ALL4
Curb weight, ready for travel, with all optional extras
> Manual transmission lbs./kg 2,9 54/1,340 3,053/1,385 3,208/1,455
> Automatic transmis-
sion lbs./kg3,020/1,370 3,097/1,405 3,252/1,475
Approved gross weight
> Manual transmission lbs./kg 3,8 58/1,750 3,990/1,810 4,101/1,860
> Automatic transmis-
sion lbs./kg
3,924/1,780 4,034/1,830 4,145/1,880
Approved front axle load
> Manual transmission lbs./k g 2,028/920 2,105/955 2,161/980
> Automatic transmis-
sion lbs./kg2,094/950 2,150/975 2,205/1,000
Approved rear axle load lb s./kg 1,918/870 1,918/870 2,017/915
Approved roof load capac-
ity lbs./kg
165/75
165/75 165/75
Cargo area capacity cu ft/
liters 12.4 - 41.3/
350 - 1,170 12.4 - 41.3/
350 - 1,170 12.4 - 41.3/
350 - 1,170
US gal/US quartsLitersNotes
Fuel tank 12.4/– approx. 47 Fuel grade: page 189
Including reserve of 2.1/– approx. 8
Window washer system incl.
headlamp washer system –/4.2 approx. 4 For more details: page 53

Short commands for the voice activation systemREFERENCE
227
Short commands for the voice
activation system
General information
Instructions for the voice activation system, refer
to page 21.
Having the possible spoken commands read
aloud: {Voice commands } The following short commands apply to vehicles
with voice activation systems. They do not work
for equipment with which only the mobile
phone can be operated by voice.
Useful short commands
*
FunctionCommand
Accessing tone control
{Tone }
Accessing settings {Settings }
Accessing the computer {Onboard info }
Accessing contacts
*{ Contacts }
Displaying the phone book
*{ Phonebook }
Accessing services
*{ Assist }
Selecting destination entry
*{ Enter address}
Accessing route guidance
*{ Guidance }

REFERENCEShort commands for the voice activation system
228

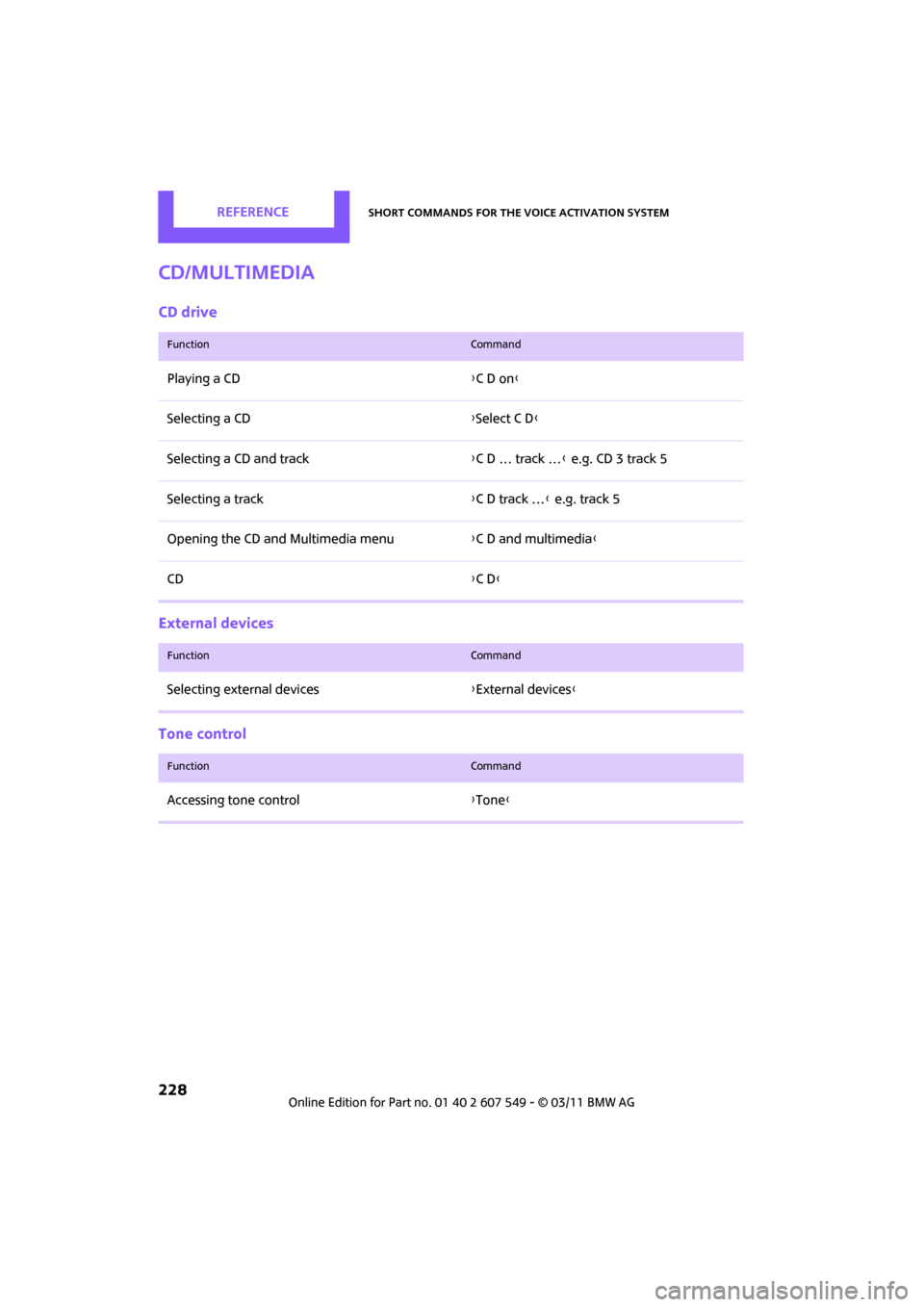

CD/Multimedia
CD drive
External devices
Tone control
FunctionCommand
Playing a CD{C D on }
Selecting a CD {Select C D }
Selecting a CD and track {C D … track … } e.g. CD 3 track 5
Selecting a track {C D track … } e.g. track 5
Opening the CD and Multimedia menu {C D and multimedia }
CD {C D}
FunctionCommand
Selecting external devices {External devices }
FunctionCommand
Accessing tone control {Tone }

Short commands for the voice activation systemREFERENCE
229

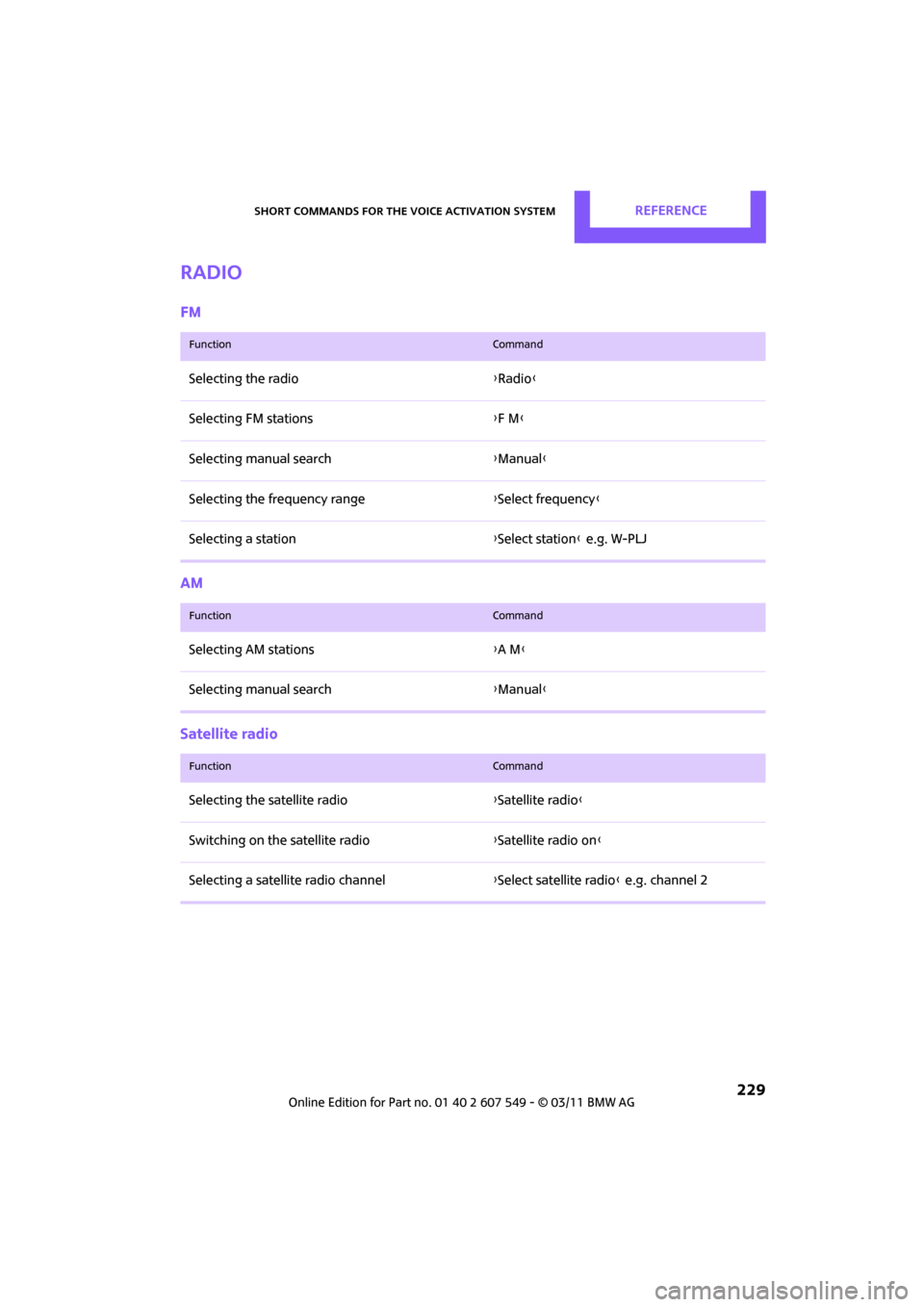

Radio
FM
AM
Satellite radio
FunctionCommand
Selecting the radio{Radio }
Selecting FM stations {F M }
Selecting manual search {Manual }
Selecting the frequency range {Select frequency }
Selecting a station {Select station } e.g. W-PLJ
FunctionCommand
Selecting AM stations {A M }
Selecting manual search {Manual }
FunctionCommand
Selecting the satellite radio {Satellite radio}
Switching on the satellite radio {Satellite radio on }
Selecting a satellite radio channel {Select satellite radio } e.g. channel 2

REFERENCEShort commands for the voice activation system
230
Stored stations
Telephone
Office*
FunctionCommand
Selecting stored stations{Presets }
Choosing a stored station {Select preset }
Selecting a stored station {Preset … } e.g. stored station 2
FunctionCommand
Opening the Telephone menu {Telephone }
To display phone book {Phonebook }
To redial {Redial }
Displaying accepted calls {Received calls }
Dialing a phone number {Dial number }
Displaying the list of messages {Messages }
Displaying Bluetooth devices {Bluetooth }
FunctionCommand
Calling up the Office menu {Office }
Displaying Current office {Current office }
Displaying contacts {Contacts }
