2011 LEXUS RX350 tow

5

When trouble arises
529
5-1. Essential information
If you use chains or cables to tie
down your vehicle, the angles
shaded in black must be 45°.
Do not overly tighten the tie downs
or the vehicle may be damaged.
nBefore emergency towing
Release the parking brake.
Shift the shift lever to N.
Turn the “ENGINE START STOP” switch to ACCESSORY (engine off )
or IGNITION ON (engine running) mode.
nLocation of the emergency towing eyelet
→P. 5 6 5
CAUTION
nCaution while towing
lUse extreme caution when towing the vehicle.
Avoid sudden starts or erratic driving maneuvers which place excessive stress on
the emergency towing eyelets and the cables or chains. Always be cautious of the
surroundings and other vehicles while towing.
lIf the engine is not running, the power assist for the brakes and steering will not
function, making steering and braking more difficult.
nInstalling towing eyelets to the vehicle
Make sure that towing eyelets are installed securely.
If not securely installed, towing eyelets may come loose during towing. This may
lead to accidents that cause serious injury or even death.
STEP1
STEP2
STEP3

530
5-1. Essential information
NOTICE
nTo prevent body damage when towing with a sling-type truck
Do not tow with a sling-type truck, either from the front or rear.
nTo prevent causing serious damage to the transmission and Active Torque Con-
trol 4WD system (AWD models) when towing using a wheel-lift type truck
nTo prevent damaging the vehicle when towing using a wheel-lift type truck
When raising the vehicle, ensure adequate ground clearance for towing at the
opposite end of the raised vehicle. Without adequate clearance, the vehicle could
be damaged while being towed.
nRecreational towing (behind motor home, etc.)
Never dinghy tow your vehicle to prevent causing serious damage to the Active
Torque Control 4WD system (AWD models) and transmission. (→P. 2 7 0 )
2WD models: Never tow this vehicle from
the rear with the front wheels on the ground.
This may cause serious damage to the trans-
mission. If towing from the rear, use a towing
dolly.
AW D m o d e l s : N e v e r t ow this vehicle with
any of the wheels on the ground. This may
cause serious damage to the transmission
and Active Torque Control 4WD system.
Use a towing dolly.

5

When trouble arises
565
5-2. Steps to take in an emergency
nLocation of the spare tire, jack and tools
Vehicles with a compact spare tire
Vehicles with a full-size spare tire
Towing eyelet
Tool bag
Jack handle
Wr e n c h
JackSpare tire
Towing eyelet
To o l b a g
Jack handleWre n c h
JackSpare tire

590
5-2. Steps to take in an emergency
If the vehicle becomes stuck
CAUTION
nWhen attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the surround-
ing area is clear to avoid striking other vehicles, objects or people. The vehicle may
also lunge forward or lunge back suddenly as it becomes free. Use extreme cau-
tion.
nWhen shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may cause an
accident and resulting in death or serious injury.
NOTICE
nTo avoid damage to the transmission and other components
lAvoid spinning the wheels.
lIf the vehicle remains stuck even after these procedures are performed, the vehi-
cle may require towing to be freed.
Carry out the following procedures if the tires spin or the vehicle becomes
stuck in mud, dirt, or snow:
Stop the engine. Set the parking brake and shift the shift lever
to P.
Remove the mud, snow, or sand from around the stuck tire.
Place wood, stones or some other material under the tires to
help provide traction.
Restart the engine.
AWD models: Active all-wheel drive lock mode (→P. 237)
Shift the shift lever to the D or R position and carefully apply
the accelerator to free the vehicle.
Turn off the TRAC and VSC systems if these functions are hamper-
ing your attempts to free the vehicle. (→ P. 2 3 3 )
STEP1
STEP2
STEP3
STEP4
STEP5
STEP6

594
6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weights
*1:Unladen vehicles
*2: Vehicles without roof antenna and roof rails
*3: Vehicles with roof antenna but without roof rails
*4: Vehicles with roof rails
Overall length187.8 in. (4770 mm)
Overall width74.2 in. (1885 mm)
Overall height*166.3 in. (1685 mm)*2
66.7 in. (1695 mm)*3
67.9 in. (1725 mm)*4
Wheelbase107.9 in. (2740 mm)
Tr e a dFront64.1 in. (1630 mm)
Rear63.8 in. (1620 mm)
Vehicle capacity weight
(Occupants + luggage)885 lb. (400 kg)
To w i n g
capacity
(Trailer
weight +
cargo)
Without towing pack-
age2000 lb. (907 kg)
With towing package3500 lb. (1588 kg)

599

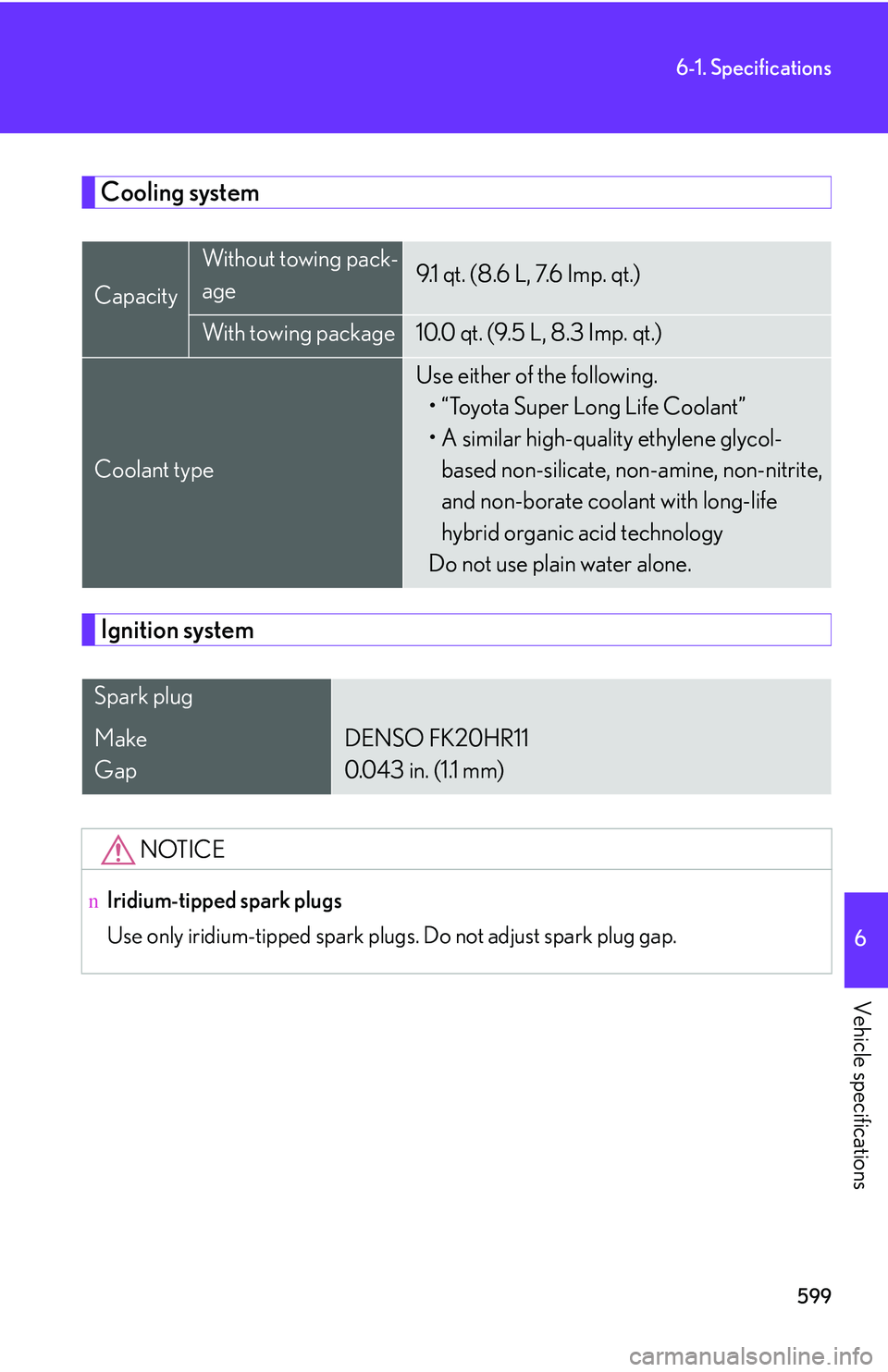

6-1. Specifications
6

Vehicle specifications
Cooling system
Ignition system
Capacity
Without towing pack-
age9.1 qt. (8.6 L, 7.6 Imp. qt.)
With towing package10.0 qt. (9.5 L, 8.3 Imp. qt.)
Coolant type
Use either of the following.

654
Alphabetical index
Cleaning
Exterior................................................... 444
Interior ..................................................... 447
Seat belts................................................448
Clock .......................................................... 410
Coat hooks ............................................... 419
Compass .................................................. 432
Condenser .............................................. 472
Console box ...........................................404
Cooling system
Engine overheating ..........................587
Cornering assist sensors ...................220
Cruise control
Cruise control ..................................... 204
Dynamic radar cruise control .....208
Cup holders ............................................402
Curtain shield airbags.......................... 109
Customizable features ........................ 621
Daytime running light system ............187
Defogger
Rear window ......................................... 281
Side mirrors..............................................87
Dimensions ............................................. 594
Dinghy towing........................................ 270
Display
Multi-information display ................ 173
Trip information.................................... 176
Warning message ............................ 545
Do-it-yourself maintenance ............. 457
Door courtesy lights
Door courtesy lights ........................ 396
Wattage ................................................. 605
Door lock
Back door ................................................ 50
Side door................................................... 47
Wireless remote control ................... 43
Door pockets .......................................... 401
Doors
Back door ................................................ 50
Door windows ....................................... 90
Door lock .................................. 31, 43, 47
Power back door ................................. 50
Side door................................................... 47
Side mirrors..............................................87
Driver's seat belt reminder light ..... 537
Driving
Break-in tips........................................... 145
Correct posture................................... 107
Utility vehicle precautions..............244
Procedures............................................. 144
Winter driving tips ............................ 254
Driving position memory...................... 70
D

655
Alphabetical index
Electric power steering ....................... 231
Electronic features control ................ 173
Electronic key
If the electronic key does not
operate properly ............................. 581
Emergency flasher switch .................524
Emergency, in case of
If the electronic key does not
operate properly ............................. 581
If the engine will not start ................577
If the shift lever cannot be
shifted from P ................................... 579
If the vehicle has a
discharged battery ........................ 584
If a warning buzzer sounds .......... 535
If a warning light turns on .............. 535
If a warning message is
displayed ............................................ 545
If you have a flat tire ........................ 564
If you lose your keys ....................... 580
If you think something is
wrong..................................................... 531
If your vehicle becomes stuck ....590
If your vehicle has to be stopped
in an emergency...............................591
If your vehicle needs to be
towed ................................................... 525
If your vehicle overheats................ 587
Engine
Accessory mode................................. 153
Compartment......................................463
Engine switch ........................................ 153
Hood ....................................................... 460
How to start the engine ................... 153
Identification number ...................... 595
If the engine will not start................ 577
Ignition switch ....................................... 153
Overheating ........................................ 587
Engine compartment cover ............. 464
Engine coolant
Capacity ................................................ 599
Checking ...............................................470
Preparing and checking
before winter ....................................254
Engine coolant temperature
gauge....................................................... 166
Engine immobilizer system..................101
Engine oil
Capacity .................................................597
Checking .............................................. 466
Preparing and checking
before winter ....................................254
Engine oil maintenance data............468
EPS .............................................................. 231
Event data recorder ............................533
E
