2011 LEXUS RX350 buttons

3
OverviewInstrument Panel
Inside lock buttons P.63
Door lock switches
P.63
Power window switches
P.64
Window lock switch
P.64
Headlight switch
Automatic high beam
Turn signal lever
P.19
P.22
P.17
Multi-information
display P.12Power back door switch ∗ P.65
Fuel filler door opener P.66

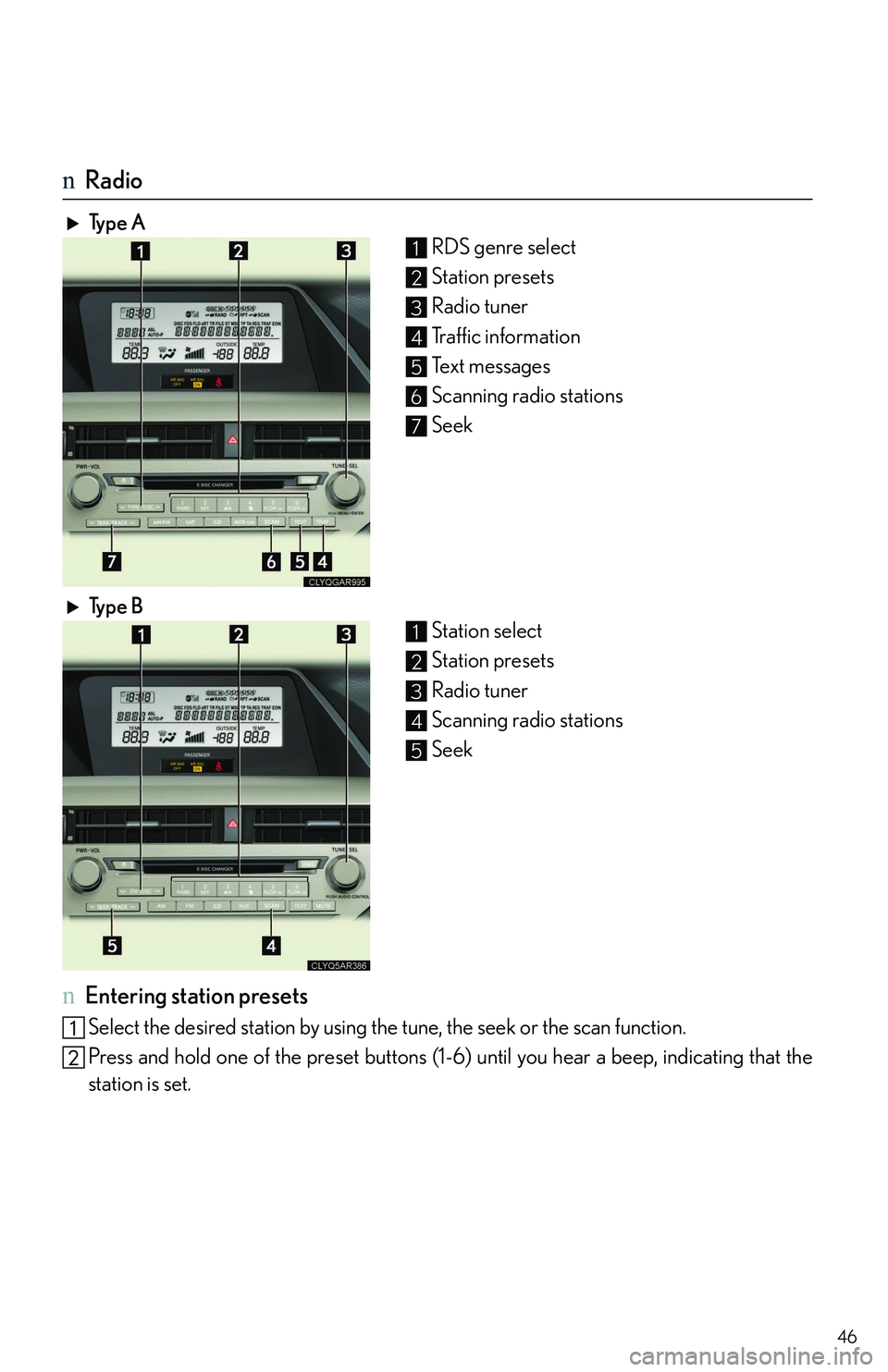

46
nRadio
Typ e A
RDS genre select
Station presets
Radio tuner
Traffic information
Te x t m e s s a g e s
Scanning radio stations
Seek
Ty p e B
Station select
Station presets
Radio tuner
Scanning radio stations
Seek
nEntering station presets
Select the desired station by using the tune, the seek or the scan function.
Press and hold one of the preset buttons (1-6) until you hear a beep, indicating that the
station is set.
1
2
3
4
5
6
7
1
2
3
4
5

13
B
Driving position memory switches ∗ P. 70
Door lock switches P. 47
Window lock switch P. 90
Power window switches P. 90
Inside lock buttons P. 47
Outside rear view mirror
switches P. 87
∗: If equipped

19
D
E
Tire pressure warning reset switch P. 480
Cup holder P. 402
Headlight cleaner switch ∗ P. 203
Power back door switch ∗ P. 51
Fuel filler door opener P. 97
Instrument panel light
control buttons P. 167
“ODO/TRIP” button P. 167
Windshield wiper de-icer switch ∗
P. 282
∗: If equipped
*1: For vehicles with a navigation system, refer to the “Navigation System Owner’s Manual”.
*2: Refer to “Navigation System Owner's Manual”.

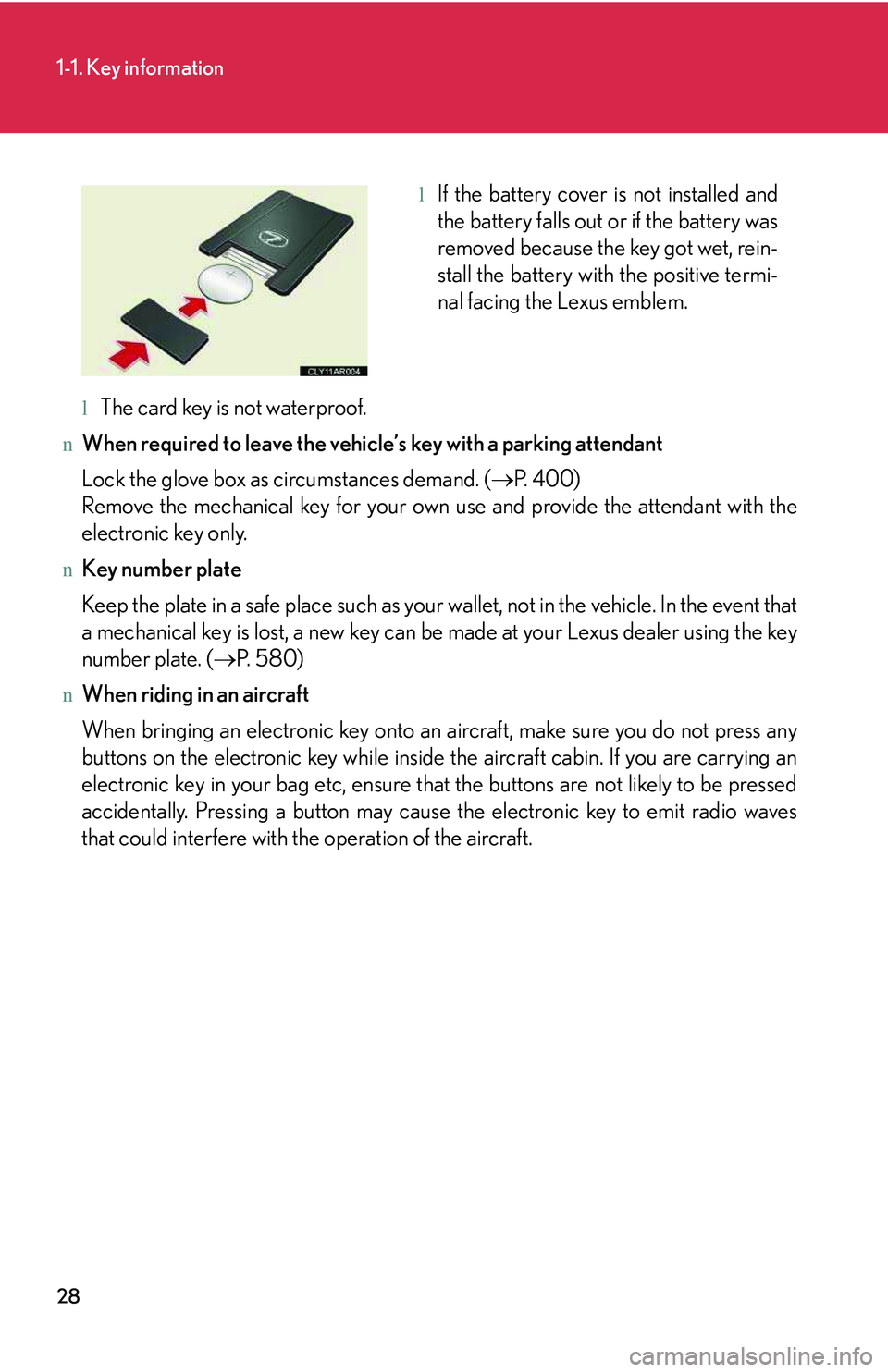

28
1-1. Key information
lThe card key is not waterproof.
nWhen required to leave the vehicle’s key with a parking attendant
Lock the glove box as circumstances demand. (→P. 400)
Remove the mechanical key for your own use and provide the attendant with the
electronic key only.
nKey number plate
Keep the plate in a safe place such as your wallet, not in the vehicle. In the event that
a mechanical key is lost, a new key can be made at your Lexus dealer using the key
number plate. (→P. 5 8 0 )
nWhen riding in an aircraft
When bringing an electronic key onto an aircraft, make sure you do not press any
buttons on the electronic key while inside the aircraft cabin. If you are carrying an
electronic key in your bag etc, ensure that the buttons are not likely to be pressed
accidentally. Pressing a button may cause the electronic key to emit radio waves
that could interfere with the operation of the aircraft.
lIf the battery cover is not installed and
the battery falls out or if the battery was
removed because the key got wet, rein-
stall the battery with the positive termi-
nal facing the Lexus emblem.

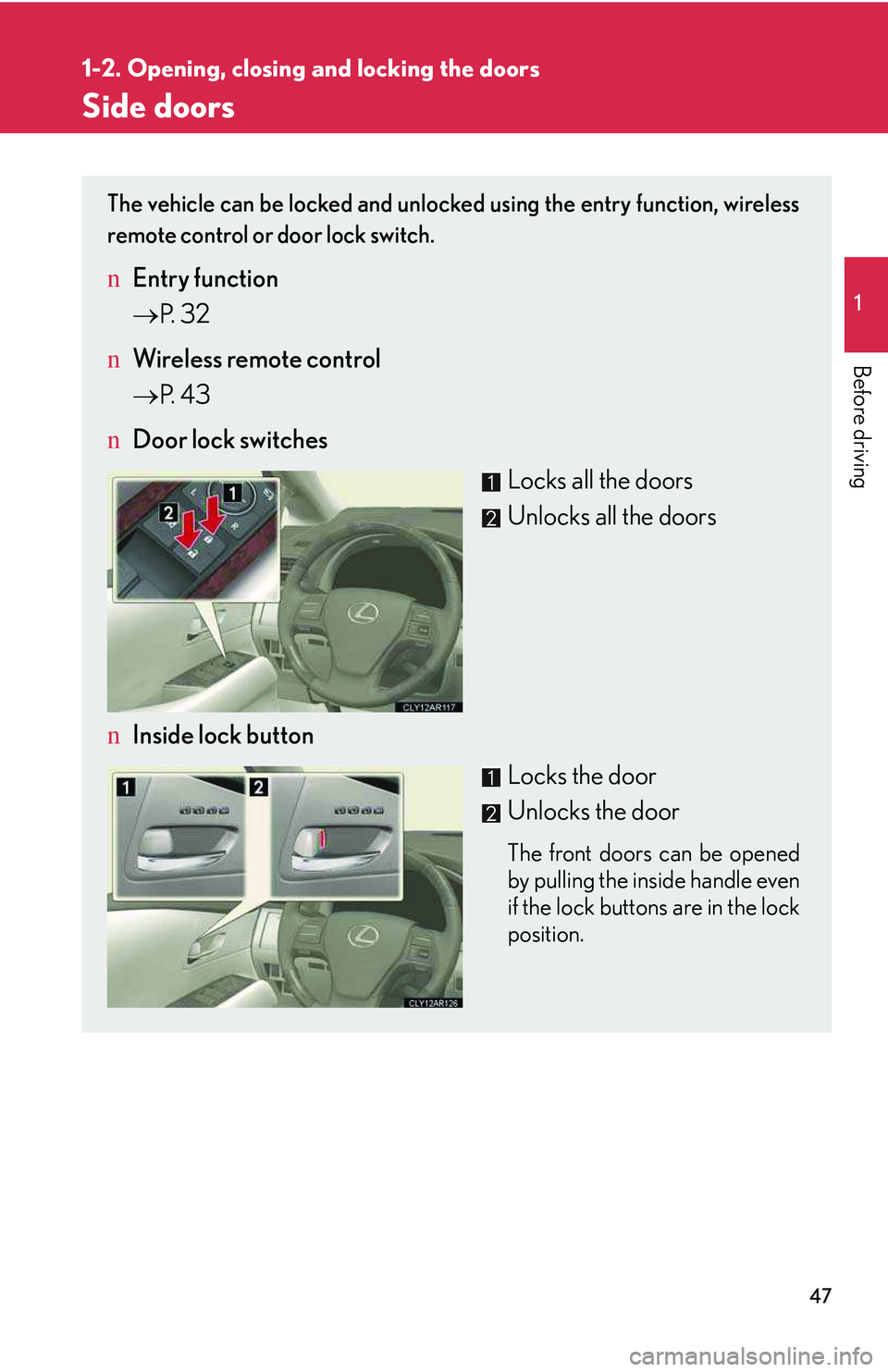

47
1
1-2. Opening, closing and locking the doors

Before driving
Side doors
The vehicle can be locked and unlocked using the entry function, wireless
remote control or door lock switch.
nEntry function
→P. 3 2
nWireless remote control
→P. 4 3
nDoor lock switches
Locks all the doors
Unlocks all the doors
nInside lock button
Locks the door
Unlocks the door
The front doors can be opened
by pulling the inside handle even
if the lock buttons are in the lock
position.

49
1-2. Opening, closing and locking the doors
1

Before driving
CAUTION
nTo prevent an accident
Observe the following precautions while driving the vehicle.
Failure to do so may result in a door opening and an occupant falling out, resulting
in death or serious injury.
lAlways use a seat belt.
lAlways lock all the doors.
lEnsure that all the doors are properly closed.
lDo not pull the inside handle of the doors while driving.
The doors may be opened and the passengers are thrown out of the vehicle and it
may result in serious injury or death.
Be especially careful for the front doors, as the doors may be opened even if the
inside lock buttons are in locked position.
lSet the rear door child-protector locks when children are seated in the rear seats.
nWhen opening or closing a door
Check the surroundings of the vehicle such as whether the vehicle is on an incline,
whether there is enough space for a door to open and whether a strong wind is
blowing. When opening or closing the door, hold the door handle tightly to prepare
for any unpredictable movement.

131
1
1-7. Safety information

Before driving
Installing child restraints
Follow the child restraint system manufacturer's instructions. Firmly
secure child restraints to the seats using the LATCH anchors or a seat belt.
Attach the top tether strap when installing a child restraint.
The lap/shoulder belt can be used if your child restraint system is not com-
patible with the LATCH (Lower Anchors and Tethers for Children) system.
Child restraint LATCH anchors
LATCH anchors are provided
for the outer rear seats. (Buttons
displaying the location of the
anchors are attached to the
seats.)
Seat belts equipped with a child
restraint locking mechanism
(ALR/ELR belts except driver’s
seat belt) (→P. 7 5 )
Anchor brackets (for top tether
strap)
An anchor bracket is provided
for each rear seat.
