337
3-7. Other interior features
3
Interior features
ES350_U

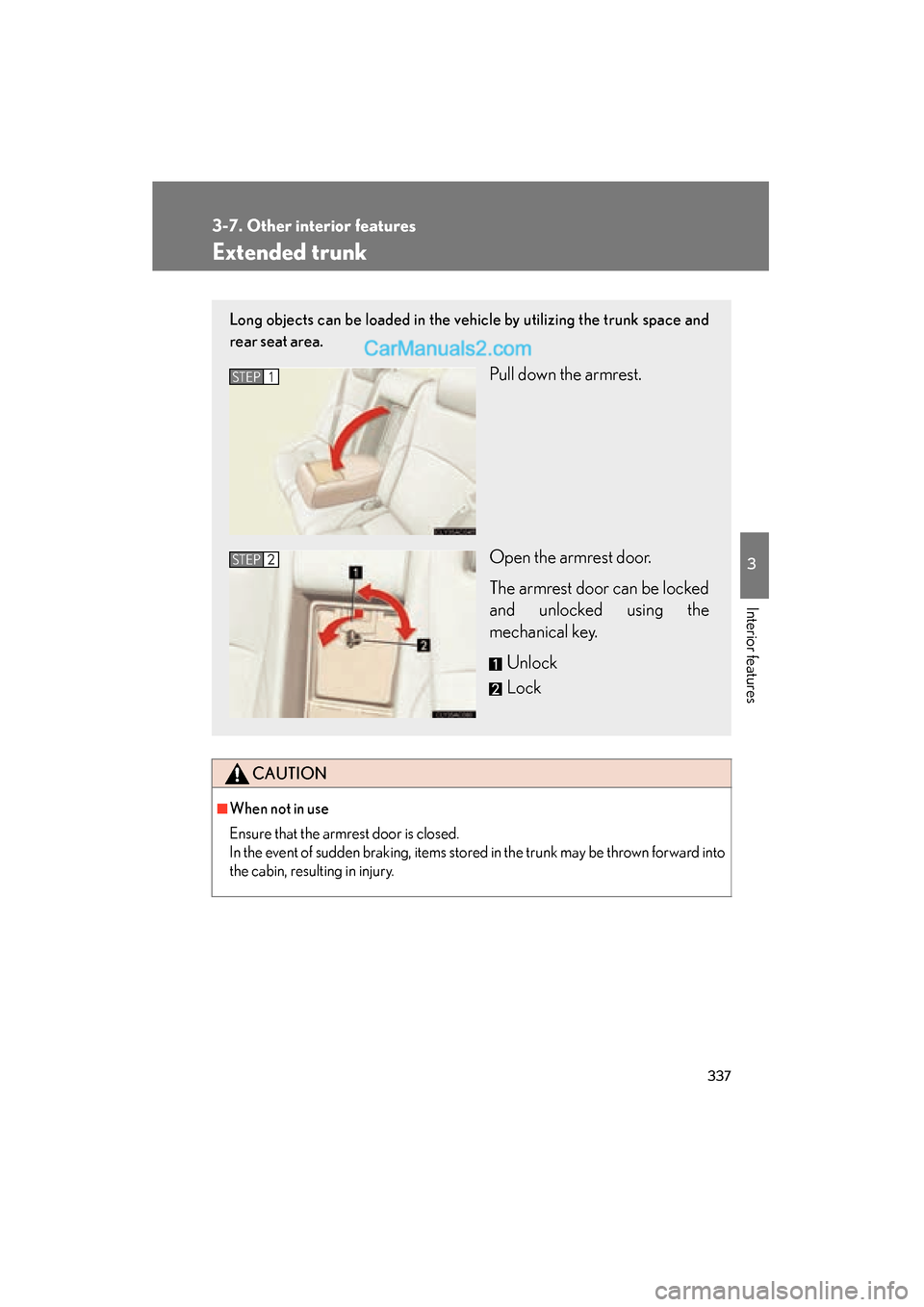

Extended trunk
CAUTION
■When not in use
Ensure that the armrest door is closed.
In the event of sudden braking, items stored in the trunk may be thrown forward into
the cabin, resulting in injury.
Long objects can be loaded in the vehicle by utilizing the trunk space and
rear seat area.
Pull down the armrest.
Open the armrest door.
The armrest door can be locked
and unlocked using the
mechanical key.Unlock
LockSTEP1
STEP2

372
4-2. Maintenance
ES350_U
Vehicle exterior
ItemsCheck points
Steering wheel
• Moves smoothly?
• Has correct free play?
• No strange noises?
ItemsCheck points
Door/trunk• Operate smoothly?
Engine hood• The lock system works properly?
Fluid leaks• Is there any leakage after parking?
Ti r e
• Inflation pressure is correct?
• Tire surfaces not worn or dam-aged?
• Tires rotated according to the maintenance schedule?
• Wheel nuts are not loose?
CAUTION
■If the engine is running
Turn the engine off and ensure that there is adequate ventilation before performing
maintenance checks.

428
4-3. Do-it-yourself maintenance
ES350_U■
Back-up lights and tail lights
Open the trunk lid and remove the
trunk panel cover clips.
Partly remove the trunk panel
cover and turn the bulb bases
counterclockwise.
Tail light
Back-up light
Remove the light bulb. Tail light
Back-up light
STEP1
STEP2
STEP3

429
4-3. Do-it-yourself maintenance
4
Maintenance and care
ES350_U■
Stop/tail, rear turn signal and rear side marker lights
Open the trunk lid and remove the
access hole cover.
Stop/tail light
Rear turn signal light
Rear side marker light
Turn the bulb base counterclock-
wise.
Stop/tail light Remove the light bulb.
STEP1
STEP2
STEP3

518
6-2. Customization
ES350_U
Wireless
remote con-
trol
(
→P. 3 8 )
Wireless remote controlONOFF
Unlocking operation
Driver's door
unlocked in
one step, all
doors
unlocked in
two steps
All doors
unlocked in one step
Automatic door lock
function to be activated if
door is not opened after
being unlocked
ONOFF
Time elapsed before auto-
matic door lock function is
activated if door is not
opened after being
unlocked
60 seconds
30 seconds
120 seconds
Operation signal
(Emergency flashers)ONOFF
Operation signal (Buzzer
volume)Level 7Level 0 to 7
Door lock buzzerONOFF
Trunk unlocking functionONOFF
Trunk unlocking operationPush and holdPush twice
One push
Panic functionONOFF
ItemFunctionDefault settingCustomized
setting

546
Alphabetical index
ES350_U
Child safetyAirbag precautions.............................. 92
Battery precautions ............. 392, 485
Child restraint system........................102
Child-protectors ..................................... 41
How your child should wear
the seat belt .......................................... 60
Installing child restraints .................. 106
Moon roof precautions ..................... 75
Power window lock switch.............. 68
Power window precautions ............ 70
Removed electronic key
battery precautions ......................... 412
Seat belt comfort guide..................... 58
Seat belt extender precautions ..... 62
Seat belt precautions .......................... 60
Seat heater precautions .....330, 333
Trunk precautions ................................ 46
Child-protectors ....................................... 41
Cigarette lighter....................................328 Cleaning
Exterior ....................................................362
Interior..................................................... 365
Seat belts ............................................... 366
Clock ......................................................... 326
Coat hooks.............................................. 338
Compass .................................................. 349
Condenser ..............................................388
Console box .............................................319
Cooling system Engine overheating.......................... 486
Cornering assist sensors ...................... 171
Cruise control Cruise control....................................... 155
Dynamic radar crui se control.......158
Cup holders ..............................................321
Curtain shield airbags ........................... 86
Customizable features .........................517

557
Alphabetical index
ES350_U
Warning messagesDynamic radar
cruise control ...................... 456, 458
Engine oil level ....................................458
Engine oil maintenance..................458
Engine oil pressure........................... 455
Hood .......................................................458
Intuitive parking assist
sensor ..................................... 456, 458
Moon roof ............................................. 458
Open door ...........................................458
Parking brake ......................................458
Pre-collision system ............ 456, 458
Smart access system with
push-button start............................ 464
Steering lock ........................................ 456
Trunk ........................................................ 458
Washer fluid......................................... 458 Washer
Checking ...............................................393
Preparing and checking before winter ....................................... 191
Switch........................................................ 152
Washing and waxing ........................... 362
Weight Cargo capacity .................................... 187
Load limits .............................................. 190
Weight..................................................... 492
Wheels ...................................................... 407
Window glasses ...................................... 68
Window lock switch ............................... 68
Windows Power windows .....................................68
Rear window defogger.................... 215
Washer .................................................... 152
Windshield wipers
Position..................................................... 194
Windshield wipers ............................. 152
Wireless remote control key Replacing the battery.......................... 411
Wireless remote control key ..........38
WMA disc ............................................... 233

560
ES350_U
GAS STATION INFORMATION
Auxiliary catch leverP. 3 7 8Trunk openerP. 4 4Fuel filler door P. 76
Hood lock release lever P. 3 7 8Fuel filler door opener P. 76Tire inflation pressureP. 4 9 9
Fuel tank capacity
(Reference)18.5 gal. (70L, 15.4 Imp. gal.)
Fuel typeUnleaded gasoline only P. 77, 494
Cold tire inflation
pressureP. 4 9 9
Engine oil capacity
(Drain and refill 
reference)qt. (L, Imp. qt.)
Without filter 6.0 (5.7
, 5.0)With filter 6.4 (6.1, 5.3)
Engine oil type
Toyota Genuine Motor Oil or equivalent
Oil grade: ILSAC multigrade engine oil P. 495
Recommended oil viscosity: SAE 5W-30
