2011 KIA Borrego Owner's Manual

Introduction
61
INDICATOR SYMBOLS ON THE INSTRUMENT CLUSTER
Seat belt warning light
Door open position indi-
cator
Tailgate open warning light
High beam indicator
Light on indicator*
Turn signal indicator
Front fog light indicator*
ABS warning light
Parking brake & Brake fluid
warning light
Engine oil pressure warning light
4WD system warning light*
4WD LOW indicator*
4WD HI indicator*
Malfunction indicator*
Air bag warning light
Cruise SET indicator
Immobilizer indicator
Low fuel level warning light
Shift pattern indicator
DBC indicator*
❈ For more detailed explanations, refer to “Instrument cluster” in section 4.
Charging system warning light
Low windshield washer fluid
level warning light*
Engine coolant temperature
warning light* ESC indicator*
A050000BHM-EU
Door ajar warning light
Key out warning light*
KEY
OUT
4WD
LOW
4WD
HI
* : if equipped
Cruise indicator
ESC OFF indicator*
ESC
ESC
OFF
TPMS (Tire Pressure Monitoring
System) malfunction indicator
Low tire pressure telltale
ECOMINDER
TMindicator*ECO

2
Interior overview / 2-2
Instrument panel overview / 2-3
Engine compartment / 2-4
Your vehicle at a glance

Your vehicle at a glance
22
INTERIOR OVERVIEW
B010000AHM-EU
1. Door lock/unlock button ....................4-16
2. Outside rearview mirror control switch ................................................4-47
3. Central door lock switch....................4-16
4. Power window lock button ................4-24
5. Power window switches ....................4-21
6. Air vent ..............................................4-89
7. Instrument panel illumination control knob* .....................................4-49
8. ESC OFF button* ..............................5-32
9. DBC button* ......................................5-36
10. Power adjustable pedal control switch* .................................4-36
11. 4WD transfer shift knob* .................5-19
12. Steering wheel tilt control* ..............4-38
13. Steering wheel ................................4-37
14. Fuse box .........................................7-43
15. Hood release lever ..........................4-25
16. Fuel filler lid release lever ...............4-27
17. Brake pedal .....................................5-27
18. Accelerator pedal ..............................5-9
19. Driver position memory system buttons* ..............................4-34
20. Seat...................................................3-2
* : if equipped
OHM018001N

23
Your vehicle at a glance
INSTRUMENT PANEL OVERVIEW
B020000AHM-EE
1. Instrument cluster.............................4-48
2. Steering wheel audio controls* ......4-125
3. Light control / Turn signals ...............4-73
4. Horn .................................................4-38
5. Auto cruise controls* ........................5-39
6. Wiper/Washer switch ........................4-77
7. Driver’s front air bag .........................3-52
8. Driver’s knee air bag* .......................3-52
9. Ignition switch* orENGINE START/STOP button* ...5-4, 5-6
10. Hazard warning flasher ....................6-2
11. Audio* or Navigation* ...................4-130
12. Digital clock ..................................4-119
13. Climate control system* .................4-84
14. Power outlet* ................................4-116
15. Multi box .......................................4-113
16. Shift lever .......................................5-12
17. Aux, USB and iPod port*..............4-126
18. Seat warmer switch* ........................3-8
19. Climate control seat switch* .............3-9
20. Rear parking assist system OFF switch* ....................................4-68
21. AC inverter switch* .......................4-117
22. Parking brake pedal .......................5-28
23. Brake pedal ....................................5-27
24. Accelerator pedal .............................5-9
25. Passenger’s front air bag* ..............3-53
26. Glove box .....................................4-112
* : if equipped
OHM018002N

Your vehicle at a glance
42
ENGINE COMPARTMENT
1. Engine coolant reservoir..................7-15
2. Engine oil filler cap ..........................7-14
3. Brake fluid reservoir.........................7-18
4. Air cleaner .......................................7-21
5. Fuse box ..........................................7-44
6. Negative battery terminal ................7-25
7. Positive battery terminal ..................7-25
8. Radiator cap ....................................7-17
9. Engine oil dipstick ............................7-14
10. Power steering fluid reservoir ........7-19
11. Windshield washer fluid reservoir .................................7-20
OHM018005N/OHM018004N
B030000AEN-EU
* The actual engine room in the vehicle may differ from the illustration. ■ ■
3.8L
■
■4.6L

3

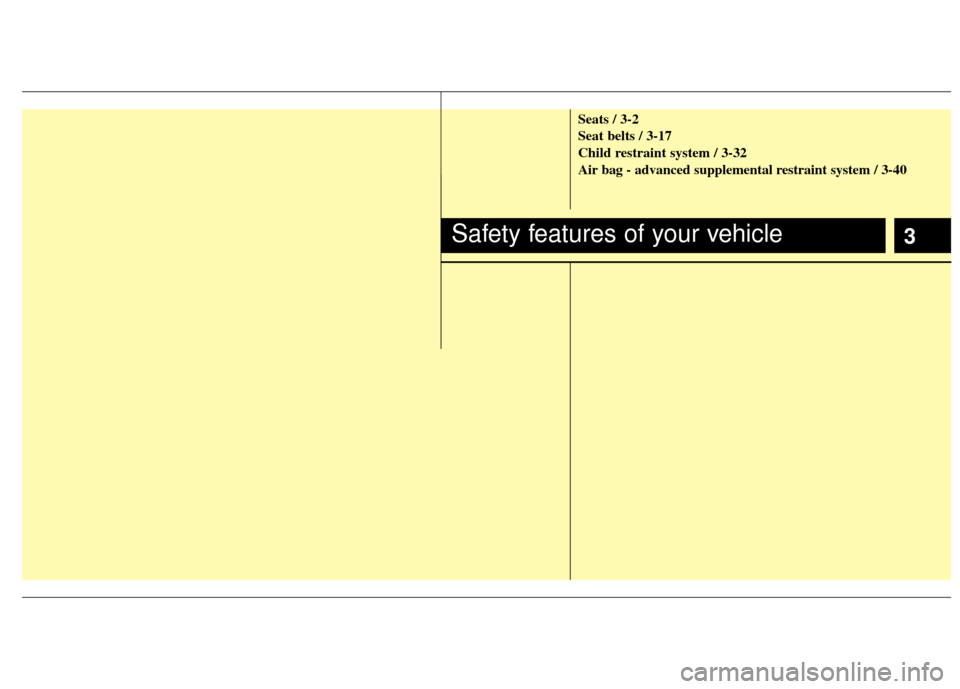

Seats / 3-2
Seat belts / 3-17
Child restraint system / 3-32
Air bag - advanced supplemental restraint system / 3-40
Safety features of your vehicle

Safety features of your vehicle
23
C010000BHM-EE
Front seat
(1) Forward and backward
(2) Seatback angle
(3) Seat cushion height (Driver’s seat)
(4) Lumbar support (Driver’s seat)*
(5) Seat warmer*
(6) Climate control seat (Driver’s seat)*
(7) Headrest
2nd row seat
(8) Forward and backward
(9) Seatback angle and folding
(10) Walk-in seat
(11) Headrest
(12) Armrest
(13) Seat warmer*
3rd row seat
(14) Seatback folding
(15) Headrest
*: if equipped
SEATS
OHM039001K
Manual seat
Power seat

33
Safety features of your vehicle
WARNING- Driver’s seat
Never attempt to adjust the seatwhile the vehicle is moving. This
could result in loss of control,
and an accident causing death,
serious injury, or property dam-
age.
Do not allow anything to interfere with the normal position of the
seatback. Storing items against a
seatback or in any other way
interfering with proper locking of
a seatback could result in serious
or fatal injury in a sudden stop or
collision.
seatback upright and the lap por-
tion of the seat belt snug and low
across the hips. This is the best
position to protect you in case of
an accident.
In order to avoid unnecessary and perhaps severe air bag
injuries, always sit as far back as
possible from the steering wheel
while maintaining comfortable
control of the vehicle. We recom-
mend that your chest be at least
250 mm (10 inches) away from
the steering wheel.
WARNING - Uprighting
seat
When you return the seatback to its
upright position, hold the seatback
and return it slowly and be sure
there are no other occupants
around the seat. If the seatback is
returned without being held and
controlled, the back of the seat
could spring forward resulting in
accidental injury to a person struck
by the seatback.
WARNING- Loose objects
Loose objects in the driver’s foot
area could interfere with the opera-
tion of the foot pedals, possibly
causing an accident. Do not place
anything under the front seats.
WARNING- Driver respon-
sibility for passengers
Riding in a vehicle with the seat-
back reclined could lead to serious
or fatal injury in an accident. If a
seat is reclined during an accident,
the occupant’s hips may slide
under the lap portion of the seat
belt applying great force to the
unprotected abdomen. Serious or
fatal internal injuries could result.
The driver must advise the passen-
ger to keep the seatback in an
upright position whenever the vehi-
cle is in motion.
WARNING
Do not use a sitting cushion that
reduces friction between the seat
and passenger. The passenger's
hips may slide under the lap por-
tion of the seat belt during an acci-
dent or a sudden stop. Serious or
fatal internal injuries could result
because the seat belt can't operate
normally.
