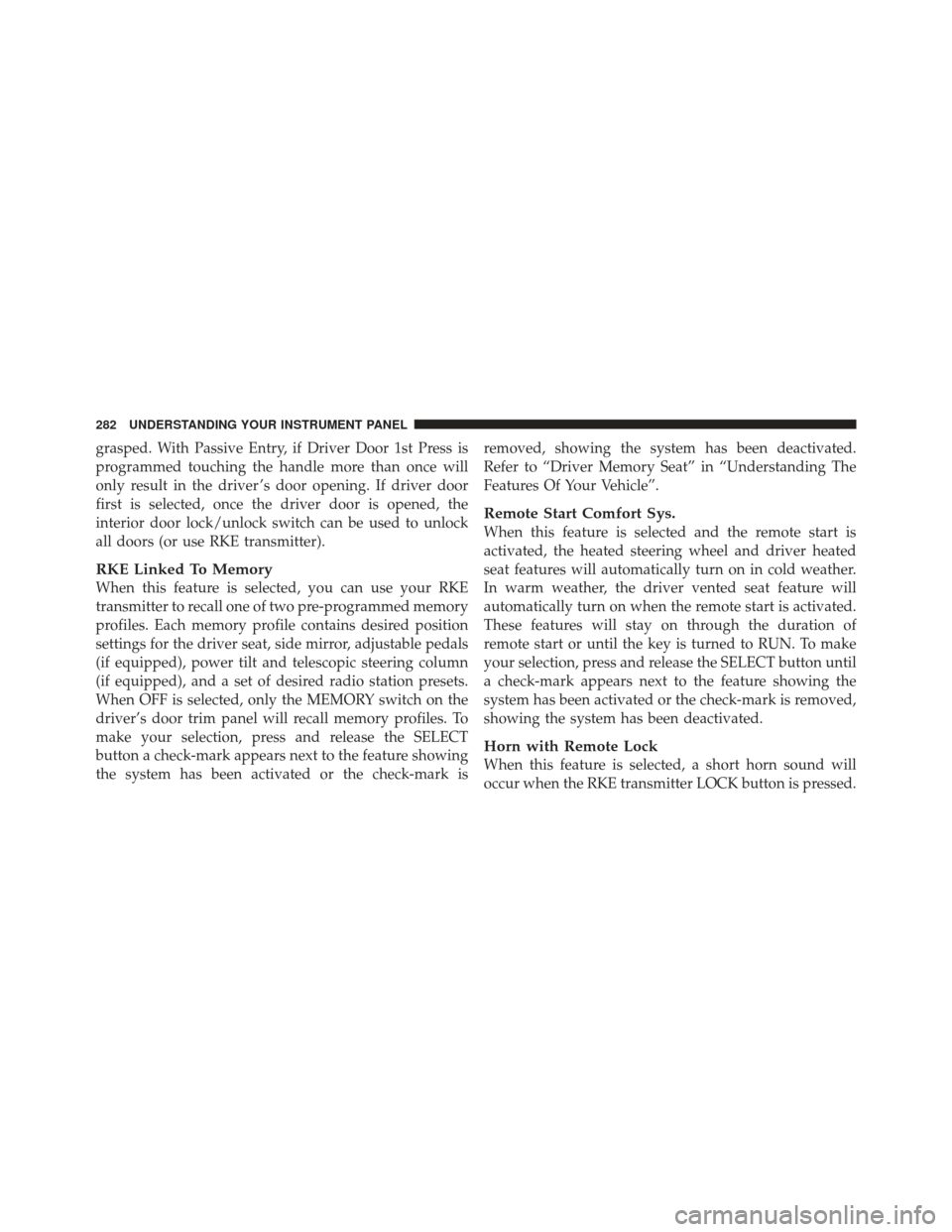

grasped. With Passive Entry, if Driver Door 1st Press is
programmed touching the handle more than once will
only result in the driver ’s door opening. If driver door
first is selected, once the driver door is opened, the
interior door lock/unlock switch can be used to unlock
all doors (or use RKE transmitter).
RKE Linked To Memory
When this feature is selected, you can use your RKE
transmitter to recall one of two pre-programmed memory
profiles. Each memory profile contains desired position
settings for the driver seat, side mirror, adjustable pedals
(if equipped), power tilt and telescopic steering column
(if equipped), and a set of desired radio station presets.
When OFF is selected, only the MEMORY switch on the
driver’s door trim panel will recall memory profiles. To
make your selection, press and release the SELECT
button a check-mark appears next to the feature showing
the system has been activated or the check-mark isremoved, showing the system has been deactivated.
Refer to “Driver Memory Seat” in “Understanding The
Features Of Your Vehicle”.
Remote Start Comfort Sys.
When this feature is selected and the remote start is
activated, the heated steering wheel and driver heated
seat features will automatically turn on in cold weather.
In warm weather, the driver vented seat feature will
automatically turn on when the remote start is activated.
These features will stay on through the duration of
remote start or until the key is turned to RUN. To make
your selection, press and release the SELECT button until
a check-mark appears next to the feature showing the
system has been activated or the check-mark is removed,
showing the system has been deactivated.
Horn with Remote Lock
When this feature is selected, a short horn sound will
occur when the RKE transmitter LOCK button is pressed.
282 UNDERSTANDING YOUR INSTRUMENT PANEL

List Or Browse Mode
During Play mode, pressing any of the buttons described
below, will bring up List mode. List mode enables
scrolling through the list of menus and tracks on the
audio device.
•TUNEcontrol knob: The TUNEcontrol knob functions
in a similar manner as the scroll wheel on the or
external USB device.
•Turning it clockwise (forward) and counterclock-
wise (backward) scrolls through the lists, displaying
the track detail on the radio display. Once the track
to be played is highlighted on the radio display,
press the TUNEcontrol knob to select and start
playing the track. Turning the TUNEcontrol knob
fast will scroll through the list faster. During fast
scroll, a slight delay in updating the information on
the radio display may be noticeable.
•During all List modes, the iPod displays all lists in
“wrap-around” mode. So if the track is at the
bottom of the list, just turn the wheel backwards
(counter-clockwise) to get to the track faster.
•In List mode, the radio PRESETbuttons are used as
shortcuts to the following lists on the iPod or
external USB device.
•Preset 1 – Playlists
•Preset 2 – Artists
•Preset 3 – Albums
•Preset 4 – Genres
•Preset 5 – Audiobooks
•Preset 6 – Podcasts
4
UNDERSTANDING YOUR INSTRUMENT PANEL 317

STEERING WHEEL AUDIO CONTROLS
The remote sound system controls are located on the rear
surface of the steering wheel. Reach behind the wheel to
access the switches.The right-hand control is a rocker-type switch with a
pushbutton in the center and controls the volume and
mode of the sound system. Pressing the top of the rocker
switch will increase the volume, and pressing the bottom
of the rocker switch will decrease the volume.
Remote Control LocationRemote Sound System Controls
(Back View Of Steering Wheel)
4
UNDERSTANDING YOUR INSTRUMENT PANEL 321

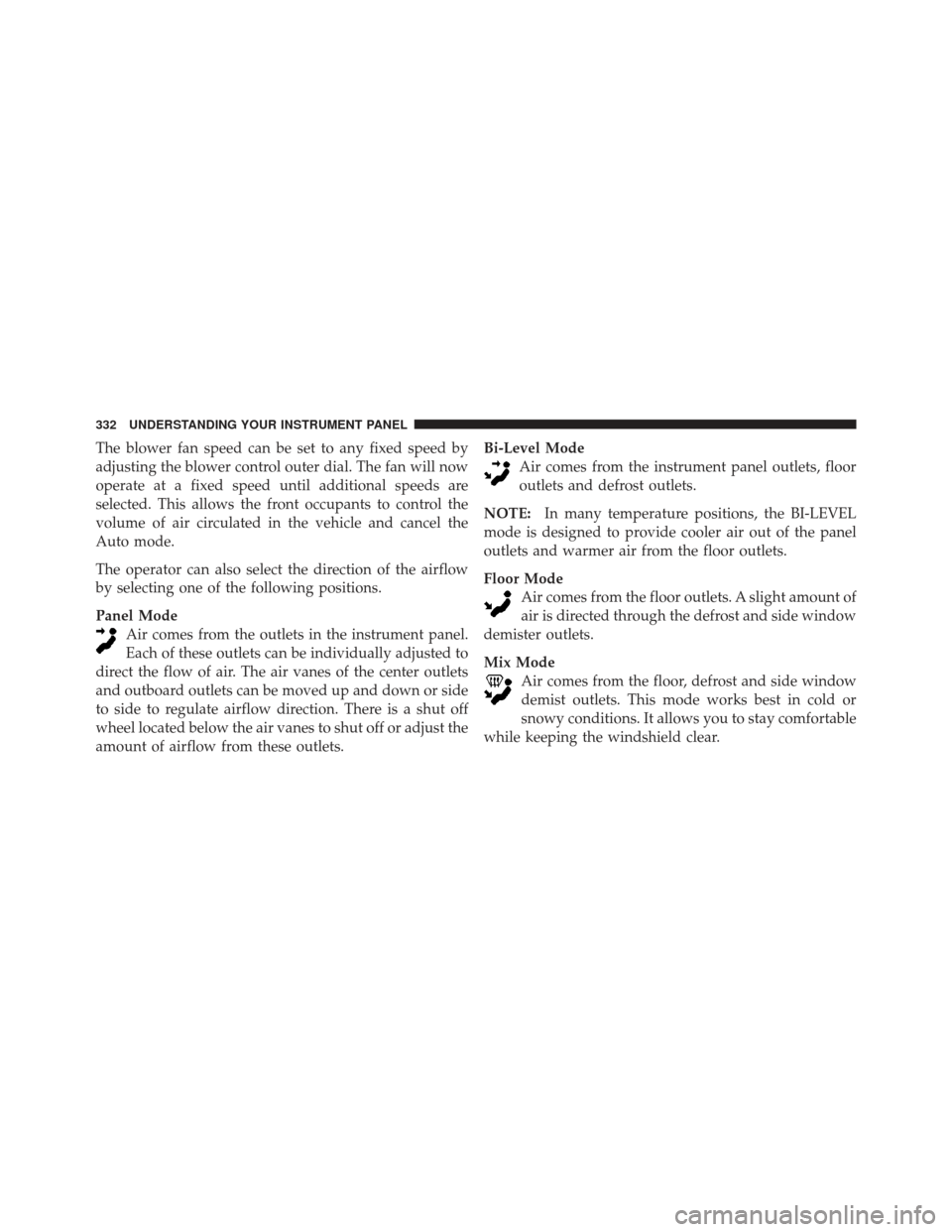

The blower fan speed can be set to any fixed speed by
adjusting the blower control outer dial. The fan will now
operate at a fixed speed until additional speeds are
selected. This allows the front occupants to control the
volume of air circulated in the vehicle and cancel the
Auto mode.
The operator can also select the direction of the airflow
by selecting one of the following positions.
Panel ModeAir comes from the outlets in the instrument panel.
Each of these outlets can be individually adjusted to
direct the flow of air. The air vanes of the center outlets
and outboard outlets can be moved up and down or side
to side to regulate airflow direction. There is a shut off
wheel located below the air vanes to shut off or adjust the
amount of airflow from these outlets. Bi-Level Mode
Air comes from the instrument panel outlets, floor
outlets and defrost outlets.
NOTE: In many temperature positions, the BI-LEVEL
mode is designed to provide cooler air out of the panel
outlets and warmer air from the floor outlets.
Floor Mode Air comes from the floor outlets. A slight amount of
air is directed through the defrost and side window
demister outlets.
Mix Mode Air comes from the floor, defrost and side window
demist outlets. This mode works best in cold or
snowy conditions. It allows you to stay comfortable
while keeping the windshield clear.
332 UNDERSTANDING YOUR INSTRUMENT PANEL

STARTING AND OPERATING
CONTENTS
Starting Procedures .................... 343
▫ Automatic Transmission ............... 343
▫ Keyless Enter-N-Go ................... 344
▫ Normal Starting ..................... 345
▫ Extreme Cold Weather
(Below –20°F Or 29°C)............... 346
▫ If Engine Fails To Start ................ 347
▫ After Starting ....................... 348
 Engine Block Heater — If Equipped ........ 348
Automatic Transmission ................. 349
▫ Key Ignition Park Interlock ............. 349
▫ Brake/Transmission Shift Interlock System . . 350
▫ Five-Speed Automatic Transmission ....... 350
▫ Gear Ranges ........................ 350
 Four-Wheel Drive Operation ............. 357
▫ Quadra-Trac I Operating Instructions/
Precautions – If Equipped .............. 357
▫ Quadra-Trac II Operating Instructions/
Precautions – If Equipped .............. 358
5

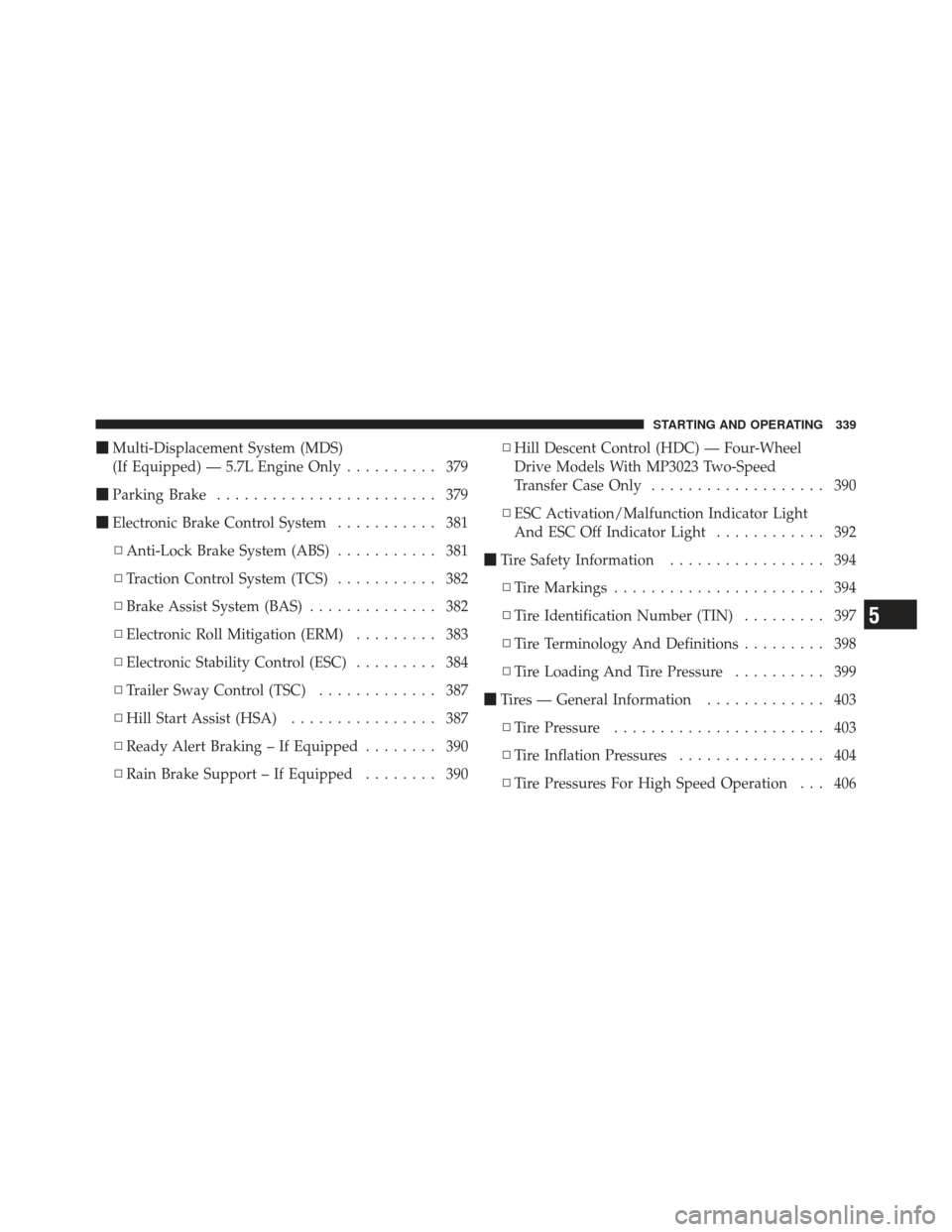

Multi-Displacement System (MDS)
(If Equipped) — 5.7L Engine Only .......... 379
 Parking Brake ........................ 379
 Electronic Brake Control System ........... 381
▫ Anti-Lock Brake System (ABS) ........... 381
▫ Traction Control System (TCS) ........... 382
▫ Brake Assist System (BAS) .............. 382
▫ Electronic Roll Mitigation (ERM) ......... 383
▫ Electronic Stability Control (ESC) ......... 384
▫ Trailer Sway Control (TSC) ............. 387
▫ Hill Start Assist (HSA) ................ 387
▫ Ready Alert Braking – If Equipped ........ 390
▫ Rain Brake Support – If Equipped ........ 390▫
Hill Descent Control (HDC) — Four-Wheel
Drive Models With MP3023 Two-Speed
Transfer Case Only ................... 390
▫ ESC Activation/Malfunction Indicator Light
And ESC Off Indicator Light ............ 392
 Tire Safety Information ................. 394
▫ Tire Markings ....................... 394
▫ Tire Identification Number (TIN) ......... 397
▫ Tire Terminology And Definitions ......... 398
▫ Tire Loading And Tire Pressure .......... 399
 Tires — General Information ............. 403
▫ Tire Pressure ....................... 403
▫ Tire Inflation Pressures ................ 404
▫ Tire Pressures For High Speed Operation . . . 406
5
STARTING AND OPERATING 339

▫Radial-Ply Tires ..................... 406
▫ Spare Tire Matching Original Equipped Tire
And Wheel – If Equipped .............. 406
▫ Compact Spare Tire – If Equipped ........ 407
▫ Full Size Spare – If Equipped ............ 408
▫ Limited-Use Spare – If Equipped ......... 408
▫ Tire Spinning ....................... 409
▫ Tread Wear Indicators ................. 410
▫ Life Of Tire ........................ 410
▫ Replacement Tires .................... 411
 Tire Chains (Traction Devices) ............. 412
 Snow Tires .......................... 413
 Tire Rotation Recommendations ........... 414
Tire Pressure Monitor System (TPMS) ....... 415
▫ Base System ........................ 417
▫ Premium System – If Equipped .......... 420
▫ General Information .................. 424
 Fuel Requirements ..................... 424
▫ 3.6L Engine ........................ 424
▫ 5.7L Engine ........................ 424
▫ Reformulated Gasoline ................ 425
▫ Gasoline/Oxygenate Blends ............. 425
▫ E-85 Usage In Non-Flex Fuel Vehicles ...... 426
▫ MMT In Gasoline .................... 427
▫ Materials Added To Fuel ............... 427
▫ Fuel System Cautions ................. 427
340 STARTING AND OPERATING

Snow Plow .......................... 452
 Recreational Towing
(Behind Motorhome, Etc.) ................ 453
▫ Towing This Vehicle Behind
Another Vehicle ..................... 453
▫ Recreational Towing — Two-Wheel Drive
Models ........................... 454 ▫
Recreational Towing — Quadra-Trac I
(Single-Speed Transfer Case) Four-Wheel
Drive Models ....................... 454
▫ Recreational Towing — Quadra–
Trac II /Quadra–Drive II Four-Wheel
Drive Models ....................... 455
