Page 1007 of 5598
DAS-42
< WIRING DIAGRAM >[ADAS CONTROL UNIT]
DRIVER ASSISTANCE SYSTEMS
WIRING DIAGRAM
DRIVER ASSISTANCE SYSTEMS

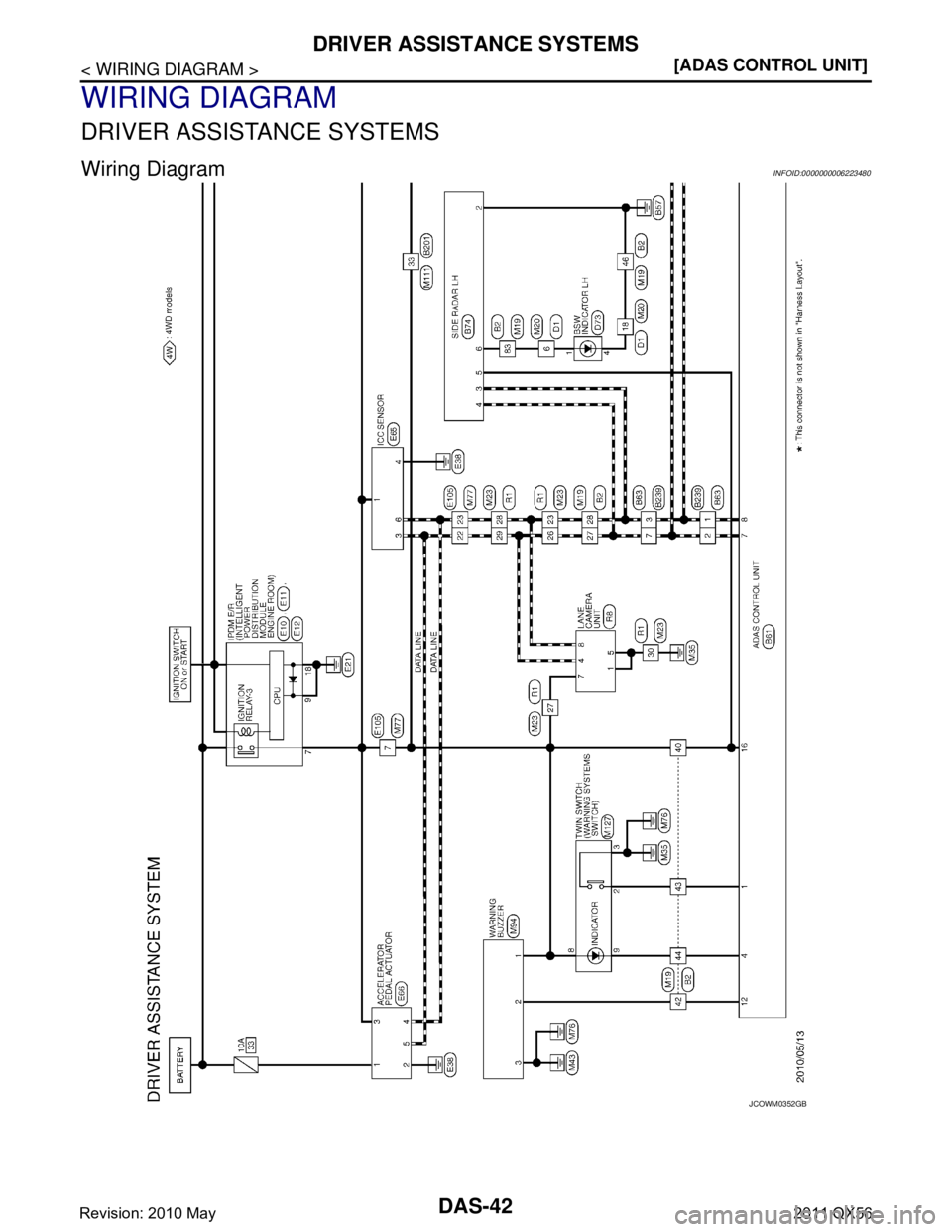

Wiring DiagramINFOID:0000000006223480
JCOWM0352GB
Revision: 2010 May2011 QX56
Page 1008 of 5598
DAS

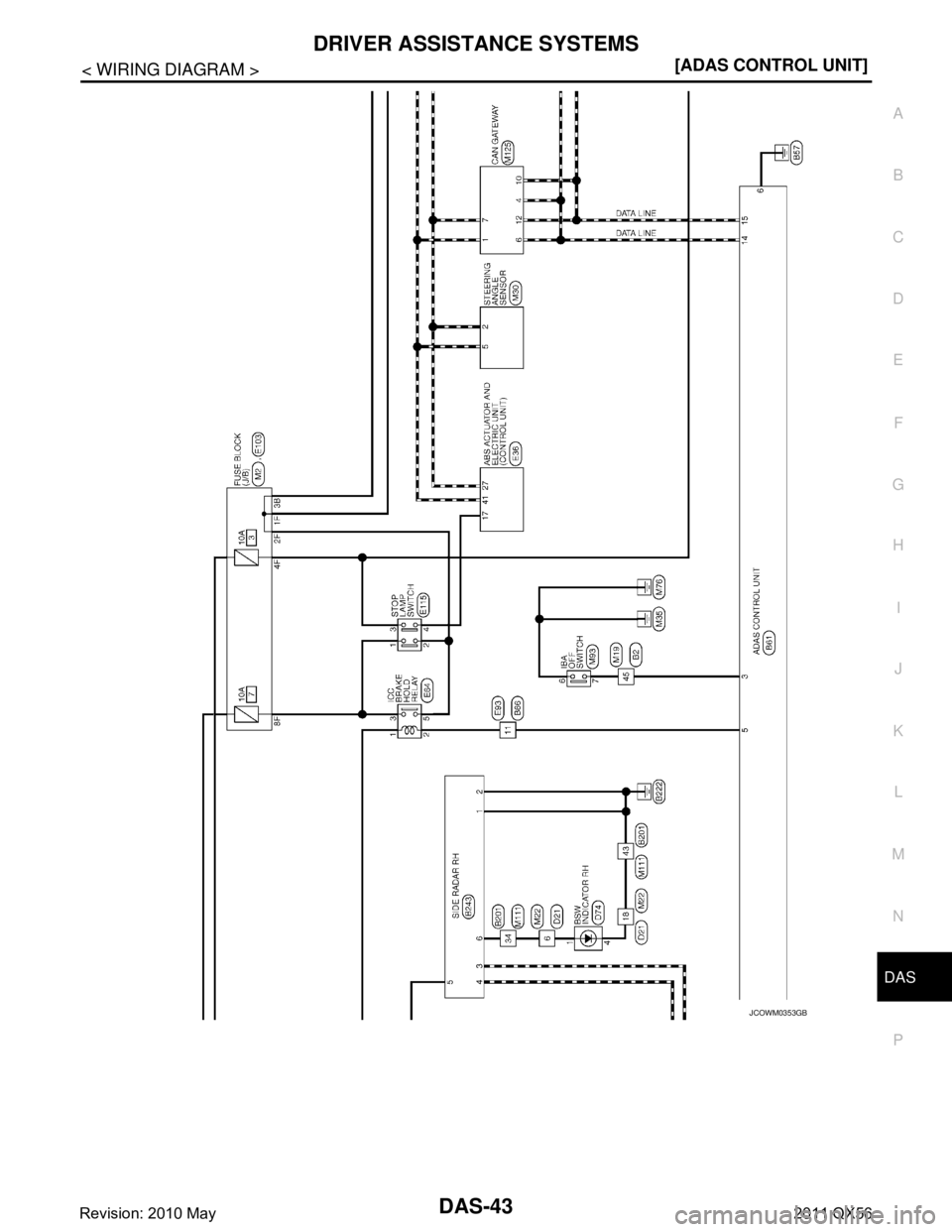

DRIVER ASSISTANCE SYSTEMSDAS-43
< WIRING DIAGRAM > [ADAS CONTROL UNIT]
C
D
E
F
G H
I
J
K L
M B
N P A
JCOWM0353GB
Revision: 2010 May2011 QX56
Page 1009 of 5598
DAS-44
< WIRING DIAGRAM >[ADAS CONTROL UNIT]
DRIVER ASSISTANCE SYSTEMS
JCOWM0354GB
Revision: 2010 May2011 QX56
Page 1010 of 5598
DAS
DRIVER ASSISTANCE SYSTEMSDAS-45
< WIRING DIAGRAM > [ADAS CONTROL UNIT]
C
D
E
F
G H
I
J
K L
M B
N P A
JCOWM0355GB
Revision: 2010 May2011 QX56
Page 1011 of 5598
DAS-46
< WIRING DIAGRAM >[ADAS CONTROL UNIT]
DRIVER ASSISTANCE SYSTEMS
JCOWM0356GB
Revision: 2010 May2011 QX56
Page 1012 of 5598
DAS
DRIVER ASSISTANCE SYSTEMSDAS-47
< WIRING DIAGRAM > [ADAS CONTROL UNIT]
C
D
E
F
G H
I
J
K L
M B
N P A
JCOWM0357GB
Revision: 2010 May2011 QX56
Page 1013 of 5598
DAS-48
< WIRING DIAGRAM >[ADAS CONTROL UNIT]
DRIVER ASSISTANCE SYSTEMS
JCOWM0358GB
Revision: 2010 May2011 QX56
Page 1014 of 5598
DAS
DRIVER ASSISTANCE SYSTEMSDAS-49
< WIRING DIAGRAM > [ADAS CONTROL UNIT]
C
D
E
F
G H
I
J
K L
M B
N P A
JCOWM0359GB
Revision: 2010 May2011 QX56
