2011 INFINITI G-CONVERTIBLE navigation

1. Side ventilator (P. 4-28)
2. Meters and gauges (P. 2-4)
3. Center ventilator (P. 4-28)
4. Audio system (P. 4-37)
5. Clock (P. 2-40)6. Center multi-function control panel
— Navigation system* (if so equipped)
— Vehicle information and setting buttons
(P. 4-7)
— Bluetooth Hands-Free Phone System
(P. 4-85)
— Audio system (P. 4-37)
7.
Center display (P. 4-2)/Navigation system*
(if so equipped)
8. Hazard warning flasher switch (P. 2-36)
9. Front passenger supplemental air bag (P. 1-35)
10. Fuse box cover (P. 8-20)
11. Parking brake (for Automatic Transmission models)
— Parking (P. 5-18)
12. Push-button ignition switch (P. 5-7)
13. Automatic climate control system (P. 4-29)
14. Cigarette lighter and ashtray (if so equipped) (P. 2-42) or Storage box
(if so equipped) (P. 2-46)
— Power outlet (if so equipped) (P. 2-41)
15. Parking brake (for Manual Transmission models)
— Parking (P. 5-18)
16. Heated seat switch (if so equipped) (P. 2-37) or Climate controlled seat
switch (if so equipped) (P. 2-38)
17. Retractable hard top operating switch (P. 3-18)
SSI0671
INSTRUMENT PANEL
0-8Illustrated table of contents

18. Rear window and outside mirrordefogger switch (P. 2-31)
19. Glove box lid release handle (P. 2-44)
20. Trunk release power cancel switch (P. 3-29)
*: Refer to the separate Navigation SystemOwner’s Manual.
1. Tachometer (P. 2-6)
2. Warning/Indicator lights (P. 2-8)
3. Speedometer (P. 2-5)
4. Engine coolant temperature gauge
(P. 2-6) 5. Dot matrix liquid crystal display/
Odometer/twin trip odometer (P. 2-16)
6. Fuel gauge (P. 2-7)
SIC4288
METERS AND GAUGES
Illustrated table of contents0-9

1. Side ventilator (P. 4-28)
2. Meters and gauges (P. 2-4)
3. Center ventilator (P. 4-28)
4. Audio system (P. 4-37)
5. Clock (P. 2-40)6. Center multi-function control panel
— Navigation system* (if so equipped)
— Vehicle information and setting buttons
(P. 4-7)
— Bluetooth Hands-Free Phone System
(P. 4-85)
— Audio system (P. 4-37) 7.
Center display (P. 4-2)/Navigation system*
(if so equipped)
8. Hazard warning flasher switch (P. 2-36)
9. Front passenger supplemental air bag (P. 1-35)
10. Fuse box cover (P. 8-20)
11. Parking brake (for Automatic Transmission models)
— Parking (P. 5-18)
12. Push-button ignition switch (P. 5-7)
13. Automatic climate control system (P. 4-29)
14. Cigarette lighter and ashtray (if so equipped) (P. 2-42) or
Storage box (if so equipped) (P. 2-46)
— Power outlet (if so equipped) (P. 2-41)
15. Parking brake (for Manual Transmission models)
— Parking (P. 5-18)
16.
Heated seat switch (if so equipped)
(P. 2-37) or Climate controlled seat switch
(if so equipped) (P. 2-38)
17. Retractable hard top operating switch (P. 3-18)
18. Rear window and outside mirror (if so equipped) defogger switch (P. 2-31)
19. Glove box lid release handle (P. 2-44)SSI0671
INSTRUMENT PANEL
Instruments and controls2-3

20. Trunk release power cancel switch(P. 3-29)
*: Refer to the separate Navigation SystemOwner’s Manual.
1. Tachometer (P. 2-6)
2. Warning/Indicator lights (P. 2-8)
3. Speedometer (P. 2-5)
4. Engine coolant temperature gauge
(P. 2-6) 5. Dot matrix liquid crystal display/
Odometer/twin trip odometer (P. 2-16)
6. Fuel gauge (P. 2-7)
SIC4288
METERS AND GAUGES
2-4Instruments and controls

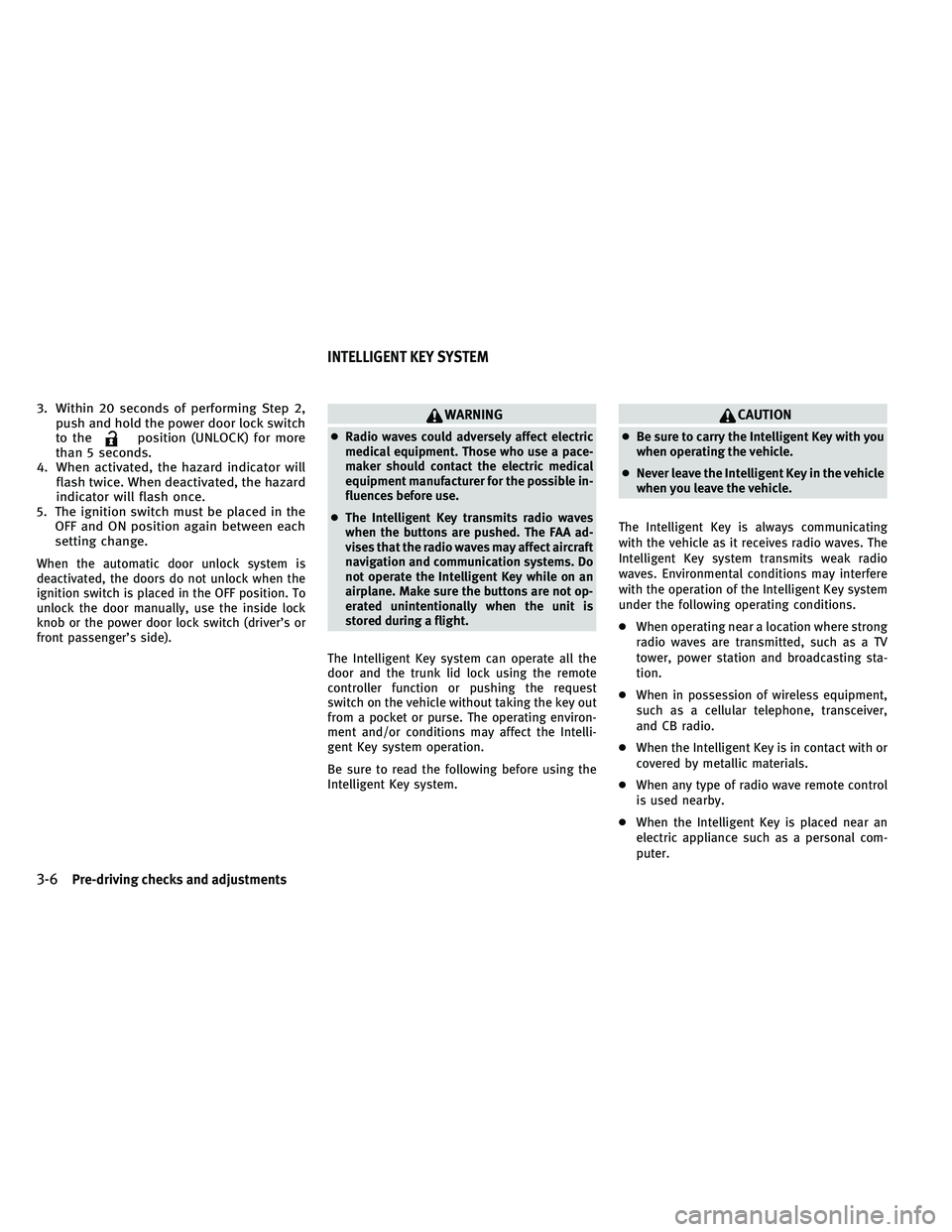

3. Within 20 seconds of performing Step 2,push and hold the power door lock switch
to the
position (UNLOCK) for more
than 5 seconds.
4. When activated, the hazard indicator will flash twice. When deactivated, the hazard
indicator will flash once.
5. The ignition switch must be placed in the OFF and ON position again between each
setting change.
When the automatic door unlock system is
deactivated, the doors do not unlock when the
ignition switch is placed in the OFF position. To
unlock the door manually, use the inside lock
knob or the power door lock switch (driver’s or
front passenger’s side).
WARNING
●Radio waves could adversely affect electric
medical equipment. Those who use a pace-
maker should contact the electric medical
equipment manufacturer for the possible in-
fluences before use.
● The Intelligent Key transmits radio waves
when the buttons are pushed. The FAA ad-
vises that the radio waves may affect aircraft
navigation and communication systems. Do
not operate the Intelligent Key while on an
airplane. Make sure the buttons are not op-
erated unintentionally when the unit is
stored during a flight.
The Intelligent Key system can operate all the
door and the trunk lid lock using the remote
controller function or pushing the request
switch on the vehicle without taking the key out
from a pocket or purse. The operating environ-
ment and/or conditions may affect the Intelli-
gent Key system operation.
Be sure to read the following before using the
Intelligent Key system.
CAUTION
● Be sure to carry the Intelligent Key with you
when operating the vehicle.
● Never leave the Intelligent Key in the vehicle
when you leave the vehicle.
The Intelligent Key is always communicating
with the vehicle as it receives radio waves. The
Intelligent Key system transmits weak radio
waves. Environmental conditions may interfere
with the operation of the Intelligent Key system
under the following operating conditions.
● When operating near a location where strong
radio waves are transmitted, such as a TV
tower, power station and broadcasting sta-
tion.
● When in possession of wireless equipment,
such as a cellular telephone, transceiver,
and CB radio.
● When the Intelligent Key is in contact with or
covered by metallic materials.
● When any type of radio wave remote control
is used nearby.
● When the Intelligent Key is placed near an
electric appliance such as a personal com-
puter.
INTELLIGENT KEY SYSTEM
3-6Pre-driving checks and adjustments

WARNING
The Intelligent Key transmits radio waves when
the buttons are pushed. The FAA advises that
the radio waves may affect aircraft navigation
and communication systems. Do not operate
the Intelligent Key while on an airplane. Make
sure the buttons are not operated unintention-
ally when the unit is stored during a flight.
It is possible to lock/unlock all doors, fuel-filler
door, activate the panic alarm and open the
windows by pushing the buttons on the Intelli-
gent Key from outside the vehicle.
Before locking the doors, make sure the Intelli-
gent Key is not left in the vehicle.
The LOCK/UNLOCK button on the Intelligent Key
can operate at a distance of approximately 33 ft
(10 m) from the vehicle. (The effective distance
depends upon the conditions around the ve-
hicle.)
As many as 4 Intelligent Keys can be used with
one vehicle. For information concerning the
purchase and use of additional Intelligent Keys,
contact an INFINITI retailer. The lock and unlock buttons on the Intelligent
Key will not operate when:
●
the distance between the Intelligent Key and
the vehicle is over 33 ft (10 m).
● the Intelligent Key battery is discharged.
After locking with the remote keyless entry
function, pull the door handle to make sure the
doors are securely locked.
The LOCK/UNLOCK operating range varies de-
pending on the environment. To securely oper-
ate the lock and unlock buttons, approach the
vehicle to about 3 ft (1 m) from the door.
1LOCK button
2UNLOCK button
3TRUNK button
4PANIC button
HOW TO USE REMOTE KEYLESS ENTRY
SYSTEM
When you lock or unlock the doors or the trunk
lid, the hazard indicator will flash and the horn
(or the outside chime) will sound as a confirma-
tion. For details, see “Setting hazard indicator
and horn mode” later in this section.
SPA2100
REMOTE KEYLESS ENTRY SYSTEM
3-14Pre-driving checks and adjustments

OPERATING THE RETRACTABLE HARD
TOP USING THE INTELLIGENT KEY
The retractable hard top can be opened using
the request switch. This operation cannot close
the retractable hard top.
Opening the retractable hard top
Carry the Intelligent Key with you. Push the door
handle request switch (driver’s or passenger’s)
Aand hold it until the retractable hard top is
fully open.
INITIALIZING OF THE RETRACTABLE
HARD TOP
After replacing the battery or when repeating
open and close operations without fully open-
ing or closing the retractable hard top, the
retractable hard top may not operate normally.
If this situation occurs, perform initialization of
the retractable hard top according to the follow-
ing procedures.
1. Start the engine.
2. Push the OPEN side of the retractable
hard top operating switch and hold it.
3. Release the OPEN side of the retractable hard top operating switch when the beep
sounds once. The initialization of the re-
tractable hard top is complete.
If the beep sounds twice when releasing the
OPEN side of the retractable hard top operating
switch during the initialization, repeat the pro-
cedures from step 2.
CAUTION
After the initialization, if the retractable hard
top does not operate normally, immediately
contact INFINITI retailer for an inspection. NOTE:
The following functions do not operate normally
when the initialization of the retractable hard
top is not complete.
– The retractable hard top does not open or
close when pushing the OPEN side of the re-
tractable hard top operating switch. (Only the
rear parcel shelf operates.)
– The retractable hard top indicator does not appear on the dot matrix liquid crystal dis-
play.
– The air conditioner airflow is fixed at the level when the retractable hard top is being closed.
– The audio volume is fixed at the level when the retractable hard top is being closed.
– For the models with the navigation system, the Voice Recognition function (VR) is not op-
erative.
SPA2585
Pre-driving checks and adjustments3-25

4 Monitor, climate, audio, phone and voice
recognition systems
Safety note....................................... 4-2
Center multi-function control panel ................. 4-2
How to use INFINITI controller ................... 4-4
How to use touch screen
(models with navigation system) ................. 4-4
Menu options
(models with navigation system) ................. 4-6
How to select menus on the screen .............. 4-7
Vehicle information and settings .................... 4-7
How to use STATUS button ...................... 4-7
How to use brightness control and display
ON/OFF button ................................. 4-7
How to use INFO button ........................ 4-8
How to use SETTING button ....................4-12
Rearview monitor ................................. 4-22
How to read displayed lines ....................4-23
How to park with predicted course lines .........4-23
Difference between predicted and actual
distances ..................................... 4-25
How to adjust screen .......................... 4-27
Operating tips ................................ 4-27
Ventilators ....................................... 4-28
Automatic climate control ......................... 4-29
Automatic climate control (Type A) ..............4-30 Automatic climate control (Type B)
..............4-33
Operating tips ................................ 4-36
In-cabin microfilter ............................ 4-36
Servicing climate control ....................... 4-36
Audio system .................................... 4-37
Audio operation precautions ...................4-37
FM-AM-SAT radio with Compact Disc (CD)
player ........................................ 4-53
DVD (Digital Versatile Disc) player
operation (models with navigation system) ......4-58
Usb input operation ........................... 4-62
Bluetooth streaming audio
(models with navigation system) ................4-66
iPod player operation ......................... 4-71
Music box (if so equipped) .................... 4-73
Cd/dvd/usb memory care and cleaning .........4-81
Steering-wheel-mounted

controls for audio ......4-82
Antenna ...................................... 4-84
Car phone or CB radio ............................ 4-85
Bluetooth Hands-Free Phone System
(models with navigation system) ...................4-85
Regulatory information ......................... 4-87
Voice commands .............................. 4-87
Control buttons ............................... 4-87
Connecting procedure ......................... 4-88
