When checking or replacement is required, we
recommend an INFINITI retailer for servicing.
CAUTION
●Use only Genuine NISSAN Matic S ATF. Do
not mix with other fluids.
● Using automatic transmission fluid other
than Genuine NISSAN Matic S ATF will cause
deterioration in driveability and automatic
transmission durability, and may damage
the automatic transmission, which is not
covered by the INFINITI new vehicle limited
warranty.

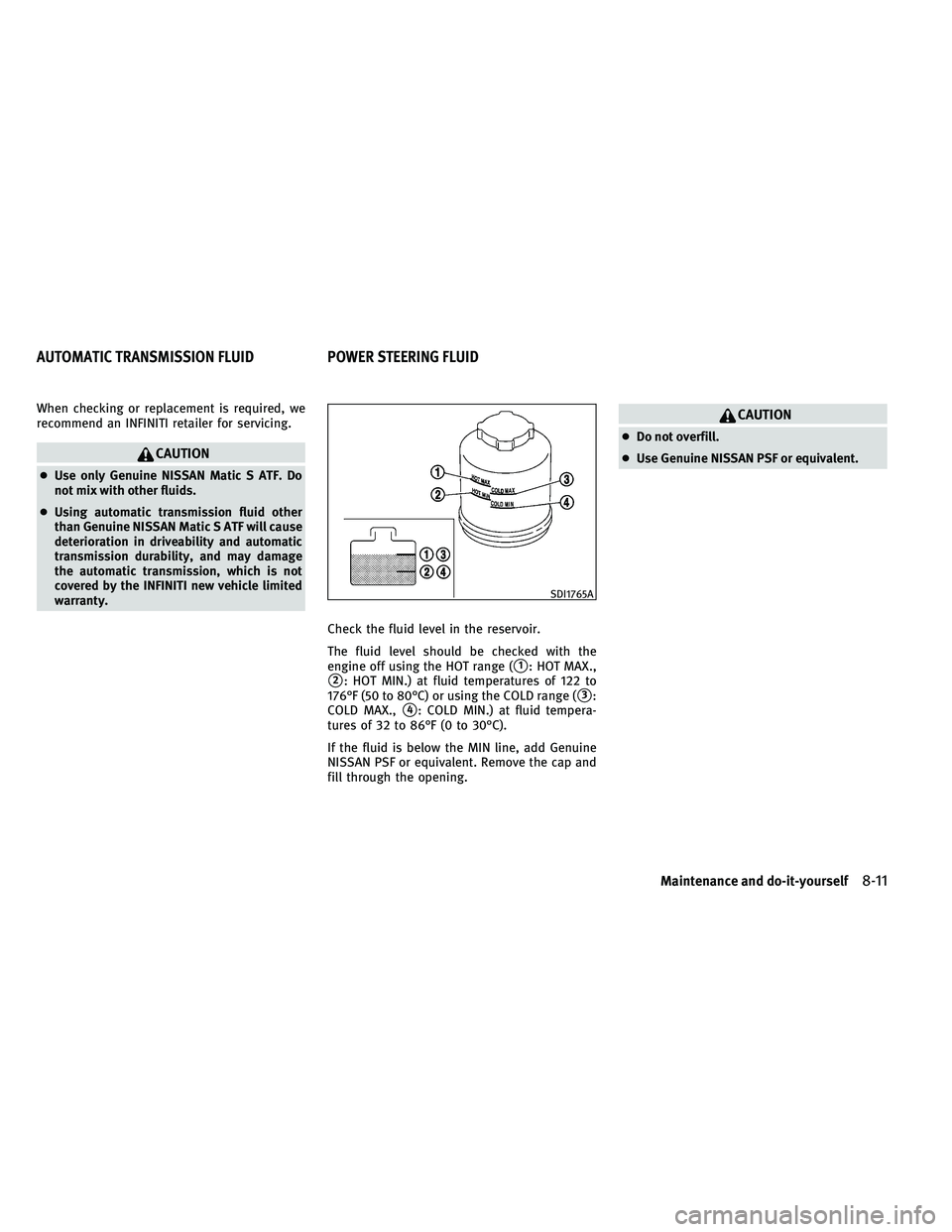

Check the fluid level in the reservoir.
The fluid level should be checked with the
engine off using the HOT range (
1: HOT MAX.,
2: HOT MIN.) at fluid temperatures of 122 to
176°F (50 to 80°C) or using the COLD range (
3:
COLD MAX.,
4: COLD MIN.) at fluid tempera-
tures of 32 to 86°F (0 to 30°C).
If the fluid is below the MIN line, add Genuine
NISSAN PSF or equivalent. Remove the cap and
fill through the opening.
CAUTION
● Do not overfill.
● Use Genuine NISSAN PSF or equivalent.
SDI1765A
AUTOMATIC TRANSMISSION FLUID POWER STEERING FLUID
Maintenance and do-it-yourself8-11

1. Remove the cell plugsA.
2. Add distilled water up to the UPPER LEVEL
1line.
If the side of the battery is not clear, check
the distilled water level by looking directly
above the cell; the condition
1indicates
OK and the condition
2needs more to be
added.
3. Tighten cell plugsA.
Vehicles operated in high temperatures or un-
der severe conditions require frequent checks
of the battery fluid level.
JUMP STARTING
If jump starting is necessary, see “JUMP START-
ING” in the “6. In case of emergency” section. If
the engine does not start by jump starting, the
battery may have to be replaced. Contact an
INFINITI retailer.
CAUTION
● Do not ground accessories directly to the
battery terminal. Doing so will bypass the
variable voltage control system and the ve-
hicle battery may not charge completely.
● Use electrical accessories with the engine
running to avoid discharging the vehicle
battery.
The variable voltage control system measures
the amount of electrical discharge from the
battery and controls voltage generated by the
generator.
SDI1480C
VARIABLE VOLTAGE CONTROL SYSTEM
Maintenance and do-it-yourself8-15

1. Power steering fluid pump
2. Alternator
3. Crankshaft pulley
4. Air conditioner compressor
5. Drive belt auto-tensioner
WARNING
Be sure the ignition switch is in the OFF or LOCK
position before servicing the drive belt. The
engine could rotate unexpectedly.
1. Visually inspect the belt for signs of un-usual wear, cuts, fraying or looseness. If
the belt is in poor condition or loose, have
it replaced or adjusted by an INFINITI
retailer.
2. Have the belt condition checked regularly.WARNING
Be sure the engine and the ignition switch are
off and that the parking brake is engaged
securely.
CAUTION
Be sure to use the correct socket to remove the
spark plugs. An incorrect socket can damage
the spark plugs.
VQ37VHR engine
SDI2119
DRIVE BELT SPARK PLUGS
8-16Maintenance and do-it-yourself

ENGINE COMPARTMENT
CAUTION
Never use a fuse of a higher or lower amperage
rating than that specified on the fuse box cover.
This could damage the electrical system or
cause a fire.If any electrical equipment does not operate,
check for an open fuse.
1. Be sure the ignition switch is pushed to
the OFF or LOCK position and the head-
light switch is turned to OFF.
2. Open the engine hood and remove the cover on the battery and the fuse/fusible
link holder.
3. Remove the fuse/fusible link holder cover.
4. Remove the fuse with the fuse puller located in the passenger compartment
fuse box. 5. If the fuse is open
A, replace it with a
new fuse
B. Spare fuses are stored in the
passenger compartment fuse box.
6. If a new fuse also opens, have the elec- trical system checked and repaired by an
INFINITI retailer.
Fusible links
If any electrical equipment does not operate
and the fuses are in good condition, check the
fusible links. If any of these fusible links are
melted, replace only with genuine INFINITI
parts.
SDI1479ASDI1754
FUSES
8-20Maintenance and do-it-yourself

If any undesirable driveability problems such as
engine stalling or hard hot starting are experi-
enced after using oxygenate-blend fuels, imme-
diately change to a non-oxygenate fuel or a fuel
with a low blend of MTBE.
Take care not to spill gasoline during refueling.
Gasoline containing oxygenates can cause paint
damage.
E-85 fuel
E-85 fuel is a mixture of approximately 85% fuel
ethanol and 15% unleaded gasoline. E-85 can
only be used in a Flexible Fuel Vehicle (FFV). Do
not use E-85 fuel in your vehicle. U.S. govern-
ment regulations require fuel ethanol dispens-
ing pumps to be identified by a small, square,
orange and black label with the common abbre-
viation or the appropriate percentage for that
region.
Aftermarket fuel additives
INFINITI does not recommend the use of any
aftermarket fuel additives (Example: fuel injec-
tor cleaner, octane booster, intake valve de-
posit removers, etc.) which are sold commer-
cially. Many of these additives intended for
gum, varnish or deposit removal may contain
active solvent or similar ingredients that can be
harmful to the fuel system and engine.
Octane rating tips
Using unleaded gasoline with an octane rating
lower than recommended above can cause per-
sistent, heavy spark knock. (Spark knock is a
metallic rapping noise.) If severe, this can lead
to engine damage. If you detect a persistent
heavy spark knock even when using gasoline of
the stated octane rating, or if you hear steady
spark knock while holding a steady speed on
level roads, have an INFINITI retailer correct the
condition. Failure to correct the condition is mis-
use of the vehicle, for which INFINITI is not re-
sponsible.
Incorrect ignition timing will result in knocking,
after-run or overheating. This in turn may cause
excessive fuel consumption or damage to the
engine. If any of the above symptoms are
encountered, have your vehicle checked at an
INFINITI retailer or other competent service fa-
cility.
However, now and then you may notice light
spark knock for a short time while accelerating
or driving up hills. This is no cause for concern,
because you get the greatest fuel benefit when
there is light spark knock for a short time under
heavy engine load.
CAUTION
●Your vehicle is not designed to run on E-85
fuel. Using E-85 fuel in a vehicle not specifi-
cally designed for E-85 fuel can damage fuel
system components and is not covered by
the INFINITI new vehicle limited warranty.
● E-85 is a mixture of approximately 85% fuel
ethanol and 15% unleaded gasoline.
● U.S. government regulations require ethanol
dispensing pumps to be identified by a
small, square, orange and black label with
the common abbreviation or the appropriate
percentage for that region.
9-4Technical and consumer information

Due to legal requirements in some states/areas
or provinces, your vehicle may be required to be
in what is called the “ready condition” for an
Inspection/Maintenance (I/M) test of the emis-
sion control system.
The vehicle is set to the “ready condition” when
it is driven through certain driving patterns.
Usually, the “ready condition” can be obtained
by ordinary usage of the vehicle.
If a powertrain system component is repaired or
the battery is disconnected, the vehicle may be
reset to a “not ready condition”. Before taking
the I/M test, check the vehicle’s
inspection/maintenance test readiness condi-
tion. Place the ignition switch in the ON position
without starting the engine. If the Malfunction
Indicator Light (MIL) comes on steady for 20
seconds and then blinks for 10 seconds, the I/M
test condition is “not ready”. If the MIL does not
blink after 20 seconds, the I/M test condition is
“ready”.
Contact an INFINITI retailer to set the “ready
condition” or to prepare the vehicle for testing.This vehicle is equipped with an Event Data Re-
corder (EDR). The main purpose of an EDR is to
record, in certain crash or near crash-like situa-
tions, such as an air bag deployment or hitting a
road obstacle, data that will assist in under-
standing how a vehicle’s systems performed.
The EDR is designed to record data related to
vehicle dynamics and safety systems for a short
period of time, typically 30 seconds or less. The
EDR in this vehicle is designed to record such
data as:
●
How various systems in your vehicle were
operating;
● Whether or not the driver and passenger
safety belts were buckled/fastened;
● How far (if at all) the driver was depressing
the accelerator and/or brake pedal; and,
● How fast the vehicle was traveling.
● Sounds are not recorded.
These data can help provide a better under-
standing of the circumstances in which crashes
and injuries occur. NOTE: EDR data are recorded
by your vehicle only if a nontrivial crash situa-
tion occurs; no data are recorded by the EDR
under normal driving conditions and no personal
data (e.g. name, gender, age and crash location)
are recorded. However, other parties, such as
law enforcement, could combine the EDR data with the type of personally identifying data rou-
tinely acquired during a crash investigation.
To read data recorded by an EDR, special equip-
ment is required and access to the vehicle or the
EDR is needed. In addition to the vehicle manu-
facturer and INFINITI retailer, other parties, such
as law enforcement, that have the special equip-
ment, can read the information if they have ac-
cess to the vehicle or the EDR. EDR data will only
be accessed with the consent of the vehicle
owner or lessee or as otherwise required or per-
mitted by law.
READINESS FOR INSPECTION/
MAINTENANCE (I/M) TEST
EVENT DATA RECORDERS (EDR)
9-22Technical and consumer information

10 Index
A
ABS (Anti-lock Braking System) ........5-51
Advanced air bag system ............1-41
Air bag system Advanced air bag system ..........1-41
Door-mounted curtain side-impact
supplemental air bag system .......1-45
Front passenger air bag and status
light ..................... .1-42
Front-seat mounted side-impact
supplemental air bag system .......1-45
Air bag warning labels .............1-48
Air bag warning light ...........1-48, 2-12
Air cleaner housing filter ............8-17
Air conditioner Air conditioner service ...........4-36
Air conditioner specification label .....9-12
Air conditioning system refrigerant
and lubricant recommendations . . .4-36, 9-6
Automatic climate control .........4-29
In-cabin microfilter .............4-36
Alarm, How to stop alarm (see vehicle
security system) ................ .2-27
Alcohol, drugs and driving ...........5-7
Antenna .................... .4-84
Anti-lock Braking System (ABS) ........5-51
Anti-lock braking system (ABS) warning
light ....................... .2-9
Appearance care Exterior appearance care ..........7-2
Interior appearance care ...........7-4 Ashtrays (See cigarette lighter and
ashtrays)
.................... .2-42
Audible reminders ............... .2-15
Audio operation precautions ..........4-37
Audio system ................. .4-37
Steering wheel audio controls .......4-82
Auto closure .................. .3-28
Autolight system ............... .2-32
Automatic Automatic adjusting function (front
windows) ................. .2-48
Automatic climate control ......4-30, 4-33
Automatic transmission fluid (ATF) . . . .8-11
Climate control .............. .4-29
Door locks .................. .3-5
Drive

positioner .............. .3-37
Driving with automatic transmission . . .5-12
Seat positioner .............. .3-37
Average fuel consumption and speed . . . .2-24
Avoiding collision and rollover .........5-5
B
Battery ..................... .8-13
Battery saver system ............2-34
Intelligent Key ............... .8-22
Variable voltage control system ......8-15
Before starting the engine ...........5-11
Bluetooth hands-free phone system
(models with navigation system) .......4-85
Bluetooth hands-free phone system
(models without navigation system) .....4-96Bluetooth
streaming audio ..........4-66
Booster seats ................. .1-31
Brake Anti-lock Braking System (ABS) ......5-51
Brake and clutch fluid ...........8-12
Brake fluid ................. .8-12
Brake system ............... .5-48
Parking brake operation ..........5-18
Warning light ................ .2-9
Break-in schedule ............... .5-42
Brightness control Display ON/OFF button ...........4-7
Instrument panel ............. .2-35
Bulb check/instrument panel ..........2-8
Bulb replacement ............... .8-24
C
Cabin air filter ................. .4-36
Capacities and recommended fuel/
lubricants .................... .9-2
Car phone or CB radio .............4-85
Catalytic converter, Three way catalyst . . . .5-2
CD/CF/USB memory care and cleaning . . . .4-81
Center multi-function control panel ......4-2
Child restraints ................ .1-19
Booster

seats ............... .1-31
Installation using LATCH Lower Anchors .1-23
Installation using the seat belts ......1-25
Precautions on child restraints .......1-19
Child safety .................. .1-13
Chimes, Audible reminders ...........2-15

Cigarette lighter and ashtrays.........2-42
Circuit breaker, Fusible link ..........8-20
Cleaning exterior and interior ........7-2, 7-4
Climate control, Automatic climate control . .4-29
Clock ...................... .2-40
Closing the retractable hard top ........3-24
Clutch fluid ................... .8-12
Cockpit ...................... .2-2
Cold weather driving .............. .5-54
Compact Disc (CD) player
(See audio system) .............. .4-56
Compact spare tire ............... .8-35
Console box .................. .2-45
Controller, Center multi-function control
panel ....................... .4-4
Controls Control panel button .............4-2
INFINITI Controller .............. .4-4
Coolant Capacities and recommended fuel/
lubricants .................. .9-2
Changing engine coolant ...........8-8
Checking engine coolant level ........8-7
Corrosion protection .............. .7-6
Cruise control .................. .5-19
Fixed speed cruise control
(on ICC system) .............. .5-38
Intelligent cruise control (ICC) system . . .5-21
Cup holders .................. .2-43
Current fuel consumption ............2-24 D
Daytime running light system .........2-34
Defroster switch, Rear window and
outside mirror defroster switch .........2-31
Dimensions ................... .9-9
Distance to empty ............... .2-24
Door/trunk open warning ............2-19
Dot matrix liquid crystal display ........2-16
Drive belt .................... .8-16
Drive positioner ................ .3-37
Driving Cold weather driving .............5-54
Driving with automatic transmission . . . .5-12
Driving with manual transmission .....5-16
Precautions

when starting and driving . . .5-2
DS (Drive Sport) mode ..............5-14
DVD player operation ............. .4-58
E
Economy, Fuel ................. .5-43
Elapsed time .................. .2-24
Elapsed time and trip odometer ........2-24
Emergency tire puncture repair kit .......6-3
Emission control information label .......9-11
Emission control system warranty .......9-20
Engine Before starting the engine ..........5-11
Break-in schedule ............. .5-42
Capacities and recommended fuel/
lubricants .................. .9-2
Changing engine coolant ...........8-8
Changing engine oil and filter ........8-9
Checking engine coolant level ........8-7Checking engine oil level
...........8-8
Coolant temperature gauge .........2-6
Emergency engine shut off . . . .......5-9
Engine block heater .............5-55
Engine compartment check locations . . . .8-6
Engine cooling system ............8-7
Engine oil .................. .8-8
Engine oil and oil filter recommendation . .9-5
Engine oil replacement indicator ......2-22
Engine oil viscosity ............. .9-5
Engine serial number ............9-10
Engine specifications .............9-7
Engine start operation indicator
(Automatic Transmission models) .....2-18
Engine start operation indicator
(Manual Transmission models) . . . . . . .2-19
If your vehicle overheats ..........6-16
Starting the engine ............. .5-11
Event Data Recorders (EDR) ...........9-22
Exhaust gas (carbon monoxide) .........5-2
F
F.M.V.S.S./C.M.V.S.S. certification label . . . .9-11
Filter Air cleaner housing filter ..........8-17
Changing engine oil and filter ........8-9
Flashers
(See hazard warning flasher
switch) ..................... .2-36
Flat tire ...................... .6-2
Changing flat tire (with spare tire) .....6-8
Repairing flat tire (with emergency tire
puncture repair kit) ............. .6-3
Flat towing ................... .9-19
Floor mat cleaning ................ .7-4
10-2
