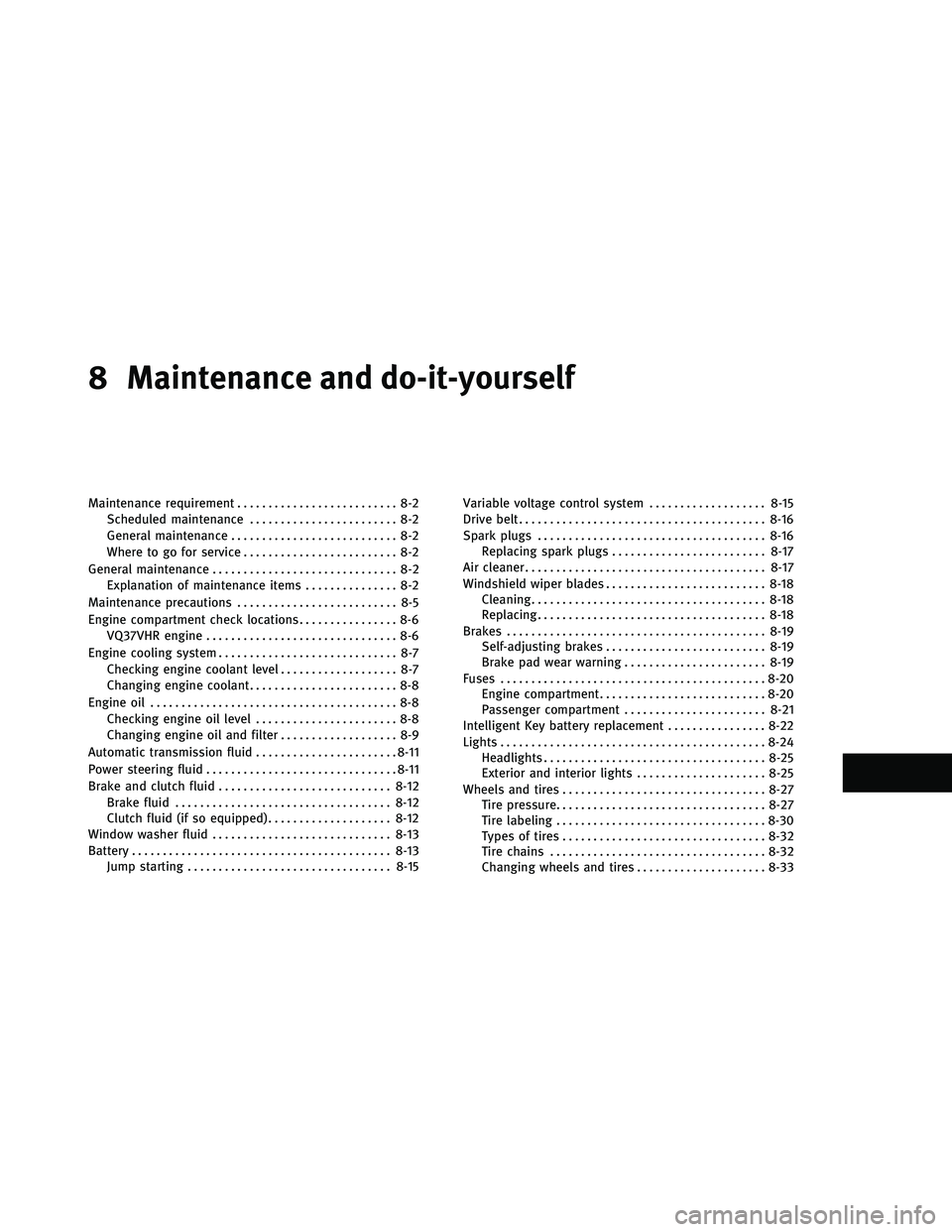

8 Maintenance and do-it-yourself
Maintenance requirement.......................... 8-2
Scheduled maintenance ........................ 8-2
General maintenance ........................... 8-2
Where to go for service ......................... 8-2
General maintenance .............................. 8-2
Explanation of maintenance items ............... 8-2
Maintenance precautions .......................... 8-5
Engine compartment check locations ................ 8-6
VQ37VHR engine ............................... 8-6
Engine cooling system ............................. 8-7
Checking engine coolant level ................... 8-7
Changing engine coolant ........................ 8-8
Engine oil ........................................ 8-8
Checking engine oil level ....................... 8-8
Changing engine oil and filter ................... 8-9
Automatic transmission fluid .......................8-11
Power steering fluid ............................... 8-11
Brake and clutch fluid ............................ 8-12
Brake fluid ................................... 8-12
Clutch fluid (if so equipped) ....................8-12
Window washer fluid ............................. 8-13
Battery .......................................... 8-13
Jump starting ................................. 8-15Variable voltage control system
...................8-15
Drive belt ........................................ 8-16
Spark plugs ..................................... 8-16
Replacing spark plugs ......................... 8-17
Air cleaner ....................................... 8-17
Windshield wiper blades .......................... 8-18
Cleaning ...................................... 8-18
Replacing ..................................... 8-18
Brakes .......................................... 8-19
Self-adjusting brakes .......................... 8-19
Brake pad wear warning ....................... 8-19
Fuses ........................................... 8-20
Engine compartment ........................... 8-20
Passenger compartment ....................... 8-21
Intelligent Key battery replacement ................8-22
Lights ........................................... 8-24
Headlights .................................... 8-25
Exterior

and interior lights ..................... 8-25
Wheels and tires ................................. 8-27
Tire pressure .................................. 8-27
Tire labeling .................................. 8-30
Types of tires ................................. 8-32
Tire chains ................................... 8-32
Changing wheels and tires..................... 8-33

Seats:Check seat position controls such as
seat adjusters, seatback recliners, etc. to en-
sure they operate smoothly and that all latches
lock securely in every position. Check that the
head restraints move up and down smoothly
and that the locks (if so equipped) hold securely
in all latched positions.
Steering wheel: Check for changes in the steer-
ing conditions, such as excessive free play,
hard steering or strange noises.
Warning lights and chimes: Make sure that all
warning lights and chimes are operating prop-
erly.
Windshield defroster: Check that the air comes
out of the defroster outlets properly and in
sufficient quantity when operating the heater or
air conditioner.
Windshield wiper and washer*: Check that the
wipers and washers operate properly and that
the wipers do not streak.
Under the hood and vehicle
The maintenance items listed here should be
checked periodically (for example, each time
you check the engine oil or refuel).
Battery*: Check the fluid level in each cell. It
should be between the MAX and MIN lines. Vehicles operated in high temperatures or un-
der severe condition require frequent checks of
the battery fluid level.
Brake and clutch fluid levels*:
Make sure that
the brake and clutch fluid levels are between
the MAX and MIN lines on the reservoir.
Engine coolant level*: Check the coolant level
when the engine is cold.
Engine drive belt*: Make sure that the drive belt
is not frayed, worn, cracked or oily.
Engine oil level*: Check the level after parking
the vehicle on a level surface and turning off the
engine. Wait more than 15 minutes for the oil to
drain back into the oil pan.
Exhaust system: Make sure there are no loose
supports, cracks or holes. If the sound of the
exhaust seems unusual or there is a smell of
exhaust fumes, immediately have the exhaust
system inspected by an INFINITI retailer. (See
“PRECAUTIONS WHEN STARTING AND DRIVING”
in the “5. Starting and driving” section for
exhaust gas (Carbon monoxide).)
Fluid leaks: Check under the vehicle for fuel, oil,
water or other fluid leaks after the vehicle has
been parked for a while. Water dripping from
the air conditioner after use is normal. If you should notice any leaks or if gasoline fumes are
evident, check for the cause and have it cor-
rected immediately.
Power steering fluid level* and lines:
Check the
level with the engine off. Check the lines for
proper attachment, leaks, cracks, etc.
Radiator and hoses: Check the front of the
radiator and clean off any dirt, insects, leaves,
etc., that may have accumulated. Make sure the
hoses have no cracks, deformation, rot or loose
connections.
Underbody: The underbody is frequently ex-
posed to corrosive substances such as those
used on icy roads or to control dust. It is very
important to remove these substances, other-
wise rust will form on the floor pan, frame, fuel
lines and around the exhaust system. At the
end of winter, the underbody should be thor-
oughly flushed with plain water, being careful
to clean those areas where mud and dirt may
accumulate. For additional information, see
“CLEANING EXTERIOR” in the “7. Appearance
and care” section.
Windshield washer fluid*: Check that there is
adequate fluid in the reservoir.
8-4Maintenance and do-it-yourself

●Check your local regulations.
(Perform steps 4 to 7 only when the engine
oil filter change is needed.)
4. Loosen the oil filter2with an oil filter
wrench. Remove the oil filter by turning it
by hand.
5. Wipe the engine oil filter mounting sur- face with a clean rag.
CAUTION
Be sure to remove any old rubber gasket re-
maining on the mounting surface of the engine.
Failure to do so could lead to engine damage.
6. Coat the gasket on the new filter with clean engine oil.
7. Screw in the oil filter clockwise until a slight resistance is felt, then tighten ad-
ditionally more than 2/3 turn.
Oil filter tightening torque:11 to 15 ft-lb
(14.7 to 20.5 N·m)
8. Clean and re-install the drain plug with a new washer. Securely tighten the drain
plug with a wrench.
Drain plug tightening torque:22 to 29 ft-lb
(29 to 39 N·m)
Do not use excessive force.
9. Refill the engine with the recommended oil through the oil filler opening, and
install the oil filler cap securely.
See “CAPACITIES AND RECOMMENDED
FUEL/LUBRICANTS” in the “9. Technical and
consumer information” section for drain and
refill capacity. The drain and refill capacity
depends on the oil temperature and drain time.
Use these specifications for reference only.
Always use the dipstick to determine the proper
amount of oil in the engine.
10. Start the engine and check for leakage around the drain plug and the oil filter.
Correct as required.
11. Turn the engine off and wait more than 15 minutes. Check the oil level with the
dipstick. Add engine oil if necessary.
After the operation
1. Install the engine undercover into positionas the following steps.
a. Pull the center of the small plastic clips out.
b. Hold the engine undercover into position.
c. Insert the clips through the undercover into the holes in the frame, then push the
center of the clips in to lock the clips in
place.
d. Install the bolts that hold the undercover in place. Be careful not to strip the bolts
or over-tighten them.
2. Lower the vehicle carefully to the ground.
3. Dispose of waste oil and filter properly.
WARNING
●Prolonged and repeated contact with used
engine oil may cause skin cancer.
●
Try to avoid direct skin contact with used oil. If
skin contact is made, wash thoroughly with
soap or hand cleaner as soon as possible.
● Keep used engine oil out of the reach of
children.
8-10Maintenance and do-it-yourself

ENGINE COMPARTMENT
CAUTION
Never use a fuse of a higher or lower amperage
rating than that specified on the fuse box cover.
This could damage the electrical system or
cause a fire.If any electrical equipment does not operate,
check for an open fuse.
1. Be sure the ignition switch is pushed to
the OFF or LOCK position and the head-
light switch is turned to OFF.
2. Open the engine hood and remove the cover on the battery and the fuse/fusible
link holder.
3. Remove the fuse/fusible link holder cover.
4. Remove the fuse with the fuse puller located in the passenger compartment
fuse box. 5. If the fuse is open
A, replace it with a
new fuse
B. Spare fuses are stored in the
passenger compartment fuse box.
6. If a new fuse also opens, have the elec- trical system checked and repaired by an
INFINITI retailer.
Fusible links
If any electrical equipment does not operate
and the fuses are in good condition, check the
fusible links. If any of these fusible links are
melted, replace only with genuine INFINITI
parts.
SDI1479ASDI1754
FUSES
8-20Maintenance and do-it-yourself

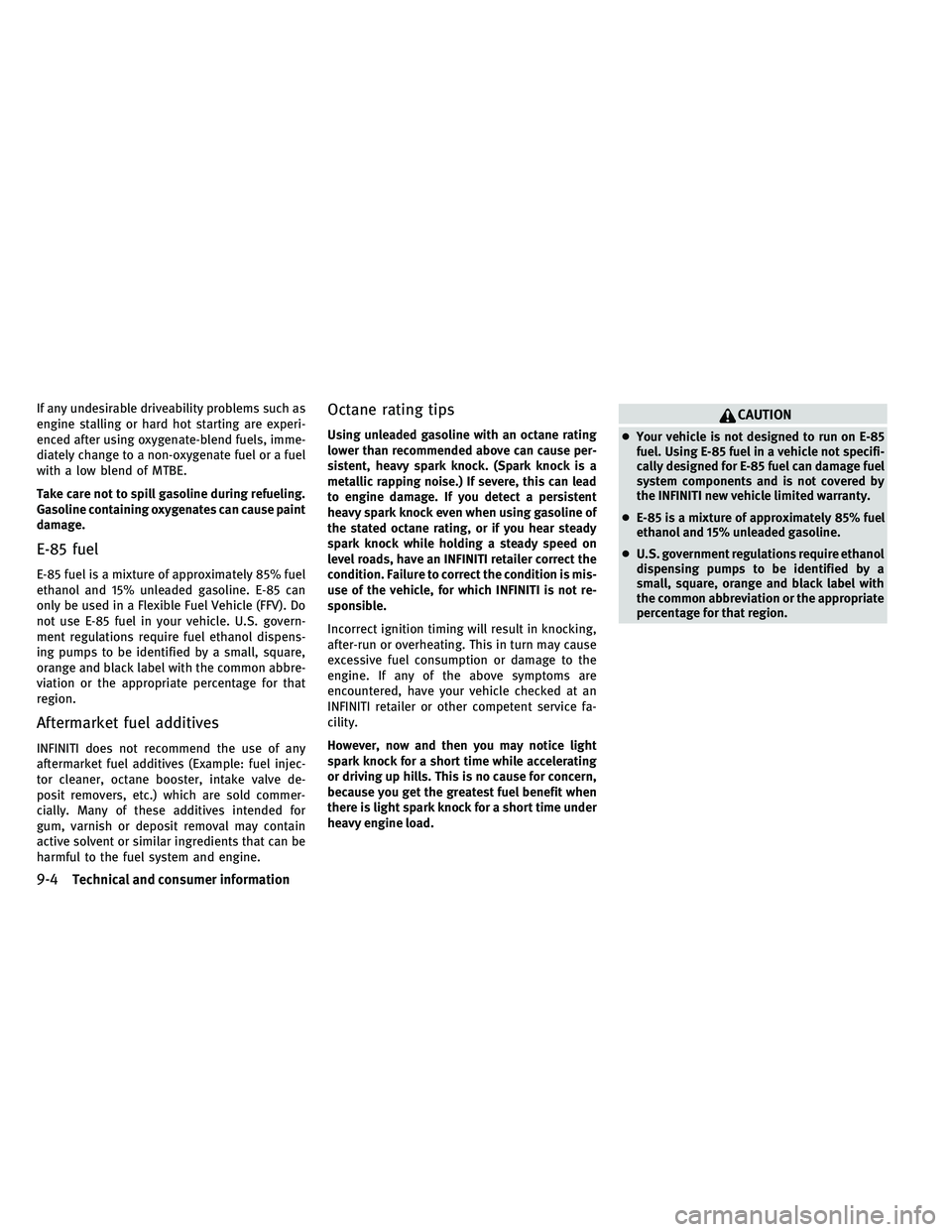

If any undesirable driveability problems such as
engine stalling or hard hot starting are experi-
enced after using oxygenate-blend fuels, imme-
diately change to a non-oxygenate fuel or a fuel
with a low blend of MTBE.
Take care not to spill gasoline during refueling.
Gasoline containing oxygenates can cause paint
damage.
E-85 fuel
E-85 fuel is a mixture of approximately 85% fuel
ethanol and 15% unleaded gasoline. E-85 can
only be used in a Flexible Fuel Vehicle (FFV). Do
not use E-85 fuel in your vehicle. U.S. govern-
ment regulations require fuel ethanol dispens-
ing pumps to be identified by a small, square,
orange and black label with the common abbre-
viation or the appropriate percentage for that
region.
Aftermarket fuel additives
INFINITI does not recommend the use of any
aftermarket fuel additives (Example: fuel injec-
tor cleaner, octane booster, intake valve de-
posit removers, etc.) which are sold commer-
cially. Many of these additives intended for
gum, varnish or deposit removal may contain
active solvent or similar ingredients that can be
harmful to the fuel system and engine.
Octane rating tips
Using unleaded gasoline with an octane rating
lower than recommended above can cause per-
sistent, heavy spark knock. (Spark knock is a
metallic rapping noise.) If severe, this can lead
to engine damage. If you detect a persistent
heavy spark knock even when using gasoline of
the stated octane rating, or if you hear steady
spark knock while holding a steady speed on
level roads, have an INFINITI retailer correct the
condition. Failure to correct the condition is mis-
use of the vehicle, for which INFINITI is not re-
sponsible.
Incorrect ignition timing will result in knocking,
after-run or overheating. This in turn may cause
excessive fuel consumption or damage to the
engine. If any of the above symptoms are
encountered, have your vehicle checked at an
INFINITI retailer or other competent service fa-
cility.
However, now and then you may notice light
spark knock for a short time while accelerating
or driving up hills. This is no cause for concern,
because you get the greatest fuel benefit when
there is light spark knock for a short time under
heavy engine load.
CAUTION
●Your vehicle is not designed to run on E-85
fuel. Using E-85 fuel in a vehicle not specifi-
cally designed for E-85 fuel can damage fuel
system components and is not covered by
the INFINITI new vehicle limited warranty.
● E-85 is a mixture of approximately 85% fuel
ethanol and 15% unleaded gasoline.
● U.S. government regulations require ethanol
dispensing pumps to be identified by a
small, square, orange and black label with
the common abbreviation or the appropriate
percentage for that region.
9-4Technical and consumer information

Due to legal requirements in some states/areas
or provinces, your vehicle may be required to be
in what is called the “ready condition” for an
Inspection/Maintenance (I/M) test of the emis-
sion control system.
The vehicle is set to the “ready condition” when
it is driven through certain driving patterns.
Usually, the “ready condition” can be obtained
by ordinary usage of the vehicle.
If a powertrain system component is repaired or
the battery is disconnected, the vehicle may be
reset to a “not ready condition”. Before taking
the I/M test, check the vehicle’s
inspection/maintenance test readiness condi-
tion. Place the ignition switch in the ON position
without starting the engine. If the Malfunction
Indicator Light (MIL) comes on steady for 20
seconds and then blinks for 10 seconds, the I/M
test condition is “not ready”. If the MIL does not
blink after 20 seconds, the I/M test condition is
“ready”.
Contact an INFINITI retailer to set the “ready
condition” or to prepare the vehicle for testing.This vehicle is equipped with an Event Data Re-
corder (EDR). The main purpose of an EDR is to
record, in certain crash or near crash-like situa-
tions, such as an air bag deployment or hitting a
road obstacle, data that will assist in under-
standing how a vehicle’s systems performed.
The EDR is designed to record data related to
vehicle dynamics and safety systems for a short
period of time, typically 30 seconds or less. The
EDR in this vehicle is designed to record such
data as:
●
How various systems in your vehicle were
operating;
● Whether or not the driver and passenger
safety belts were buckled/fastened;
● How far (if at all) the driver was depressing
the accelerator and/or brake pedal; and,
● How fast the vehicle was traveling.
● Sounds are not recorded.
These data can help provide a better under-
standing of the circumstances in which crashes
and injuries occur. NOTE: EDR data are recorded
by your vehicle only if a nontrivial crash situa-
tion occurs; no data are recorded by the EDR
under normal driving conditions and no personal
data (e.g. name, gender, age and crash location)
are recorded. However, other parties, such as
law enforcement, could combine the EDR data with the type of personally identifying data rou-
tinely acquired during a crash investigation.
To read data recorded by an EDR, special equip-
ment is required and access to the vehicle or the
EDR is needed. In addition to the vehicle manu-
facturer and INFINITI retailer, other parties, such
as law enforcement, that have the special equip-
ment, can read the information if they have ac-
cess to the vehicle or the EDR. EDR data will only
be accessed with the consent of the vehicle
owner or lessee or as otherwise required or per-
mitted by law.
READINESS FOR INSPECTION/
MAINTENANCE (I/M) TEST
EVENT DATA RECORDERS (EDR)
9-22Technical and consumer information

10 Index
A
ABS (Anti-lock Braking System) ........5-51
Advanced air bag system ............1-41
Air bag system Advanced air bag system ..........1-41
Door-mounted curtain side-impact
supplemental air bag system .......1-45
Front passenger air bag and status
light ..................... .1-42
Front-seat mounted side-impact
supplemental air bag system .......1-45
Air bag warning labels .............1-48
Air bag warning light ...........1-48, 2-12
Air cleaner housing filter ............8-17
Air conditioner Air conditioner service ...........4-36
Air conditioner specification label .....9-12
Air conditioning system refrigerant
and lubricant recommendations . . .4-36, 9-6
Automatic climate control .........4-29
In-cabin microfilter .............4-36
Alarm, How to stop alarm (see vehicle
security system) ................ .2-27
Alcohol, drugs and driving ...........5-7
Antenna .................... .4-84
Anti-lock Braking System (ABS) ........5-51
Anti-lock braking system (ABS) warning
light ....................... .2-9
Appearance care Exterior appearance care ..........7-2
Interior appearance care ...........7-4 Ashtrays (See cigarette lighter and
ashtrays)
.................... .2-42
Audible reminders ............... .2-15
Audio operation precautions ..........4-37
Audio system ................. .4-37
Steering wheel audio controls .......4-82
Auto closure .................. .3-28
Autolight system ............... .2-32
Automatic Automatic adjusting function (front
windows) ................. .2-48
Automatic climate control ......4-30, 4-33
Automatic transmission fluid (ATF) . . . .8-11
Climate control .............. .4-29
Door locks .................. .3-5
Drive

positioner .............. .3-37
Driving with automatic transmission . . .5-12
Seat positioner .............. .3-37
Average fuel consumption and speed . . . .2-24
Avoiding collision and rollover .........5-5
B
Battery ..................... .8-13
Battery saver system ............2-34
Intelligent Key ............... .8-22
Variable voltage control system ......8-15
Before starting the engine ...........5-11
Bluetooth hands-free phone system
(models with navigation system) .......4-85
Bluetooth hands-free phone system
(models without navigation system) .....4-96Bluetooth
streaming audio ..........4-66
Booster seats ................. .1-31
Brake Anti-lock Braking System (ABS) ......5-51
Brake and clutch fluid ...........8-12
Brake fluid ................. .8-12
Brake system ............... .5-48
Parking brake operation ..........5-18
Warning light ................ .2-9
Break-in schedule ............... .5-42
Brightness control Display ON/OFF button ...........4-7
Instrument panel ............. .2-35
Bulb check/instrument panel ..........2-8
Bulb replacement ............... .8-24
C
Cabin air filter ................. .4-36
Capacities and recommended fuel/
lubricants .................... .9-2
Car phone or CB radio .............4-85
Catalytic converter, Three way catalyst . . . .5-2
CD/CF/USB memory care and cleaning . . . .4-81
Center multi-function control panel ......4-2
Child restraints ................ .1-19
Booster

seats ............... .1-31
Installation using LATCH Lower Anchors .1-23
Installation using the seat belts ......1-25
Precautions on child restraints .......1-19
Child safety .................. .1-13
Chimes, Audible reminders ...........2-15

Cigarette lighter and ashtrays.........2-42
Circuit breaker, Fusible link ..........8-20
Cleaning exterior and interior ........7-2, 7-4
Climate control, Automatic climate control . .4-29
Clock ...................... .2-40
Closing the retractable hard top ........3-24
Clutch fluid ................... .8-12
Cockpit ...................... .2-2
Cold weather driving .............. .5-54
Compact Disc (CD) player
(See audio system) .............. .4-56
Compact spare tire ............... .8-35
Console box .................. .2-45
Controller, Center multi-function control
panel ....................... .4-4
Controls Control panel button .............4-2
INFINITI Controller .............. .4-4
Coolant Capacities and recommended fuel/
lubricants .................. .9-2
Changing engine coolant ...........8-8
Checking engine coolant level ........8-7
Corrosion protection .............. .7-6
Cruise control .................. .5-19
Fixed speed cruise control
(on ICC system) .............. .5-38
Intelligent cruise control (ICC) system . . .5-21
Cup holders .................. .2-43
Current fuel consumption ............2-24 D
Daytime running light system .........2-34
Defroster switch, Rear window and
outside mirror defroster switch .........2-31
Dimensions ................... .9-9
Distance to empty ............... .2-24
Door/trunk open warning ............2-19
Dot matrix liquid crystal display ........2-16
Drive belt .................... .8-16
Drive positioner ................ .3-37
Driving Cold weather driving .............5-54
Driving with automatic transmission . . . .5-12
Driving with manual transmission .....5-16
Precautions

when starting and driving . . .5-2
DS (Drive Sport) mode ..............5-14
DVD player operation ............. .4-58
E
Economy, Fuel ................. .5-43
Elapsed time .................. .2-24
Elapsed time and trip odometer ........2-24
Emergency tire puncture repair kit .......6-3
Emission control information label .......9-11
Emission control system warranty .......9-20
Engine Before starting the engine ..........5-11
Break-in schedule ............. .5-42
Capacities and recommended fuel/
lubricants .................. .9-2
Changing engine coolant ...........8-8
Changing engine oil and filter ........8-9
Checking engine coolant level ........8-7Checking engine oil level
...........8-8
Coolant temperature gauge .........2-6
Emergency engine shut off . . . .......5-9
Engine block heater .............5-55
Engine compartment check locations . . . .8-6
Engine cooling system ............8-7
Engine oil .................. .8-8
Engine oil and oil filter recommendation . .9-5
Engine oil replacement indicator ......2-22
Engine oil viscosity ............. .9-5
Engine serial number ............9-10
Engine specifications .............9-7
Engine start operation indicator
(Automatic Transmission models) .....2-18
Engine start operation indicator
(Manual Transmission models) . . . . . . .2-19
If your vehicle overheats ..........6-16
Starting the engine ............. .5-11
Event Data Recorders (EDR) ...........9-22
Exhaust gas (carbon monoxide) .........5-2
F
F.M.V.S.S./C.M.V.S.S. certification label . . . .9-11
Filter Air cleaner housing filter ..........8-17
Changing engine oil and filter ........8-9
Flashers
(See hazard warning flasher
switch) ..................... .2-36
Flat tire ...................... .6-2
Changing flat tire (with spare tire) .....6-8
Repairing flat tire (with emergency tire
puncture repair kit) ............. .6-3
Flat towing ................... .9-19
Floor mat cleaning ................ .7-4
10-2
