●If the Bluetooth Hands-Free Phone System
seems to be malfunctioning, please visit
www.InfinitiUSA.com/bluetooth for trouble-
shooting help.
● Some cellular phones or other devices may
cause interference or a buzzing noise to
come from the audio system speakers. Stor-
ing the device in a different location may
reduce or eliminate the noise.
● Refer to the cellular phone Owner’s Manual
regarding the telephone pairing procedure
specific to your phone, battery charging,
cellular phone antenna, etc.
● The antenna display on the monitor will not
coincide with the antenna display of some
cellular phones.
● Keep the interior of the vehicle as quiet as
possible to hear the caller’s voice clearly as
well as to minimize its echoes.
● If reception between callers is unclear, ad-
justing the incoming or outgoing call volume
may improve the clarity.REGULATORY INFORMATION
FCC Regulatory information
– CAUTION: To maintain compliance with FCC’s RF exposure guidelines, use only the sup-
plied antenna. Unauthorized antenna, modi-
fication, or attachments could damage the
transmitter and may violate FCC regulations.
– Operation is subject to the following two conditions:
1) this device may not cause interference and
2) this device must accept any interfer- ence, including interference that may
cause undesired operation of the de-
vice
IC Regulatory information
– Operation is subject to the following twoconditions: (1) this device may not cause
interference, and (2) this device must accept
any interference, including interference that
may cause undesired operation of the device.
– This Class B digital apparatus meets all requirements of the Canadian Interference-
Causing Equipment Regulations. Bluetooth
trademark:
Bluetoothis a trademark
owned by Bluetooth SIG,
Inc., U.S.A.
VOICE COMMANDS
You can use voice commands to operate various
Bluetooth Hands-Free Phone System features
using the INFINITI Voice Recognition system.
For more details, see “INFINITI VOICE RECOGNI-
TION SYSTEM (models with navigation system)”
later in this section; page 4-116.
4-94Monitor, climate, audio, phone and voice recognition systems

PHONE SELECTION
Up to 5 cellular phones can be registered to the
system. To switch to connect another cellular
phone, push the
button and select the
“Connected Phones” key. The registered cellu-
lar phones are shown on the list. If you select a
cellular phone that is different from the one
currently connected, the newly selected phone
will be connected to the system.
VEHICLE PHONEBOOK
This vehicle has two phonebooks available for
hands-free use. Depending on the phone, the
system may automatically download the entire
cell phone’s phonebook into the “Handset
Phonebook”. For the details about downloading
a phonebook, see “PHONE SETTING” later in
this section. If a phonebook does not automati-
cally download, the vehicle phonebook may be
set for up to 1,000 entries. This phonebook
allows the recording of a name to speak while
using voice recognition.
1. Push thebutton and select the
“Vehicle Phonebook” key.
2. Select the “Add New” key at the top of the screen. 3. Choose the method for entering the
phonebook entry. For this example, select
“Enter Number by Keypad”.
4. Enter the digits and select the “OK” key. (See “HOW TO USE TOUCH SCREEN (mod-
els with navigation system)” earlier in this
section.)
SAA2521SAA2522
4-96Monitor, climate, audio, phone and voice recognition systems

TROUBLESHOOTING GUIDE
The system should respond correctly to all voice commands without difficulty. If problems are encountered, try the following solutions.
Where the solutions are listed by number, try each solution in turn, starting with number 1, until the problem is resolved.
SymptomSolution
System fails to interpret the com-
mand correctly. 1. Ensure that the command is valid. (See “INFINITI VOICE RECOGNITION SYSTEM (models with navigation system)”
later in this section; page 4-116.)
2. Ensure that the command is spoken after the tone.
3. Speak clearly without pausing between words and at a level appropriate to the ambient noise level in the
vehicle.
4. Ensure that the ambient noise level is not excessive (for example, windows open or defroster on). NOTE: If it is
too noisy to use the phone, it is likely that the voice commands will not be recognized.
5. If more than one command was said at a time, try saying the commands separately.
The system consistently selects the
wrong voicetag. 1. Ensure that the voicetag requested matches what was originally stored. (See “VEHICLE PHONEBOOK” earlier in
this section.)
2. Replace one of the names being confused with a new name.
4-102Monitor, climate, audio, phone and voice recognition systems

WARNING
●Use a phone after stopping your vehicle in a
safe location. If you have to use a phone
while driving, exercise extreme caution at all
times so full attention may be given to ve-
hicle operation.
● If you find yourself unable to devote full at-
tention to vehicle operation while talking on
the phone, pull off the road to a safe location
and stop your vehicle before doing so.
CAUTION
To avoid draining the vehicle battery, use a
phone after starting the engine.
Your vehicle is equipped with Bluetooth
Hands-Free Phone System. If you are an owner
of a Bluetooth enabled cellular phone, you can
set up the wireless connection between your
cellular phone and the in-vehicle phone mod-
ule. With Bluetooth wireless technology, you
can make or receive a telephone call with your
cellular phone in your pocket.
Once your cellular phone is paired to the in-
vehicle phone module, no phone connecting
procedure is required. Your phone is automati-
cally connected with the in-vehicle phone mod- ule when the ignition switch is pushed to the
“ON” position with the registered cellular
phone turned on and carried in the vehicle.
You can register up to 5 different Bluetooth
cellular phones in the in-vehicle phone module.
However, you can talk on only one cellular
phone at a time.
When a call is active, the audio system and
microphone (located in the ceiling in front of the
rearview mirror) are used for the handsfree
communications.
If the audio system is being used at the time,
the audio mode will mute and will stay muted
until the active call is ended.
The INFINITI Voice Recognition system supports
the phone commands, so dialing a phone num-
ber using your voice is possible.
Before using the Bluetooth
Hands-Free Phone
System, refer to the following notes.
● Set up the wireless connection between a
cellular phone and the in-vehicle phone
module before using the Bluetooth Hands-
Free Phone System.
● Some Bluetooth enabled cellular phones
may not be recognized by the in-vehicle
phone module. ●
You will not be able to use a hands-free
phone under the following conditions:
– Your vehicle is outside of the telephone service area.
– Your vehicle is in an area where it is difficult to receive radio waves; such as in
a tunnel, in an underground parking ga-
rage, behind a tall building or in a moun-
tainous area.
– Your cellular phone is locked in order not to be dialed.
● When the radio wave condition is not ideal
or ambient sound is too loud, it may be
difficult to hear the other person’s voice
during a call.
● Immediately after the ignition switch is
pushed to the “ON” position, it may be
impossible to receive a call for a short period
of time.
● Do not place the cellular phone in an area
surrounded by metal or far away from the
in-vehicle phone module to prevent tone
quality degradation and wireless connection
disruption.
● While a cellular phone is connected through
the Bluetooth wireless connection, the bat-
tery power of the cellular phone may dis-
charge quicker than usual.
BLUETOOTH HANDS-FREE PHONE SYSTEM
(models without navigation system) (if so
equipped)
Monitor, climate, audio, phone and voice recognition systems4-103

The voice adaptation mode will stop if:
●The
button is pressed in voice adap-
tation mode.
● The vehicle is driven during voice adaptation
mode.
● The ignition switch is turned to the OFF or
LOCK position. INFINITI Voice Recognition allows hands-free
operation of the Phone, Navigation, Information
and Audio systems in one of two modes, Stan-
dard Mode or Alternate Command Mode.
In Standard Mode, commands that are available
are always shown on the display and an-
nounced by the system. You can complete your
desired operation by simply following the
prompts given by the system. (See “INFINITI
VOICE RECOGNITION STANDARD MODE” later in
this section for details.)
For advanced operation, you can use the Alter-
nate Command Mode. (See “INFINITI VOICE REC-
OGNITION ALTERNATE COMMAND MODE” later
in this section for details.) When this mode is
active, an expanded list of commands can be
spoken after pushing the TALK
switch,
and the voice command menu prompts are
turned off. Review the expanded command list,
which is available when this mode is active.
Note that in this mode the recognition success
rate may be affected as the number of available
commands and the ways of speaking each
command are increased.
To switch one mode to another, see each mode
description later in this section.
To improve the recognition success rate when
Alternate Command Mode is active, try using
the Speaker Adaptation Function available in that mode. Otherwise, it is recommended that
Alternate Command Mode be turned off and
Standard Mode be used for the best recognition
performance.
For the voice commands for the navigation
system, refer to the Navigation System Owner’s
Manual of your vehicle.
INFINITI VOICE RECOGNITION
STANDARD MODE
The following section is applicable when the
Standard Mode is activated.
The Standard Mode enables you to complete
the desired operation by simply following the
prompts that appear on the display and also are
announced by the system.
INFINITI VOICE RECOGNITION SYSTEM
(models with navigation system)
4-116Monitor, climate, audio, phone and voice recognition systems

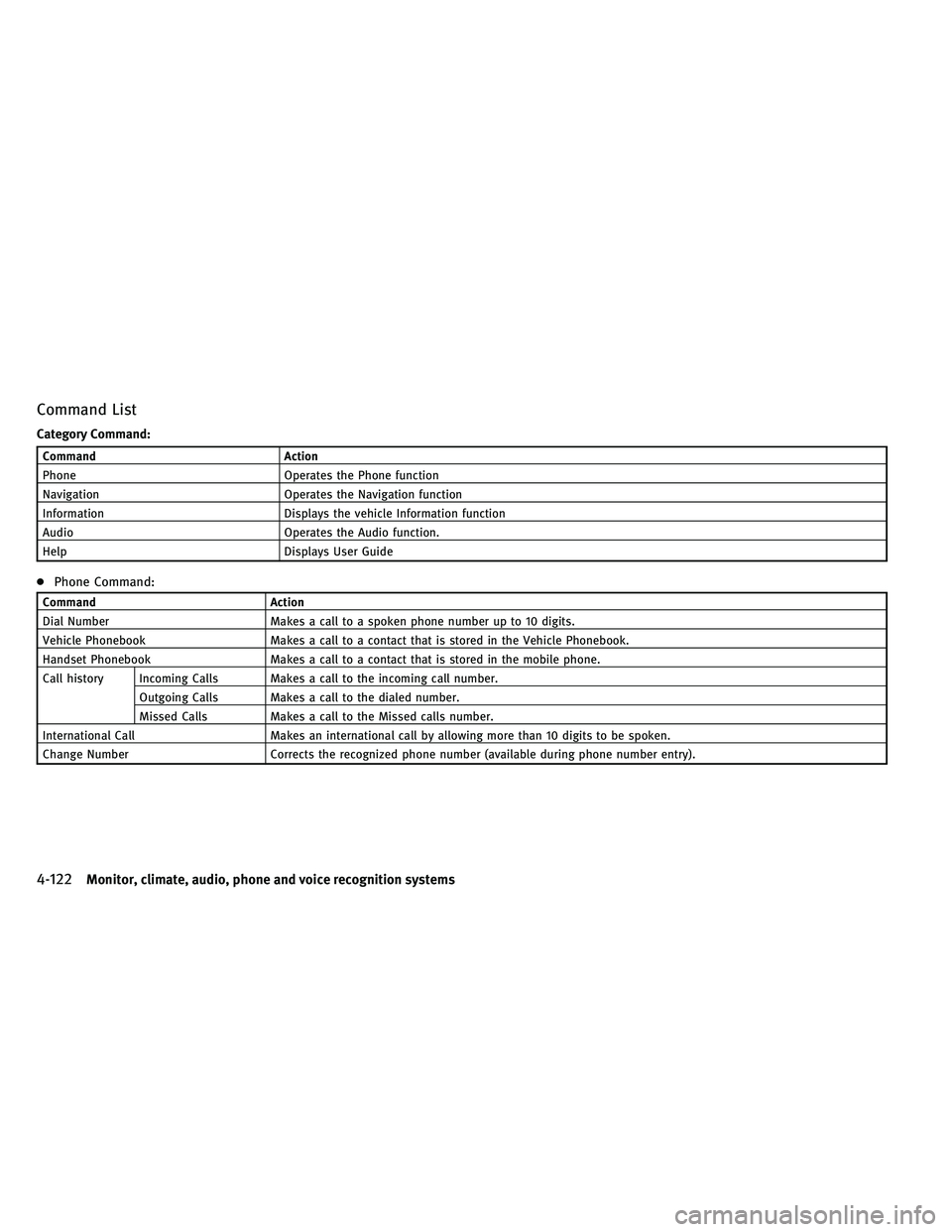

Command List
Category Command:
CommandAction
Phone Operates the Phone function
Navigation Operates the Navigation function
Information Displays the vehicle Information function
Audio Operates the Audio function.
Help Displays User Guide
●Phone Command:
Command Action
Dial Number Makes a call to a spoken phone number up to 10 digits.
Vehicle Phonebook Makes a call to a contact that is stored in the Vehicle Phonebook.
Handset Phonebook Makes a call to a contact that is stored in the mobile phone.
Call history Incoming Calls Makes a call to the incoming call number. Outgoing Calls Makes a call to the dialed number.
Missed Calls Makes a call to the Missed calls number.
International Call Makes an international call by allowing more than 10 digits to be spoken.
Change Number Corrects the recognized phone number (available during phone number entry).
4-122Monitor, climate, audio, phone and voice recognition systems

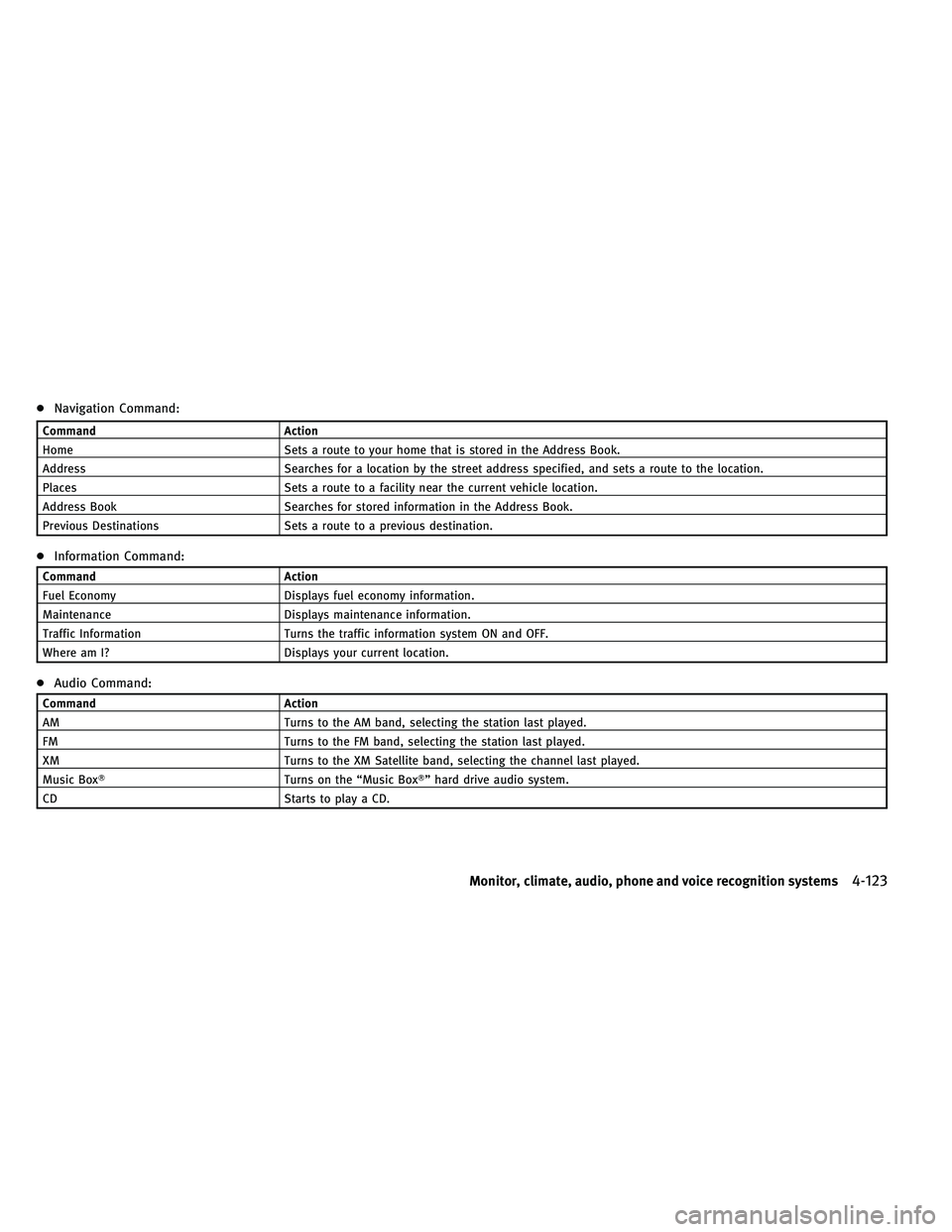

●Navigation Command:
Command Action
Home Sets a route to your home that is stored in the Address Book.
Address Searches for a location by the street address specified, and sets a route to the location.
Places Sets a route to a facility near the current vehicle location.
Address Book Searches for stored information in the Address Book.
Previous Destinations Sets a route to a previous destination.
●Information Command:
Command Action
Fuel Economy Displays fuel economy information.
Maintenance Displays maintenance information.
Traffic Information Turns the traffic information system ON and OFF.
Where am I? Displays your current location.
●Audio Command:
Command Action
AM Turns to the AM band, selecting the station last played.
FM Turns to the FM band, selecting the station last played.
XM Turns to the XM Satellite band, selecting the channel last played.
Music Box Turns on the “Music Box” hard drive audio system.
CD Starts to play a CD.
Monitor, climate, audio, phone and voice recognition systems4-123

Voice command examples
To use the INFINITI Voice Recognition function,
speaking one command is sometimes suffi-
cient, but at other times it is necessary to speak
two or more commands. As examples, some
additional basic operations by voice commands
are described here.
For navigation system commands, see the sepa-
rate Navigation System Owner’s Manual.Example 1 - Placing a call to the phone number
800-662-6200:
1. Push the TALKswitch located on the
steering wheel. 2. The system announces, “Would you like
to access Phone, Navigation, Information,
Audio or Help?”
3. Speak “Phone”.
SAA1588SAA2535
Monitor, climate, audio, phone and voice recognition systems4-125
