2011 INFINITI EX display

Audio file operation
orPLAY :
When the DISC·AUX or DISC button is pushed
with the system off and the USB memory in-
serted, the system will turn on.
If another audio source is playing and a USB
memory is inserted, push the DISC·AUX or DISC
button repeatedly until the center display
changes to the USB memory mode.
Next/Previous File and Fast
Forward/Rewind :
When the
orbutton is pushed for
more than 1.5 seconds while a USB memory is
being played, the USB memory will play while
forwarding or rewinding. When the button is
released, the USB memory will return to normal
play speed.
When the
orbutton is pushed for
less than 1.5 seconds while the USB memory is
being played, the next track or the beginning of
the current track on the USB memory will be
played.
The INFINITI controller can also be used to
select tracks when the USB memory is being
played. Folder selection :
To change to another folder in the USB memory,
turn the folder selector or choose a folder
displayed on the screen using the INFINITI
controller.
REPEAT (RPT),
RANDOM (RDM) :
When the RPT button is pushed while the USB
memory is played, the play pattern can be
change as follows.
To change the play mode, push the RPT button
repeatedly and the mode will change as follows.
Normal →1 Folder Repeat →1 Track Repeat →
All Random →1 Folder Random →Normal Text (models without navigation system) :
When the “Text” key is selected on the screen
using the INFINITI controller and then the ENTER
button is pushed while a USB memory is being
played, the music information listed below will
be displayed on the screen.
●
Folder title
● File title
● Song title
● Album Title
● Artist
Monitor, climate, audio, phone and voice recognition systems4-71

Menu (models with navigation system) :
There are some options available during play-
back. Select one of the following options that
are displayed on the screen if necessary. Refer
to the following information for each item.
●Movie Playback
Switch to the movie playback mode. This
item is displayed only when a USB memory
contains movie files. ●
Folder List/Track List
Displays the folder or track list. The “Movie
Playback” key is also displayed in this list
screen, and enables switching to the movie
playback mode.
● Play Mode
Select the preferred play mode.Movie file operation (models with
navigation system)
Park the vehicle in a safe location for the front
seat occupants to operate the USB memory
while watching the images.
PLAY :
When the DISC·AUX button is pushed with the
system off and the USB memory inserted, the
system will turn on.
If another audio source is playing and a USB
memory is inserted, push the DISC·AUX button
repeatedly until the center display changes to
the USB memory mode.
SAA2502SAA2503
4-72Monitor, climate, audio, phone and voice recognition systems

Operation keys :
To operate the USB memory, select the desired
key displayed on the operation screen using the
INFINITI controller.
Pause
Select the “
” key to pause the movie file.
To resume playing the movie file, select the
“
” key.
Play
Select the “
” key to start playing a movie
file, for example, after pausing a movie file.
STOP
Select the “
” key to stop playing a movie
file.
Skip
(Next chapter)
Select the “
” key to skip the chapter(s) of
the disc forward. The chapters will advance the
number of times the ENTER button is pushed.
Skip
(Previous chapter)
Select the “
” key to skip the chapter(s) of
the disc backward. The chapters will go back
the number of times the “
” key is
selected.
List :
Select the “List” key on the movie file operation
screen to display the file list.
Settings :
Select the “Settings” key to adjust the following
settings.
●Audio File Playback
Switch to the audio playback mode. This
item is displayed only when the USB
memory contains the audio files.
● Play Mode
Select the “Normal” or “1 Track Repeat” play
mode.
Example
SAA2504
Monitor, climate, audio, phone and voice recognition systems4-73

●10 Key Search
Select the “10 Key Search” key to open the
number entry screen.
Input the number to be searched and select
the “OK” key.
The specified folder/file will be played.
● Display
To adjust the image quality of the screen,
select the preferred adjustment items.
● DRC
DRC (Dynamic Range Compression) auto-
matically adjusts the soundtrack volume
level to maintain a more even sound to the
speakers.
● Audio
Select the preferred language for audio.
● Subtitle
Select the preferred language for subtitle.
● Display Mode
Select the “Normal”, “Wide”, “Cinema” or
“Full” mode.BLUETOOTH STREAMING AUDIO
(models with navigation system)
Your INFINITI is equipped with Bluetooth
Streaming Audio. If you have a compatible
Bluetooth device with streaming audio (A2DP
profile), you can set up the wireless connection
between your Bluetooth device and the in-
vehicle audio system. This connection allows
you to listen to the audio from the Bluetooth
device using your vehicle speakers. It also may
allow basic control of the device for playing and
skipping audio files using the AVRCP Bluetooth
profile. All Bluetooth Devices do not have the
same level of controls for AVRCP. Please consult
the manual for your Bluetooth Device for more
details.
Once your Bluetooth device is connected to
the in-vehicle audio system, it will automati-
cally reconnect whenever the device is present
in the vehicle and you select Bluetooth Audio
from your audio system. You do not need to
manually reconnect for each usage.
Regulatory information
FCC Regulatory information :
– CAUTION: To maintain compliance with FCC’s
RF exposure guidelines, use only the sup-
plied antenna. Unauthorized antenna, modi-
fication, or attachments could damage the
transmitter and may violate FCC regulations.
– Operation is subject to the following two conditions:
1) This device may not cause interference and
2) This device must accept any interfer- ence, including interference that may
cause undesired operation of the de-
vice
IC Regulatory information :
– Operation is subject to the following twoconditions:
1) This device may not cause interference, and
2) This device must accept any interfer- ence, including interference that may
cause undesired operation of the de-
vice.
– This Class B digital apparatus meets allrequirements of the Canadian Interference-
Causing Equipment Regulations.
4-74Monitor, climate, audio, phone and voice recognition systems

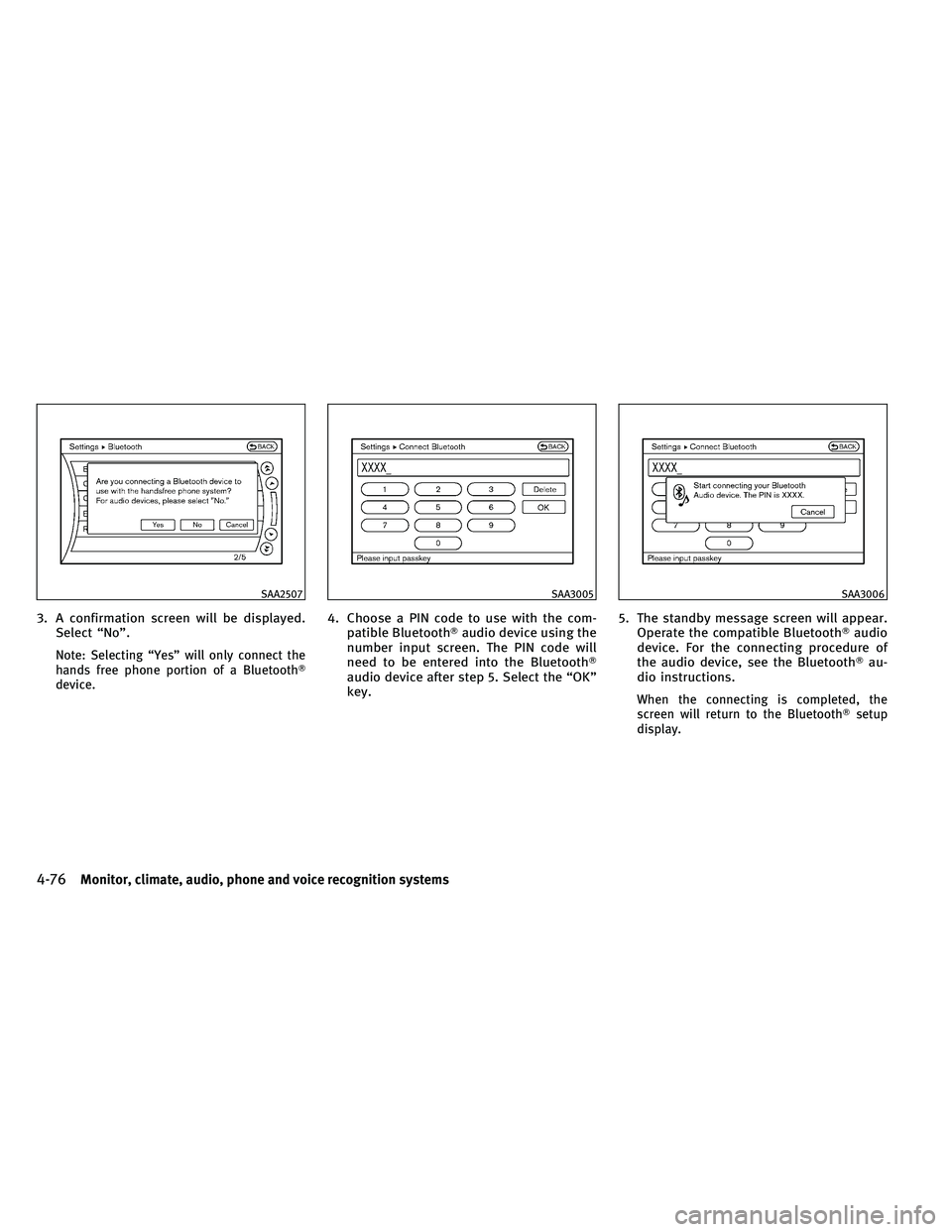

3. A confirmation screen will be displayed.Select “No”.
Note: Selecting “Yes” will only connect the
hands free phone portion of a Bluetooth
device.
4. Choose a PIN code to use with the com- patible Bluetooth audio device using the
number input screen. The PIN code will
need to be entered into the Bluetooth
audio device after step 5. Select the “OK”
key. 5. The standby message screen will appear.
Operate the compatible Bluetooth audio
device. For the connecting procedure of
the audio device, see the Bluetooth au-
dio instructions.
When the connecting is completed, the
screen will return to the Bluetooth setup
display.
SAA2507SAA3005SAA3006
4-76Monitor, climate, audio, phone and voice recognition systems

Audio main operation
Push the ignition switch to the ACC or ON
position. Then, push the DISC·AUX button re-
peatedly to switch to the Bluetoothaudio
mode. If the system has been turned off while
the Bluetooth audio device was playing, push-
ing the ON·OFF/VOL control knob will start the
Bluetooth audio device.
The ability to pause, change tracks, fast for-
ward, rewind, randomize and repeat music may
be different between devices. Some or all of
these functions may not be supported on each
device.
DISC·AUX button :
When the DISC·AUX button is pushed with the
system off and the Bluetooth audio device
connected, the system will turn on. If another
audio source is playing and the Bluetooth
audio device is connected, push the DISC·AUX
button repeatedly until the display changes to
the Bluetooth audio mode.
Next/Previous Track and
Fast Forward/Rewind :
When the
orbutton is pushed for
more than 1.5 seconds while a Bluetooth audio
file is being played, the Bluetooth audio de-
vice will play while forwarding or rewinding.
When the button is released, the Bluetooth
audio device will return to normal play speed.
When the
orbutton is pushed for
less than 1.5 seconds while a Bluetooth audio
file is being played, the next track or the
beginning of the current track on the
Bluetooth audio device will be played. The
INFINITI controller can also be used to select
tracks when the Bluetooth audio play mode
screen is shown on the display. (“Bluetooth
audio” will be indicated on the header of the
screen.)
REPEAT (RPT), RANDOM (RDM) :
To change the play mode, push the
button repeatedly and the mode changes as
follows.
Normal →Shuffle All Tracks →Shuffle Group →
Repeat 1 Track →Repeat All Tracks →Repeat
Group →Normal
Operation keys :
To operate a Bluetooth audio device, select a
key displayed on the operation screen using the
INFINITI controller.
Play
Select the “
” key to start playing when
pausing. Select this key again to pause the
audio play.
Pause
Select the “
” key to pause the
Bluetooth audio device. Select this key again
to resume playing.
SAA2510
Monitor, climate, audio, phone and voice recognition systems4-77

Play Mode :
The play mode setting display will appear when
the “Menu” key is selected.
Choose the preferred play mode from the fol-
lowing items.
●Shuffle
Choose “Shuffle OFF”, “Shuffle All Tracks”
and “Shuffle Group”.
● Repeat
Choose from “Repeat OFF”, “Repeat 1 Track”,
“Repeat All Tracks” and “Repeat Group”.
Bluetooth settings
To set up the Bluetooth device system to the
preferred settings, push the SETTING button
and select the “Bluetooth” key.
Bluetooth :
If this setting is turned off, the connection
between the Bluetooth devices and the in-
vehicle Bluetooth module will be canceled.
Connect Bluetooth :
Connects to the Bluetooth device. See “Con-
necting procedure” earlier in this section. Up to
5 devices can be registered. Connected Devices :
Registered devices are shown on the list. Select
a Bluetooth
device from the list, the following
options will be available.
● Select
Select “Select” to connect the selected de-
vice to the vehicle. If there is a different
device currently connected, the selected de-
vice will replace the current device.
● Edit
Rename the selected Bluetooth device us-
ing the keypad displayed on the screen. (See
“HOW TO USE TOUCH SCREEN (models with
navigation system)” earlier in this section.)
● Delete
Delete the selected Bluetooth device.
Edit Bluetooth Info :
Change the name broadcasted by this system
over Bluetooth. Change the PIN code that is
entered when connecting a hands free device to
this system.
SAA2511
4-78Monitor, climate, audio, phone and voice recognition systems

Replace Connected Phone :
Replace the Bluetoothconnection with a con-
nected Bluetooth cellular phone. For details
about Hands-Free Phone System, see
“BLUETOOTH HANDS-FREE PHONE SYSTEM
(models with navigation system)” later in this
section.
IPOD PLAYER OPERATION
Connecting iPod
Open the console lid and connect the iPod
cable to the USB connector. The battery of the
iPod is charged while the connection to the
vehicle.
Depending on the version of the iPod, the
display on the iPod shows an INFINITI or
Accessory Attached screen when the connection
is completed. When the iPod is connected to
the vehicle, the iPod music library can only be
operated by the vehicle audio controls.
* iPod is a trademark of Apple Inc., registered
in the U.S. and other countries.
Compatibility
The following models are available:
Models with navigation system :
● Fifth generation iPod (version 1.2.3 or later)
● iPod Classic (version 1.1.1 or later)
● First generation iPod touch (version 2.0.0
or later)
● Second generation iPod touch (version
1.2.3 or later)
● First generation iPod nano (version 1.3.1 or
later)
● Second generation iPod nano (version 1.1.3
or later)
● Third generation iPod nano (version 1.1 or
later)
● Fourth generation iPod nano (version 1.0.2
or later)
Models without navigation system :
● Fifth generation iPod (firmware version 1.3)
● First generation iPod Classic (firmware ver-
sion 1.1.2 PC)
● Second generation iPod Classic (firmware
version 2.0 PC)
SAA3472
Monitor, climate, audio, phone and voice recognition systems4-79
