2011 HYUNDAI VERACRUZ wiper fluid

479
Features of your vehicle
A : Wiper speed control· (MIST) – Single wipe · 0 (OFF) – Off
· --- (INT) – Intermittent wipe AUTO – Auto control wipe
· 1 (LO) – Low wiper speed· 2 (HI) – High wiper speed
B : Intermittent or Auto control wipe time adjustment
C : Wash with brief wipes
D : Rear wiper/washer control · – Spraying washer fluid
· (ON) – Inter mittent wipe after
some normal wipe
· 0 (OFF) – Off
· – Wash with brief wipes
WIPERS AND WASHERS
Windshield wiper/washer Rear window wiper/washer (if equipped)
Type B
Type A
Type B
Type A
OEN040312/OEN040311/OEN040314/OEN040313
procarmanuals.com

Features of your vehicle
82
4
D200200BUN
Windshield washers
In the 0 (OFF) position, pull the lever
gently toward you to spray washer fluid
on the windshield and to run the wipers
1-3 cycles. Use this function when the windshield is
dirty. The spray and wiper operation will con-
tinue until you release the lever.
If the washer does not work, check the
washer fluid level. If the fluid level is not
sufficient, you will need to add appropri-
ate non-abrasive windshield washer fluid
to the washer reservoir.
The reservoir filler neck is located in the
front of the engine compartment on the
passenger side.
CAUTION
When washing the vehicle, set the
wiper switch in the 0 (OFF) position
to stop the auto wiper operation.
The wiper may operate and be dam-aged if the switch is set in the AUTO mode while washing the vehicle.
Do not remove the sensor coverlocated on the upper end of the pas-senger side windshield glass.Damage to system parts could occur and may not be covered by
your vehicle warranty.
When starting the vehicle in winter,set the wiper switch in the 0 (OFF)position. Otherwise, wipers mayoperate and ice may damage the
windshield wiper blades. Alwaysremove all snow and ice and defrostthe windshield properly prior tooperating the windshield wipers.
OEN040070L
OEN040070
Type B
Type A
procarmanuals.com

483
Features of your vehicle
D200300BEN-EE
Rear window wiper and washer
switch (if equipped)
The rear window wiper and washer
switch is located at the end of the wiper
and washer switch lever. Turn the switch
to desired position to operate the rear
wiper and washer.- Spraying washer fluid and wiping (ON)-
Intermittent wiper operation
after some normal wiper oper-ation
0 (OFF) - Wiper is not in operation - Wash with brief wipes
CAUTION
To prevent possible damage to thewasher pump, do not operate the
washer when the fluid reservoir isempty.
WARNING
Do not use the washer in freezing
temperatures without first warming
the windshield with the defrosters;
the washer solution could freeze oncontact with the windshield and
obscure your vision.
CAUTION
To prevent possible damage to the wipers or windshield, do not
operate the wipers when thewindshield is dry.
To prevent damage to the wiper blades, do not use gasoline,kerosene, paint thinner, or other
solvents on or near them.
To prevent damage to the wiper arms and other components, donot attempt to move the wipers
manually.
OEN040071L
OEN040071
Type B
Type A
procarmanuals.com

7
Engine compartment / 7-2
Maintenance services / 7-4
Owner maintenance / 7-6
Scheduled maintenance service / 7-8
Explanation of scheduled maintenance items / 7-27
Engine oil / 7-30
Engine coolant / 7-31
Brakes fluid / 7-34
Power steering fluid / 7-35
Washer fluid / 7-36
Parking brake / 7-36
Fuel filter / 7-37
Air cleaner / 7-38
Climate control air filter / 7-39
Wiper blades / 7-41
Battery / 7-44
Tires and wheels / 7-47
Fuses / 7-57
Light bulbs / 7-67
Appearance care / 7-76
Emission control system / 7-82
Maintenance
procarmanuals.com

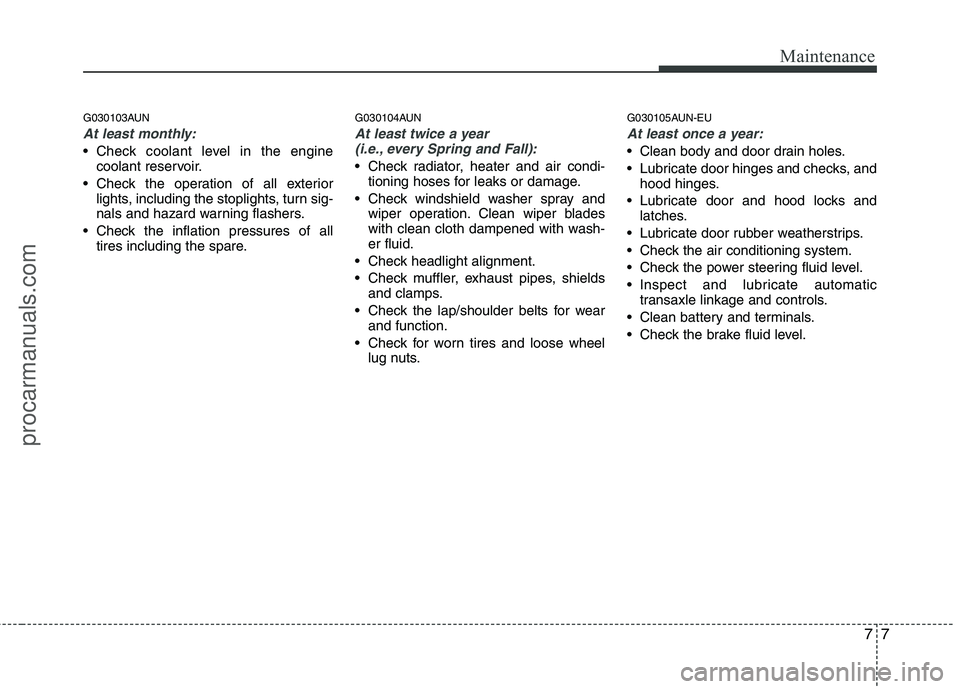

77
Maintenance
G030103AUN
At least monthly:
Check coolant level in the enginecoolant reservoir.
Check the operation of all exterior lights, including the stoplights, turn sig-
nals and hazard warning flashers.
Check the inflation pressures of all tires including the spare. G030104AUN
At least twice a year
(i.e., every Spring and Fall):
Check radiator, heater and air condi- tioning hoses for leaks or damage.
Check windshield washer spray and wiper operation. Clean wiper blades
with clean cloth dampened with wash-er fluid.
Check headlight alignment.
Check muffler, exhaust pipes, shields and clamps.
Check the lap/shoulder belts for wear and function.
Check for worn tires and loose wheel lug nuts. G030105AUN-EU
At least once a year:
Clean body and door drain holes.
Lubricate door hinges and checks, and
hood hinges.
Lubricate door and hood locks and latches.
Lubricate door rubber weatherstrips.
Check the air conditioning system.
Check the power steering fluid level.
Inspect and lubricate automatic transaxle linkage and controls.
Clean battery and terminals.
Check the brake fluid level.
procarmanuals.com

Index
10
I
Washer fluid ···································································7-36
Waste tray, see ashtray ·················································4-117
Warnings and indicators ················································4-57
Weight ············································································5-54
Base curb weight ······················································5-54
Cargo weight ····························································5-54
GAW (Gross axle weight) ········································5-54
GAWR (Gross axle weight rating) ···························5-54
GVW (Gross vehicle weight) ···································5-54
GVWR (Gross vehicle weight rating) ·····················5-54
Wheel alignment and tire balance ·································7-50
Wheel replacement ························································7-51
Windows ········································································4-24 Auto up/down window ·············································4-25
Power window lock button ·······································4-27
Windshield defrosting and defogging ··························4-111 Defogging logic ······················································4-113
Winter driving ································································5-42 Snow tires ·································································5-42
Tire chains ································································5-43
Wiper blades ··································································7-41
Wipers and washers ·······················································4-79
W
