Wartung
60
7

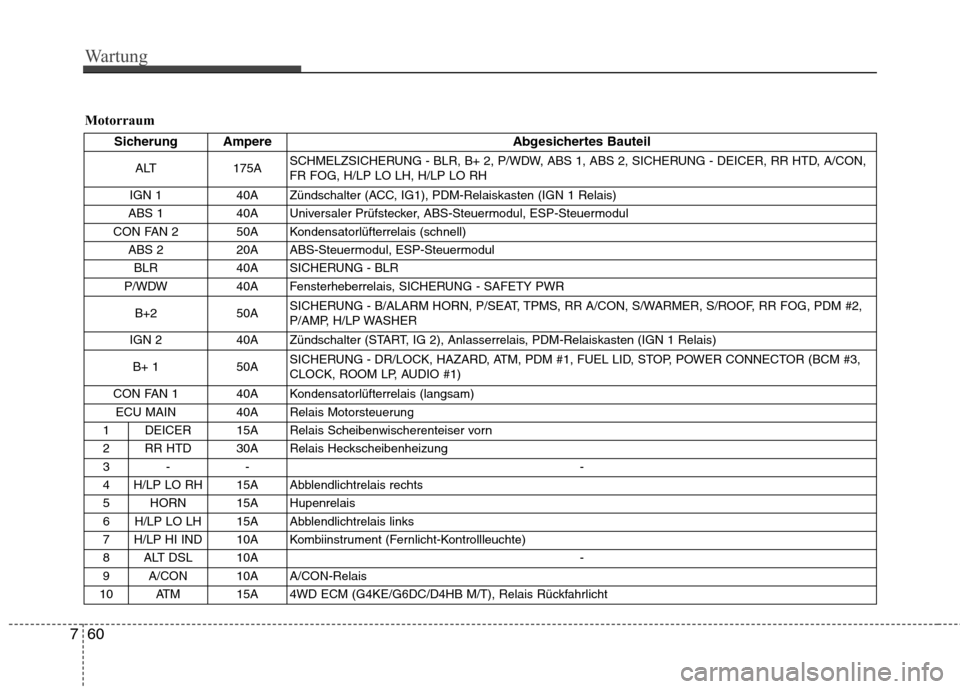

Motorraum
Sicherung Ampere Abgesichertes Bauteil
ALT 175A SCHMELZSICHERUNG - BLR, B+ 2, P/WDW, ABS 1, ABS 2, SICHERUNG - DEICER, RR HTD, A/CON, FR FOG, H/LP LO LH, H/LP LO RH
IGN 1 40A Zündschalter (ACC, IG1), PDM-Relaiskasten (IGN 1 Relais)
ABS 1 40A Universaler Prüfstecker, ABS-Steuermodul, ESP-Steuermodul
CON FAN 2 50A Kondensatorlüfterrelais (schnell)
ABS 2 20A ABS-Steuermodul, ESP-SteuermodulBLR 40A SICHERUNG - BLR
P/WDW 40A Fensterheberrelais, SICHERUNG - SAFETY PWR
B+2 50A SICHERUNG - B/ALARM HORN, P/SEAT, TPMS, RR A/CON, S/WARMER, S/ROOF, RR FOG, PDM #2,
P/AMP, H/LP WASHER
IGN 2 40A Zündschalter (START, IG 2), Anlasserrelais, PDM-Relaiskasten (IGN 1 Relais)
B+ 1 50A SICHERUNG - DR/LOCK, HAZARD, ATM, PDM #1, FUEL LID, STOP, POWER CONNECTOR (BCM #3,
CLOCK, ROOM LP, AUDIO #1)
CON FAN 1 40A Kondensatorlüfterrelais (langsam) ECU MAIN 40A Relais Motorsteuerung
1 DEICER 15A Relais Scheibenwischerenteiser vorn
2 RR HTD 30A Relais Heckscheibenheizung
3- - -
4 H/LP LO RH 15A Abblendlichtrelais rechts
5 HORN 15A Hupenrelais
6 H/LP LO LH 15A Abblendlichtrelais links
7 H/LP HI IND 10A Kombiinstrument (Fernlicht-Kontrollleuchte)
8 ALT DSL 10A -
9 A/CON 10A A/CON-Relais
10 ATM 15A 4WD ECM (G4KE/G6DC/D4HB M/T), Relais Rückfahrlicht
I3

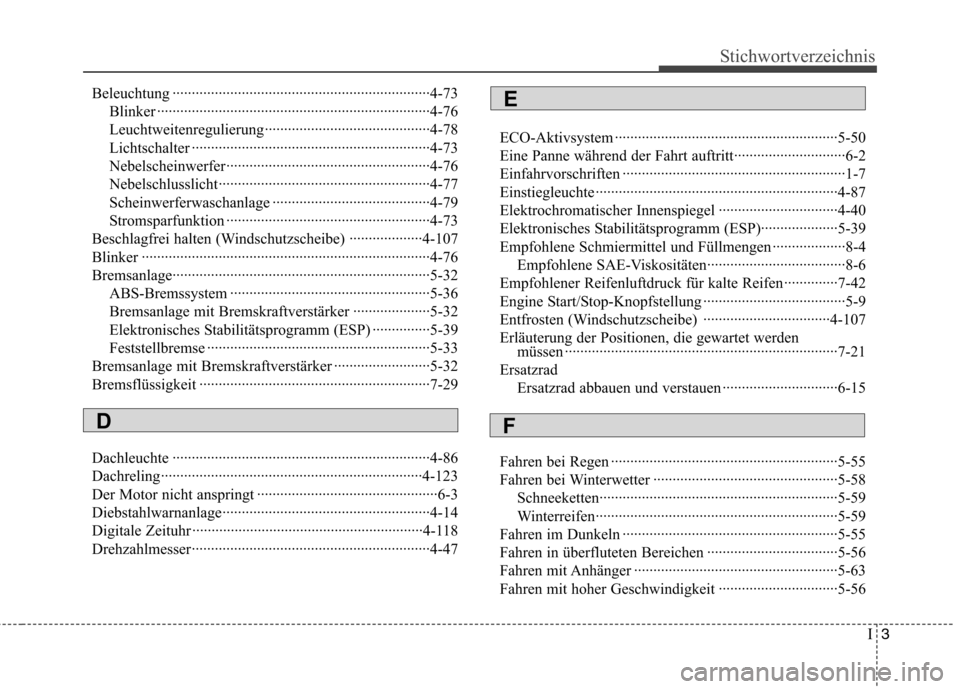

Stichwortverzeichnis
Beleuchtung ···································································4-73
Blinker ·······································································4-76
Leuchtweitenregulierung···········································4-78
Lichtschalter ······························································4-73
Nebelscheinwerfer·····················································4-76
Nebelschlusslicht·······················································4-77
Scheinwerferwaschanlage ·········································4-79
Stromsparfunktion ·····················································4-73
Beschlagfrei halten (Windschutzscheibe) ···················4-107
Blinker ···········································································4-76
Bremsanlage···································································5-32 ABS-Bremssystem ····················································5-36
Bremsanlage mit Bremskraftverstärker ····················5-32
Elektronisches Stabilitätsprogramm (ESP) ···············5-39
Feststellbremse ··························································5-33
Bremsanlage mit Bremskraftverstärker ·························5-32
Bremsflüssigkeit ····························································7-29
Dachleuchte ···································································4-86
Dachreling····································································4-123
Der Motor nicht anspringt ···············································6-3
Diebstahlwarnanlage······················································4-14
Digitale Zeituhr ····························································4-118
Drehzahlmesser······························································4-47 ECO-Aktivsystem ··························································5-50
Eine Panne während der Fahrt auftritt·····························6-2
Einfahrvorschriften ··························································1-7
Einstiegleuchte ·······························································4-87
Elektrochromatischer Innenspiegel ·······························4-40
Elektronisches Stabilitätsprogramm (ESP)····················5-39
Empfohlene Schmiermittel und Füllmengen ···················8-4
Empfohlene SAE-Viskositäten····································8-6
Empfohlener Reifenluftdruck für kalte Reifen ··············7-42
Engine Start/Stop-Knopfstellung ·····································5-9
Entfrosten (Windschutzscheibe) ·································4-107
Erläuterung der Positionen, die gewartet werden müssen ·······································································7-21
Ersatzrad Ersatzrad abbauen und verstauen ······························6-15
Fahren bei Regen ···························································5-55
Fahren bei Winterwetter ················································5-58 Schneeketten······························································5-59
Winterreifen·······························································5-59
Fahren im Dunkeln ························································5-55
Fahren in überfluteten Bereichen ··································5-56
Fahren mit Anhänger ·····················································5-63
Fahren mit hoher Geschwindigkeit ·······························5-56
DF
E
