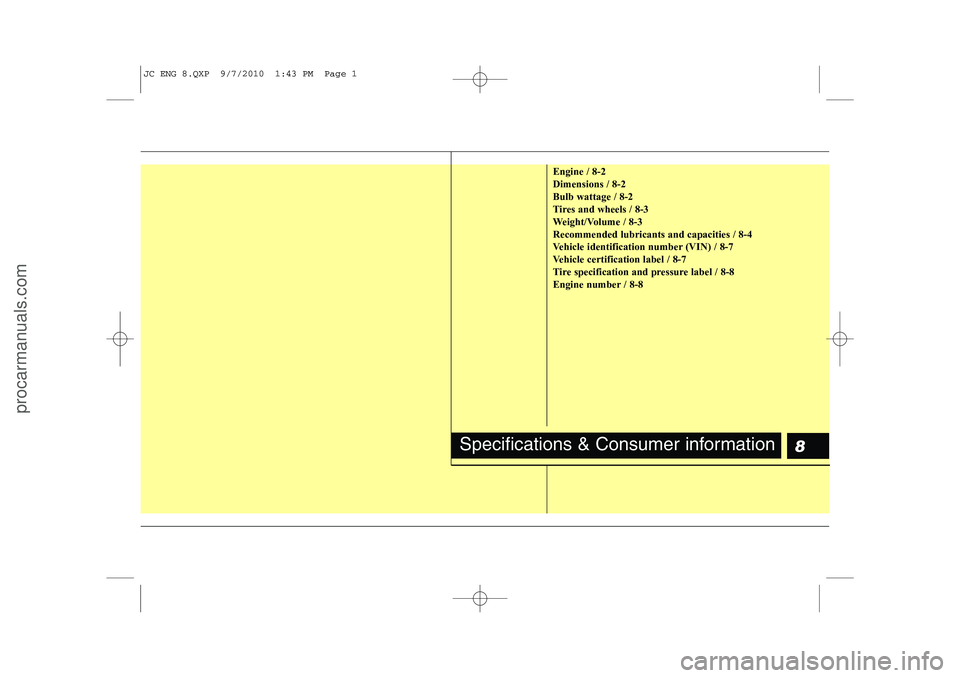

Engine / 8-2 Dimensions / 8-2Bulb wattage / 8-2
Tires and wheels / 8-3
Weight/Volume / 8-3Recommended lubricants and capacities / 8-4
Vehicle identification number (VIN) / 8-7
Vehicle certification label / 8-7
Tire specification and pressure label / 8-8
Engine number / 8-8
Specifications & Consumer information
JC ENG 8.QXP 9/7/2010 1:43 PM Page 1
procarmanuals.com

Specifications & Consumer information
2
8
ENGINE DIMENSIONS
Item mm (in.)
Overall length 4100 (161.42)
Overall width 1765 (69.49)
Overall height 1600 (62.99)
Front tread 195/65R15 1553 (61.14)
205/55R16 1547 (60.91)
205/50R17 1541 (60.67)
Rear tread 195/65R15 1557 (61.30)
205/55R16 1551 (61.06)
205/50R17 1545 (60.83)
Wheelbase 2615 (102.95)
Item Gasoline 1.4 Gasoline 1.6
Diesel 1.4
Displacement cc (cu. in) 1396
(85.19) 1591
(97.09) 1396
(85.12)
Bore x Stroke mm (in.)77x74.99
(3.03x2.95) 77x85.44
(3.03x3.36) 75x79
(2.95x3.11)
Firing order 1-3-4-2 1-3-4-2 1-3-4-2
No. of cylinders 4, In-line 4, In-line 4, In-lineLight BulbWattageBulb type
HeadlightsHigh55H7
Low55H7
Smart cornering lights*55H7
Front turn signal lights21P21W
Position lights5W5W
Side repeater lights*5W5W
Front fog lights*27H27W
Stop and tail lights21/5P21/5W
Tail lights21/5P21/5W
Rear turn signal lights 21P21W
Back-up lights16W16W
Rear fog lights21P21W
High mounted stop lightLEDLED
License plate lights5W5W
Front map lamp10FEST00N
Side room lamp*5W5W
Center room lamp*8FEST00N
Vanity mirror lamp*5W5W
Luggage room lamp5W5W
Glove box lamp5W5W
BULB WATTAGE
* : If equipped
