2011 HYUNDAI IX20 Owners Manual

4 123
Features of your vehicle

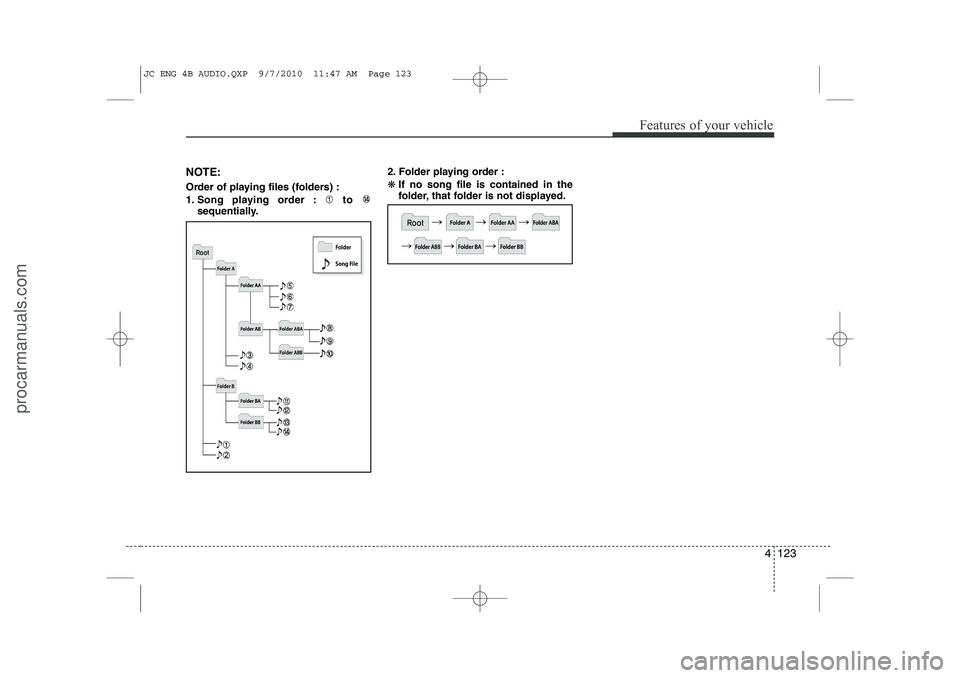

NOTE:
Order of playing files (folders) :
1. Song playing order : to sequentially. 2. Folder playing order :❋
If no song file is contained in the
folder, that folder is not displayed.
JC ENG 4B AUDIO.QXP 9/7/2010 11:47 AM Page 123
procarmanuals.com

Features of your vehicle
124
4
CAUTION IN USING USB DEVICE
 To use an external USB device,
make sure the device is not con-
nected when starting up the vehi-cle. Connect the device afterstarting up.
 If you start the engine when the USB device is connected, it maydamage the USB device. (USBflashdrives are very sensitive to electric shock.)
 If the engine is started up or turned off while the external USBdevice is connected, the externalUSB device may not work.
 It may not play inauthentic MP3 or WMA files.
1) It can only play MP3 files with the compression rate between8Kbps~320Kbps.
2) It can only play WMA music files with the compression rate
between 8Kbps~320Kbps.
 Take precautions for static elec- tricity when connecting or dis-connecting the external USBdevice.
(Continued)
(Continued) An encrypted MP3 PLAYER is not recognizable.
 Depending on the condition of the external USB device, the con-
nected external USB device can be unrecognizable.
 When the formatted byte/sector setting of External USB device isnot either 512BYTE or 2048BYTE,
then the device will not be recog-nized.
 Use only a USB device formatted to FAT 12/16/32.
 USB devices without USB I/F authentication may not be recog-nizable.
 Make sure the USB connection terminal does not come in con-tact with the human body or other
objects.
 If you repeatedly connect or dis- connect the USB device in a shortperiod of time, it may break the device.
 You may hear a strange noise when connecting or disconnect-ing a USB device.
(Continued)(Continued) If you disconnect the external USB device during playback inUSB mode, the external USBdevice can be damaged or may
malfunction. Therefore, discon-nect the external USB devicewhen the audio is turned off or in
another mode. (e.g, Radio or CD)
 Depending on the type and capacity of the external USBdevice or the type of the files stored in the device, there is a dif-
ference in the time taken for recognition of the device.
 Do not use the USB device for purposes other than playing
music files.
 Use of USB accessories such as rechargers or heaters using USBI/F may lower performance or cause trouble.
 If you use devices such as a USB hub purchased separately, thevehicle’s audio system may notrecognize the USB device. In that
case, connect the USB device directly to the multimedia termi-nal of the vehicle.
(Continued)
JC ENG 4B AUDIO.QXP 9/7/2010 11:47 AM Page 124
procarmanuals.com

4 125
Features of your vehicle
(Continued) If the USB device is divided by logical drives, only the music fileson the highest-priority drive arerecognized by car audio.
 Devices such as MP3 Player/ Cellular phone/Digital camera canbe unrecognizable by standardUSB I/F can be unrecognizable.
 Some non-standard USB devices (METAL COVER TYPE USB) canbe unrecognizable.
 Some USB flash memory readers (such as CF, SD, microSD, etc.) orexternal-HDD type devices can be
unrecognizable.
 Music files protected by DRM (DIGITAL RIGHTS MANAGE-MENT) are not recognizable.
 The data in the USB memory may be lost while using this audio.
Always back up important data ona personal storage device.
(Continued)(Continued) Please avoid using USB memory products which can be used askey chains or cellular phone
accessories as they could causedamage to the USB jack. Pleasemake certain only to use plug
type connector products asshown below.
JC ENG 4B AUDIO.QXP 9/7/2010 11:47 AM Page 125
procarmanuals.com

Features of your vehicle
126
4
Using USB device
1. Button (USB)
If USB is connected, it switches to the
USB mode from the other mode to play
the song files stored in the USB. If no CD
and auxiliary device is not connected, it
displays "NO Media" for 3 seconds and
returns to the previous mode.
2. Button
 Press the button for less
than 0.8 seconds to play from the beginning of the current song.
Press the button for less than 0.8 sec onds and press it again within 1 sec-
ond to move to and play the previoussong.
Press the button for 0.8 seconds or
longer to play the song in reverse
direction in fast speed.  Press the button for less
than 0.8 seconds to move to the next
song. Press the button for 0.8 seconds
or longer to play the song in forward
direction in fast speed.
3. Button (RANDOM)
 Press this button for less than 0.8 sec- onds to play songs randomly in current
folder.
 Press this button for 0.8 seconds or longer to play songs randomly in entire
USB device.
 To cancel RANDOM play, press this button again. 4. Button (REPEAT)
 Press this button for less than 0.8 sec-
onds to repeat current song.
 Press this button for 0.8 seconds or longer to repeat all songs in current
folder.
 To cancel REPEAT, press this button again.
5. Button
Plays each song in the USB device for 10
seconds. To cancel SCAN Play, press
this button again.
6. Button
Displays the information of the file cur-
rently played in the order of File Name ➟ Title ➟ Artist ➟ Album ➟
Folder ➟ Total File ➟ Normal Display ➟
File Name... (Displays no information if
the file has no song information.)
INFO
5
2
1
SEEK
TRACK
SEEK
TRACKTRACK
MEDIA
JC_PA710JCE_AUDIO
JC_PA710JCE_AUDIO
JC_PA710JCE_AUDIO
JC ENG 4B AUDIO.QXP 9/7/2010 11:47 AM Page 126
procarmanuals.com

4 127
Features of your vehicle
7. Button (FOLDER)
 Press button to move tochild folder of the current folder and
display the first song in the folder.
Press / knob to move
to the folder displayed. It will play the
first song in the folder.
 Press button to move to par- ent folder display the first song in the
folder.
Press / knob to move
to the folder displayed. 8. Knob & Button
 Turn this knob clockwise to browse
songs after current song, or counter
clockwise to browse songs before cur-
rent song. To play the displayed song,
press the knob.
 Pressing this knob without turning enters to AUDIO CONTROL mode.
ENTERTUNE
ENTERTUNE
PTY
FLDR
ENTERTUNE
PTY
FLDRFLDR
JC_PA710JCE_AUDIO
JC ENG 4B AUDIO.QXP 9/7/2010 11:48 AM Page 127
procarmanuals.com

Features of your vehicle
128
4
✽✽

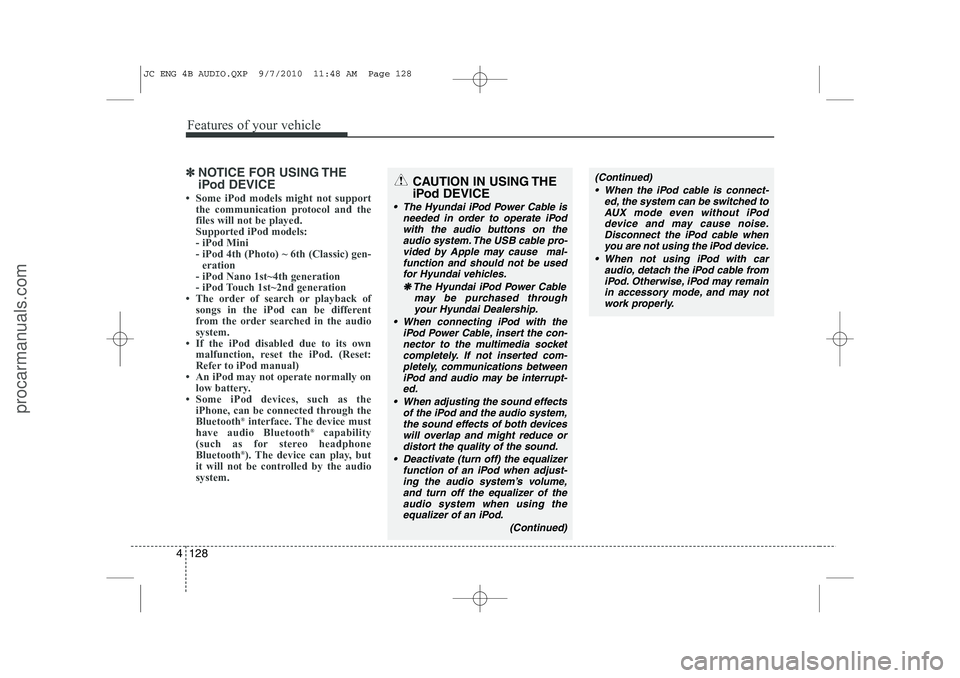

NOTICE FOR USING THE
iPod DEVICE

4 129
Features of your vehicle
Using iPod
1. Button (iPod)
If iPod is connected, it switches to the
iPod mode from the previous mode to
play the song files stored in the iPod.
If there is no iPod connected, then it dis-
plays the message "No Media" for 3 sec-
onds and returns to the previous mode.
2. Button
 Press the button for lessthan 0.8 seconds to play from the
beginning of the song currently played.
Press the button for less than 0.8 sec- onds and press it again within 1 sec-
ond to move to and play the previous
track.
Press the button for 0.8 seconds or
longer to play the song in reverse
direction in fast speed.  Press the button for less
than 0.8 seconds to move to the next
track.
Press the button for 0.8 seconds or
longer to play the song in forward
direction in fast speed.
3. Button (RANDOM)
 Press this button for less than 0.8 sec- onds to shuffle order of all songs in
current category. (Song Random)
 Press this button for 0.8 seconds or longer to shuffle order of albums in cur-
rent category. (Album Random)
 To cancel RANDOM Play, press this button again.
4. Button (REPEAT)
Repeats the song currently played. 5. Button (MENU)
Moves to the upper category from cur-
rently played category of the iPod.
To move to (play) the category (song)
displayed, press knob.
You will be able to search through the
lower category of the selected category.
The order of iPod’s category is Playlist,
Artist, Albums, Genres, Songs,
Composers.
6. Button
Displays the information of the file cur-
rently played in the order of Title
➟ Artist
➟ Album ➟Normal Display ➟ Title...
(Displays no information if the file has no
song information.)
INFO
TUNE
6
2
1
SEEK
TRACK
SEEK
TRACKTRACK
MEDIA
JC_PA710JCE_AUDIO
JC_PA710JCE_AUDIO
JC_PA710JCE_AUDIO
JC ENG 4B AUDIO.QXP 9/7/2010 11:48 AM Page 129
procarmanuals.com

Features of your vehicle
130
4
7. Knob & Button
When you rotate the knob clockwise, it
will display the songs (category) ahead
of the song currently played (category in
the same level).
Also, when you rotate the knob counter-
clockwise, it will display the songs (cate-
gory) before the song currently played
(category in the same level).
To listen to the song displayed in the
song category, press the button to skip to
and play the selected song.ENTERTUNE
JC_PA710JCE_AUDIO
JC ENG 4B AUDIO.QXP 9/7/2010 11:48 AM Page 130
