CONT INUED
When the tailgate or the roof is
covered with snow or ice.
Do not install any accessories on the
tailgate. It may cause the tailgate to
malf unction. If there is snow or ice
on the tailgate, make sure to remove
it bef ore you operate the tailgate.
If the power door lock system cannot
unlock the tailgate, unlock it
manually.
Keep the tailgate closed at all times
while driving to avoid damaging the
tailgate and to prevent exhaust gas
f rom getting into the interior. See
on page
.
If there is a problem in the power
tailgate system, you will see a
‘‘CHECK POWER TAILGATE’’
message on the multi-inf ormation
display. Have the system checked by
your dealer.
With this message shown on the
multi-inf ormation display, you can
still open or close the tailgate
manually.
If you push the tailgate release
button inside the handle while the
tailgate is opening or closing, it will
stop moving. You need to open or
close it the rest of the way manually.
The tailgate has sensors on both
sides. Be caref ul not to damage them.
If the sensors are damaged, the
power tailgate does not f unction
properly. If you try to drive off with the
tailgate open, a beeper sounds and a
‘‘TAILGATE OPEN’’ message is
shown on the multi-inf ormation
display.
Placeaclothonthetopsideof the
cover to prevent scratches, then use
a small f lat-tip screwdriver to remove
the cover on the back of the tailgate.
61 Unlocking the T ailgate
Carbon Monoxide Hazard
Tailgate and Glass Hatch
Inst rument s and Cont rols
147
10/01/26 18:48:19 31SZA620_152
2011 Pilot

You will also see a ‘‘RELEASE
PARKING BRAKE’’ message on the
multi-inf ormation display (see page).
Keeptheinsideandoutsidemirrors
clean and adjusted f or best visibility.
Be sure to adjust the mirrors bef ore
you start driving.
The inside mirror has day and night
positions. The night position reduces
glare f rom headlights behind you.
Flip the tab on the bottom edge of
the mirror to select the day or night
position. Theinsidemirrorcanautomatically
darken to reduce glare. To turn on
this feature, press the button on the
bottom of the mirror. The AUTO
indicator comes on as a reminder.
When it is on, the mirror darkens
when it senses the headlights of a
vehicle behind you, then returns to
normal visibility when the lights are
gone. Press the button again to turn
of f this f eature.
95
On vehicles with navigation system
On LX and EX modelsOn EX-L and Touring models
Mirrors
Parking Brake, Mirrors
170
AUTO BUTTON
INDICATOR SENSOR
Driving the vehicle with the parking
brake applied can damage the rear
brakes and hubs. A beeper will sound if
the vehicle is driven with the parking
brake on.
10/01/26 18:52:26 31SZA620_175
2011 Pilot

Adjust the seat to a comfortable
position (see page ).
Store a driving position only when
the vehicle is parked.
Turn the ignition switch to the ON
(II) position. You cannot add a
new driving position to the
memory unless the ignition switch
is in the ON (II) position. You can
recall a memorized position with
the ignition switch in any position.
Your vehicle has a memory feature
f or the driver’s seat and outside
mirror positions.
Two seat and outside mirror
positionscanbestoredinseparate
memories. You select a memorized
position by pushing the appropriate
button or using the appropriate
remote transmitter (Driver 1 or
Driver 2).
You can change the ‘‘MEMORY
POSITION LINK’’ setting on the
multi-inf ormation display (see page
). Adjust the outside mirrors f or best
visibility (see page ). Press and release the SET button
on the control panel. You will hear
a beep. Immediately press and
hold one of the memory buttons
(1 or 2) until you hear two beeps.
The indicator in the memory
button will come on. The current
positions of the driver’s seat and
outside mirrors are now stored.
1.
2.
3.
4.
109 154
171
CONT INUED
On Touring modelsStoring a Driving Position in
Memory
Driving Position Memory System
Inst rument s and Cont rols
173
MEMORY BUTTONS
SET BUTTON
10/01/26 18:53:00 31SZA620_178
2011 Pilot

Û
Ý
Press the button to increase
the fan speed and airflow. Press the
button to decrease it.
Turning this dial clockwise increases
the temperature of the airflow. This button turns the air
conditioningonandoff.Youwillsee
A/C ON or A/C OFF in the display.
When the indicator in the button is
on, air f rom the vehicle’s interior is
sent throughout the system again.
When the indicator is off, air is
brought in f rom the outside of the
vehicle (fresh air mode).
Thesystemshouldbeleftinfresh
air mode under almost all conditions.
Keeping the system in recirculation
mode, particularly with the A/C of f ,
can cause the windows to fog up.
Switch to recirculation mode when
driving through dusty or smoky
conditions, then return to fresh air
mode. The outside air intakes f or the
heating and cooling system are at
the base of the windshield. Keep this
area clear of leaves and other debris.
Vents, Heating, and A/C
Fan Control
T emperature ControlAir Conditioning (A/C) Button Recirculation Button
Features
193
10/01/26 18:55:59 31SZA620_198
2011 Pilot

Air conditioning places an extra load
on the engine. Watch the engine
coolant temperature gauge (see page). If it moves near the red mark,
turn of f the A/C until the gauge
reads normally.
The ventilation system draws in
outside air, circulates it through the
interior, then exhausts it through
vents near the rear side panels.
The heater uses engine coolant to
warm the air. If the engine is cold, it
will be several minutes bef ore you
f eel warm air coming f rom the
system.
Select and fresh air mode.
Set the f an to the desired speed.
Adjust the warmth of the air with
the temperature control dial. Turn on the A/C by pressing the
button. You will see A/C ON in
the display.
Make sure the temperature is set
to the lower limit.
Select .
If the outside air is humid, select
recirculation mode. If the outside
air is dry, select f resh air mode.
Set the f an to the desired speed.
Set the temperature to the lower
limit.
Make sure the A/C is of f .
Select and fresh air mode.
Set the f an to the desired speed.
1.
2.
3.
4.
5.
1.
2.
3.
1.
2.
3.
4. 82
CONT INUED
Vents, Heating, and A/C
Using the A/C
Ventilation Using the Heater
Features
195
10/01/26 18:56:36 31SZA620_200
2011 Pilot

ÛÝ
To turn the system completely off,
press the ON/OFF button.
Keep the system completely of f
f or short periods only.
To keep stale air and mustiness
f rom collecting, you should have
the f an running at all times.

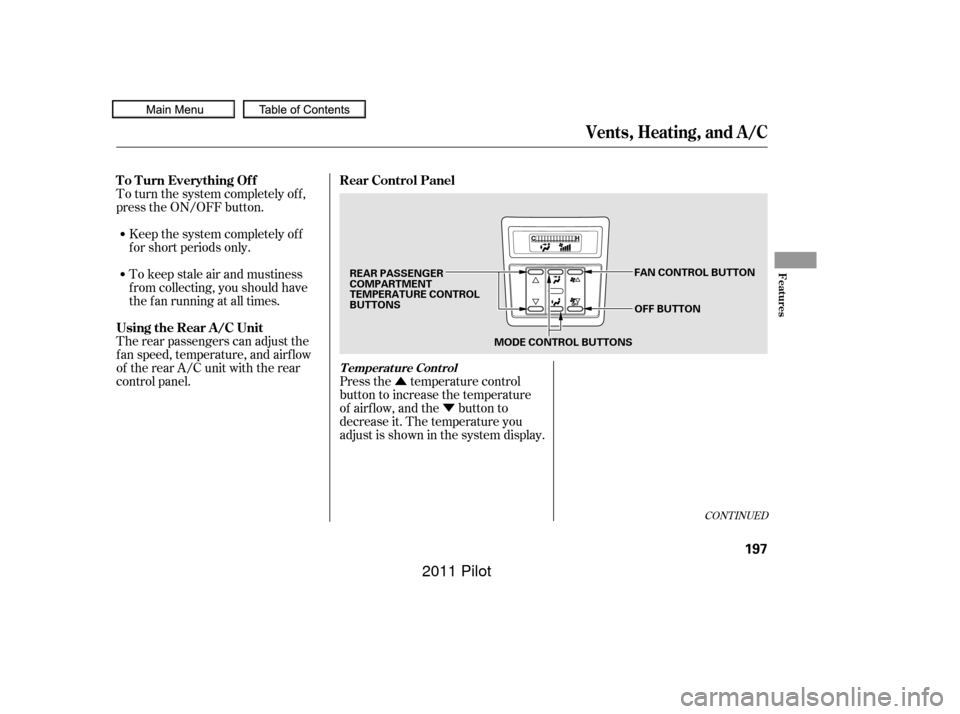

The rear passengers can adjust the
f an speed, temperature, and airf low
of the rear A/C unit with the rear
control panel. Press the temperature control
button to increase the temperature
of airflow, and the button to
decrease it. The temperature you
adjust is shown in the system display.
CONT INUED
Vents, Heating, and A/C
To Turn Everything Off
Using the Rear A/C Unit Rear Control Panel
T emperat ure Cont rol
Features
197
MODE CONTROL BUTTONS
OFF BUTTON
REAR PASSENGER
COMPARTMENT
TEMPERATURE CONTROL
BUTTONS
FAN CONTROL BUTTON
10/01/26 18:57:03 31SZA620_202
2011 Pilot

Û
Ý
Press the fan control button
to increase the f an speed and airf low.
Press the button to
decrease it. The level of the f an
speed is shown in the display. When is selected, air f lows
f rom the upper vents on the back of
the center console.
When is selected, air f lows
f rom the lower vents.To shut of f the rear A/C unit, press
the OFF button until the system
shuts off.
To turn on the rear A/C unit,
increase the f an speed and airf low.
Fan Cont rol
Mode Cont rol
Vents, Heating, and A/C
198
10/01/26 18:57:14 31SZA620_203
2011 Pilot

Û
Ý
The automatic climate control
system in your vehicle maintains the
interior temperature you select. The
system also adjusts the f an speed
and airf low levels.
The system automatically selects
the proper mix of conditioned
and/or heated air that will, as
quickly as possible, raise or lower
the interior temperature to your
pref erence.
The driver’s side temperature, the
passenger’s side temperature and
the rear passenger compartment
temperature can be set separately.
Press the button of the
appropriate temperature control to
increase the temperature of airf low.
Press the button to decrease it.
Each set temperature is shown in the
display. The rear temperature is
showninthedisplayonthebackof
the center console.
The climate control system f or your
vehicle can also be operated using
the voice control system. See the
navigation system manual f or
complete details.
Press the Auto button on the front
control panel.
Set the desired temperature with
the temperature control buttons.
You will see AUTO in the system’s
display.
You can set the driver’s side
temperature, the passenger’s side
temperature, and the temperature
of the rear passenger
compartment separately.
1.
2.
3.
On vehicles with navigation system
Using A utomatic Climate Control
Voice Control System
T emperat ure Cont rol
Climate Control System
200
10/01/26 18:57:33 31SZA620_205
