2011 HONDA PILOT display

µ
To select a dif f erent disc, use the
appropriate preset buttons (1
through 6). If you select an empty
position, the system will go into the
loading sequence (see page ). Use the SKIP bar while a disc is
playing to select passages and
change tracks (f iles in MP3 or WMA
mode).
In MP3 or WMA mode, use the
CATEGORY bar to select f olders on
the disc and use either side of the
SKIP bar to change f iles. Each time you press and
releasethe sideof theSKIPbar,
the player skips forward to the
beginning of the next track (f ile in
MP3 or WMA mode). Press and
releasethe sideof thebarto
skip backward to the beginning of
the current track. Press it again to
skip to the beginning of the previous
track.
To move rapidly within a track or f ile,
press and hold either side ( or ) of the SKIP bar.
In MP3 or WMA mode, you can also
select a f older or track/f ile f rom the
list by using the selector knob. Push
the selector knob (ENTER) to
switch the display to the list
displayed with three segments, then
turn the knob to select a f older.
Press the selector knob (ENTER) to
change the display to the track/file
list, then turn the same knob to
select a track/f ile. Press the selector
knob (ENTER) to set your selection.
244T o Change or Select T racks/Files
Playing Discs (EX and EX-L models)
SK IP
246
10/01/26 19:05:33 31SZA620_251
2011 Pilot

µ
µ
µ
µ´ ´ µ
µ
µ This f eature plays the
tracks within a disc (the f iles in MP3
or WMA mode) in random order. To
activate random play, select the disc
random play f rom the menu items.
You will see RANDOM in the display.
Selectthenormalplaymodeto
return to normal play.
This feature,
when activated, replays all the f iles
in the selected f older in the order
they are compressed in MP3 or
WMA. To activate folder repeat
mode, select the f older repeat mode
from the menu items. You will see
F-REPEAT in the display. The
system continuously replays the
current f older. Select the normal
play mode to turn it of f . Selecting a
different folder with the
CATEGORY bar also turns of f the
repeat feature.
To
select a dif f erent f older, press either
side ( or ) of the CATEGORY
bar. Press the side to skip to the
next f older, and press the side to
skip to the beginning of the previous
f older.
To
continuously replay a track (f ile in
MP3 or WMA mode), select the
track repeat mode f rom the menu
items. You will see REPEAT in the
display. Select the normal play mode
to turn it off.
Pressing either side of the SKIP bar
also turns of f the repeat f eature. This feature
continuously replays the current disc.
To activate disc repeat, select the
disc repeat mode f rom the menu
items. You will see D-REPEAT in the
display. Select normal play to turn it
off.
In MP3 or WMA mode In MP3 or WMA mode
CONT INUED
Playing Discs (EX and EX-L models)
RANDOM (Random within a
disc)
FOLDER REPEAT
FOLDER SELECTION
REPEAT (Track Repeat)
DISC REPEAT
Features
247
10/01/26 19:05:42 31SZA620_252
2011 Pilot

µ
µ µ
This f eature, when
activated, samples the first file in
each f older on the disc in the order
they are recorded. To activate the
f older scan f eature, press and
release the SCAN button repeatedly.
You will see ‘‘F-SCAN’’ in the display.
The system will then play the first
f ile in the main f olders f or about 10
seconds. If you do nothing, the
system will then play the f irst f ile in
each f older f or 10 seconds. When it
plays a file that you want to continue
listening to, press and hold the
SCAN button.
Pressing either side of the SKIP bar,
or selecting a dif f erent disc (using
the preset buttons) or f older (using
the CATEGORY bar) turns of f the
SCAN or F-SCAN f eature.
This
f eature, when activated, plays the
f iles within the current f older in
random order, rather than in the
order they are compressed in MP3
or WMA. To activate folder random
play, select the f older random mode
from the menu items. You will see
F-RANDOM in the display. The
system will then select and play f iles
randomly. This continues until you
deactivate f older random play by
selecting the normal play mode, or
you select a dif f erent f older with the
CATEGORY bar. The SCAN f unction
samples all the tracks on the disc in
the order they are recorded on the
disc (all f iles in the selected f older in
MP3 or WMA mode). To activate the
scan feature, press and release the
SCAN button. You will see SCAN in
the display. You will get a 10 second
sampling of each track/f ile in the
disc/f older. Press and hold the
SCAN button until you hear a beep
to get out of scan mode and play the
last track sampled.
In MP3 or WMA mode
In MP3 or WMA mode
F-SCAN
FOLDER RANDOM SCAN
Playing Discs (EX and EX-L models)
248
10/01/26 19:05:47 31SZA620_253
2011 Pilot

µ
CONT INUED
This f eature, when
activated, samples the first track on
each disc in order (the f irst f ile in
themainfolderoneachdiscinMP3
or WMA mode). To activate the disc
scan feature, press and release the
SCAN button repeatedly until
D-SCAN shows in the display. The
system will then play the f irst track/
f ile in the f irst main f older on the
f irst disc f or about 10 seconds. If you
do nothing, the system will then play
the f ollowing f irst track/f ile f or 10
seconds each. When it plays a track/
file that you want to continue
listening to, press and hold the
SCAN button again. Each time you press and release the
SCAN button, the mode changes
from scan, disc scan, then to normal
play.
Each time you press and release the
SCAN button, the mode changes
f rom f ile scan, f older scan, disc scan,
then to normal play.You can also eject the disc when the
ignition switch is of f .
When the f irst track on the last disc,
or the f irst f ile in the last main f older
on the last disc begins to play, the
disc scan mode will be canceled.
Pressing either side of the SKIP bar
or selecting a dif f erent f older with
the CATEGORY bar also turns off
the scan feature.
Press the eject button ( ) to
remove the disc. If you eject the disc,
but do not remove it f rom the slot,
the system will automatically reload
the disc af ter 10 seconds and begin
playing.
To play the radio when a disc is
playing, press the AM, FM, AM/FM,
or XM (if equipped) button. Press
the CD (CD/AUX on models with
XM Radio) button again to switch
back to the disc changer.
In MP3 or WMA mode
D-SCAN
To Stop Playing a Disc
Playing Discs (EX and EX-L models)
Features
249
10/01/26 19:05:57 31SZA620_254
2011 Pilot

Thechartontherightexplainsthe
error messages you may see in the
display while playing a disc.
If you see an error message in the
display while playing a disc, press
the eject button. After ejecting the
disc, check it for damage or
deformation. If there is no damage,
insert the disc again.
For additional information on
damaged discs, see page .
Theaudiosystemwilltrytoplaythe
disc. If there is still a problem, the
error message will reappear. Press
the eject button, and pull out the disc.
Insert a dif f erent disc. If the new
disc plays, there is a problem with
the f irst disc. If the error message
cycle repeats and you cannot clear it,
take your vehicle to a dealer.Cause
Error Message Solution
286
High temperature
Track/File format not
supported
Mechanical Error
Servo Error Will disappear when the temperature returns to
normal.
Current track will be skipped. The next
supported track or file plays automatically.
Press the EJECT button and pull out the disc(s).
Check the disc for serious damage, signs of
deformation, excessive scratches, and/or dirt
(see page
286). Insert the disc again. If the code
does not disappear, or the disc(s) cannot be
removed, consult your dealer. Do not try to
force the disc out of the player.
Disc Changer Error Messages (EX and EX-L models)
Features
251
HEAT ERROR
UNSUPPORTED BAD DISC
PLEASE CHECK OWNER’S
MANUAL PUSH EJECT
BAD DISC
PLEASE CHECK OWNER’SMANUAL
10/01/26 19:06:14 31SZA620_256
2011 Pilot

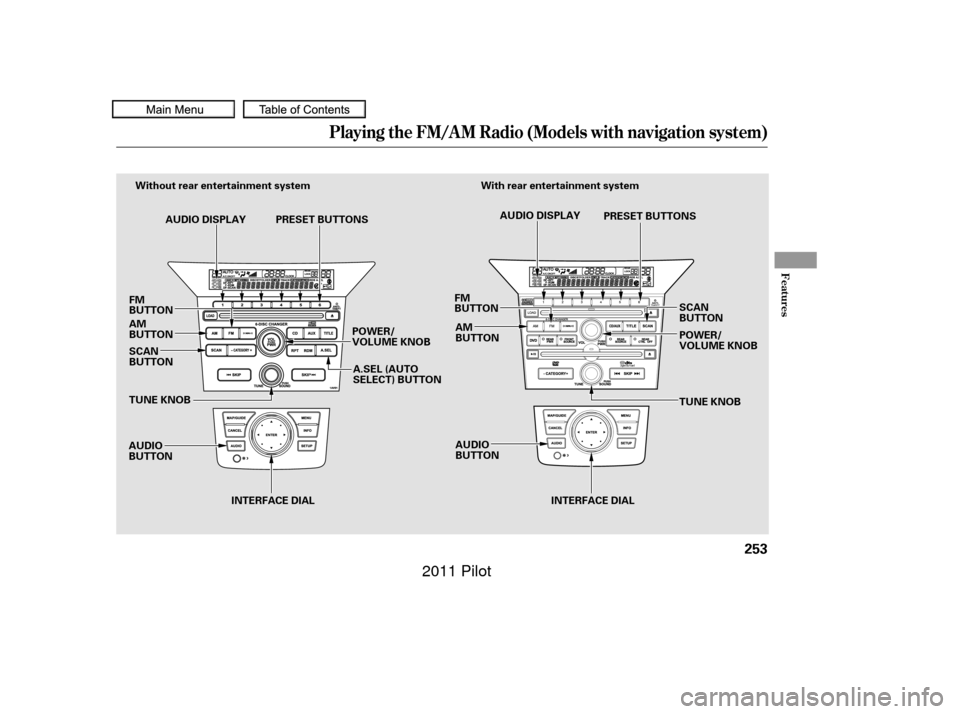

Playing the FM/A M Radio (Models with navigation system)
Features
253
INTERFACE DIALAUDIO DISPLAY
PRESET BUTTONS
With rear entertainment system
Without rear entertainment system
INTERFACE DIAL
FM
BUTTON
AM
BUTTON
SCAN
BUTTON
AUDIO DISPLAY PRESET BUTTONS
TUNE KNOB
AUDIO
BUTTON POWER/
VOLUME KNOB
AUDIO
BUTTON AM
BUTTON
FM
BUTTON
SCAN
BUTTON
TUNE KNOB POWER/
VOLUME KNOB
A.SEL (AUTO
SELECT) BUTTON
10/01/26 19:06:33 31SZA620_258
2011 Pilot

µUse the TUNE knob to
tune the radio to a desired f requency.
Turn the knob right to tune to a
higher f requency, or lef t to tune to a
lower f requency. To tune with the
interf ace dial, push the selector
down, and turn the knob to TUNE.
Then press ENTER on the selector,
andturntheknobtothedesired
f requency. To exit the TUNE mode,
press ENTER on the selector.
The ignition switch must be in the
ACCESSORY (I) or the ON (II)
position. Press the AUDIO button to
view the audio control display. Turn
the system on by pressing the
power/volume knob, the AM, or FM
button. Adjust the volume by turning
the power/volume knob. The band and f requency that the
radio was last tuned to are shown on
the display. To change bands, press
the AM or FM button. You can also
change bands by pushing the
interf ace selector up. Each time you
push it up, the band will change to
FM1, FM2, or AM. On the FM bands,
STEREO will be shown on the
navigation screen and ST on the
audio display, if the station is
broadcasting in stereo. Stereo
reproduction on AM is not available.
On the AM band, AM noise
reduction turns on automatically.
You can use any of f ive methods to
f ind radio stations on the selected
band: tune, skip (seek), scan, the
preset buttons, and auto select.
TUNE
To Play the FM/AM Radio
To Select a Station
Playing the FM/A M Radio (Models with navigation system)
254
STEREO ICON TUNE ICON
BAND
10/01/26 19:06:44 31SZA620_259
2011 Pilot

µ
µ
To scan with the interf ace dial, push
the selector down, and then push it
to the right. You will see SCAN
f lashing on the screen.
The system will scan f or a station
with a strong signal. When it f inds a
strong signal, it will stop and play
that station for about 10 seconds. If
you do nothing, the system will then
scan f or the next strong station and
play it f or 10 seconds. When it plays
a station that you want to listen to,
press the scan button again, or push
the interface selector to the right
again.
The SCAN f unction
samples all stations with strong
signals on the selected band. To
activate it, press the SCAN button,
then release it.
The SKIP (SEEK)
f unction searches up and down f rom
the current f requency to f ind a
station with a strong signal. To
activate it, press either side ( or ) of the SKIP bar or button,
then release it. You can also activate
the SKIP function (SEEK is
displayed on the screen) by pushing
the interface selector to the right or
lef t.
CONT INUED
SCAN
SK IP (SEEK )
Playing the FM/A M Radio (Models with navigation system)
Features
255
SCAN ICON
10/01/26 19:06:52 31SZA620_260
2011 Pilot
