Depending on where you drive, you
may experience reception problems.
Interf erence can be caused by any of
these conditions:Driving on the north side of a
large commercial truck on an
east/west road.
Driving in tunnels.
Driving on a road beside a vertical
wall, steep clif f , or hill to the south
of you.
Driving on the lower level of a
multi-tiered road.
Driving on a single lane road
alongside dense trees taller than
50 ft. (15 m) to the south of you. Driving on the north side of an
east/west mountain road.
There may be other geographic
situations that could af f ect XM Radio
reception. If your XM Radio service has expired
or you purchased your vehicle f rom
a previous owner, you can listen to a
sampling of the broadcasts available
on XM Radio. With the ignition
switch in the ACCESSORY (I) or the
ON (II) position, push the power/
volume knob to turn on the audio
system, and press the button.
A variety of music types and styles
will play.
If you decide to purchase XM Radio
service, contact XM Radio at
,orat
1-800-852-9696. In Canada, contact
XM Canada at , or at
1-877-209-0079. You will need to give
them your radio I.D. number and your credit card number. To get your
radio I.D. number, turn the TUNE
knob until ‘‘0’’ appears in the display.
Your I.D. will appear in the display.
After you’ve registered with XM
Radio, keep your audio system in the
XM Radio mode while you wait f or
activation. This should take about 30
minutes.
While waiting f or activation, make
sure your vehicle remains in an open
area with good reception. Once your
audio system is activated,
‘‘CATEGORY’’ or ‘‘CH’’ will appear in
the display, and you’ll be able to
listen to XM Radio broadcasts. XM
Radio will continue to send an
activation signal to your vehicle f or
at least 12 hours from the activation
request. If the service has not been
activated after 36 hours, contact XM
Radio. In Canada, contact XM
CANADA
.
As required by the FCC:
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
www.xmradio.com www.xmradio.ca
Playing the XMRadio (Models with navigation system)
Receiving XM Radio ServiceFeatures
273
10/01/26 19:09:38 31SZA620_278
2011 Pilot

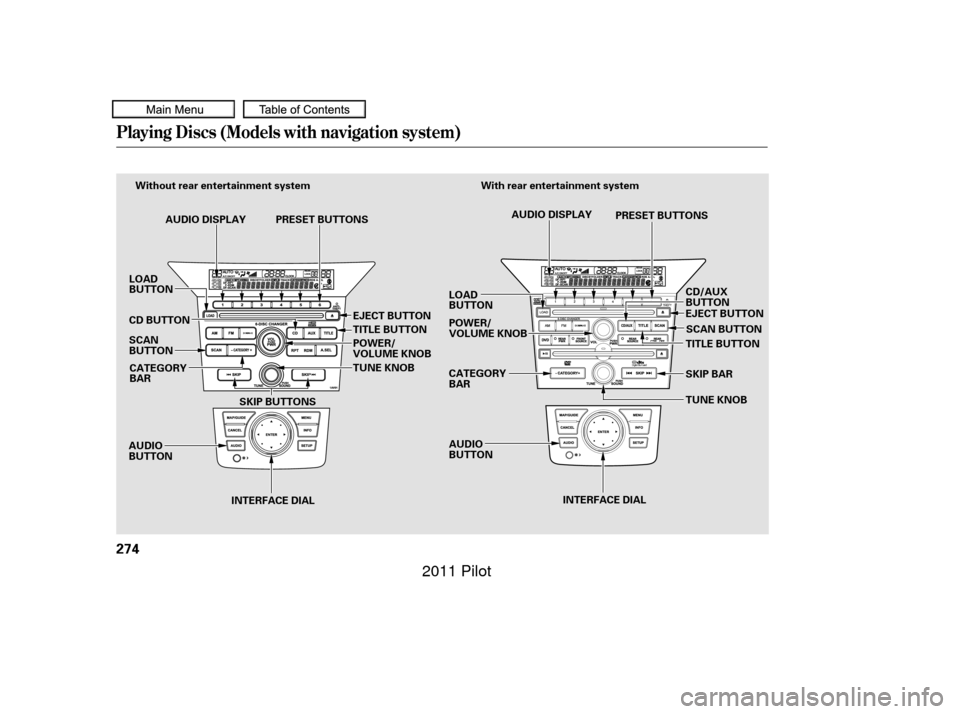

Playing Discs (Models with navigation system)
274
INTERFACE DIALAUDIO DISPLAY
PRESET BUTTONS
With rear entertainment system
Without rear entertainment system
INTERFACE DIAL
AUDIO DISPLAY PRESET BUTTONS
AUDIO
BUTTON SCAN
BUTTON
CATEGORY
BAR CATEGORY
BAR
AUDIO
BUTTON POWER/
VOLUME KNOB
TUNE KNOB TITLE BUTTON
POWER/
VOLUME KNOB
SKIP BUTTONS LOAD
BUTTON
SCAN BUTTON
CD/AUX
BUTTON
EJECT BUTTON
TITLE BUTTON
LOAD
BUTTON
CD BUTTON
EJECT BUTTON
SKIP BAR
TUNE KNOB
10/01/26 19:09:49 31SZA620_279
2011 Pilot

Your vehicle’s audio system has an
in-dash disc changer with the same
controls used f or the radio. To
operate the disc changer, the ignition
switch must be in the ACCESSORY
(I) or the ON (II) position.
The disc changer can play these disc
formats:When playing a disc in MP3, you will
see ‘‘MP3’’ in the display. In WMA
f ormat, ‘‘WMA’’ will appear in the
display. The changer can also play MP3 or
WMA format (see page ).If a f ile on an MP3 or WMA disc is
protected by digital rights
management (DRM), the audio
system displays UNSUPPORTED in
the center display, and then skips to
the next f ile.
Video CDs and DVD discs will not
work in this unit.
Some CD-DA and CD-ROM mixed
discs are not playable.
You cannot load and play 3-inch
(8-cm)discsinthissystem.
CD (CD-DA)
CD-R/RW
MP3/WMA
If you have a disc that is a
combination of CD-DA tracks and
MP3/WMA f iles, you can choose the
format to listen to by pressing and
holding the CD/AUX button until
you hear a beep.
The disc packages or jackets should
have one of these marks. 280
Playing Discs (Models with navigation system)
Features
275
NOTE:
Do not use discs with adhesive labels.
The label can curl up and cause the
disc to jam in the unit.
10/01/26 19:10:06 31SZA620_280
2011 Pilot

To load multiple discs in one
operation:With the ignition in the
ACCESSORY (I) or the ON (II)
position, press and hold the LOAD
button until you hear a beep and
see ‘‘LOAD’’ in the upper display,
then release the button.
‘‘NO DISC’’ is shown on the screen
foranemptypositioninthe
changer. When the green load
indicator comes on and you see
‘‘LOAD’’ in the audio display,
insert the disc into the slot. Insert
it only about half way; the drive will
pull it in the rest of the way. Press and release the LOAD
button.
To load a single disc: If you stop loading discs bef ore all
six positions are f illed, the system
will wait f or 10 seconds, stop the load
operation, and begin playing the last
disc loaded. Repeat this until all six positions
are loaded. If you are not loading
all six positions, the system will
then begin playing the last disc
loaded.
Insert a disc into the slot. Insert it
only about half way; the drive will
pull it in the rest of the way. You
will see ‘‘BUSY’’ in the audio
display. Do not try to insert a disc until
‘‘LOAD’’ appears. You could damage
the audio unit.
You can select the position to load a
disc. Turn the interf ace knob or
press a preset button to select the
position, then press ENTER on the
selector. This starts the loading
sequence. If you do not select the
position, the system loads the disc to
the f irst empty position in numerical
order.
If you press the LOAD button while
a disc is playing, the system will stop
playing that disc and start the
loading sequence. It will then play
the disc just loaded.
When ‘‘LOAD’’ appears in the
audio display again, insert the next
disc into the slot.
Do not try to insert a disc until
‘‘LOAD’’ appears. You could
damage the audio unit.
1.
1.
2.
3. 4.
2.
Playing Discs (Models with navigation system)
L oading Discs in the Changer
276
10/01/26 19:10:20 31SZA620_281
2011 Pilot

When you play CD-TEXT, you will
see the track name, artist name, and
album name on the screen. When
you play MP3/WMA discs, you will
see the track name and folder name
on the screen. If the disc was not
recorded with this inf ormation, it will
not be displayed.
To select a dif f erent disc, press the
corresponding number on the preset
buttons, or turn the interf ace knob to
highlight the desired disc, then press
ENTER on the interf ace selector. The player can play CD-TEXT, MP3,
and WMA formats.
Select the changer by pressing the
CD or CD/AUX button. The system
will begin playing the last selected
disc in the disc changer. You will see
the current disc position highlighted. Each time you press the TITLE
button, the center display changes
f rom album name, to track name, to
artist name, and then to normal
display that shows the track number
and the elapsed time. When playing
a disc in MP3/WMA, the display
mode changes f rom f older name, to
f ile name, to artist tag, to album tag,
to track tag, and then to normal
display.If the disc does not carry album,
track, or artist name, pressing the
TITLE button shows ‘‘NO INFO.’’
Each time you press and release the
side of the SKIP bar, button, or
push the interface selector to the
right, the player skips forward to the
beginning of the next track. Press
and release the side of the
SKIP bar, button, or push the
interface selector to the left to skip
backward to the beginning of the
current track. Press the side or
push the interface selector to the left
againtoskiptotheprevioustrack.
To move rapidly within a track, press
andholdeithersideof theSKIPbar
or button.
Playing Discs (Models with navigation system)
To Play a Disc
To Change Tracks
Features
277
CURRENT DISC
10/01/26 19:10:31 31SZA620_282
2011 Pilot

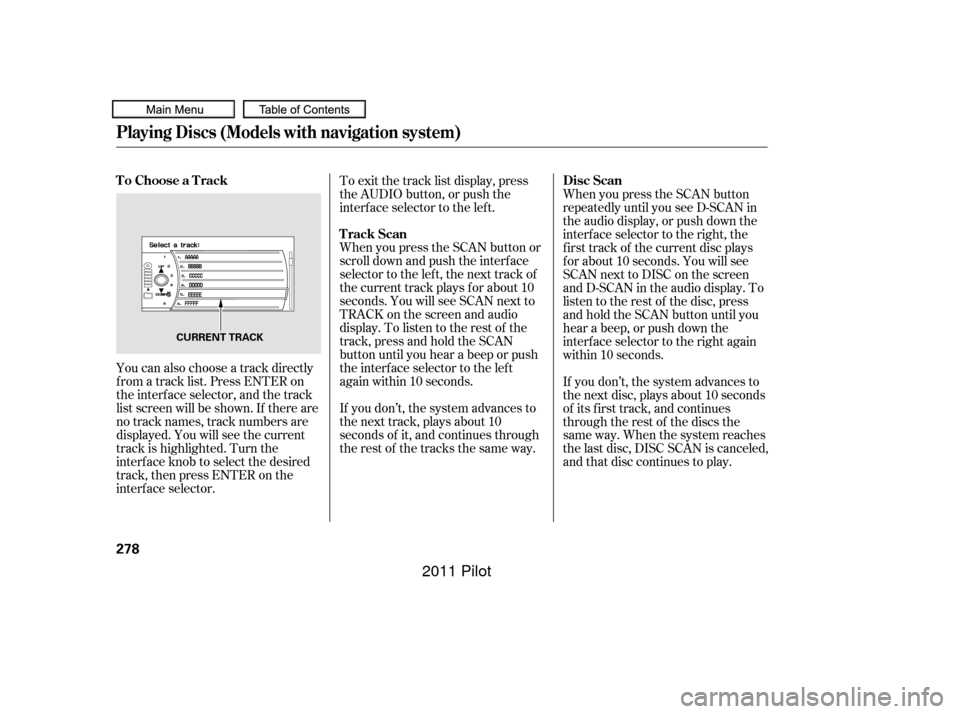

You can also choose a track directly
f rom a track list. Press ENTER on
the interf ace selector, and the track
list screen will be shown. If there are
no track names, track numbers are
displayed. You will see the current
track is highlighted. Turn the
interf ace knob to select the desired
track, then press ENTER on the
interf ace selector.To exit the track list display, press
the AUDIO button, or push the
interf ace selector to the lef t.
When you press the SCAN button or
scroll down and push the interf ace
selector to the left, the next track of
the current track plays f or about 10
seconds. You will see SCAN next to
TRACKonthescreenandaudio
display. To listen to the rest of the
track, press and hold the SCAN
button until you hear a beep or push
the interface selector to the left
again within 10 seconds.
When you press the SCAN button
repeatedly until you see D-SCAN in
the audio display, or push down the
interface selector to the right, the
f irst track of the current disc plays
f or about 10 seconds. You will see
SCAN next to DISC on the screen
and D-SCAN in the audio display. To
listen to the rest of the disc, press
andholdtheSCANbuttonuntilyou
hear a beep, or push down the
interf ace selector to the right again
within 10 seconds.
If you don’t, the system advances to
the next track, plays about 10
seconds of it, and continues through
the rest of the tracks the same way. If you don’t, the system advances to
the next disc, plays about 10 seconds
of its f irst track, and continues
through the rest of the discs the
same way. When the system reaches
the last disc, DISC SCAN is canceled,
and that disc continues to play.
Playing Discs (Models with navigation system)
To Choose a Track
Track ScanDisc Scan
278
CURRENT TRACK
10/01/26 19:10:42 31SZA620_283
2011 Pilot

To replay the current track
continuously, press and release the
RPT button, or use the interface
selector to scroll down, select
TRACK REPEAT, and press ENTER
on the interf ace selector. As a
reminder, you will see REPEAT next
toTRACKonthescreenandRPTin
the audio display. To turn this
feature off, press and hold the RPT
button until you hear a beep, or
highlight TRACK REPEAT (if not
already highlighted), and press
ENTER on the interf ace selector
again.To replay the current disc
continuously, press the RPT button
repeatedly until you see D-RPT in
the audio display, or use the
interf ace selector to scroll down,
select DISC REPEAT, and press
ENTER on the interf ace selector. As
a reminder, you will see REPEAT
next to DISC on the screen and
D-RPT in the audio display. To turn
this feature off, press and hold the
RPT button until you hear a beep, or
highlight DISC REPEAT (if not
already highlighted), and press
ENTER on the interf ace selector
again.To play the tracks of the current disc
in random order, press and release
the RDM button, or use the interface
selector to scroll down, select
TRACK RANDOM, and press
ENTER on the interf ace selector. As
a reminder, you will see RANDOM
next to TRACK on the screen and
RDM in the audio display. To turn
this feature off, press and hold the
RDM button until you hear a beep,
or highlight TRACK RANDOM (if
not already highlighted), and press
ENTER on the interf ace selector
again.
Playing Discs (Models with navigation system)
T rack Repeat
Disc Repeat Random Play
Features
279
10/01/26 19:10:49 31SZA620_284
2011 Pilot

µ
µ
µ
µ
µ µ
µ
µ
To take the system out of disc mode,
press the AM or FM button, the
button, AUX button, or CD/
AUX button. To return to disc mode,
press the CD button or CD/AUX
button.
If you turn the system of f while a
disc is playing, either with the
power/volume knob or the ignition
switch, play will continue at the same
point when you turn it back on. The CD changer can play CD-Rs and
CD-RWscompressedinMP3and
WMA format. When playing a disc in
MP3 or WMA, you will see ‘‘MP3’’ or
‘‘WMA’’ on the center display. A disc
can support more than 99 f olders,
and each folder can hold up to 255
playable f iles.
When there are more than 99 f olders
on a disc, the center display only
shows two digits.
The specif ications f or compatible
MP3 f iles are:
Sampling f requency:
32/44.1/48 kHz (MPEG1), 16/
22.05/24 kHz (MPEG2)
Bitrate:
32/40/48/56/64/80/96/112/128/
160/192/224/256/320 kbps
(MPEG1), 8/16/24/32/40/48/56/
64/80/96/112/128/160 kbps
(MPEG2)
Compatible with variable bitrate and multi-session.
Maximum layers
(including ROOT): 8 layers
The specif ications f or compatible
WMA f iles are: Sampling f requency:
22.05/32/44.1/48 kHz
Bitrate:
48/64/80/96/128/160/192 kbps
Compatible with variable bitrate
and multi-session
Maximum layers
(including ROOT): 8 layers
To play an MP3/WMA disc, use the
disc controls previously described,
along with the f ollowing inf ormation.
Playing Discs (Models with navigation system)
To Stop Playing a Disc Playing an MP3/WMA Disc
280
10/01/26 19:11:04 31SZA620_285
2011 Pilot
