Safe Driving
35
Seat Belts About Your Seat Belts
Proper Use of Seat Belts
■
Follow these guidelines for proper use:
All occupants should sit upright, well back in the seat, and remain in that position

●
for the duration of the trip. Slouching or leaning reduces the effectiveness of the belt and can increase the chance of serious injury in a crash. Never place the shoulder part of a lap/shoulder seat belt under your arm or

●
behind your back. This could cause very serious injuries in a crash.Two people should never use the same seat belt. If they do, they could be very

●
seriously injured in a crash.Do not put any accessories on the seat belts. Devices intended to improve

●
comfort or reposition the shoulder part of a seat belt can reduce the protective capability and increase the chance of serious injury in a crash. Seat Belt Reminder

■
Your vehicle monitors seat belt use. If the ignition switch is turned to ON
II before the
driver’s seat belt is fastened, a beeper will sound and the indicator will blink. If the driver does not fasten the belt before the beeper stops, the indicator will remain on. The beeper will also periodically sound and the indicator will blink while driving until the driver’s and passenger’s seat belts are fastened.
About Your Seat Belts
If your passenger moves around and extends the seat belt, the lockable retractor may activate. If this happens, release the retractor by unfastening the seat belt and allow the belt to retract completely. Then refasten the belt.
Seat Belt Reminder
The indicator will also come on if a passenger does not fasten their seat belt within 6 seconds after the ignition switch is turned to ON
. When no one
is sitting in the passenger's seat, or a child or small adult is riding there, the indicator will not come on. This is because the weight sensor in the seat cannot detect their presence.
Main MenuTable of Contents

Safe Driving
42
Airbags
Airbag System Components
The front, front side, and side curtain airbags are deployed according to the direction and severity of the impact. The airbag system includes:
Two SRS (Supplemental Restraint
System) front airbags. The driver’s
airbag is stored in the center of the
steering wheel; the passenger’s airbag
is stored in the dashboard. Both are
marked “SRS AIRBAG.”
Two side airbags, one for the driver
and one for a passenger. The airbags
are stored in the outer edges of the
seat-backs. Both are marked “SIDE
A I R B A G .”
Two side curtain airbags, one for each
side of the vehicle. The airbags are
stored in the ceiling, above the side
windows. The front and rear pillars
are marked “SIDE CURTAIN AIRBAG.”
An electronic control unit that
continually monitors and records
information about the sensors,
the airbag activators, the seat belt
tensioners, and driver and passenger
seat belt use when the ignition
switch is in ON
II. It also includes
emergency backup power in case
your vehicle’s electrical system is
disconnected in a crash.
Automatic seat belt tensioners. The
driver’s and passenger’s seat belts
incorporate sensors that detect
whether or not they are fastened.
A driver’s seat position sensor that
monitors the distance of the seat from
the front airbag. If the seat is too far
forward, the airbag will inflate with
less force.
Weight sensors in the passenger’s
seat. The passenger’s airbag will be
turned off if the weight on the seat is
65 lbs (29 kg) or less (the weight of an
infant or small child).
Impact sensors that can detect a
moderate to severe front or side
collision.
An indicator on the dashboard that
alerts you that the passenger’s front
airbag has been turned off.
Sensors that can detect if a child
or small statured adult is in the
deployment path of the passenger’s
side airbag.
An indicator on the instrument panel
that alerts you to a possible problem
with your airbag system or seat belt
tensioners.
An indicator on the instrument panel
that alerts you that the passenger’s
side airbag has been turned off.
Main MenuTable of Contents

Safe Driving
45
Airbags Front Airbags (SRS)
Operation
■
Front airbags are designed to inflate during a moderate-to-severe frontal collision. When the vehicle decelerates suddenly, the sensors send information to the control unit which signals one or both front airbags to inflate. A frontal collision can be either head-on or angled between two vehicles, or when a vehicle crashes into a stationary object, such as a concrete wall.
How the Front Airbags Work

■
While your seat belt restrains your torso, the front airbag provides supplemental protection for your head and chest. The front airbags deflate immediately so that they won’t interfere with the driver’s visibility or the ability to steer or operate other controls.
The total time for inflation and deflation is so fast that most occupants are not aware that the airbags deployed until they see them lying in front of them.
How the Front Airbags Work
After a front airbag inlates in a crash, you may see what looks like smoke. This is actually powder from the airbag's surface. Although the powder is not harmful, people with respiratory problems may experience some temporary discomfort. If this occurs, get out of the vehicle as soon as it is safe to do so. Although the driver's and passenger's airbags normally inlate within a split second of each other, it is possible for only one airbag to deploy. This can
happen if the severity of a collision is at the mar gin,
or threshold, that determines whether or not the airbags will deploy. In such cases, the seat belt will provide suficient protection, and the supplemental protection offered by the airbag would be minimal.
continued
Main MenuTable of Contents

Safe Driving
46
Airbags
Front Airbags (SRS)
When Front Airbags Should Not Deploy
■
Minor frontal crashes: Front airbags are designed to supplement seat belts and
help save lives, not to prevent minor scrapes, or even broken bones that might occur during a less than moderate-to-severe frontal crash. Side impacts: Front airbags can provide protection when a sudden deceleration
causes a driver or passenger to move towards the front of the vehicle. Side airbags and side curtain airbags have been specifically designed to help reduce the severity of injuries that can occur during a moderate-to-severe side impact which can cause the driver or passenger to move towards the side of the vehicle. Rear impacts: Head restraints and seat belts are your best protection during a
rear impact. Front airbags cannot provide any significant protection and are not designed to deploy in such collisions. Rollovers: Seat belts, and in vehicles equipped with a rollover sensor, side airbags
and side curtain airbags offer the best protection in a rollover. Because front airbags could provide little if any protection, they are not designed to deploy during a rollover.
When Front Airbags Deploy with Little or No Visible Damage
■
Because the airbag system senses sudden deceleration, a strong impact to the vehicle framework or suspension might cause one or more of the airbags to deploy. Examples include running into a curb, the edge of a hole, or other low fixed object that causes a sudden deceleration in the vehicle chassis. Since the impact is underneath the vehicle, damage may not be readily apparent.
When Front Airbags May Not Deploy, Even Though Exterior Damage
■
Appears Severe
Since crushable body parts absorb crash energy during an impact, the amount of visible damage does not always indicate proper airbag operation. In fact, some
collisions can result in severe damage but no airbag deployment because the airbags would not have been needed or would not have provided protection even if they had deployed.
Main MenuTable of Contents

Safe Driving
47
Airbags Front Airbags (SRS)
Advanced Airbags
■
Your front airbags have advanced features to reduce the likelihood of airbag related injuries to smaller occupants.
The driver's advanced front airbag system includes a seat position sensor. If the seat is too far forward, the airbag inflates with less force, regardless of the severity of the impact. The passenger's advanced front airbag system includes weight sensors. Although Honda recommends against carrying an infant or small child in the passenger seat, if the sensors detect the weight of a child (up to about 65 lbs or 29 kg), the system will automatically turn off the passenger’s front airbag.
Advanced Airbags
If there is a problem with the driver's seat position sensor, the SRS indicator will come on and the airbag will inlate with full (normal) force, regardless of the driver's seating position. For both advanced front airbags to work properly: Do not spill any liquid on or under the seats.
•
Do not put any object under the passenger’s
•
seat. Make sure any objects are positioned properly
•
on the rear loor. Improperly positioned objects can interfere with the advanced airbag sensors.All occupants should sit upright and wear their
•
seat belts properly.
Driver’s SeatPositionSensor
Passenger’s Seat
WeightSensors
Main MenuTable of Contents

Safe Driving
48
Airbags Side Airbags
The side airbags help protect the upper torso of the driver or a passenger during a moderate to severe side impact.Housing Locations

■
The side airbags are housed in the outside edge of the driver’s and passenger’s seat-backs. Both are marked SIDE AIRBAG.
Operation

■
When the sensors detect a moderate-to- severe side impact, the control unit signals the side airbag on the impact side to immediately inflate.
Side Airbags
Do not attach accessories on or near the side airbags. They can interfere with the proper operation of the airbags, or hurt someone if an airbag inlates. If the impact is on the passenger side, the airbag deploys even if there is no passenger in the passenger seat. Do not cover or replace the front seat-back covers without consulting a dealer. Improperly replacing or covering front seat-back covers can prevent your side airbags from properly deploying during a side impact.
Housing Location
Side Airbag When inlated
Side Airbags
Main MenuTable of Contents

Safe Driving
49
Airbags
Side Airbags
When a Side Airbag Deploys With Little or No Visible Damage
■
Because the airbag systems sense sudden acceleration, a strong impact to the side of the vehicle’s framework can cause a side airbag to deploy. In such cases, there may be little or no damage, but the side impact sensors detected a severe enough impact to deploy the airbag.
When a Side Airbag May Not Deploy, Even Though Visible Damage
■
Appears Severe
It is possible for a side airbag to not deploy during an impact that results in apparently severe damage. This can occur when the point of impact was towards the far front or rear of the vehicle, or when the vehicle’s crushable body parts absorbed most of the crash energy. In either case, the side airbag would not have been needed nor provided protection even if it had deployed.
Main MenuTable of Contents

Safe Driving
50
Airbags Side Airbags

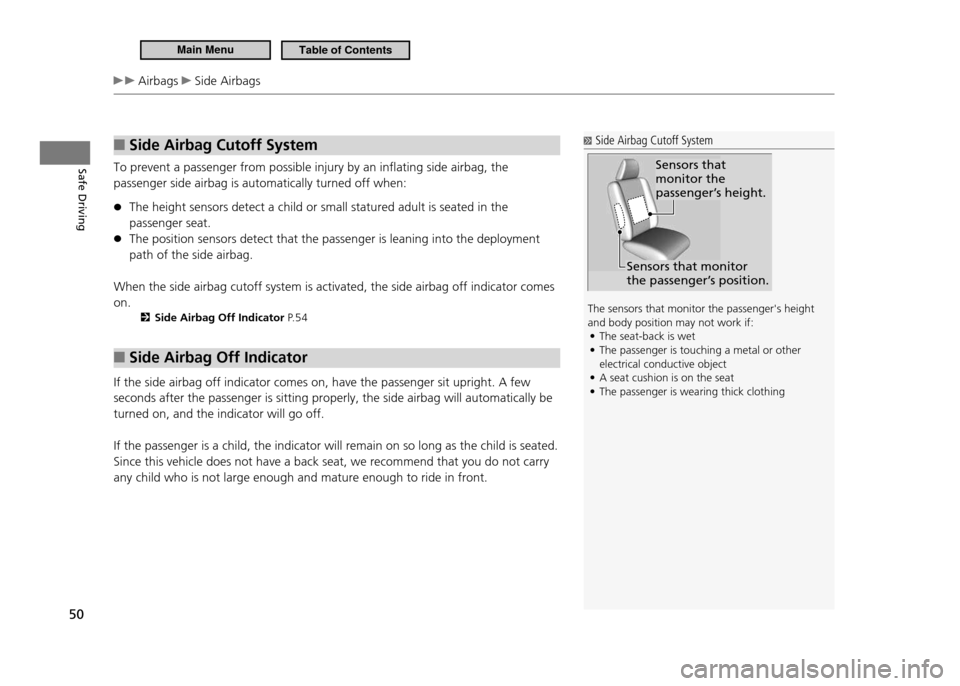

Side Airbag Cutoff System
■
To prevent a passenger from possible injury by an inflating side airbag, the passenger side airbag is automatically turned off when:
The height sensors detect a child or small statured adult is seated in the

●
passenger seat.The position sensors detect that the passenger is leaning into the deployment

●
path of the side airbag.
When the side airbag cutoff system is activated, the side airbag off indicator comes on.
Side Airbag Off Indicator P. 5 4
Side Airbag Off Indicator

■
If the side airbag off indicator comes on, have the passenger sit upright. A few seconds after the passenger is sitting properly, the side airbag will automatically be turned on, and the indicator will go off. If the passenger is a child, the indicator will remain on so long as the child is seated. Since this vehicle does not have a back seat, we recommend that you do not carry any child who is not large enough and mature enough to ride in front.
Side Airbag Cutoff System
The sensors that monitor the passenger's height and body position may not work if: The seat-back is wet
•
The passenger is touching a metal or other
•
electrical conductive objectA seat cushion is on the seat
•
The passenger is wearing thick clothing
•
Sensors that monitor the
passenger’s height.
Sensors that monitor
the passenger’s position.
