2011 HONDA CR-Z stop start

229
Driving
Parking Your Vehicle Auto Idle Stop (Manual Transmission)
The Engine Automatically Restarts When:
■
The clutch pedal is fully depressed, and the shift lever is moved to a position other than
N.
The Engine Automatically Restarts When the Clutch Pedal is Fully
■
Depressed Even If the Shift Lever is in
N When:
The low temperature indicator comes on.

•
The accelerator pedal is pressed.

•
The IMA battery charge becomes low.

•
The climate control system is in use, and the difference between the set

•
temperature and actual interior temperature becomes significant. The climate control system is being used to dehumidify the interior.

• The engine automatically restarts when the pressure on the brake pedal is repeatedly applied and released slightly during a stop. This applies even if the clutch pedal is not fully depressed.
When the Auto Idle Stop Indicator Starts Blinking Rapidly

■
Fully depress the clutch pedal.
The engine automatically restarts
When the Auto Idle Stop Indicator Starts Blinking
Rapidly
The indicator starts blinking rapidly under the following conditions: The

•
(windshield defogger) button is pressed.
When the climate control system is in use and

•
moisture builds up inside the vehicle. When the climate control system is in use and

•
the difference between the set temperature and the actual temperature inside the vehicle becomes signiicant.
Main MenuTable of Contents

251
Maintenance
Maintenance Under the Hood Changing the Engine Oil and Oil Filter
6. Check that the filter gasket is not stuck to the engine contact surface.
If it is stuck, you must detach it.
Wipe away dirt and dust adhering to the
7.
contact surface of the engine block, and install a new oil filter. Put a new washer on the drain bolt, then
8.
reinstall the drain bolt.
Tightening torque: 29 lbf∙ft (39 N∙m, 4.0 kgf∙m)
Pour the recommended engine oil into the
9.
engine.
Engine oil change capacity (including filter): 3.8 US qt (3.6 L)
Reinstall the engine oil fill cap back and
10.
start the engine. Run the engine for a few minutes, and
11.
then check that there is no leak from the drain bolt or oil filter. Stop the engine, wait for a few minutes,
12.
and then check the oil level on the engine oil dipstick.
If necessary, add more engine oil.
Oil Filter
Changing the Engine Oil and Oil Filter
You will need a special wrench to replace the oil ilter. You can buy this wrench from a dealer. When installing the new oil ilter, follow the instruction supplied with the oil ilter. Reinstall the engine oil ill cap. Start the engine. The low oil pressure indicator should go off within ive seconds. If it does not, turn off the engine, and check your work.
Main MenuTable of Contents

298
Handling the Unexpected
Overheating How to Handle Overheating
Next Thing to Do
■
1. Check that the cooling fan is operating and stop the engine once the high temperature indicator goes off.
If the cooling fan is not operating,
immediately stop the engine.
Once the engine has cooled down, inspect
2.
the coolant level and check the cooling system components for leaks.
If the coolant level in the reserve tank is
low, add coolant until it reaches the MAX mark.
If there is no coolant in the reserve tank, check that the radiator is cool. Cover the radiator cap with a heavy cloth and open the cap. If necessary, add coolant up to the base of the filler neck, and put the cap back on.
Last Thing to Do
■
Once the engine has cooled sufficiently, restart it and check the high temperature
•
indicator.
If the high temperature indicator is off, resume driving. If it stays on, contact a dealer for repairs.
Reserve
Tank
MIN
MAX
How to Handle Overheating
If the coolant is leaking, contact a dealer for repairs. Use water as an emergency/temporary measure only. Have a dealer lush the system with proper antifreeze as soon as possible.
WARNING
Removing the radiator cap while the engine is hot can cause the coolant to spray out, seriously scalding you.
Always let the engine and radiator cool down before removing the radiator cap.
Main MenuTable of Contents

299
Handling the Unexpected
Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes On
If the Low Oil Pressure Indicator Comes On
NOTICE Running the engine with low oil pressure can cause serious mechanical damage almost immediately.
■
Reasons for the Indicator to Come On
Comes on when the engine oil pressure is low.
What to Do as Soon as the Indicator Comes On
■
Immediately park the vehicle in a safe place.
1.
If necessary, turn the hazard warning lights on.
2.
What to Do After Parking the Vehicle
■
Stop the engine and let it sit for about one minute.
1.
Open the hood and check the oil level.
2.
Add oil as necessary.
Start the engine and check the low oil pressure indicator.
3.
The light goes out: Start driving again.
The light does not go out within 10 seconds: Stop the engine and
contact a dealer for repairs immediately.
Main MenuTable of Contents

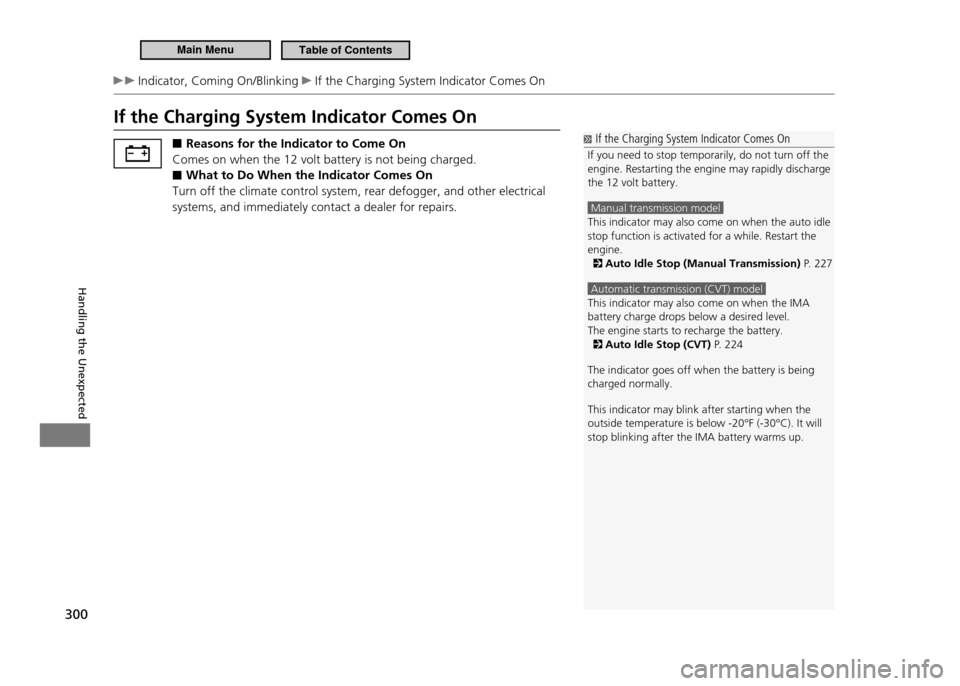

300
Handling the Unexpected
Indicator, Coming On/Blinking If the Charging System Indicator Comes On
If the Charging System Indicator Comes On ■Reasons for the Indicator to Come On
Comes on when the 12 volt battery is not being charged.
What to Do When the Indicator Comes On
■
Turn off the climate control system, rear defogger, and other electrical systems, and immediately contact a dealer for repairs.
If the Charging System Indicator Comes On
If you need to stop temporarily, do not turn off the
engine. Restarting the engine may rapidly discharge the 12 volt battery.
Manual transmission model This indicator may also come on when the auto idle stop function is activated for a while. Restart the engine.
Auto Idle Stop (Manual Transmission) P. 227
Automatic transmission (CVT) model This indicator may also come on when the IMA battery charge drops below a desired level.The engine starts to recharge the battery.
Auto Idle Stop (CVT) P. 224
The indicator goes off when the battery is being charged normally. This indicator may blink after starting when the outside temperature is below -20°F (-30°C). It will stop blinking after the IMA battery warms up.
Main MenuTable of Contents

301
Handling the Unexpected
Indicator, Coming On/Blinking If the Malfunction Indicator Lamp Comes On or Blinks
If the Malfunction Indicator Lamp Comes On or Blinks ■Reasons for the Indicator Lamp to Come On or Blink
Comes on when there is a problem with the engine emissions control

•
system, or the fuel fill cap is missing or loose. Blinks when engine misfiring is detected.

•
What to Do When the Indicator Lamp Comes On
■
Avoid high speeds and immediately get your vehicle inspected at a dealer.
What to Do When the Indicator Lamp Blinks
■
Park the vehicle in a safe place with no flammable items and wait at least ten minutes or more with the engine stopped until it cools.
Tighten Fuel Fill Cap Message

■
The Message Appears on When:
■
An evaporative system leak is detected. This may be caused by the fuel fill cap being loose or not being installed.
What to Do When the Message Appears:
■
Stop the engine.
1.
Check that the fuel fill cap is fully installed.
2.
If not, loosen the cap, and then retighten it until it clicks at least once.
Drive for several days of normal driving.
3.
The message should go off.
When the Malfunction Indicator Lamp Comes On
■
Malfunction indicator lamp comes on if the system continues to detect a leak of gasoline vapor. If this happens, check the fuel fill cap using the procedures described above.
If the Malfunction Indicator Lamp Comes On or Blinks
NOTICE If you drive with the malfunction indicator lamp on ,
the emissions control system and the engine could be damaged.
If the malfunction indicator lamp blinks again when restarting the engine, drive to the nearest dealer at 31 mph (50 km/h) or less. Have your vehicle inspected.
Main MenuTable of Contents

302
Handling the Unexpected
Indicator, Coming On/Blinking If the Brake System Indicator Comes On If the EPS Indicator Comes On
If the Brake System Indicator Comes On
■Reasons for the Indicator to Come On
The brake fluid is low.

•
There is a malfunction in the brake system.

•
What to Do When the Indicator Comes On While Driving
■
Press the brake pedal lightly to check pedal pressure.
If normal, check the brake fluid level the next time you stop.

•
If abnormal, take immediate action. If necessary, downshift the

•
transmission to slow the vehicle using engine braking.
If the EPS Indicator Comes On
■Reasons for the Indicator to Come On
Comes on when there is a problem with EPS.

•
If you depress the accelerator pedal repeatedly to increase the

•
engine speed while the engine is idling, the indicator comes on, and sometimes the steering wheel becomes harder to operate.
What to Do When the Indicator Comes On
■
Stop the vehicle in a safe place and restart the engine.

• If the indicator comes on and stays on, immediately have your vehicle inspected by a dealer.
U.S.
Canada If the Brake System Indicator Comes On
Have your vehicle repaired immediately. It is dangerous to drive with low brake luid. If there is no resistance from the brake pedal, stop immediately in a safe place. If necessary downshift the gears. If the brake system indicator and ABS indicator come on simultaneously, the brake distribution system is not working. This can result in vehicle instability under sudden braking. Have your vehicle inspected by a dealer immediately.
If the EPS Indicator Comes On
NOTICE If the steering wheel is operated repeatedly or at an extremely low speed, or you hold the steering wheel on the full left or right position for a while, the system heats up. The system goes into a protective mode, and limits its performance. The steering wheel becomes harder and harder to operate. Once the system cools down, EPS is restored. Repeated operation under these conditions can eventually result in a damage to the system.
Main MenuTable of Contents

Index
323
Index
continued
A
ABS (Anti-lock Brake System) ..........................221
Accessories and Modifications
........................235
Accessory Power Socket
.......................................127
Active Head Restraints
..........................................12 2
Adding
...............................................................................249
Engine Coolant ..........................................................
252
Engine Oil .....................................................................
249
Window Washer .......................................................
257
Additives, Engine Oil
..............................................247
Adjusting
.........................................................................117
Headlights ....................................................................
258
Mirrors ...........................................................................
11 8
Seats ................................................................................
119
Steering Wheel ..........................................................
117
Temperature (Climate Control) ........................
131
Airbags
.................................................................................41
Advanced Airbags ......................................................
47
After a Collision ..........................................................
45
Airbag Care ....................................................................
55
Event Data Recorder .................................................
26
Front Airbags (SRS) ...................................................
44
Indicator .............................................................
52,71,74
Passenger Airbag Off Indicator .........................
53
Sensors ..............................................................................
41
Side Airbag ....................................................................
48
Side Airbag Cutoff System ...................................
50
Side Airbag Off Indicator ......................................
50
Side Curtain Airbag ...................................................
51Air Conditioning System
(Climate Control System)
..................................131
Changing the Mode ...............................................
131
Defrosting the Windshield and Windows .
132
Dust and Pollen Filter .............................................
280
Recirculation/Fresh Air Mode ...........................
131
Sensors ...........................................................................
133
Using Automatic Climate Control ..................
131
Air Pressure
..........................................................270 , 313
Ambient Meter
..........................................................8 ,14
AM/FM Audio
....................................................14 3 ,15 4
Anti-lock Brake System (ABS)
..........................221
Indicator ...........................................................................
70
ASST (Electric Motor Assist) Indicator
.........82
Auto Door Lock /Unlock
........................................103
Automatic Lighting
..................................................111
Audio System
...............................................................13 6
Auxiliary Input Jack .................................................
13 9
Error Messages ..........................................................
167
General Information ...............................................
170
MP3/ WMA /AAC ............................................
14 9 ,16 5
Recommended Devices ........................................
17 2
Recommended Discs ..............................................
170
Remote Controls ......................................................
169
Security Code .............................................................
14 0
Theft Protection ........................................................
14 0
USB Adapter Cable .................................................
13 8
USB Flash Memory Devices ................................
137
Audio with Navigation System
.......................151
Audio without Navigation System
..............141
Authorized Manual .................................................319
Auto Idle Stop
....................................................224,227
Automatic Transmission (CV T) .........................
224
Manual Transmission .............................................
227
Auto Idle Stop Indicator
.........................................76
Automatic Transmission (CV T)
........................201
Creep Aid System ....................................................
19 9
Creeping .......................................................................
201
Fluid .................................................................................
254
Kickdown .....................................................................
201
Operating the Shift Lever .............................
20,202
7-Speed Manual Shift Mode ............................
204
Shifting ..........................................................................
202
Shift Lever Does Not Move ...............................
296
Auxiliary Input Jack
.................................................13 9
Average Fuel Economy
...........................................87
Average Fuel Economy Records
.......................87
Average Speed
..............................................................87
B
Battery...............................................................................278
Charging System Indicator .........................
69,300
Jump Starting ............................................................
294
Maintenance (Checking the 12 volt Battery) .......................
278
Replacing ......................................................................
279
Battery Charge in Progress (CHRG) Indicator .......................................................................
82
Main Menu
