If , due to damage, your vehicle must
be towed with the f ront wheels on
the ground, do this:
With the f ront wheels on the ground,
it is best to tow the vehicle no farther
than 50 miles (80 km), and keep the
speedbelow35mph(55km/h).
If your vehicle needs to be towed,
call a prof essional towing service or
organization. Never tow your vehicle
with just a rope or chain. It is very
dangerous.
Therearetwowaystotowyour
vehicle:
The tow
truck uses two pivoting arms that go
under the tires (f ront) and lif t them
of f the ground. The other two tires
remain on the ground. The operator
loads your vehicle on the back of a
truck. Start the engine.
Shif t to the D position and hold f or
5 seconds, then to N.
Turn of f the engine.
Release the parking brake.
Leave the ignition switch in the
ACCESSORY (I) position so the
steering wheel does not lock.
Wheel-lif t Equipment
Flat -bed Equipment
T his is an
acceptable way to tow your
vehicle. T his is the best way to
transport your vehicle.
Emergency T owing
T aking Care of t he Unexpect ed
333
Improper towing preparation will
damage the transmission. Follow the
above procedure exactly. If you cannot
shif t the transmission or start the
engine, your vehicle must be
transported with the f ront wheels of f
the ground.
Main Menu

Emergency T owing
334The steering system can be damaged if
the steering wheel is locked. Leave the
ignition switch in the ACCESSORY (I)
position, and make sure the steering
wheel turns f reely bef ore you begin
towing.
Trying to lif t or tow your vehicle by the
bumpers will cause serious damage.
The bumpers are not designed to
support the vehicle’s weight.
Main Menu

µ
Thediagramsinthissectiongive
you the dimensions and capacities of
your vehicle and the locations of the
identif ication numbers. It also
includes inf ormation you should
know about your vehicle’s tires and
emissions control systems.
................
Identif ication Numbers . 336
................................
Specif ications . 338
DOT Tire Quality Grading
......................
(U.S. Vehicles) . 340
Unif orm Tire Quality ..................................
Grading . 340
.................................
Treadwear . 340
......................................
Traction . 340
.............................
Temperature . 341
.................................
Tire Labeling . 341
Tire Pressure Monitoring System
(TPMS) Required Federal ............................
Explanation . 343 .......................
Emissions Controls . 345
.....................
The Clean Air Act . 345
Crankcase Emissions Control
....................................
System . 345
Evaporative Emissions Control ....................................
System . 345
Onboard Ref ueling Vapor
................................
Recovery . 345
...
Exhaust Emissions Controls . 346
....................
PGM-FI System . 346
Ignition Timing Control
................................
System . 346
Exhaust Gas Recirculation ...................
(EGR) System . 346
Three Way Catalytic ...........................
Converter . 346
....................
Replacement Parts . 346
..
Three Way Catalytic Converter . 347
........................
Emissions Testing . 348
T echnical Inf ormat ion
T echnical Inf ormat ion
335
Main Menu

Your vehicle has several identif ying
numbers in various places.
The vehicle identif ication number
(VIN) is the 17-digit number your
dealer uses to register your vehicle
f or warranty purposes. It is also
necessary f or licensing and insuring
your vehicle. The easiest place to
find the VIN is on a plate fastened to
the top of the dashboard. You can
seeitbylookingthroughthe
windshield on the driver’s side. It is
also on the certification label
attached to the driver’s doorjamb,
and is stamped on the engine
compartment bulkhead. The VIN is
also provided in bar code on the
certif ication label.

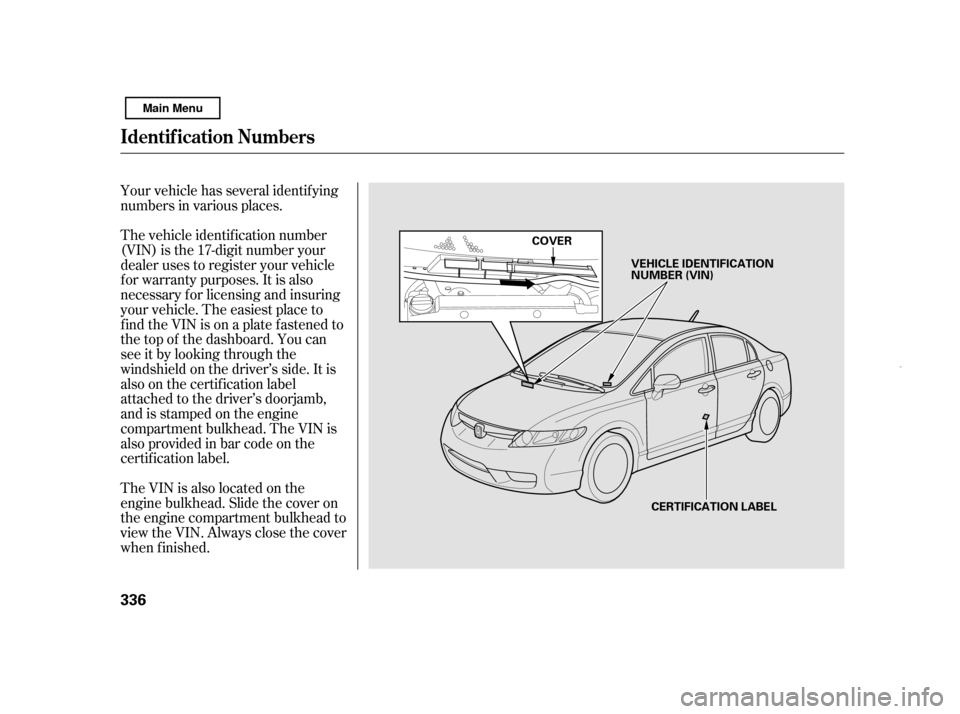

The VIN is also located on the
engine bulkhead. Slide the cover on
the engine compartment bulkhead to
view the VIN. Always close the cover
when f inished.
Identif ication Numbers
336COVER
CERTIFICATION LABEL
VEHICLE IDENTIFICATION
NUMBER (VIN)
Main Menu

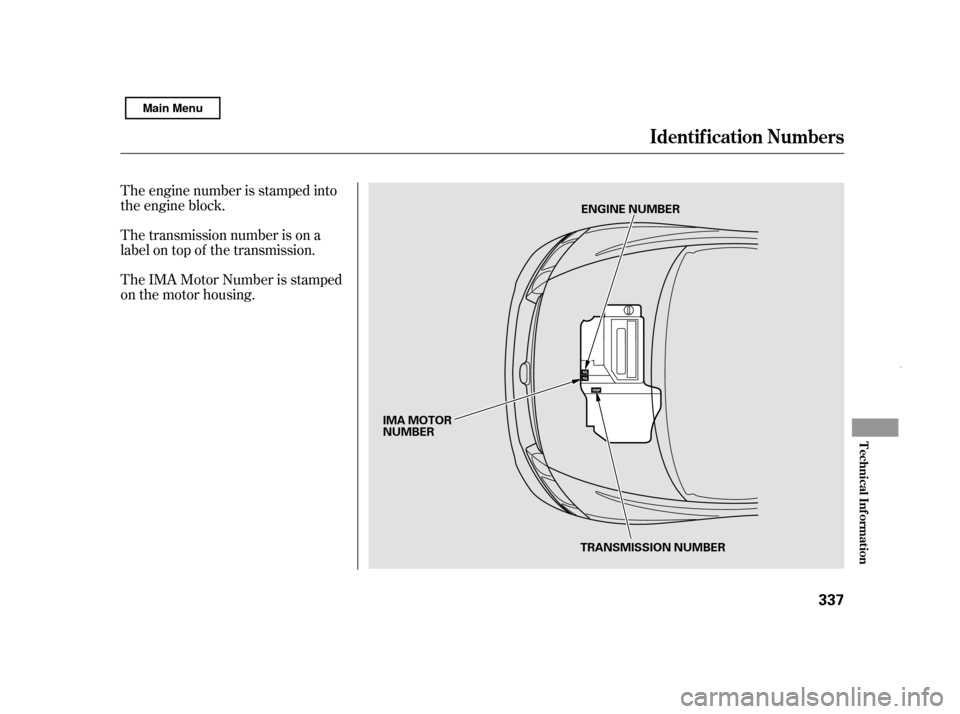

The engine number is stamped into
the engine block.
The transmission number is on a
label on top of the transmission.
The IMA Motor Number is stamped
on the motor housing.
Identif ication Numbers
T echnical Inf ormat ion
337
ENGINE NUMBER
IMA MOTOR
NUMBER TRANSMISSION NUMBER
Main Menu

Î ÎÎ Î
Specif ications
338Dimensions
Weights
Engine
Seating Capacities Capacities
177.3 in (4,504 mm)
69.0 in (1,752 mm)
56.3 in (1,430 mm)
106.3 in (2,700 mm)
59.1 in (1,501 mm)
60.2 in (1,529 mm)
Length
Width
Height
Wheelbase
Track
Gross vehicle weight rating See the certification label attached
to the driver’s doorjamb. 3.0 US qt (2.8
)
5.4 US qt (5.1)
1.255 US gal (4.75
)
1.59 US gal (6.0)
3.4 US qt (3.2
)
3.2 US qt (3.0)
4.0 US qt (3.8)
12.3 US gal (46.6
)
Type
BorexStroke
Displacement
Compression ratio
Spark plugs SK20HPR-L11
ILFR6J-11K 10.8
82 cu-in (1,339 cm
)
2.87 x 3.15 in (73.0 x 80.0 mm)
Water cooled 4-stroke SOHC i-VTEC
gasoline engine with Hybrid Electric
Total
FrontRear
523Fuel tank
Engine
coolant
Engine oil Automatic
transmission
fluid
Windshield
washer
reservoir
Excluding the oil remaining in the engine
Including the coolant in the reserve tank and that remaining in the
engine
Reserve tank capacity: 0.11 US gal (0.4
)
2.6 US qt (2.5
)
4.8 US qt (4.5)
Front Rear
Approx.
1: 2:
(NGK) (DENSO) Change Total
Change
Including filter
Without filter
Total
ChangeTotal
U.S. Vehicles
Canada Vehicles 1 2
Main Menu

µµµµ
µ µ
Specif ications
Technical Inf ormat ion
339
Air Conditioning
Fuses
Alignment
12 Volt Battery Tires
Lights
HFC-134a (R-134a)
14.1 15.9 oz (400 450 g) SE-10Y
60 W
3CP
21/5 W
21 W
7°6’1°39’ 0°3’
0.00 in (0.0 mm)
P195/65R15 89S 2.0 in (2.0 mm)
Refrigerant type
Charge quantity
Lubricant oil type
Interior
Under-hood
Toe-in
CamberCaster
51 W
21 W 5W 8W8W5W
Capacity 12 V 35 AH/20 HR T135/80D15 99M
32 psi (220 kPa , 2.2 kgf/cm
)
60 psi (420 kPa , 4.2 kgf/cm)
Size
Pressure
2CP
12 V 28 AH/5 HR 24/2.2 CP
Headlights
Front turn signal/side marker
lights
Rear turn signal lights
Brake/Taillights (in fenders)
Back-up lights
Rear side marker lights
Taillights (in trunk lid)
License plate lights
Ceiling light
Spotlights
Trunk light See page 332 or the fuse label
attached to the inside of the fuse
box door under the steering
column.
See page 331 or the fuse box
cover.
FrontRear
FrontRear
Front
HighLow
(HB3)(HB4)
Front/Rear
Spare
Front/Rear
Spare
Main Menu

Quality grades can be f ound where
applicable on the tire sidewall
between tread shoulder and
maximum section width. For
example:
All passenger car tires must conf orm
to Federal Saf ety Requirements in
addition to these grades.The traction grades, f rom highest to
lowest, are AA, A, B, and C. Those
grades represent the tire’s ability to
stop on wet pavement as measured
under controlled conditions on
specif ied government test surf aces
of asphalt and concrete. A tire
marked C may have poor traction
perf ormance.
Warning: The traction grade
assignedtothistireisbasedon
straight-ahead braking traction tests,
and does not include acceleration,
cornering, hydroplaning, or peak
traction characteristics.
The tires on your vehicle meet all
U.S. Federal Saf ety Requirements.
All tires are also graded f or
treadwear, traction, and temperature
perf ormance according to
Department of Transportation
(DOT) standards. The f ollowing
explains these gradings.
The treadwear grade is a compara-
tive rating based on the wear rate of
the tire when tested under controlled
conditions on a specif ied government
test course. For example, a tire
graded 150 would wear one and one-
half (1 1/2) times as well on the
government course as a tire graded
100. The relative perf ormance of
tires depends upon the actual condi-
tions of their use, however, and may
depart signif icantly f rom the norm
due to variations in driving habits,
service practices and dif f erences in
road characteristics and climate.
Unif orm T ire Quality Grading
T readwear 200
Traction AA
Temperature A T readwear T raction
DOT T ire Qualit y Grading (U.S. Vehicles)
