The scan f unction samples all
stations with strong signals on the
selected RDS category. To activate it,
press and release the SCAN button.
You will see SCAN in the display.
The system will scan f or a station
with a strong signal in the selected
RDS category. You will also see the
selected RDS category name
blinking while searching it. When it
f inds a strong signal, it will stop and
play that station for about 10 seconds.
If you do nothing, the system will
scan f or the next strong station and
play it f or 10 seconds. When it plays
a station that you want to listen to,
press the SCAN button again.
If the system does not find a station,
‘‘NOTHING’’ will be blinking f or
about 5 seconds, then the system
goes back to the last selected station.
Press the MENU button to display
the sound settings. Turn the selector
knob to select an appropriate setting:
bass, treble, fader, balance, SUBW
(subwoof er) and SVC (speed-
sensitive volume compensation).
Press the selector knob (ENTER) to
enter the setting, then turn the
selector knob to adjust the setting.
If equipped
You can use the RDS program
search or scan f unction even if the
RDS inf ormation display f unction is
off.
:
CONT INUED
RDS Program SCANAdjusting the Sound
Playing the FM/AM Radio (EX, EX-L , Canadian SE, and V6 models without navigation system)
Features
157
Selector knob adjustable
direction is shown.FADER is selectable.
10/06/18 16:02:54 31TA5630_162
2011 Accord Sedan

µµ
µ
µ µ
µ
Adjusts the bass.
Adjusts the side-to-
side strength of the sound. Adjusts the front-to-back
strength of the sound. Adjusts the treble. Adjusts the strength of
sound f rom the subwoof er speaker.
The SVC has f our modes: SVC OFF,
SVC LOW, SVC MID, and SVC
HIGH. Turn the selector knob to
adjust the setting to your liking. If
you f eel the sound is too loud,
choose low. If you f eel the sound is
too quiet, choose high. The SVC mode controls the volume
based on vehicle speed. The f aster
you go, the louder the audio volume
becomes. As you slow down, the
audio volume decreases.
Eachmodeisshowninthedisplayas
it changes. Turn the selector knob to
adjust the setting to your liking. If the fader adjustment is set to F9
(maximum f ront level), the
subwoof er is turned of f . Adjusts the volume level
basedonthevehiclespeed.
When the level reaches the center,
you will see ‘‘C’’ in the display.
To return to the normal play, push
the RETURN or MENU button after
you stop adjusting a mode. You can use the instrument panel
brightness control knob to adjust the
illumination of the audio system (see
page ). The audio system
illuminates when the parking lights
are on, even if the radio is turned of f .
72
If equipped
Except SVC adjustment
BASS
BAL ANCE FADER TREBLE SUBW
SVC
A udio System L ighting
Speed-sensit ive VolumeCompensat ion (SVC)
Playing the FM/AM Radio (EX, EX-L , Canadian SE, and V6 models without navigation system)
158
SUBWOOFER is selectable.
10/06/18 16:03:06 31TA5630_163
2011 Accord Sedan

To adjust them, press the AUDIO
button, push the interf ace selector
down, and turn the interf ace knob to
SOUND. Then press ENTER on the
selector.
BASS, TREBLE, FADER, and
BALANCE are each adjustable. You
can also adjust the strength of the
sound coming f rom the subwoof er
speaker. In addition, you can set the
speed-sensitive volume
compensation (SVC).
Theseadjustmentscanbemadeby
the SOUND button or the interface
dial.
Selectthemodeyouwanttoadjust
by turning the interf ace dial.You can also adjust the sound by
pushing the SOUND button
repeatedly. Each mode is shown in
the center display as it changes.
Turn the power/volume knob to
adjust the setting to your liking.
When the level reaches the center,
you will see ‘‘C’’ in the display.
The system will return to the audio
playing mode in the center display
about 10 seconds af ter you stop
adjusting a mode.
CONT INUED
Adjusting the Sound
Playing the FM/A M Radio (Models with navigation system)
Features
205
SOUND ICON
10/06/18 16:08:56 31TA5630_210
2011 Accord Sedan

µµ µ
To adjust bass
and treble, select BASS or TREBLE,
andpressENTERontheinterface
selector. The current setting is
shownonthedisplay.Turnthe
interf ace knob to the desired level,
and enter your selection by pressing
ENTER on the interf ace selector. The SVC mode controls the volume
based on vehicle speed. The f aster
you go, the louder the audio volume
becomes. As you slow down, the
audio volume decreases.
The SVC has f our modes: SVC OFF,
SVC LOW, SVC MID, and SVC
HIGH. The def ault setting is MID.
To change the SVC mode, select
SVC, then press ENTER on the
interf ace selector. The current
setting is shown on the screen. Turn
the interface knob to the desired
level, and enter your selection by
pressing ENTER on the interf ace
selector. If you f eel the sound is too
loud, choose low. If you f eel the
sound is too quiet, choose high.
These
modes adjust the strength of the
sound coming f rom each speaker.
Fader adjusts the f ront-to-back
strength, while balance adjusts the
side-to-side strength. To adjust f ader
and balance, select FADER or
BALANCE, then press ENTER on
the interf ace selector. The current
setting is shown on the screen. Turn
the interface knob to the desired
level, and enter your selection by
pressing ENTER on the interf ace
selector. To equalize the f ader or
balance, turn the interf ace knob until
the marks on the sound grid come to
the center of the adjustment bar. To adjust the
strength of the sound f rom the
subwoof er speaker, select it and
press ENTER on the interf ace
selector. Turn the interf ace knob to
the desired level, and enter your
selection by pressing ENTER on the
interf ace selector.
If the fader adjustment is set to F9
(maximum f ront level), the
subwoof er is turned of f .
BASS/TREBL E
FADER/BALANCE
SUBWOOFERSpeed-sensit ive Volume
Compensat ion (SVC)
Playing the FM/A M Radio (Models with navigation system)
206
10/06/18 16:09:02 31TA5630_211
2011 Accord Sedan

Push the AUDIO button to display
XM inf ormation on the screen. You
can operate the XM Radio system
with the interface dial.
To listen to XM Radio, turn the
ignition switch to the ACCESSORY
(I) or ON (II) position, and press the button. The last channel you
listened to will show in the audio
screen and the center display. Adjust
the volume by turning the power/
volume knob.
Your vehicle is capable of receiving
XM
Radio anywhere in the United
States and Canada, except Hawaii,
Alaska,andPuertoRico.XMisa
registered trademark of Sirius XM
Radio
,Inc.andXMCANADAis a
registered business name of
Canadian Satellite Radio Inc.
XM Radio receives signals f rom two
satellites to produce clear, high-
quality digital reception. It of f ers
many channels in several categories.
Along with a large selection of
dif f erent types of music, XM Radio
also allows you to view channel and
category selections in the audio
display. Operating the XM Radio
Playing the XMRadio (Models with navigation system)
208
10/06/18 16:09:14 31TA5630_213
2011 Accord Sedan

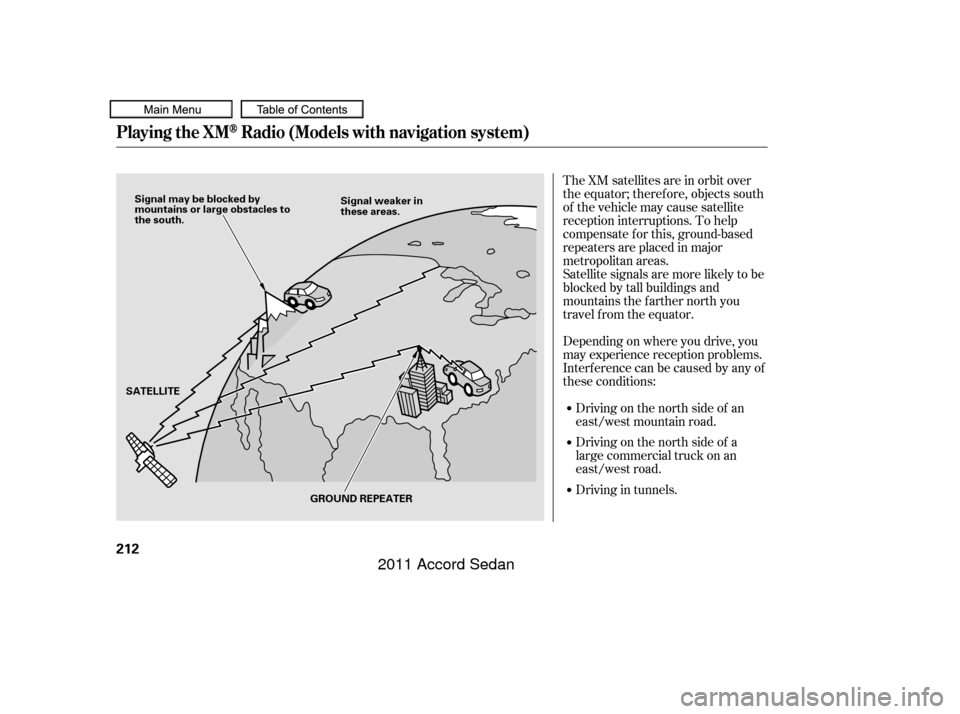

The XM satellites are in orbit over
the equator; therefore, objects south
of the vehicle may cause satellite
reception interruptions. To help
compensate f or this, ground-based
repeaters are placed in major
metropolitan areas.
Satellite signals are more likely to be
blocked by tall buildings and
mountains the f arther north you
travel from the equator.
Depending on where you drive, you
may experience reception problems.
Interf erence can be caused by any of
these conditions:Driving on the north side of an
east/west mountain road.
Driving in tunnels. Driving on the north side of a
large commercial truck on an
east/west road.
Playing the XMRadio (Models with navigation system)
212
Signal may be blocked by
mountains or large obstacles to
the south. Signal weaker in
these areas.
SATELLITE GROUND REPEATER
10/06/18 16:09:45 31TA5630_217
