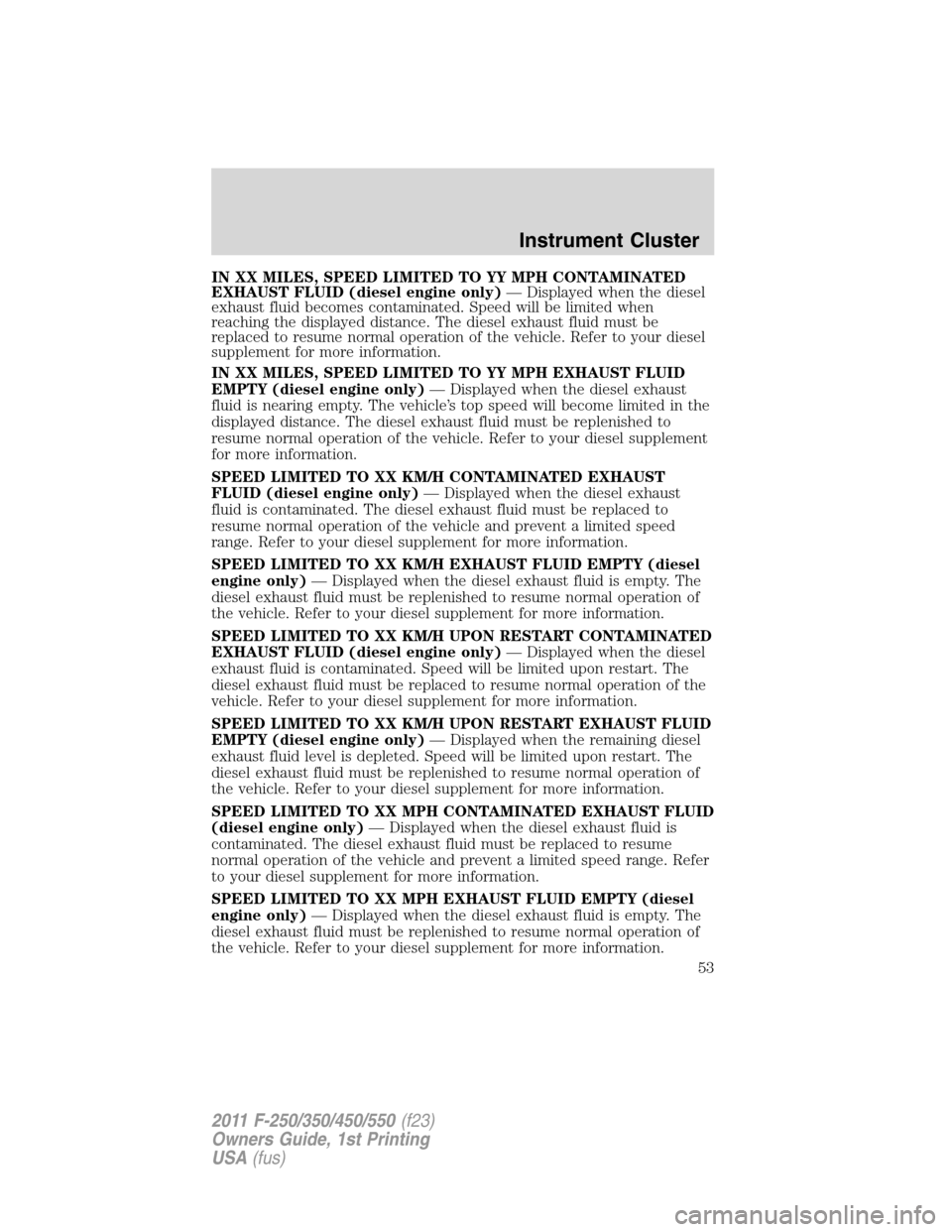

IN XX MILES, SPEED LIMITED TO YY MPH CONTAMINATED
EXHAUST FLUID (diesel engine only)— Displayed when the diesel
exhaust fluid becomes contaminated. Speed will be limited when
reaching the displayed distance. The diesel exhaust fluid must be
replaced to resume normal operation of the vehicle. Refer to your diesel
supplement for more information.
IN XX MILES, SPEED LIMITED TO YY MPH EXHAUST FLUID
EMPTY (diesel engine only)— Displayed when the diesel exhaust
fluid is nearing empty. The vehicle’s top speed will become limited in the
displayed distance. The diesel exhaust fluid must be replenished to
resume normal operation of the vehicle. Refer to your diesel supplement
for more information.
SPEED LIMITED TO XX KM/H CONTAMINATED EXHAUST
FLUID (diesel engine only)— Displayed when the diesel exhaust
fluid is contaminated. The diesel exhaust fluid must be replaced to
resume normal operation of the vehicle and prevent a limited speed
range. Refer to your diesel supplement for more information.
SPEED LIMITED TO XX KM/H EXHAUST FLUID EMPTY (diesel
engine only)— Displayed when the diesel exhaust fluid is empty. The
diesel exhaust fluid must be replenished to resume normal operation of
the vehicle. Refer to your diesel supplement for more information.
SPEED LIMITED TO XX KM/H UPON RESTART CONTAMINATED
EXHAUST FLUID (diesel engine only)— Displayed when the diesel
exhaust fluid is contaminated. Speed will be limited upon restart. The
diesel exhaust fluid must be replaced to resume normal operation of the
vehicle. Refer to your diesel supplement for more information.
SPEED LIMITED TO XX KM/H UPON RESTART EXHAUST FLUID
EMPTY (diesel engine only)— Displayed when the remaining diesel
exhaust fluid level is depleted. Speed will be limited upon restart. The
diesel exhaust fluid must be replenished to resume normal operation of
the vehicle. Refer to your diesel supplement for more information.
SPEED LIMITED TO XX MPH CONTAMINATED EXHAUST FLUID
(diesel engine only)— Displayed when the diesel exhaust fluid is
contaminated. The diesel exhaust fluid must be replaced to resume
normal operation of the vehicle and prevent a limited speed range. Refer
to your diesel supplement for more information.
SPEED LIMITED TO XX MPH EXHAUST FLUID EMPTY (diesel
engine only)— Displayed when the diesel exhaust fluid is empty. The
diesel exhaust fluid must be replenished to resume normal operation of
the vehicle. Refer to your diesel supplement for more information.
Instrument Cluster
53
2011 F-250/350/450/550(f23)
Owners Guide, 1st Printing
USA(fus)

SPEED LIMITED TO XX MPH UPON RESTART CONTAMINATED
EXHAUST FLUID (diesel engine only)— Displayed when the diesel
exhaust fluid is contaminated. Speed will be limited upon restart. The
diesel exhaust fluid must be replaced to resume normal operation of the
vehicle. Refer to your diesel supplement for more information.
SPEED LIMITED TO XX MPH UPON RESTART EXHAUST FLUID
EMPTY (diesel engine only)— Displayed when the remaining diesel
exhaust fluid level is depleted. Speed will be limited upon restart. The
diesel exhaust fluid must be replenished to resume normal operation of
the vehicle. Refer to your diesel supplement for more information.
LOW FUEL PRESSURE (diesel engine only)— If this message
appears during a cold start or during cold operation 32°F (0°C) up to
10 minutes after the initial cold start; monitor the message center and if
it disappears and does not re-appear after the engine has fully warmed
up, the low fuel pressure message is most likely caused by waxed or
gelled fuel. To prevent this, use an anti-gel additive. Refer to your diesel
supplement for more information. The customer warranty may be void
from using additives that do not meet or exceed Ford specifications. If
the low fuel pressure message persistently appears after re-fueling during
the cold start and cold operation conditions defined previously and then
disappear when the engine has fully warmed up, consider different fuel
sources.
•Low Fuel Operation: If the message appears when the vehicle is warm
and during low fuel tank level operation, i.e. the tank level is at or
very near empty, refuel the vehicle and operate the vehicle. If the
message reappears after fueling, see below. If the message does not
come back, the low fuel pressure condition was due to low fuel levels
in the fuel tank.
•Normal Operation: If the message appears during normal operation
when the vehicle / engine is fully warm, and fuel level is not low, the
fuel filters must be changed regardless of the maintenance schedule
interval. If replacement of the fuel filter does not remedy the low fuel
pressure message during normal operation as defined above, please
take the vehicle to your authorized dealer.
REDUCED ENGINE POWER (diesel engine only)— Displayed
approximately two hours after the DRIVE TO CLEAN EXHAUST
SYSTEM message has displayed and the vehicle operator has not driven
the vehicle above 30 mph (48 km/h) for at least 20 minutes to clean the
DPF. At this point the vehicle must be serviced by an authorized dealer.
This message is normal. Refer to your diesel supplement for more
information.
Instrument Cluster
54
2011 F-250/350/450/550(f23)
Owners Guide, 1st Printing
USA(fus)

WATER IN FUEL DRAIN FILTER SEE MANUAL (if equipped)—
Displayed when the water separator has reached a predetermined
capacity and needs to be drained. Refer to your diesel supplement for
more information.
LOW TIRE PRESSURE— Displayed when one or more tires on your
vehicle have low tire pressure. Refer toInflating Your Tiresin the
Tires, Wheels and Loadingchapter.
TIRE PRESSURE MONITOR FAULT— Displayed when the Tire
Pressure Monitoring System is malfunctioning. If the warning stays on or
continues to come on, have the system inspected by your authorized
dealer.
TIRE PRESSURE SENSOR FAULT— Displayed when a tire pressure
sensor is malfunctioning, or your spare tireis in use. For more
information on how the system operates under these conditions, refer to
Understanding Your Tire Pressure Monitoring System (TPMS)in the
Tires, Wheels and Loadingchapter. If the warning stays on or
continues to come on, contact your authorized dealer as soon as
possible.
TIRES NOT TRAINED - REPEAT— Displayed when an error occurs
while training the TPMS. Refer toTPMS reset procedurein theTires,
Wheels and Loadingchapter for more information.
TRAIN INNER LEFT REAR TIRE— Displayed when training the
TPMS. Refer toTPMS reset procedurein theTires, Wheels and
Loadingchapter for more information.
TRAIN INNER RIGHT REAR TIRE— Displayed when training the
TPMS. Refer toTPMS reset procedurein theTires, Wheels and
Loadingchapter for more information.
TRAIN LEFT FRONT TIRE— Displayed when training the TPMS
system. Refer toTPMS reset procedurein theTires, Wheels and
Loadingchapter for more information.
TRAIN LEFT REAR TIRE— Displayed when training the TPMS
system. Refer toTPMS reset procedurein theTires, Wheels and
Loadingchapter for more information.
TRAIN RIGHT FRONT TIRE— Displayed when training the TPMS
system. Refer toTPMS reset procedurein theTires, Wheels and
Loadingchapter for more information.
TRAIN RIGHT REAR TIRE— Displayed when training the TPMS
system. Refer toTPMS reset procedurein theTires, Wheels and
Loadingchapter for more information.
Instrument Cluster
55
2011 F-250/350/450/550(f23)
Owners Guide, 1st Printing
USA(fus)

TRAIN SPARE TIRE (if equipped)— Displayed when training the
TPMS. Refer toTPMS reset procedurein theTires, Wheels and
Loadingchapter for more information.
TRAINING COMPLETE— Displayed when training of the TPMS
system is complete. Refer toTPMS reset procedurein theTires, Wheels
and Loadingchapter for more information.
POWER STEERING ASSIST FAULT— The power steering system
has disabled power steering assist due to a system error; service is
required.
SERVICE POWER STEERING— The power steering system has
detected a condition that requires service.
SERVICE POWER STEERING NOW— The power steering system
has detected a condition that requires service immediately.
BUCKLE UP TO UNMUTE AUDIO— Displayed when a MyKey™ is in
use and Belt-Minderis activated. Refer toMyKey™in theLocks and
Securitychapter for more information.
TRACTION CONTROL OFF (if equipped)— Displayed when the
traction control has been disabled by the driver. Refer to theDriving
chapter for more information.
CHECK 4X4 (if equipped)— Displayed when a 4X4 system fault is
present. For more information, refer toFour-wheel drive (4WD)
operationin theDrivingchapter.
4X4 SHIFT IN PROGRESS (if equipped)— Displayed when the 4X4
system is making a shift. For further information, refer toFour-wheel
drive (4WD) operationin theDrivingchapter.
FOR 4X4 LOW APPLY BRAKE (if equipped)— Displayed when
trying to select 4X4 LOW. For more information, refer toFour-wheel
drive (4WD) operationin theDrivingchapter.
FOR 4X4 LOW SHIFT TO N (if equipped)— Displayed when 4X4
LOW is selected and the vehicle is stopped. For more information, refer
toFour-wheel drive (4WD) operationin theDrivingchapter.
FOR 4X4 LOW SLOW TO 3 MPH (if equipped)— Displayed when
4X4 LOW is selected while the vehicle is moving. For more information,
refer toFour-wheel drive (4WD) operationin theDrivingchapter.
TO EXIT 4X4 LOW APPLY BRAKE (if equipped)— Displayed when
2WD is selected from 4X4 LOW mode. For more information, refer to
Four-wheel drive (4WD) operationin theDrivingchapter.
Instrument Cluster
56
2011 F-250/350/450/550(f23)
Owners Guide, 1st Printing
USA(fus)

TO EXIT 4X4 LOW SHIFT TO N (if equipped)— Displayed when
2WD is selected while the vehicle has been stopped in 4X4 LOW. For
more information, refer toFour-wheel drive (4WD) operationin the
Drivingchapter.
TO EXIT 4X4 LOW SLOW TO 3 MPH (if equipped)— Displayed
when 2WD is selected while the vehicle is operating in 4X4 LOW. For
more information, refer toFour-wheel drive (4WD) operationin the
Drivingchapter.
FOR HILL DESCENT REDUCE SPEED (if equipped)— Displayed
when the vehicle speed requirement for off-road mode entry has not
been met.
FOR HILL DESCENT SELECT GEAR (if equipped)— Displayed
when the driver is able to select a transmission gear for hill descent
mode.
HILL DESCENT - DRIVER RESUME CONTROL (if equipped)—
Displayed when hill descent control mode is deactivated and the driver
must resume control.
HILL DESCENT CONTROL FAULT (if equipped)— Displayed when
a hill descent system fault is present.
HILL DESCENT CONTROL OFF (if equipped)— Displayed when
hill descent control mode becomes inactive.
HILL DESCENT CONTROL OFF SYSTEM COOLING (if equipped)
— Displayed when the hill descent system is cooling due to overuse.
HILL DESCENT CONTROL READY (if equipped)— Displayed
when the hill descent control switch is turned on.
REDUCE ACCELERATOR TO PREVENT WHEEL SLIP (if
equipped)— Displayed when the vehicle senses that torque to the
drive wheels has overcome the available traction.
SHIFT DELAYED PULL FORWARD (if equipped)— May display
when shifting to or from 4X4 LOW. For more information, refer to
Four-wheel drive (4WD) operationin theDrivingchapter.
SLOW VEHICLE TO XX KM/H FOR ELD (if equipped)— Displayed
when the vehicle speed requirement for the electronic locking
differential mode has not been met.
SLOW VEHICLE TO XX MPH FOR ELD (if equipped)— Displayed
when the vehicle speed requirement for the electronic locking
differential mode has not been met.
Instrument Cluster
57
2011 F-250/350/450/550(f23)
Owners Guide, 1st Printing
USA(fus)

CHECK LOCKING DIFFERENTIAL (if equipped)— Displayed
when an electronic locking differential (ELD) system fault is present. For
more information, refer toElectronic locking differential (ELD)in the
Drivingchapter.
CHECK SPEED DRIVE SAFELY— Displayed when a MyKey™ is in
use and the optional setting is on and the vehicle exceeds a preselected
speed. Refer toMyKey™in theLocks and Securitychapter for more
information.
COULD NOT PROGRAM INTEGRATED KEY— Displayed when an
attempt is made to program a fifth integrated key to the remote keyless
entry system. For more information on integrated key, refer to theLocks
and Securitychapter.
ESC ALWAYS ON - MYKEY SETTING— Displayed when a MyKey™
is in use and the ESC cannot be deactivated. Refer toMyKey™in the
Locks and Securitychapter for more information.
MYKEY ACTIVE DRIVE SAFELY— Displayed when a MyKey™ is in
use. Refer toMyKey™in theLocks and Securitychapter for more
information.
MYKEY COULD NOT PROGRAM— Displayed when an attempt is
made to program a spare key using two existing MyKeys. Refer to
MyKey™in theLocks and Securitychapter for more information.
SECURITY SYSTEM FAULT (if equipped)— Displayed when the
security system has detected a fault. See your authorized dealer for
service.
SPEED LIMITED TO 130 KM/H— Displayed when starting the
vehicle and MyKey™ is in use and the MyKey speed limit is on. Refer to
MyKey™in theLocks and Securitychapter for more information.
SPEED LIMITED TO 80 MPH— Displayed when starting the vehicle
and MyKey™ is in use and the MyKey speed limit is on. Refer to
MyKey™in theLocks and Securitychapter for more information.
VEHICLE AT TOP SPEED - MYKEY SETTING— Displayed when a
MyKey™ is in use and the MyKey speed limit is on and the vehicle
speed is 80 mph (130 km/h). Refer toMyKey™in theLocks and
Securitychapter for more information.
VEHICLE NEAR TOP SPEED— Displayed when a MyKey™ is in use
and the MyKey speed limit is on and the vehicle speed is approaching
80 mph (130 km/h). Refer toMyKey™in theLocks and Security
chapter for more information.
CHECK REAR PARK AID (if equipped)— Displayed when the
transmission is in R (Reverse) and the park aid is disabled.
Instrument Cluster
58
2011 F-250/350/450/550(f23)
Owners Guide, 1st Printing
USA(fus)

REAR PARK AID OFF (if equipped)— Displayed when the rear park
aid is disabled by the driver.
REAR PARK AID ON (if equipped)— Displayed when the rear park
aid is enabled.
TO STOP ALARM, START VEHICLE (if equipped)— Displayed
when the perimeter alarm system is armed and the vehicle is entered
using the key on the driver’s side door. In order to prevent the perimeter
alarm system from triggering, the ignition must be turned to start or on
before the 12 second chime expires. SeePerimeter alarm systemin the
Locks and securitychapter.
TRAILER BRAKE GAIN: XX.X [OUTPUT] (if equipped)— Displays
the current gain setting for the trailer brake. Refer toTrailer towingin
theTires, Wheels and Loadingchapter for more information.
TRAILER BRAKE GAIN: XX.X NO TRAILER (if equipped)—
Displays the current gain setting for the trailer brake when a trailer is
not connected. Refer toTrailer towingin theTires, Wheels and
Loadingchapter for more information.
TRAILER BRAKE MODULE FAULT (if equipped)— Displayed and
accompanied by a single chime, in response to faults sensed by the TBC.
Refer toTrailer towingin theTires, Wheels and Loadingchapter for
more information.
TRAILER CONNECTED (if equipped)— Displayed when a correct
trailer connection (a trailer with electric trailer brakes) is sensed during
a given ignition cycle. Refer toTrailer towingin theTires, Wheels and
Loadingchapter for more information.
TRAILER DISCONNECTED (if equipped)— Displayed when a
trailer connection becomes disconnected, either intentionally or
unintentionally, and has been sensed during a given ignition cycle. Refer
toTrailer towingin theTires, Wheels and Loadingchapter for more
information.
TRAILER SWAY REDUCE SPEED (if equipped)— Displayed when
the trailer sway control has detected trailer sway. For more information,
refer to theDrivingchapter for more information.
WIRING FAULT ON TRAILER (if equipped)— Displayed if there
are certain faults in the vehicle wiring and trailer wiring/brake system.
Refer toTrailer towingin theTires, Wheels and Loadingchapter for
more information.
Instrument Cluster
59
2011 F-250/350/450/550(f23)
Owners Guide, 1st Printing
USA(fus)

DUAL ZONE AUTOMATIC TEMPERATURE CONTROL (IF EQUIPPED)
Temperature conversion:To switch between Fahrenheit and Celsius, refer to
Optional or Standard message centerin theInstrument Clusterchapter.
1.–/+Fan speed control:Press to decrease/increase the fan speed.
2. A.RRear defroster (if equipped):Press to activate/deactivate the
rear window defroster. Refer toRear window defrosterlater in this
chapter for more information. If your vehicle is equipped with both rear
defroster and heated mirrors, the same button will activate both.
2. B.
Heated mirrors (if equipped):Press to activate/deactivate.
This feature will remove ice and snow from the side view mirrors.
3.
Defrost:Distributes outside air through the windshield defroster
vents and de-mister vents. Can be used to clear the windshield of fog
and thin ice. The system will automatically provide outside air to reduce
window fogging. Press this button again to return to the previous air flow
selection.
4.
Manual control:Allows you to manually select where airflow is
directed. To return to full automatic control, press AUTO. When
choosing to control airflow manually, press repeatedly to toggle through
the settings to choose:
•
:Distributes air through the windshield defroster vents, de-mister
vents, floor vents and rear seat floor vents. The system will
automatically provide outside air to reduce window fogging.
•
:Distributes air through the instrument panel vents.
A/CA/C
R
+
-A/CAUTO
DUAL
EXTMAX A/C
168
17
16
15
9
10
11
43572B2A
141312
Climate Controls
81
2011 F-250/350/450/550(f23)
Owners Guide, 1st Printing
USA(fus)
