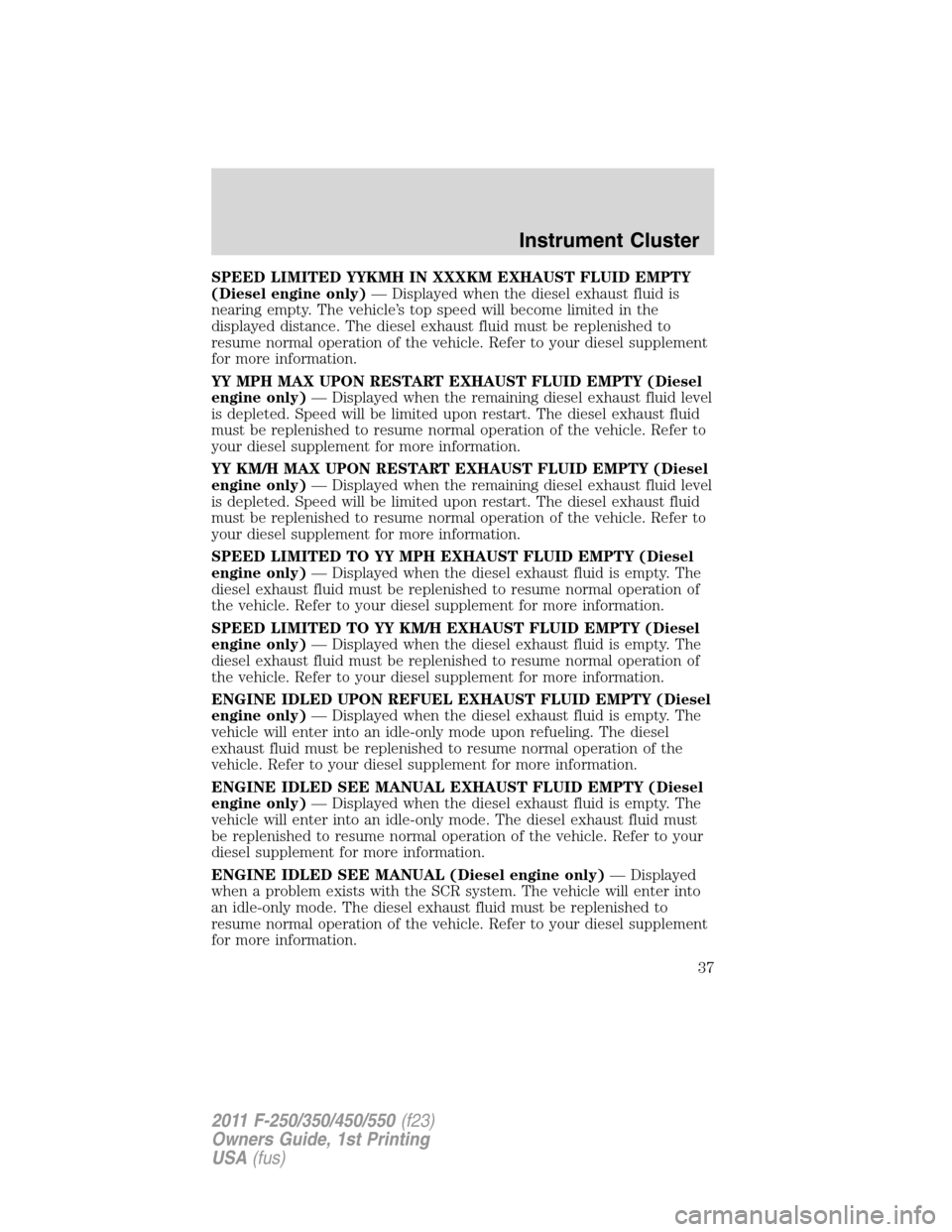

SPEED LIMITED YYKMH IN XXXKM EXHAUST FLUID EMPTY
(Diesel engine only)— Displayed when the diesel exhaust fluid is
nearing empty. The vehicle’s top speed will become limited in the
displayed distance. The diesel exhaust fluid must be replenished to
resume normal operation of the vehicle. Refer to your diesel supplement
for more information.
YY MPH MAX UPON RESTART EXHAUST FLUID EMPTY (Diesel
engine only)— Displayed when the remaining diesel exhaust fluid level
is depleted. Speed will be limited upon restart. The diesel exhaust fluid
must be replenished to resume normal operation of the vehicle. Refer to
your diesel supplement for more information.
YY KM/H MAX UPON RESTART EXHAUST FLUID EMPTY (Diesel
engine only)— Displayed when the remaining diesel exhaust fluid level
is depleted. Speed will be limited upon restart. The diesel exhaust fluid
must be replenished to resume normal operation of the vehicle. Refer to
your diesel supplement for more information.
SPEED LIMITED TO YY MPH EXHAUST FLUID EMPTY (Diesel
engine only)— Displayed when the diesel exhaust fluid is empty. The
diesel exhaust fluid must be replenished to resume normal operation of
the vehicle. Refer to your diesel supplement for more information.
SPEED LIMITED TO YY KM/H EXHAUST FLUID EMPTY (Diesel
engine only)— Displayed when the diesel exhaust fluid is empty. The
diesel exhaust fluid must be replenished to resume normal operation of
the vehicle. Refer to your diesel supplement for more information.
ENGINE IDLED UPON REFUEL EXHAUST FLUID EMPTY (Diesel
engine only)— Displayed when the diesel exhaust fluid is empty. The
vehicle will enter into an idle-only mode upon refueling. The diesel
exhaust fluid must be replenished to resume normal operation of the
vehicle. Refer to your diesel supplement for more information.
ENGINE IDLED SEE MANUAL EXHAUST FLUID EMPTY (Diesel
engine only)— Displayed when the diesel exhaust fluid is empty. The
vehicle will enter into an idle-only mode. The diesel exhaust fluid must
be replenished to resume normal operation of the vehicle. Refer to your
diesel supplement for more information.
ENGINE IDLED SEE MANUAL (Diesel engine only)— Displayed
when a problem exists with the SCR system. The vehicle will enter into
an idle-only mode. The diesel exhaust fluid must be replenished to
resume normal operation of the vehicle. Refer to your diesel supplement
for more information.
Instrument Cluster
37
2011 F-250/350/450/550(f23)
Owners Guide, 1st Printing
USA(fus)

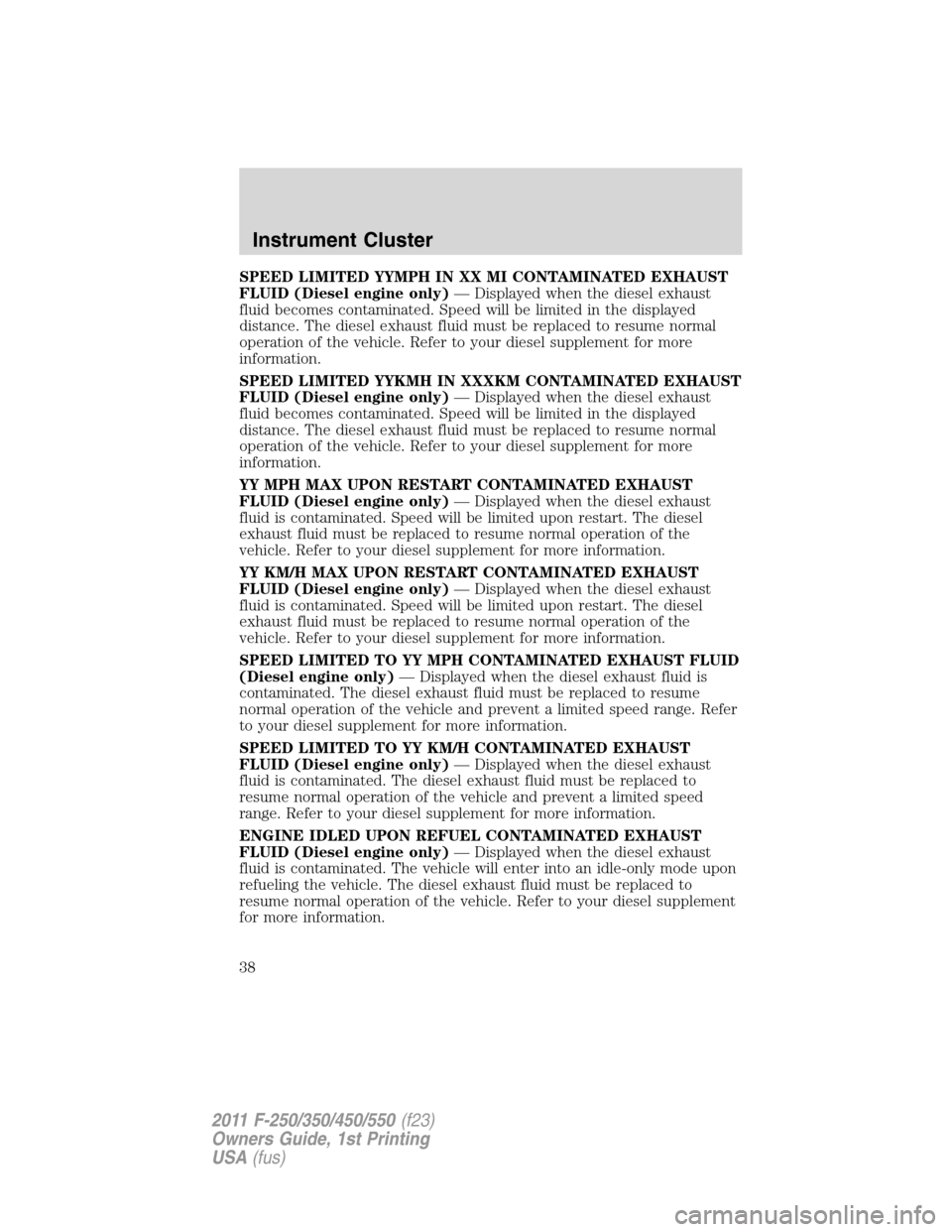

SPEED LIMITED YYMPH IN XX MI CONTAMINATED EXHAUST
FLUID (Diesel engine only)— Displayed when the diesel exhaust
fluid becomes contaminated. Speed will be limited in the displayed
distance. The diesel exhaust fluid must be replaced to resume normal
operation of the vehicle. Refer to your diesel supplement for more
information.
SPEED LIMITED YYKMH IN XXXKM CONTAMINATED EXHAUST
FLUID (Diesel engine only)— Displayed when the diesel exhaust
fluid becomes contaminated. Speed will be limited in the displayed
distance. The diesel exhaust fluid must be replaced to resume normal
operation of the vehicle. Refer to your diesel supplement for more
information.
YY MPH MAX UPON RESTART CONTAMINATED EXHAUST
FLUID (Diesel engine only)— Displayed when the diesel exhaust
fluid is contaminated. Speed will be limited upon restart. The diesel
exhaust fluid must be replaced to resume normal operation of the
vehicle. Refer to your diesel supplement for more information.
YY KM/H MAX UPON RESTART CONTAMINATED EXHAUST
FLUID (Diesel engine only)— Displayed when the diesel exhaust
fluid is contaminated. Speed will be limited upon restart. The diesel
exhaust fluid must be replaced to resume normal operation of the
vehicle. Refer to your diesel supplement for more information.
SPEED LIMITED TO YY MPH CONTAMINATED EXHAUST FLUID
(Diesel engine only)— Displayed when the diesel exhaust fluid is
contaminated. The diesel exhaust fluid must be replaced to resume
normal operation of the vehicle and prevent a limited speed range. Refer
to your diesel supplement for more information.
SPEED LIMITED TO YY KM/H CONTAMINATED EXHAUST
FLUID (Diesel engine only)— Displayed when the diesel exhaust
fluid is contaminated. The diesel exhaust fluid must be replaced to
resume normal operation of the vehicle and prevent a limited speed
range. Refer to your diesel supplement for more information.
ENGINE IDLED UPON REFUEL CONTAMINATED EXHAUST
FLUID (Diesel engine only)— Displayed when the diesel exhaust
fluid is contaminated. The vehicle will enter into an idle-only mode upon
refueling the vehicle. The diesel exhaust fluid must be replaced to
resume normal operation of the vehicle. Refer to your diesel supplement
for more information.
Instrument Cluster
38
2011 F-250/350/450/550(f23)
Owners Guide, 1st Printing
USA(fus)

ENGINE IDLED SEE MANUAL CONTAMINATED EXHAUST
FLUID (Diesel engine only)— Displayed when the diesel exhaust
fluid is contaminated. The vehicle will enter into an idle-only mode. The
diesel exhaust fluid must be replaced to resume normal operation of the
vehicle. Refer to your diesel supplement for more information.
ENGINE OIL DILUTED(diesel engine only)— Displays once the
engine oil has become diluted and needs to be changed. Refer to your
diesel supplement for more information.
ENGINE OIL CHANGE SOON— Displayed when the engine oil life
remaining is 5% to 1%. Refer to thescheduled maintenance
informationfor more information.
OIL CHANGE REQUIRED— Displayed when the oil life left reaches
0%. Refer to thescheduled maintenance informationfor more
information.
LOW FUEL PRESSURE SEE MANUAL (Diesel engine only)—If
this message appears during a cold start or during cold operation 32°F
(0°C) up to 10 minutes after the initial cold start; monitor the message
center and if it disappears and does not re-appear after the engine has
fully warmed up, the low fuel pressure message is most likely caused by
waxed or gelled fuel. To prevent this, use an anti-gel additive. Refer to
your diesel supplement for more information. The customer warranty
may be void from using additives that do not meet or exceed Ford
specifications. If the low fuel pressure message persistently appears after
re-fueling during the cold start and cold operation conditions defined
previously and then disappear when the engine has fully warmed up,
consider different fuel sources.
•Low Fuel Operation: If the message appears when the vehicle is warm
and during low fuel tank level operation, i.e. the tank level is at or
very near empty, refuel the vehicle and operate the vehicle. If the
message reappears after fueling, see below. If the message does not
come back, the low fuel pressure condition was due to low fuel levels
in the fuel tank.
•Normal Operation: If the message appears during normal operation
when the vehicle / engine is fully warm, and fuel level is not low, the
fuel filters must be changed regardless of the maintenance schedule
interval. If replacement of the fuel filter does not remedy the low fuel
pressure message during normal operation as defined above, please
take the vehicle to your authorized dealer.
Instrument Cluster
39
2011 F-250/350/450/550(f23)
Owners Guide, 1st Printing
USA(fus)

OPTIONAL MESSAGE CENTER (IF EQUIPPED)
Your vehicle’s message center is capable of monitoring many vehicle
systems and will alert you to potential vehicle problems and various
conditions with a informational messages and/or warnings.
The message center is also used to program/configure the different
features of your vehicle.
The message center display is located in the instrument cluster. Use the
steering wheel mounted buttons to navigate through the message center.
Press the up/down buttons to move
up/down through the message
center choices.
Press the left/right buttons to move
left/right through the message
center choices.
Press the OK button to select
highlighted options and confirm
choices/messages.
OK
OK
OK
Instrument Cluster
40
2011 F-250/350/450/550(f23)
Owners Guide, 1st Printing
USA(fus)

Main menu
From the main menu screen you can choose the following:
•Gauge Mode
•Trip A/B
•Fuel Economy
•Truck Apps (if equipped)
•Settings
•Information
Scroll up/down to highlight one of the options, then press the right arrow
key or OK to enter into that menu option.
Gauge Mode
Gauge Detail:In this mode, the following options are available in
different graphical formats:
•Engine oil temperature (diesel only).
•Transmission temperature.
•Compass (see compass following for compass options).
•Blank screen.
Compass:The compass orientation can be changed between fixed north
or rotating north. To change the modes, press OK when the compass
display is shown. Use the right arrow to choose the mode. Press and
hold OK to set the mode.
Trip A/B
In this mode, Trip A or B registers the following:
•Trip time — shows the elapsed trip time. This timer will stop when
the vehicle is turned off and will restart when the vehicle is restarted.
•Trip distance — shows the accumulated trip distance.
•Fuel used — shows the amount of fuel used for a given trip.
•Average MPG (L/100km) — shows the average distance traveled per
unit of fuel used for a given trip.
•Odometer — shows the vehicle’s total accumulated distance. This
value cannot be reset.
Instrument Cluster
41
2011 F-250/350/450/550(f23)
Owners Guide, 1st Printing
USA(fus)

Press the right arrow key to reach Trip B. Press the left arrow to go back
to Trip A.
Press OK to pause the Trip A or B screen/press again to un-pause.
Press and hold OK to reset the currently displayed trip information.
Fuel Economy
In this mode, fuel economy information is displayed as follows:
•Instant MPG (L/100km) — shows instantaneous fuel usage.
•Miles (kilometers) to empty — shows the approximate distance the
vehicle can travel before running out of fuel.
•Average MPG (L/100km) — shows the average fuel usage based on
time. See Fuel Hist. following to change the time interval. Press and
hold OK to reset this value.
If you calculate your average fuel economy by dividing miles traveled by
gallons of fuel used (liters of fuel used by 100 kilometers traveled), your
figure may be different than displayed for the following reasons:
•Your vehicle was not perfectly level during fill-up.
•Differences in the automatic shut-off points on the fuel pumps at
service stations.
•Variations in top-off procedure from one fill-up to another.
•Rounding of the displayed values to the nearest 0.1 gallon (liter).
To determine your average highway fuel economy, do the following:
1. Drive the vehicle at least 5 miles (8 km) with the speed control
system engaged to display a stabilized average.
2. Record the highway fuel economy for future reference.
It is important to press RESET in order to reset the function after
setting the speed control to get accurate highway fuel economy readings.
For more information refer toEssentials of good fuel economyin the
Maintenance and Specificationschapter.
Fuel Hist.:Press the right arrow key (when in the Fuel Econ. menu) to
reach Fuel Hist. Fuel history shows fuel usage (AVG MPG or L/100km)
as a bar graph based on time. The duration time can be changed as
follows:
Duration– Press the right arrow key (when in the Fuel Hist. menu) to
reach the following duration choices.
•5 Minutes.
Instrument Cluster
42
2011 F-250/350/450/550(f23)
Owners Guide, 1st Printing
USA(fus)

•10 Minutes.
•30 Minutes.
•Last 5 Resets.
Use the up/down arrows keys to highlight one of the choices; press and
hold OK to set your choice.
The graph is updated each minute with the fuel economy that was
achieved during the prior 5, 10, 30 minutes or last 5 resets of driving.
Truck Apps (if equipped)
In this mode, off-road and trailer towing application options are available.
Off Road
Pitch and bank angle (in degrees) (if equipped). Displays the pitch
angle (front to rear) and bank angle (side to side) of the road surface.
Steering angle (in degrees). Displays the steering angle of the front
wheels.
Differential lock/unlock. Displays the state (locked or unlocked) of the
electronic locking differential.
Energy flow. Displays the operating mode of the transfer case: 4X2,
4X4 Low or 4X4 High.
When “Press OK for info” is displayed, pressing OK will give you
information on the following options (Note:Information is only available
when traveling less than 3 mph [5 km/h]):
•ELD (electronic locking differential)
•Hill Descent Control
•4X4 System
•Traction Control
Trailer:Press the right arrow key (when in the Off Road menu) to
reach the Trailer menu. The following information is displayed
•Active trailer name or default trailer.
•Accumulated trailer distance.
•Trailer gain and output.
•Trailer disconnected
Instrument Cluster
43
2011 F-250/350/450/550(f23)
Owners Guide, 1st Printing
USA(fus)

When “Press OK for options” is displayed, pressing OK will open the
trailer options menus:
Trailer
Change Active
TrailerWhen this is highlighted, press the right arrow key
to change the currently selected trailer. Use the up
and down arrows to select a trailer and press the
OK button to choose the highlighted trailer.
Adding a new trailer– Use the up/down arrows to
highlight “New Trailer” from the Change Active
Trailer menu and press the right arrow key to enter
the New Trailer input screen. Use the up/down
arrow keys to choose alpha, numeric and symbol
characters and then press the right arrow to move
the character space over. Continue adding
characters as needed. Press the left arrow to go
back and change a previously selected character.
When finished with the new trailer name, press OK
to accept the new trailer name.
Connection
Checklist (if
equipped)Press the right arrow button when this is highlighted
to show the trailer connection types: Conventional,
Fifth Wheel and Gooseneck. Use the up/down
arrows to highlight one of these choices and press
OK to display the connection checklist. Follow the
on-screen instructions to go through the connections
list.
Delete Trailer Press the right arrow button when this is highlighted
to show currently stored trailers. Use the up/down
arrows to highlight the trailer you want to delete
and press OK to delete. Follow the on-screen
prompts to exit or confirm delete.
Information
ScreenPress the right arrow button when this is highlighted
to display information on the following vehicle
features: Tow Haul mode, Trailer Brake Controller.
Instrument Cluster
44
2011 F-250/350/450/550(f23)
Owners Guide, 1st Printing
USA(fus)
