The seat will move to the final position when the key is in the ignition (if
easy entry feature is enabled).
Easy-access/easy-out feature (if equipped)
The easy entry feature automatically moves the driver’s seat 2 inches
(5 cm) forward when:
•the transmission is in P (Park)
•the key is inserted into the ignition cylinder
(If the seat is located less than 2 inches [5 cm] from the front of the seat
track, the seat will travel up to
14inch (6 mm) to the front of the seat
track).
The easy out feature automatically moves the driver’s seat 2 inches
(5 cm) backward when:
•the transmission is in P (Park)
•the key is removed from the ignition cylinder
(If the seat is located less than 2 inches (5 cm) from the rear of the seat
track, the seat will travel up to
14inch (6 mm) to the rear of the seat
track).
If the memory setting is programmed through the remote transmitter,
upon unlocking the door via remote entry system, the seat position will
travel to the desired memory setting less 2 inches (5 cm). Once entering
the vehicle and inserting the key in the ignition while in P (Park), the
easy entry feature will move the seat an additional 2 inches (5 cm) to
the desired memory location. SeeLocks and Securityfor activating the
memory seat feature through the remote entry system.
Deactivating/activating the easy access/easy out feature
The easy entry/exit feature can be turned off or on through the vehicle
message center (if equipped). If your vehicle does not have a message
center, the feature can be turned off or on through the following process:
1. Put the key into the ignition (The driver seat may move forward if the
easy entry/exit feature is activated).
2. Place the ignition key into the on position (do not start the vehicle).
When the vehicle is in the on position, the interior and exterior lights,
the climate controls, and the radio are functional without the engine
started. SeeProgramming remote transmittersfor ignition switch
diagram.
3. Turn the ignition key to the off position.
Seating and Safety Restraints
161
2011 F-250/350/450/550(f23)
Owners Guide, 1st Printing
USA(fus)

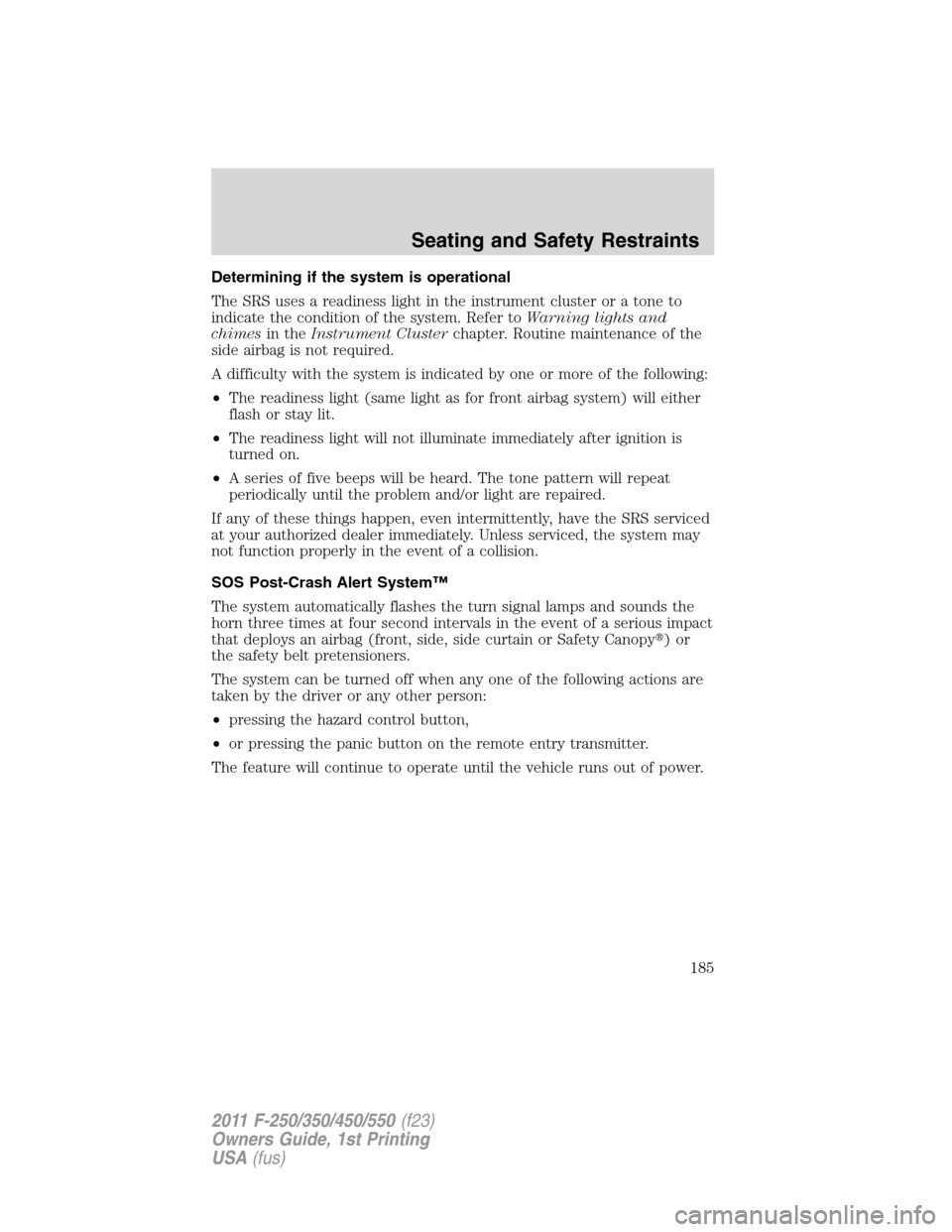

Determining if the system is operational
The SRS uses a readiness light in the instrument cluster or a tone to
indicate the condition of the system. Refer toWarning lights and
chimesin theInstrument Clusterchapter. Routine maintenance of the
side airbag is not required.
A difficulty with the system is indicated by one or more of the following:
•The readiness light (same light as for front airbag system) will either
flash or stay lit.
•The readiness light will not illuminate immediately after ignition is
turned on.
•A series of five beeps will be heard. The tone pattern will repeat
periodically until the problem and/or light are repaired.
If any of these things happen, even intermittently, have the SRS serviced
at your authorized dealer immediately. Unless serviced, the system may
not function properly in the event of a collision.
SOS Post-Crash Alert System™
The system automatically flashes the turn signal lamps and sounds the
horn three times at four second intervals in the event of a serious impact
that deploys an airbag (front, side, side curtain or Safety Canopy)or
the safety belt pretensioners.
The system can be turned off when any one of the following actions are
taken by the driver or any other person:
•pressing the hazard control button,
•or pressing the panic button on the remote entry transmitter.
The feature will continue to operate until the vehicle runs out of power.
Seating and Safety Restraints
185
2011 F-250/350/450/550(f23)
Owners Guide, 1st Printing
USA(fus)

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
11 10A Instrument cluster
12 15A Interior lighting, Lighted running
board lamps
13 15A Right turn signals and brake
lamps, Right trailer tow (TT) stop
turn relay
14 15A Left turn signals and brake lamps,
Left TT stop turn relay
15 15A High-mounted stop lamps, Backup
lamps, TT backup relay
16 10A Right low beam headlamp
17 10A Left low beam headlamp
18 10A Keypad illumination, Passive
anti-theft indicator (PATS),
Powertrain control module
(PCM), Brake shift interlock
19 20A Subwoofer
20 20A Power door locks
21 10A Brake on/off switch
22 20A Horn
23 15A Not used (spare)
24 15A Steering wheel control module,
Diagnostic connector, Satellite
radio module, Power fold mirror
relay, Remote keyless entry
25 15A Not used (spare)
26 5A Steering wheel control module
27 20A Amplifier
28 15A Ignition switch
29 20A SYNC, GPS module, Radio
faceplate
Roadside Emergencies
317
2011 F-250/350/450/550(f23)
Owners Guide, 1st Printing
USA(fus)

O
Octane rating ............................382
Oil (see Engine oil) ..................366
P
Parental MyKey
programming .............................126
Parking brake ............................266
Parts
(see Motorcraftparts) ...........399
Pedals (see Power adjustable
foot pedals) ...............................108
Power adjustable foot pedals ...108
Power distribution box
(see Fuses) ...............................319
Power door locks ......................134
Power mirrors ...........................104
Power point ...............................100
Power steering ..........................276
fluid, checking and adding ....390
fluid, refill capacity ................400
Power Windows .........................102
Preparing to drive your
vehicle ........................................278
R
Radio ......................................60, 62
Rear-view camera system .........291
Relays ........................................313
Remote entry system .......138–139
illuminated entry ....................142
locking/unlocking
doors ................................139–140
Remote start ...........................143replacement/additional
transmitters .............................142
replacing the batteries ...........141
Remote start .............................143
Remote start climate
operation .....................................85
Reverse sensing system ...........289
Roadside assistance ..................311
S
Safety belts (see Safety
restraints) ..................166–170, 172
Safety Canopy ...................181–182
Safety defects, reporting ..........351
Safety restraints ........166–170, 172
Belt-Minder...........................172
extension assembly ................171
for adults .........................167–170
for children .............................190
warning light and chime ........172
Safety restraints - LATCH
anchors ......................................202
Safety seats for children ..........195
Safety Compliance
Certification Label ....................405
Satellite Radio Information ........74
Scheduled Maintenance Guide
Normal Scheduled
Maintenance and Log .............419
What Maintenance Schedule
Should You Follow? ................417
Seats ..........................................150
child safety seats ....................195
cleaning ...................................358
climate control ..................81, 159
easy access/easyout feature ..161
memory seat ...................140, 160
