2011 FORD MUSTANG Shelby GT500 Supplement Manual

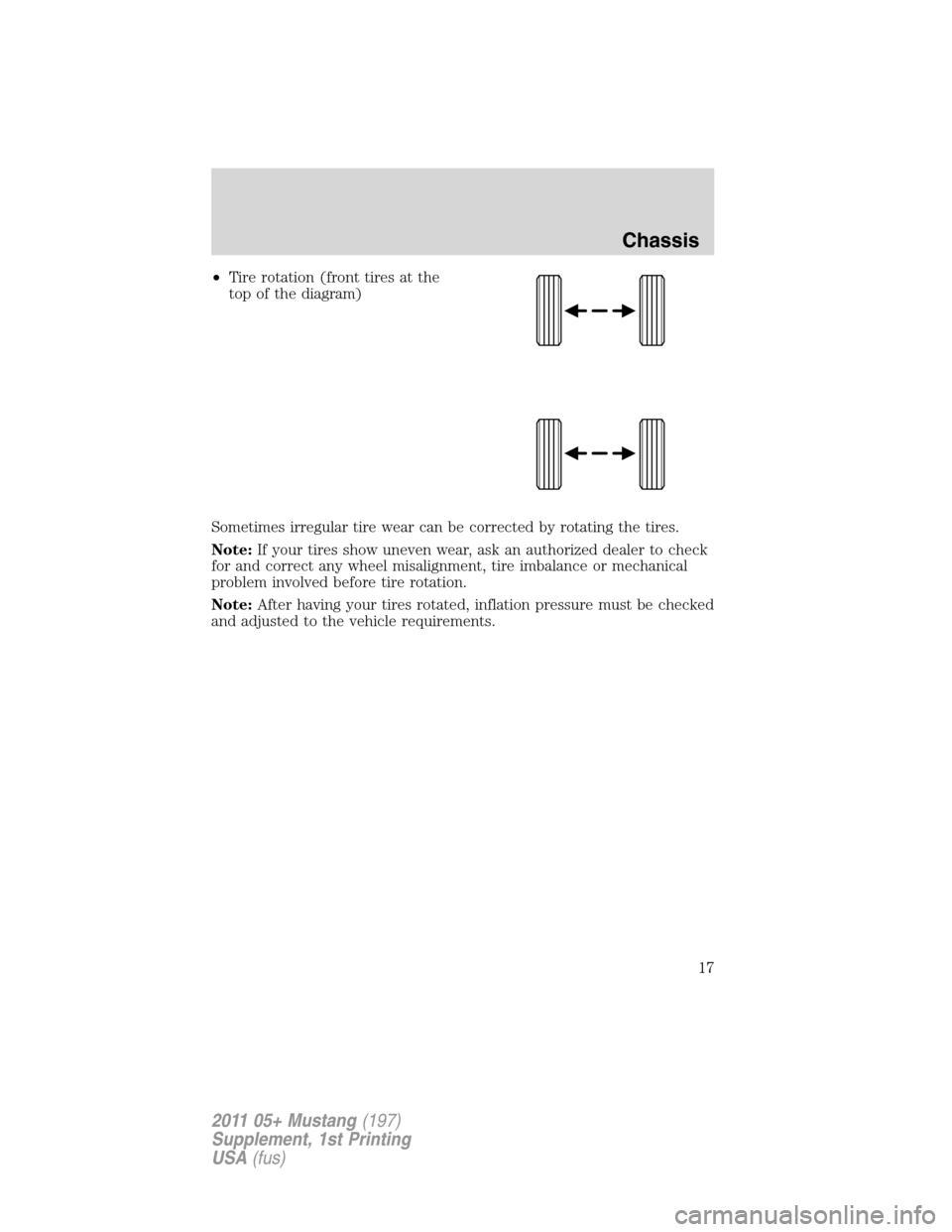

•Tire rotation (front tires at the
top of the diagram)
Sometimes irregular tire wear can be corrected by rotating the tires.
Note:If your tires show uneven wear, ask an authorized dealer to check
for and correct any wheel misalignment, tire imbalance or mechanical
problem involved before tire rotation.
Note:After having your tires rotated, inflation pressure must be checked
and adjusted to the vehicle requirements.
Chassis
17
2011 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

WRECKER TOWING
If you need to have your vehicle towed, contact your roadside assistance
center or a professional towing service.
It is recommended that your vehicle be towed with a wheel lift and
dollies or with flatbed equipment. When towing with a flatbed, 4x4
blocks must be used when loading/unloading your vehicle. Do not tow
with a slingbelt. Ford Motor Company has not approved a slingbelt
towing procedure.
Note:If the vehicle is towed by other means or incorrectly, vehicle
damage may occur.
Roadside Emergencies
18
2011 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

Transportation Instructions

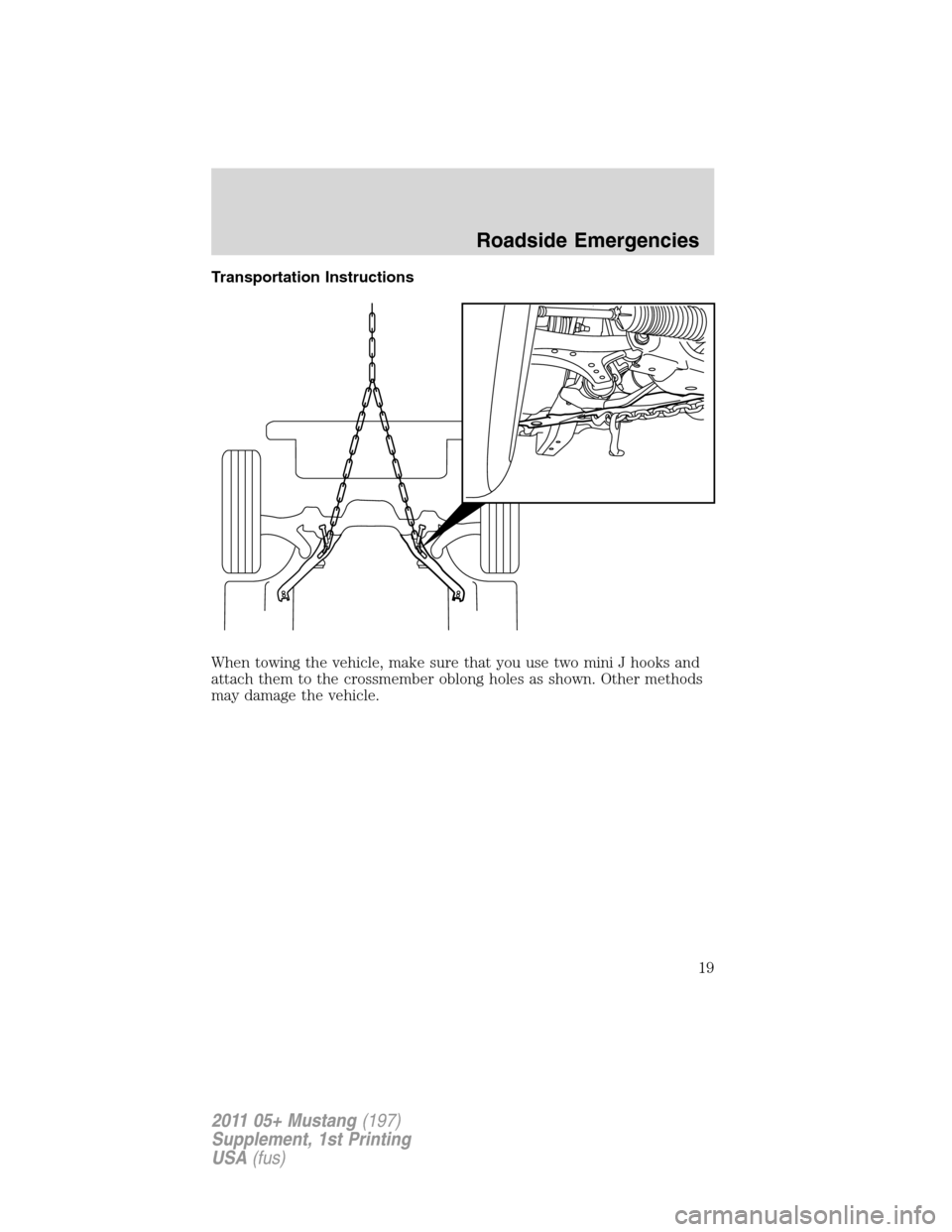

When towing the vehicle, make sure that you use two mini J hooks and
attach them to the crossmember oblong holes as shown. Other methods
may damage the vehicle.
Roadside Emergencies
19
2011 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

Wheel Lift
When towing the Shelby GT500, for front loading, the front tires must be
16 in. (41 cm) higher than the rear.
Rear lift towing is not recommended, as vehicle damage may occur.
Roadside Emergencies
20
2011 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

Flatbed

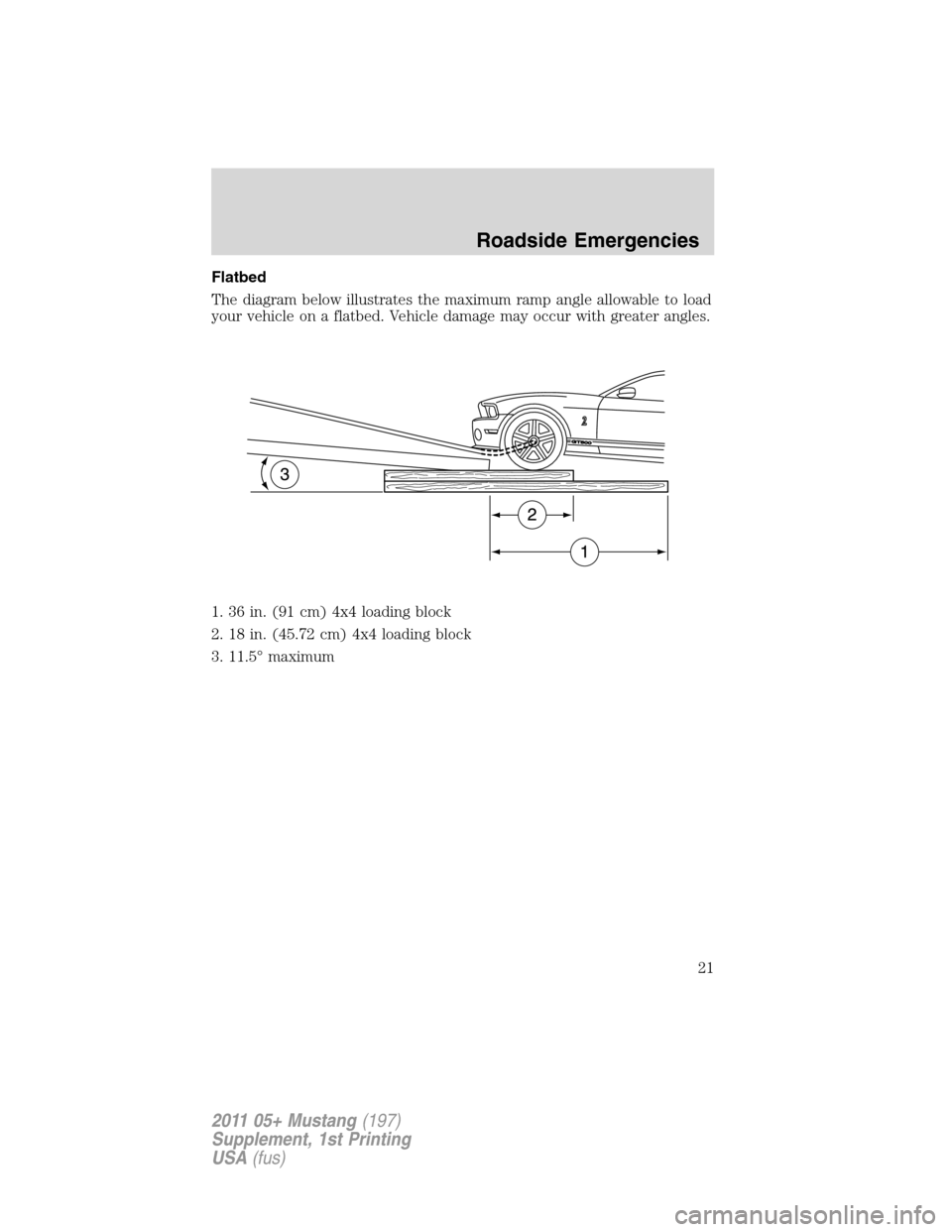

The diagram below illustrates the maximum ramp angle allowable to load
your vehicle on a flatbed. Vehicle damage may occur with greater angles.
1. 36 in. (91 cm) 4x4 loading block
2. 18 in. (45.72 cm) 4x4 loading block
3. 11.5° maximum
Roadside Emergencies
21
2011 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

5.4L DOHC SUPERCHARGED V8 ENGINE
1. Battery
2. Supercharger
3. Engine oil dipstick
4. Brake fluid reservoir
5. Air filter assembly
6. Intercooler coolant reservoir
7. Engine coolant reservoir
8. Engine oil filler cap
9. Windshield washer reservoir
10. Power distribution box
134
1098756
2
Maintenance
22
2011 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

ENGINE OIL RECOMMENDATION
Use MotorcraftSAE 5W-50 full synthetic or an equivalent SAE 5W-50
full synthetic oil meeting Ford specification WSS-M2C931-B.
Do not use supplemental engine oil additives, cleaners or other engine
treatments. They are unnecessary and could lead to engine damage that
is not covered by Ford warranty.
Change your engine oil and filter according to the appropriate schedule
listed in thescheduled maintenance information.
ENGINE AND INTERCOOLER COOLANT
The concentration and level of coolant should be checked at the mileage
intervals listed in thescheduled maintenance information.The coolant
concentration should be maintained at 50/50 coolant and water, which
equates to a freeze point of -34°F (-36°C) . Coolant concentration testing
is possible with a hydrometer or antifreeze tester (such as the Rotunda
Battery and Antifreeze Tester, 0014–R1060). The level of coolant should
be maintained at the “cold fill range” level in the coolant reservoir. If the
level falls below, add coolant per the instructions in theAdding coolant
section.
Your vehicle was factory-filled with a 50/50 coolant and water
concentration. If the concentration of coolant falls below 40% or above
60%, the engine parts could become damaged or not work properly.A
50/50 mixture of coolant and water provides the following:
•freeze protection down to -34°F (-36°C).
•boiling protection up to 265°F (129°C).
•protection against rust and other forms of corrosion.
•an accurate temperature readout from the engine coolant
gauge.
Maintenance
23
2011 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

When the engine is cold, check the
level of the engine coolant in the
reservoir.
Fill your engine coolant reservoir as
outlined inAdding engine coolant
in this section.
•The coolant should be at the “cold fill range” as listed on the engine
coolant reservoir and intercooler coolant reservoir.
To find out how much fluid your vehicle’s cooling system can hold,
refer toMaintenance product specifications and capacitiesin this
chapter.
•Refer to thescheduled maintenance informationfor service interval
schedules.
•Be sure to read and understandPrecautions when servicing your
vehiclein yourOwner’s Guide.
If the coolant has not been checked at the recommended interval, the
engine or intercooler coolant reservoir may become low or empty. If the
reservoir is low or empty, add coolant to the reservoir. Refer toAdding
coolantin this chapter.
Note:Automotive fluids are not interchangeable; do not use engine
coolant/antifreeze or windshield washer fluid outside of its specified
function and vehicle location.
For more information about engine coolant, see theMaintenance and
Specificationschapter of theOwner’s Guide.
