2011 FORD KUGA index

412-01-42
Heater Core and Evaporator Core Housing .......................................................................
412-01-45
(34 364 0)
Heater Core — RHD ........................................................................\
...............
412-01-53
Suction Accumulator ........................................................................\
...................................
412-01-56
Suction Accumulator to Air Conditioning (A/C) Compressor Line ......................................
412-01-57
Suction Accumulator to Air Conditioning (A/C) Compressor Line — 2.5L Duratec
(147kW/200PS) - VI5 ........................................................................\
................................
412-01-58
Low-Pressure Cutoff Switch ........................................................................\
.......................
412-01-59
High-Pressure Cutoff Switch ........................................................................\
.......................
412-01-60
Evaporator ........................................................................\
..................................................
412-01-62
Evaporator Outlet Line ........................................................................\
................................
412-01-65
Evaporator Core Orifice ........................................................................\
..............................
412-01-68
Condenser to Evaporator Line........................................................................\
....................
412-01-71
(34 300 0)
Climate Control Assembly — Vehicles With: Manual Temperature Control ....
412-01-72
(34 300 0)
Climate Control Assembly — Vehicles With: Automatic Temperature Control .
412-01-73
(34 485 4)
Footwell Air Discharge Temperature Sensor ..................................................
412-01-74
Center Register Air Discharge Temperature Sensor ..........................................................
412-01-75
In-Vehicle Temperature Sensor ........................................................................\
..................
412-01-76
(34 676 0)
Ambient Air Temperature Sensor ...................................................................
412-01-77
(34 665 0)
Sunload Sensor ........................................................................\
......................
412-01-78
(34 591 0)
Footwell Vent/Duct Blend Door Actuator — RHD ...........................................
412-01-79
(34 606 0)
Air Inlet Blend Door Actuator ........................................................................\
..
412-01-80
(34 608 0)
Driver Side Temperature Blend Door Actuator ...............................................
412-01-81
(34 608 0)
Passenger Side Temperature Blend Door Actuator .......................................
412-01-82
(34 591 0)
Defrost Vent/Register Blend Door Actuator — RHD ......................................
412-01-2
Climate Control
412-01- 2
.
TO MODEL INDEX
BACK TO CHAPTER INDEX
PAGE 2 OF 2 FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

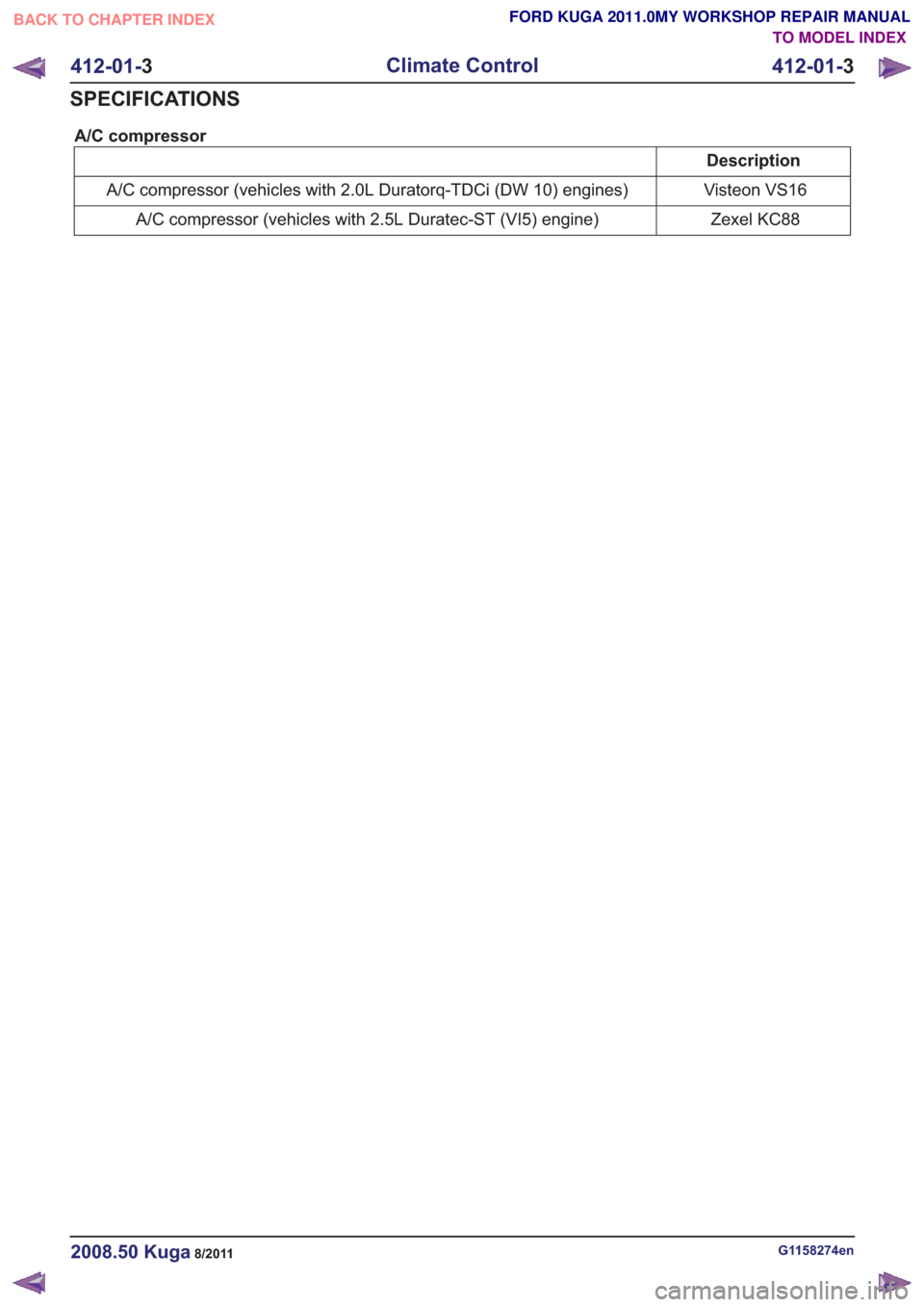

A/C compressor
Description
Visteon VS16
A/C compressor (vehicles with 2.0L Duratorq-TDCi (DW 10) engines)
Zexel KC88
A/C compressor (vehicles with 2.5L Duratec-ST (VI5) engine)
G1158274en2008.50 Kuga8/2011
412-01- 3
Climate Control
412-01- 3
SPECIFICATIONS
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

Climate Control – Component Location
Air distribution, instrument cluster
3
3
3
1
1
2
2
4
6
6
5
E97259
Description
Item
Air passages - side window defroster vents
1
Air passages - side vents (adjustable)
2
Air passages – defroster vents
3Description
Item
Air passages - center vents
4
Air ducts, rear footwell
5
Air ducts, front footwell
6
G1034943en2008.50 Kuga8/2011
412-01- 4
Climate Control
412-01- 4
DESCRIPTION AND OPERATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

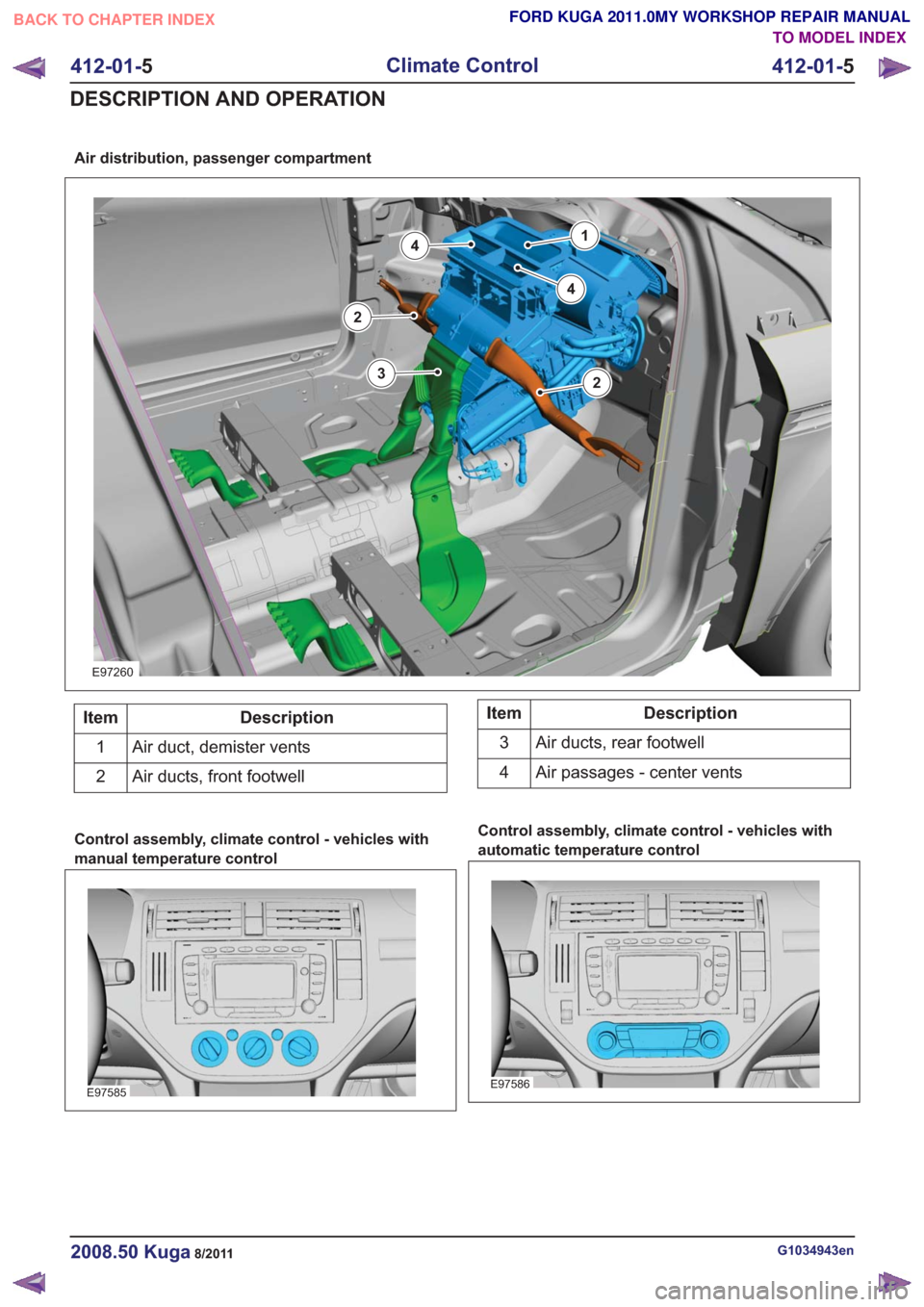

Air distribution, passenger compartment
E97260
14
2
2
3
4
Description
Item
Air duct, demister vents
1
Air ducts, front footwell
2Description
Item
Air ducts, rear footwell
3
Air passages - center vents
4
Control assembly, climate control - vehicles with
manual temperature control
E97585
Control assembly, climate control - vehicles with
automatic temperature control
E97586
G1034943en2008.50 Kuga8/2011
412-01- 5
Climate Control
412-01- 5
DESCRIPTION AND OPERATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

Control assembly, climate control - vehicles with
DVD navigation system with a touch screen
E97587
Climate control module - vehicles with DVD
navigation system with a touch screen
E68600
Sun sensor - vehicles with automatic temperature
control
E97590
Blower control module - vehicles equipped with
automatic temperature control
E78221
G1034943en2008.50 Kuga8/2011
412-01-6
Climate Control
412-01- 6
DESCRIPTION AND OPERATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

Climate control
32
1
4
5
6
789
E97591
Description
Item
Condenser
1
Air conditioning compressor
2
High pressure filling connection
3
Refrigerant drier
4Description
Item
Dual pressure switch
5
Low pressure filling connection
6
Low pressure limiting switch
7
Evaporator Core Orifice Tube
8
Evaporator assembly
9
G1034943en2008.50 Kuga8/2011
412-01- 7
Climate Control
412-01- 7
DESCRIPTION AND OPERATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

Climate control housing - vehicles with manual temperature control
E97588
1
7
3
862
4
9
5
Description
Item
Air flap actuator
1
Control unit - air distribution
flap/temperature control flap
2
Operating lever - temperature control flap
3
Operating lever - air distribution flap -
footwell
4Description
Item
Operating lever - air distribution flap -
central nozzles
5
Operating lever - air distribution flap -
demister vents
6
Rod - air distribution flap
7
Operating cable - temperature control flap
8
Blower motor resistor
9
G1034943en2008.50 Kuga8/2011
412-01- 8
Climate Control
412-01- 8
DESCRIPTION AND OPERATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

Climate control housing - vehicles with automatic temperature control
E97589
1
7
6
38
9
5
4
2
Description
Item
Air flap actuator
1
Actuator - air distribution flap - demister
vents
2
Actuator - right-hand temperature control
flap
3
Air outlet temperature sensors - footwell
4Description
Item
Air outlet temperature sensors - center
vents
5
Operating unit - air distribution flaps
6
Actuator - air distribution flap - center
vents
7
Actuator - left-hand temperature control
flap
8
Blower control module
9
G1034943en2008.50 Kuga8/2011
412-01- 9
Climate Control
412-01- 9
DESCRIPTION AND OPERATION
TO MODEL INDEX
