Page 1453 of 2057
E140870
1
2
14.When bleeding the power steering system the
vacuum will decrease. Using the special tools,
maintain a sufficient vacuum of 38cm-Hg. If the vacuum decreases by more than 5cm-Hg in 5
minutes, the system should be checked for
leaks.
Install the Special Tool(s): 416-D001, 211-189
211-189
416-D001
211-189
416-D001
E140871
416-D001
211-189
15.
Remove the Special Tool(s): 211-189, 416-D001
G1467657en2008.50 Kuga8/2011
211-00- 12
Steering System - General Information
211-00- 12
GENERAL PROCEDURES
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL
Page 1454 of 2057
211-189
416-D001
211-189
416-D001
E140871
416-D001
211-189
16. N O T E :Make sure the fluid in the reservoir does
not fall below the MIN mark, as air could enter
the system.
E131522
123
17. Material: Power Steering Fluid IW
(WSA-M2C195-A / 9U7J-M2C195-AA)
hydraulic fluid
G1467657en2008.50 Kuga8/2011
211-00- 13
Steering System - General Information
211-00- 13
GENERAL PROCEDURES
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL
Page 1455 of 2057
E140870
1
2
18.Using the special tools, create a vacuum of
38cm-Hg. Maintain the vacuum until the air
1.
is evacuated from the system (minimum of
five minutes).
2. Release the vacuum.
211-189
416-D001
211-189
416-D001
E140871
416-D001
211-189
19. Remove the Special Tool(s): 211-189, 416-D001
G1467657en2008.50 Kuga8/2011
211-00- 14
Steering System - General Information
211-00- 14
GENERAL PROCEDURES
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL
Page 1456 of 2057
211-189
416-D001
211-189
416-D001
E140871
416-D001
211-189
20. N O T E :Make sure the fluid in the reservoir does
not fall below the MIN mark, as air could enter
the system.
E131522
123
21. Material: Power Steering Fluid IW
(WSA-M2C195-A / 9U7J-M2C195-AA)
hydraulic fluid
G1467657en2008.50 Kuga8/2011
211-00- 15
Steering System - General Information
211-00- 15
GENERAL PROCEDURES
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL
Page 1457 of 2057

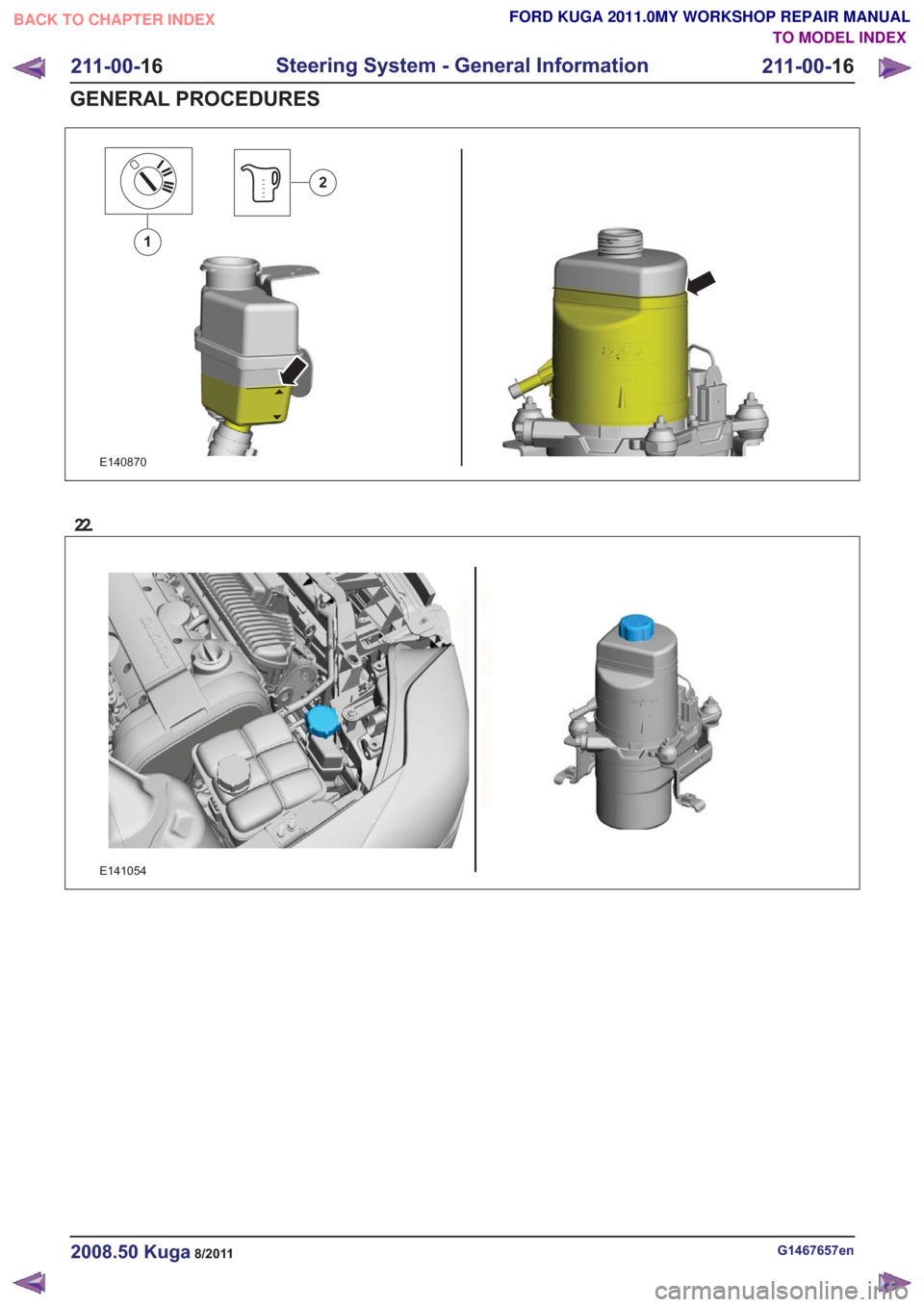

E140870
1
2
22.
E141054
G1467657en2008.50 Kuga8/2011
211-00-16
Steering System - General Information
211-00- 16
GENERAL PROCEDURES
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL
Page 1458 of 2057

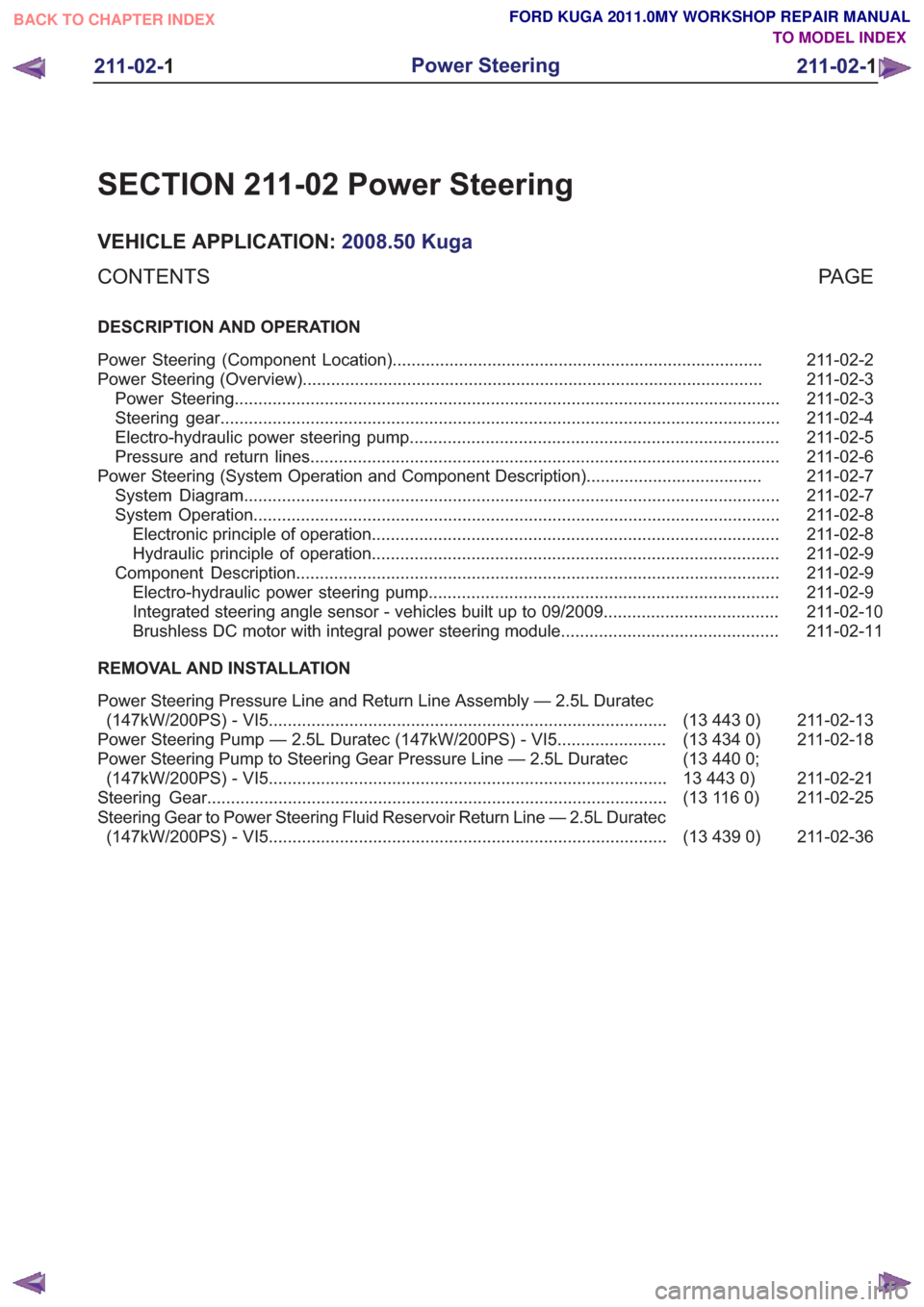

SECTION 211-02 Power Steering
VEHICLE APPLICATION:2008.50 Kuga
PA G E
CONTENTS
DESCRIPTION AND OPERATION
211-02-2
Power Steering (Component Location) ........................................................................\
......
211-02-3
Power Steering (Overview) ........................................................................\
.........................
211-02-3
Power Steering ........................................................................\
...........................................
211-02-4
Steering gear ........................................................................\
..............................................
211-02-5
Electro-hydraulic power steering pump ........................................................................\
......
211-02-6
Pressure and return lines ........................................................................\
...........................
211-02-7
Power Steering (System Operation and Component Description) .....................................
211-02-7
System Diagram ........................................................................\
.........................................
211-02-8
System Operation ........................................................................\
.......................................
211-02-8
Electronic principle of operation ........................................................................\
..............
211-02-9
Hydraulic principle of operation ........................................................................\
..............
211-02-9
Component Description ........................................................................\
..............................
211-02-9
Electro-hydraulic power steering pump ........................................................................\
..
211-02-10
Integrated steering angle sensor - vehicles built up to 09/2009 .....................................
211-02-11
Brushless DC motor with integral power steering module..............................................
REMOVAL AND INSTALLATION
211-02-13
(13 443 0)
Power Steering Pressure Line and Return Line Assembly — 2.5L Duratec
(147kW/200PS) - VI5 ........................................................................\
............
211-02-18
(13 434 0)
Power Steering Pump — 2.5L Duratec (147kW/200PS) - VI5 .......................
211-02-21
(13 440 0;
13 443 0)
Power Steering Pump to Steering Gear Pressure Line — 2.5L Duratec
(147kW/200PS) - VI5 ........................................................................\
............
211-02-25
(13 116 0)
Steering Gear ........................................................................\
.........................
211-02-36
(13 439 0)
Steering Gear to Power Steering Fluid Reservoir Return Line — 2.5L Duratec
(147kW/200PS) - VI5 ........................................................................\
............
211-02-1
Power Steering
211-02- 1
.
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL
Page 1459 of 2057

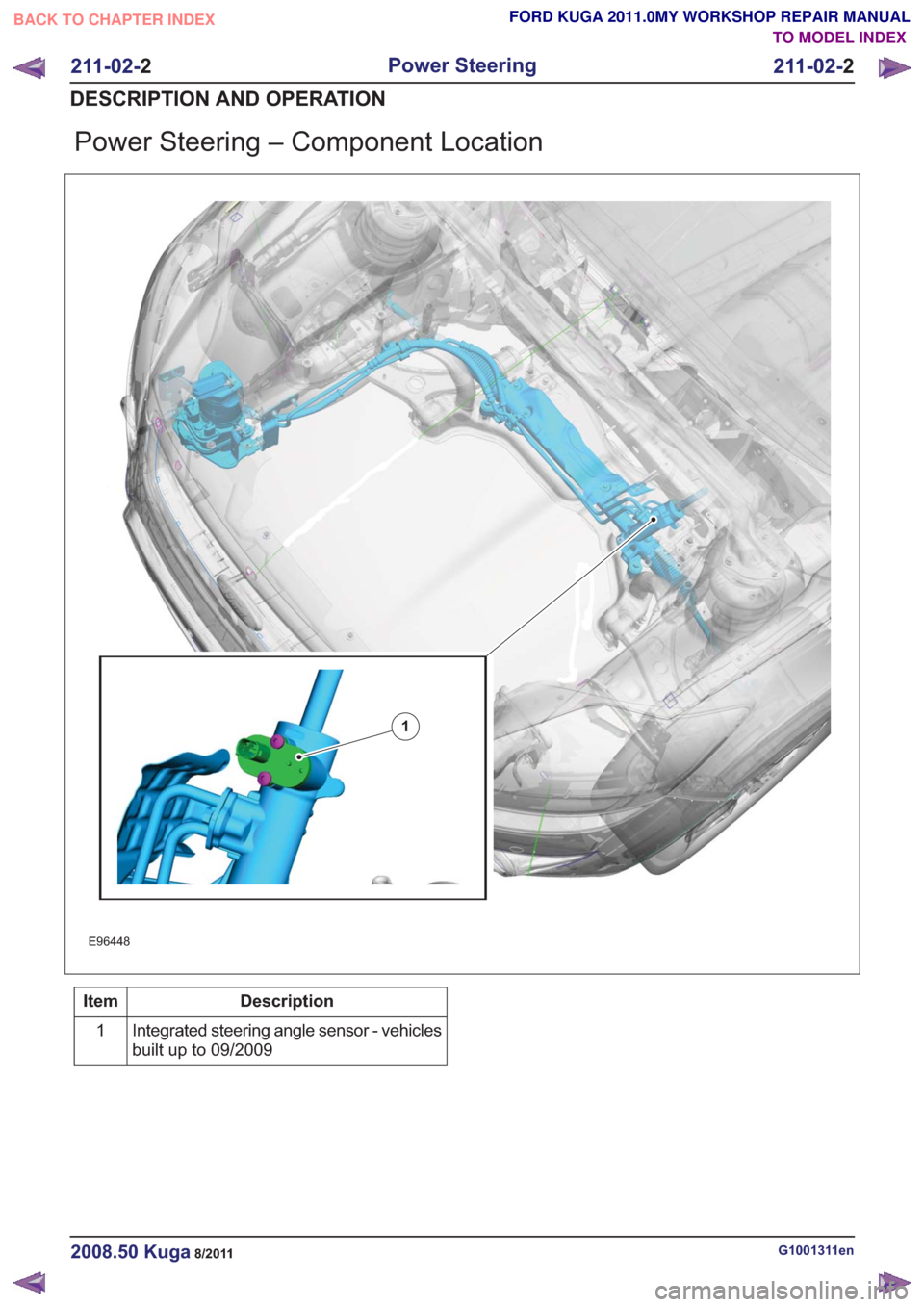

Power Steering – Component Location
E96448
1
Description
Item
Integrated steering angle sensor - vehicles
built up to 09/2009
1
G1001311en2008.50 Kuga8/2011
211-02-
2
Power Steering
211-02- 2
DESCRIPTION AND OPERATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL
Page 1460 of 2057

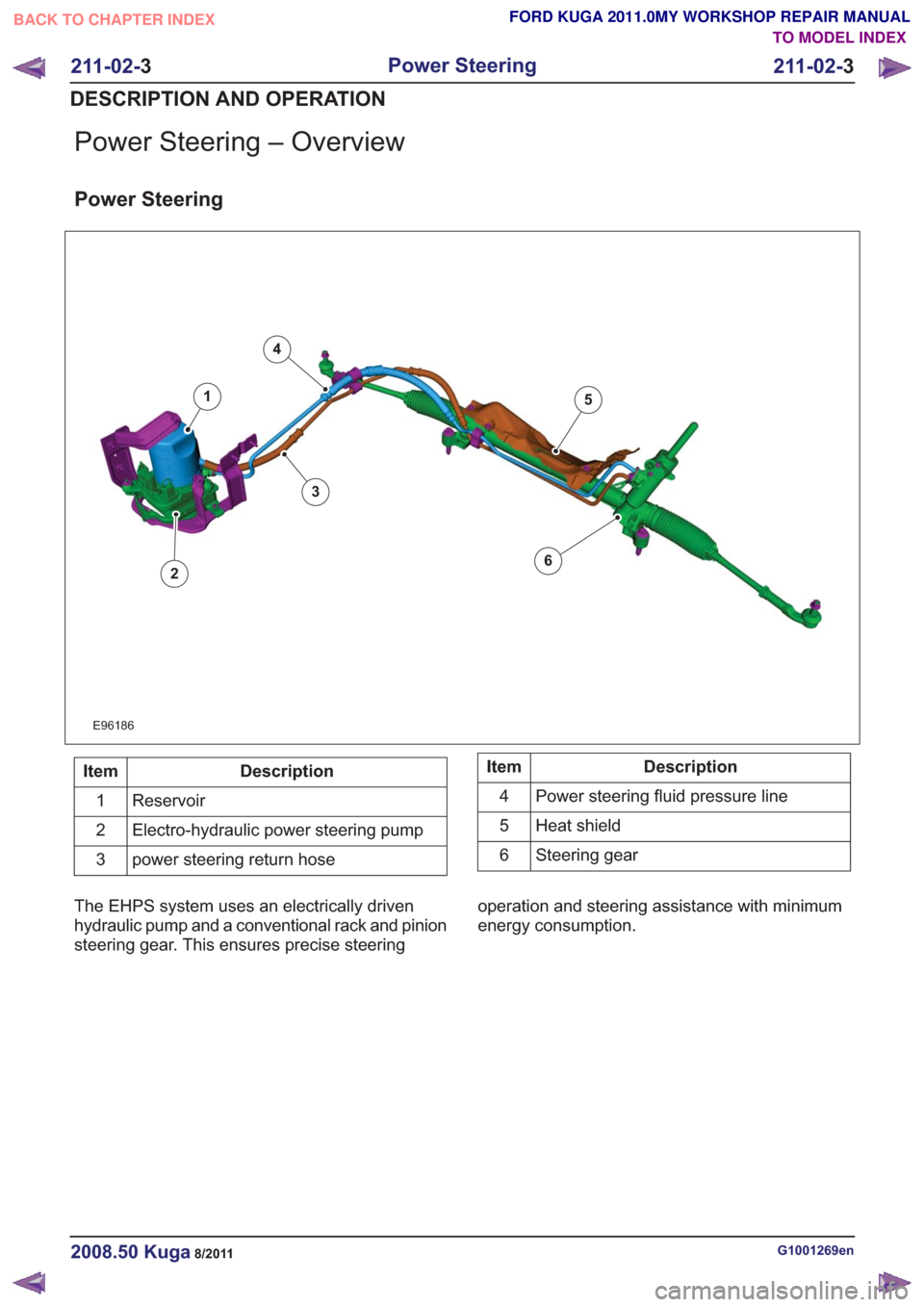

Power Steering – Overview
Power Steering
E96186
1
2
3
4
5
6
Description
Item
Reservoir
1
Electro-hydraulic power steering pump
2
power steering return hose
3Description
Item
Power steering fluid pressure line
4
Heat shield
5
Steering gear
6
The EHPS system uses an electrically driven
hydraulic pump and a conventional rack and pinion
steering gear. This ensures precise steering operation and steering assistance with minimum
energy consumption.
G1001269en2008.50 Kuga8/2011
211-02-
3
Power Steering
211-02- 3
DESCRIPTION AND OPERATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL
