Wheel Knuckle — LHD FWD/RHD FWD
Removal
1.Refer to: Spring(204-02 Rear Suspension,
Removal and Installation).
2. Refer to: Wheel Bearing and Wheel Hub (204-02
Rear Suspension, Removal and Installation).
3.
E101643
4.
E99208
5.
E93214
6.
E93206
Installation
1. Fabricate a spacer.
E69209
226
40
2. Torque: 120Nm1.
2.NOTE: Only tighten the bolt finger tight at
this stage.
E932621
2
G1000235en2008.50 Kuga8/2011
204-02- 19
Rear Suspension
204-02- 19
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

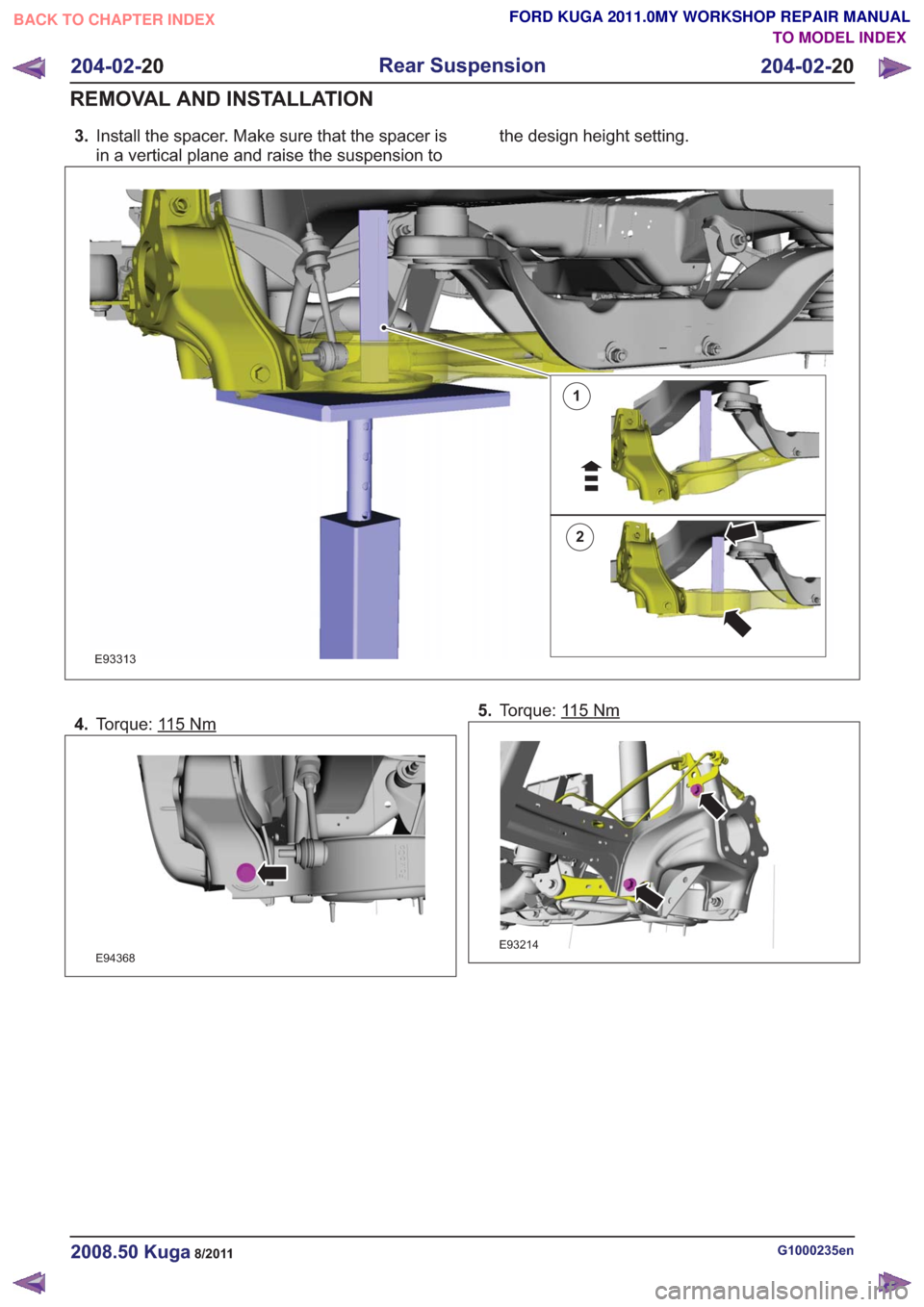

3.Install the spacer. Make sure that the spacer is
in a vertical plane and raise the suspension to the design height setting.
1
2
E93313
4.
Torque: 115Nm
E94368
5.Torque: 115Nm
E93214
G1000235en2008.50 Kuga8/2011
204-02- 20
Rear Suspension
204-02- 20
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

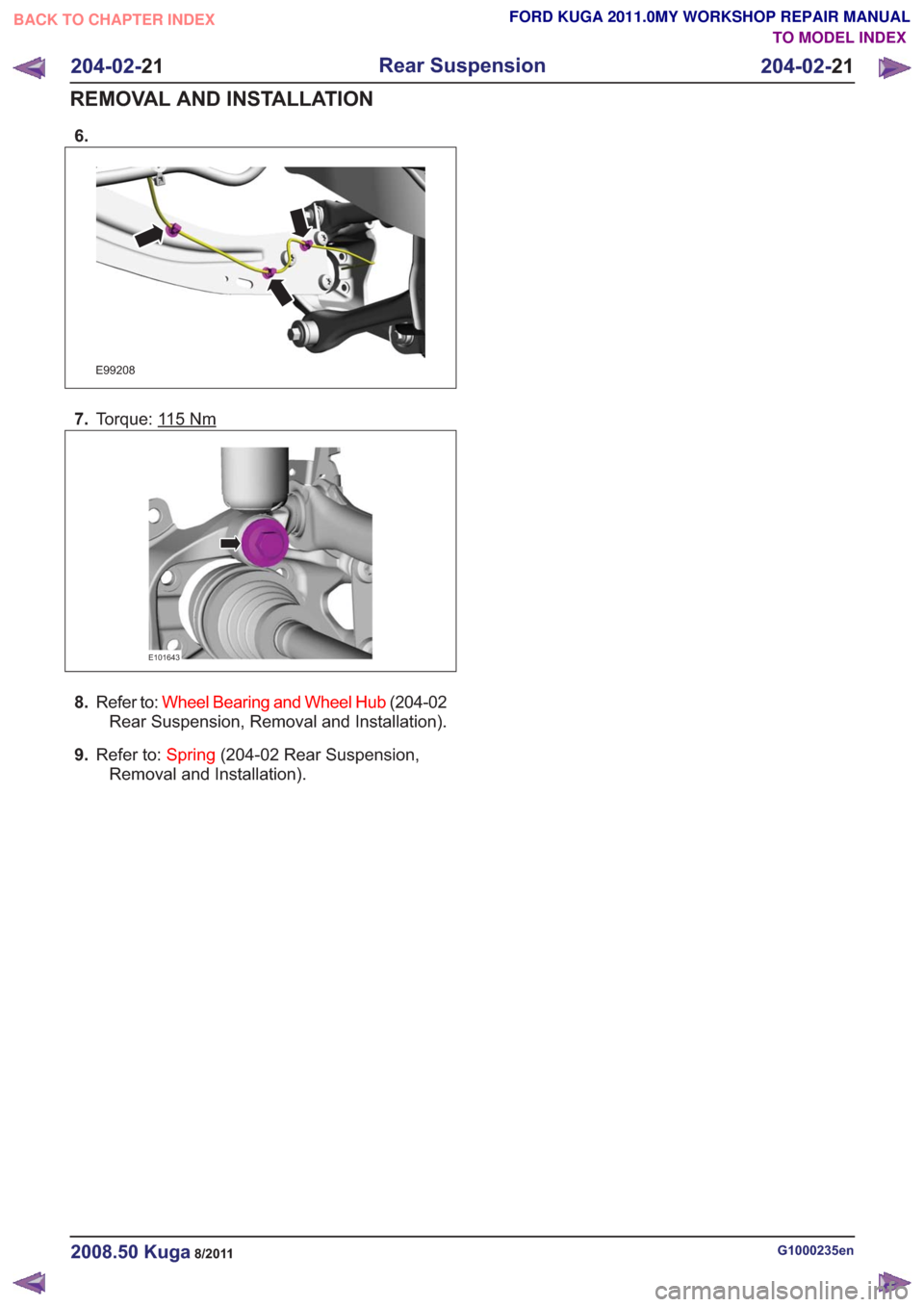

6.
E99208
7.Torque: 115Nm
E101643
8.Refer to: Wheel Bearing and Wheel Hub (204-02
Rear Suspension, Removal and Installation).
9. Refer to: Spring(204-02 Rear Suspension,
Removal and Installation).
G1000235en2008.50 Kuga8/2011
204-02- 21
Rear Suspension
204-02- 21
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

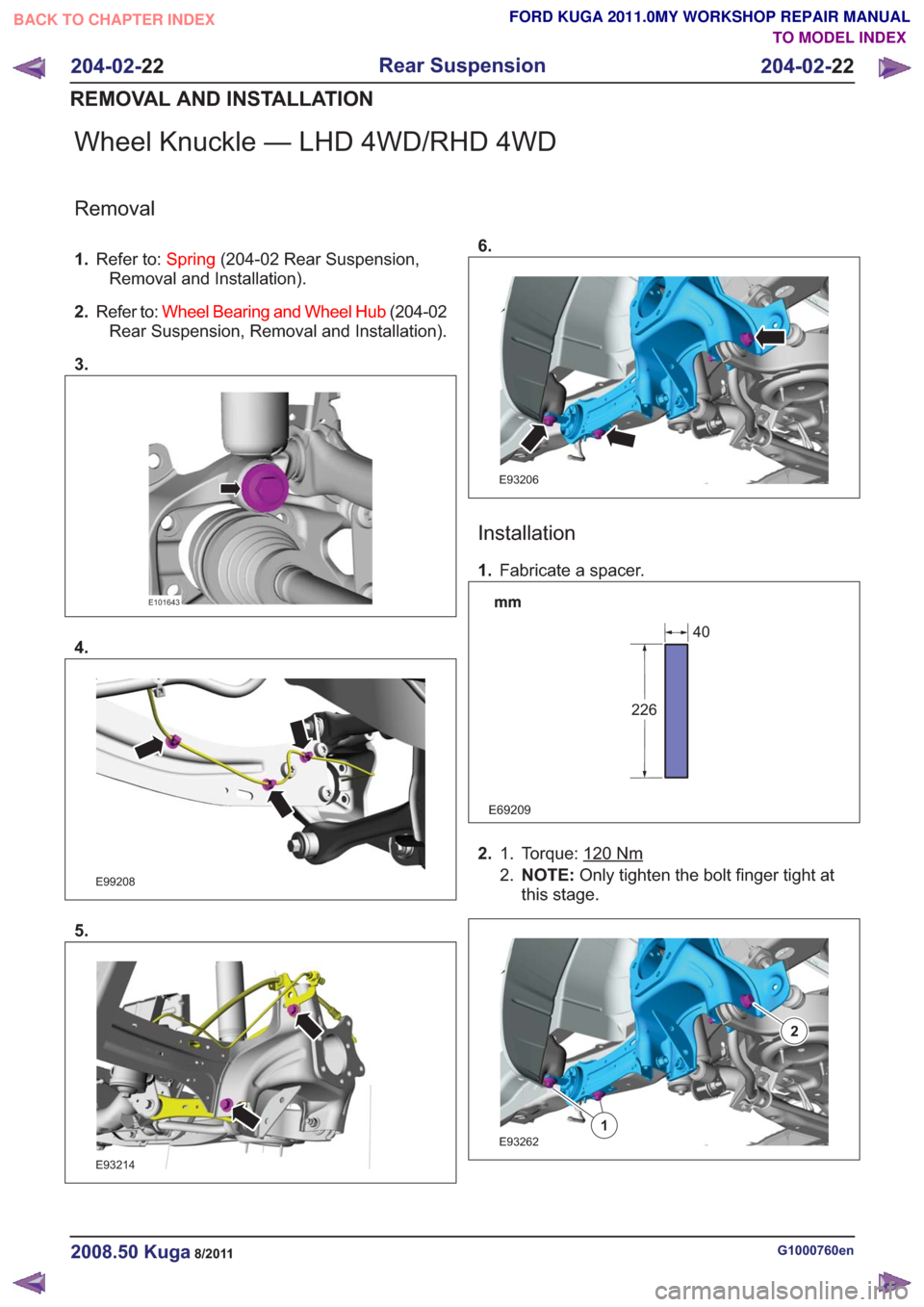

Wheel Knuckle — LHD 4WD/RHD 4WD
Removal
1.Refer to: Spring(204-02 Rear Suspension,
Removal and Installation).
2. Refer to: Wheel Bearing and Wheel Hub (204-02
Rear Suspension, Removal and Installation).
3.
E101643
4.
E99208
5.
E93214
6.
E93206
Installation
1. Fabricate a spacer.
E69209
226
40
2. Torque: 120Nm1.
2.NOTE: Only tighten the bolt finger tight at
this stage.
E932621
2
G1000760en2008.50 Kuga8/2011
204-02- 22
Rear Suspension
204-02- 22
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

3.Install the spacer. Make sure that the spacer is
in a vertical plane and raise the suspension to the design height setting.
1
2
E93313
4.
Torque: 115Nm
E94368
5.Torque: 115Nm
E93214
G1000760en2008.50 Kuga8/2011
204-02- 23
Rear Suspension
204-02- 23
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

6.
E99208
7.Torque: 115Nm
E101643
8.Refer to: Wheel Bearing and Wheel Hub (204-02
Rear Suspension, Removal and Installation).
9. Refer to: Spring(204-02 Rear Suspension,
Removal and Installation).
G1000760en2008.50 Kuga8/2011
204-02- 24
Rear Suspension
204-02- 24
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

Spring(15 621 0)
Special Tool(s)204-167
Compressor, Coil Spring
14042
204-215
Adapter for 204-167
15111
Removal
NOTE:Removal steps in this procedure may
contain installation details. 1.
Refer to: Wheel and Tire (204-04 Wheels and
Tires, Removal and Installation).
2. CAUTION: Make sure that the ball joint ball does not rotate.
Torque: 70Nm
E98878
3.Install the Special Tool(s): 204-167, 204-215
E98877
1
2
204-167
204-215
Installation
1.To install, reverse the removal procedure.
G1000236en2008.50 Kuga8/2011
204-02- 25
Rear Suspension
204-02- 25
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL
