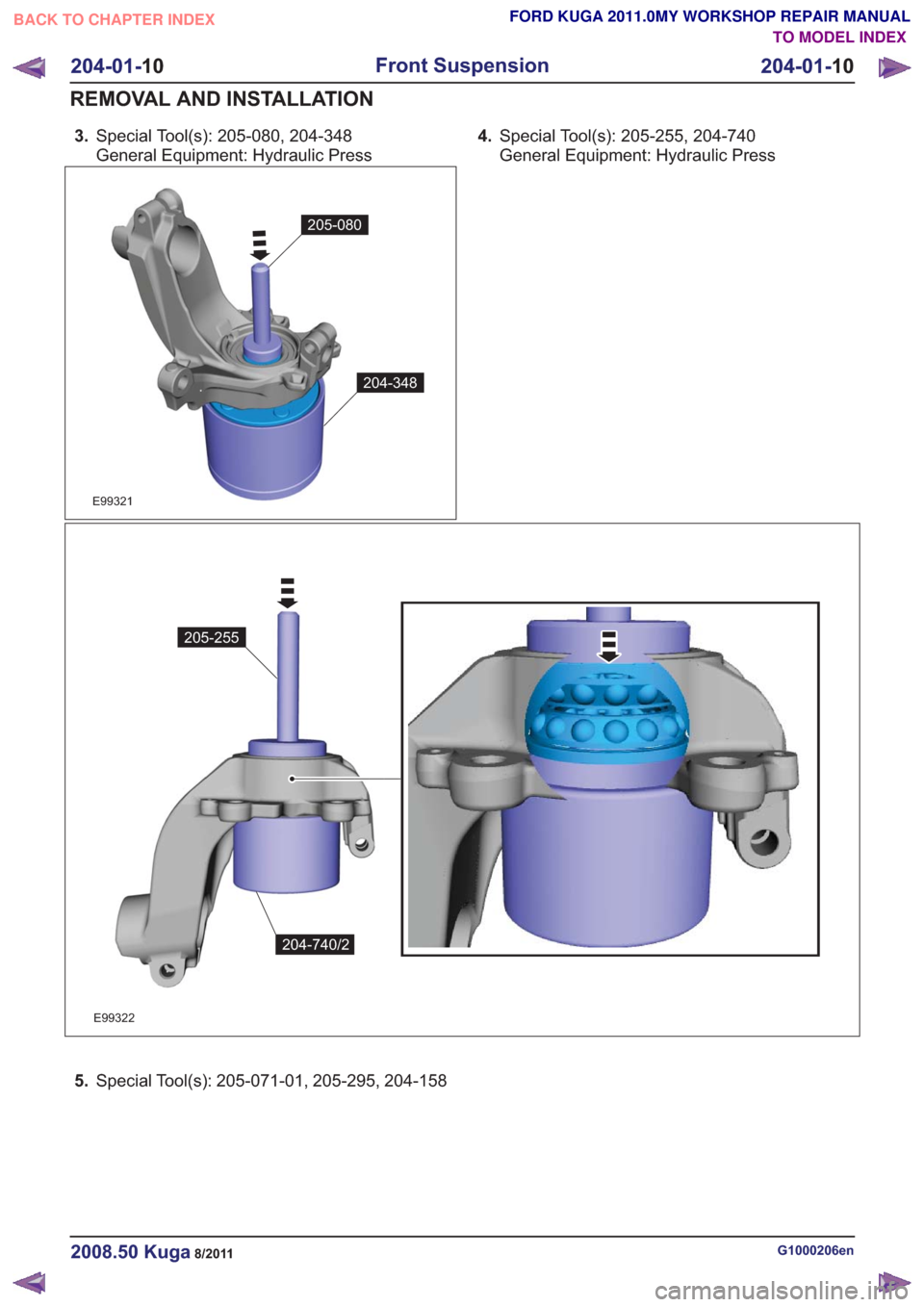

3.Special Tool(s): 205-080, 204-348
General Equipment: Hydraulic Press
E99321
205-080
204-348
4.Special Tool(s): 205-255, 204-740
General Equipment: Hydraulic Press
E99322
205-255
204-740/2

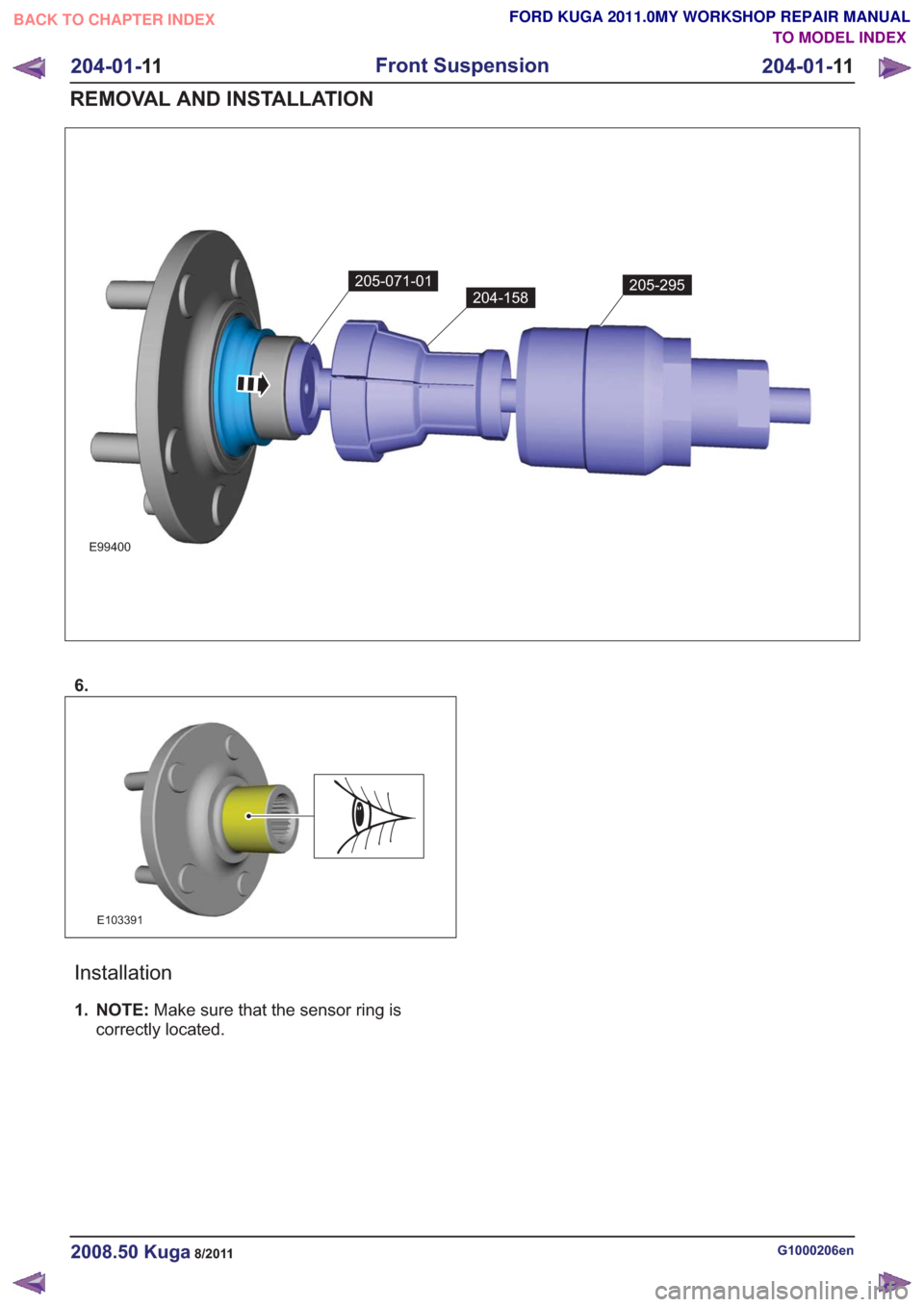

5.Special Tool(s): 205-071-01, 205-295, 204-158
G1000206en2008.50 Kuga8/2011
204-01- 10
Front Suspension
204-01- 10
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

E99400
205-071-01
204-158205-295
6.
E103391
Installation
1. NOTE:Make sure that the sensor ring is
correctly located.
G1000206en2008.50 Kuga8/2011
204-01- 11
Front Suspension
204-01- 11
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

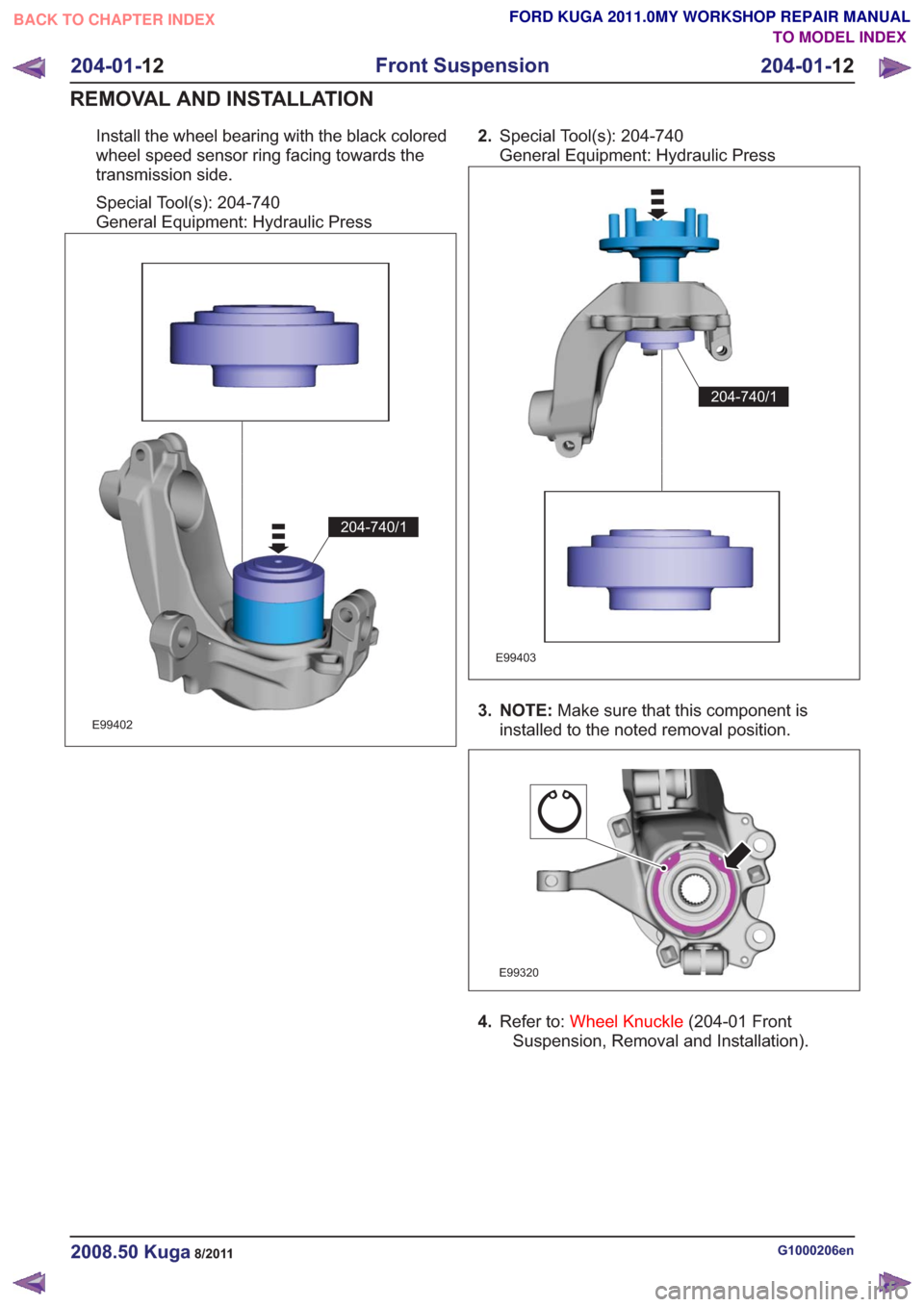

Install the wheel bearing with the black colored
wheel speed sensor ring facing towards the
transmission side.
Special Tool(s): 204-740
General Equipment: Hydraulic Press
E99402
204-740/1
2.Special Tool(s): 204-740
General Equipment: Hydraulic Press
E99403
204-740/1
3. NOTE: Make sure that this component is
installed to the noted removal position.
E99320
4. Refer to: Wheel Knuckle (204-01 Front
Suspension, Removal and Installation).
G1000206en2008.50 Kuga8/2011
204-01- 12
Front Suspension
204-01- 12
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

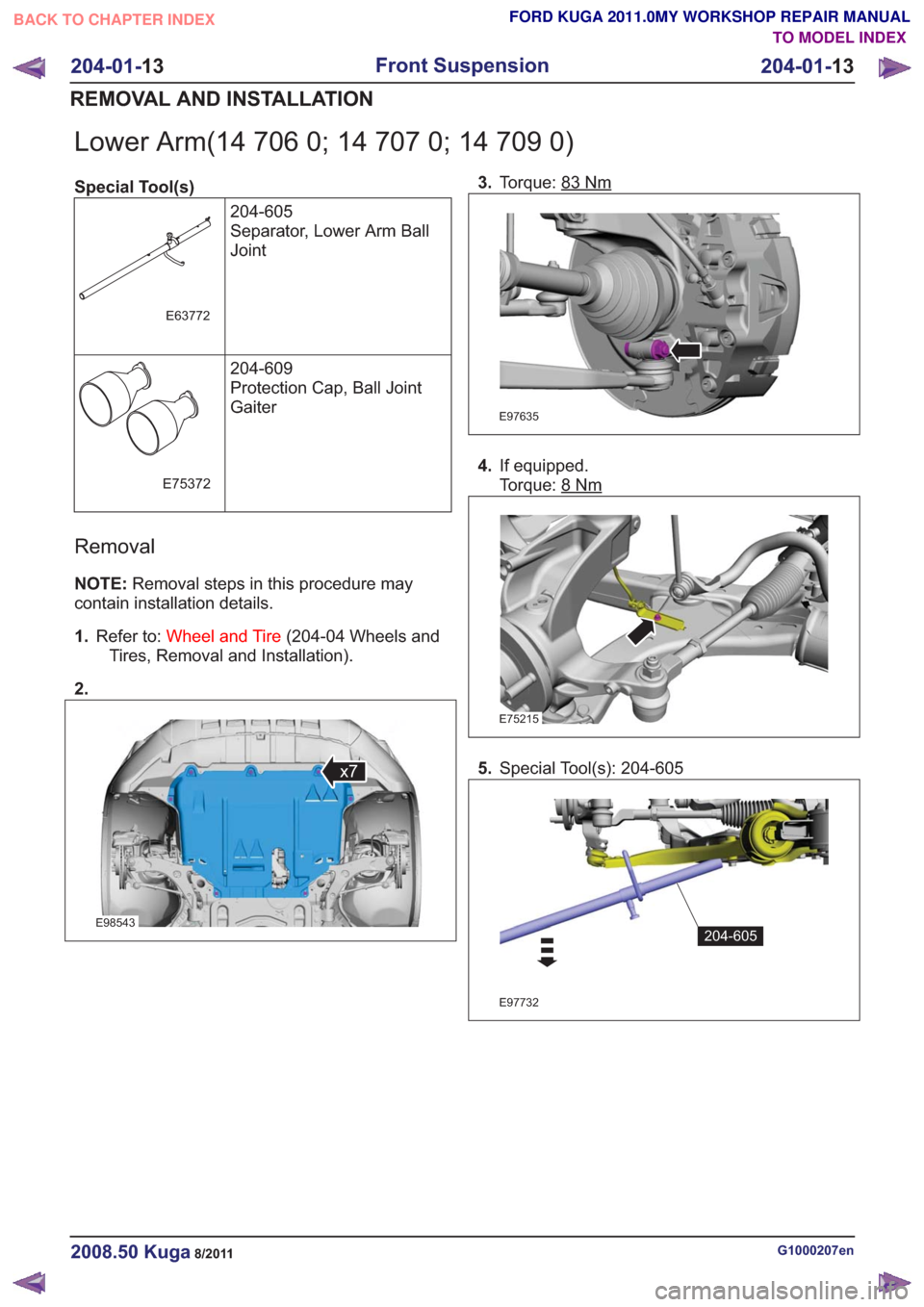

Lower Arm(14 706 0; 14 707 0; 14 709 0)
Special Tool(s)204-605
Separator, Lower Arm Ball
Joint
E63772
204-609
Protection Cap, Ball Joint
Gaiter
E75372
Removal
NOTE:Removal steps in this procedure may
contain installation details.
1. Refer to: Wheel and Tire (204-04 Wheels and
Tires, Removal and Installation).
2.
E98543
x7
3. Torque: 83Nm
E97635
4.If equipped.
Torque: 8
Nm
E75215
5.Special Tool(s): 204-605
E97732
204-605
G1000207en2008.50 Kuga8/2011
204-01- 13
Front Suspension
204-01- 13
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

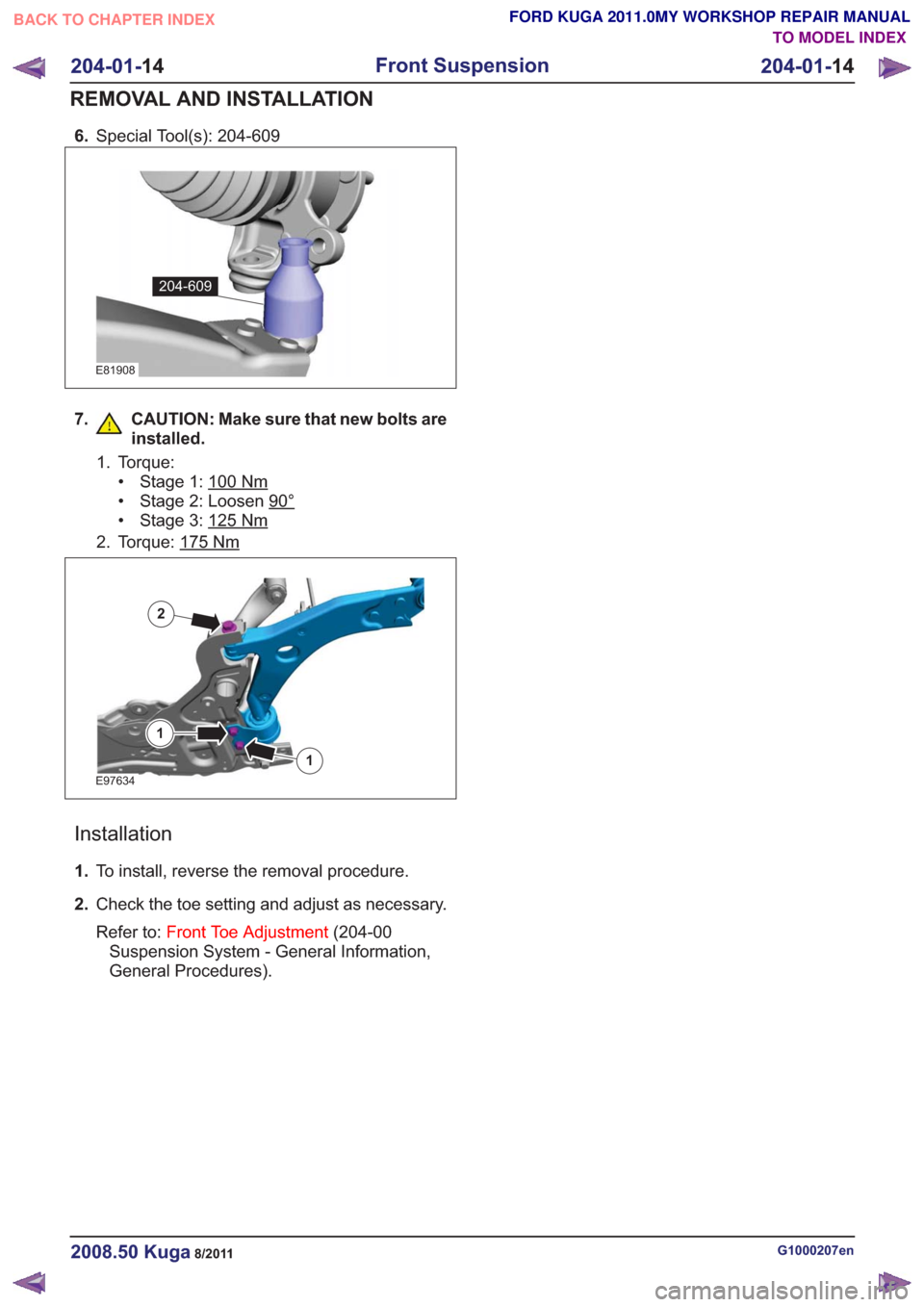

6.Special Tool(s): 204-609
E81908
204-609
7. CAUTION: Make sure that new bolts are
installed.
1. Torque:• Stage 1: 100
Nm
• Stage 2: Loosen 90°
• Stage 3: 125Nm
2. Torque: 175Nm
E97634
1
1
2
Installation
1.To install, reverse the removal procedure.
2. Check the toe setting and adjust as necessary.
Refer to: Front Toe Adjustment (204-00
Suspension System - General Information,
General Procedures).
G1000207en2008.50 Kuga8/2011
204-01- 14
Front Suspension
204-01- 14
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

Front Stabilizer Bar(14 752 0)
Special Tool(s) / General Equipment205-316A
Alignment Pins, Subframe
15097A
Hydraulic Press
Transmission Jack
Removal
NOTE:Removal steps in this procedure may
contain installation details.
1. Refer to: Wheel and Tire (204-04 Wheels and
Tires, Removal and Installation).
2.
E98543
x7
3. If equipped.
Torque: 8
Nm
E75215
4. CAUTION: Make sure that the ball joint
ball does not rotate.
On both sides.
Torque: 47.5
Nm
E91648
5. CAUTION: Make sure that the exhaustflexible pipe is not forcibly bent.
E98334
6.
E98346
G1000208en2008.50 Kuga8/2011
204-01- 15
Front Suspension
204-01- 15
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

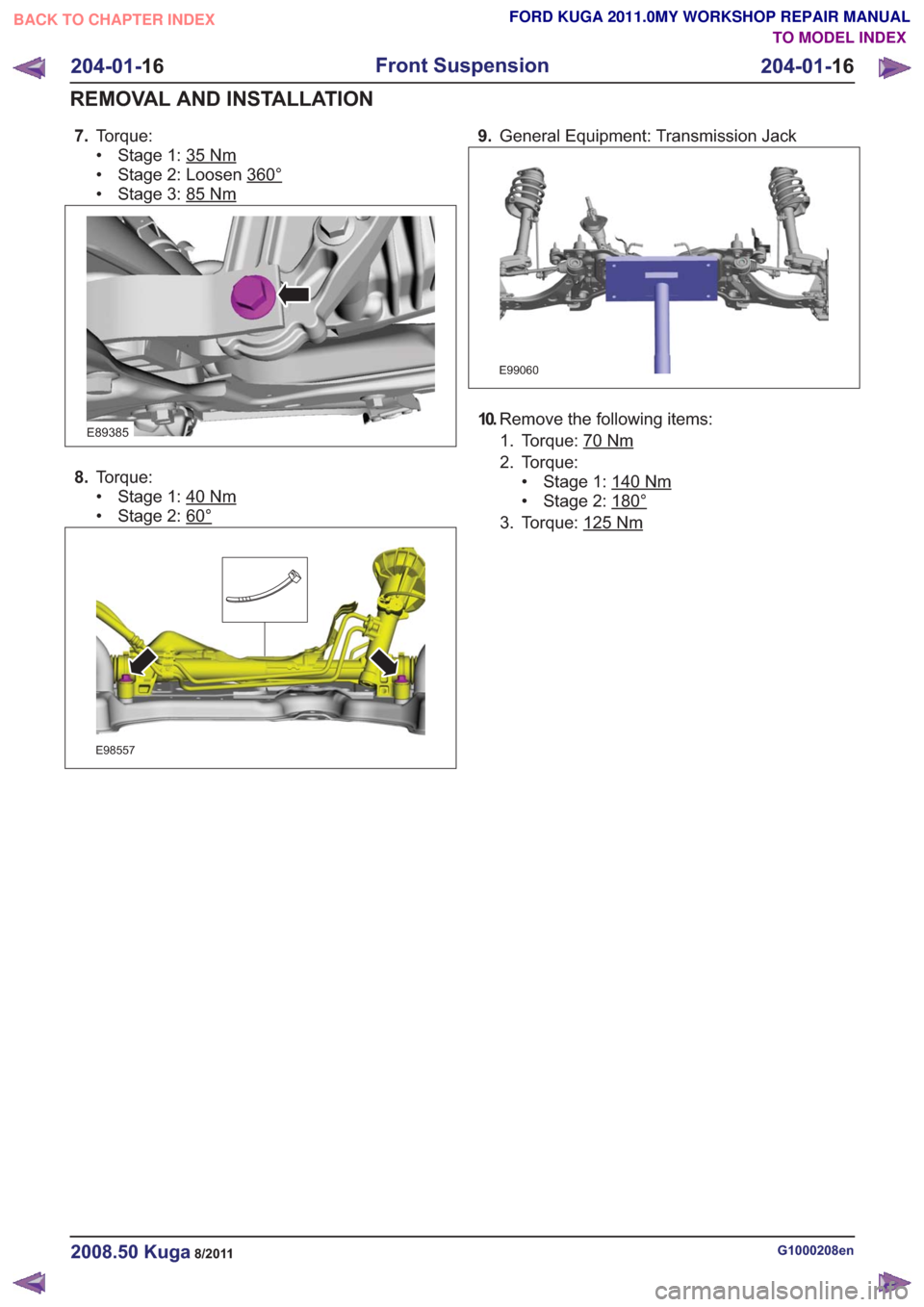

7.Torque:
• Stage 1: 35
Nm
• Stage 2: Loosen 360°
• Stage 3: 85Nm
E89385
8.Torque:
• Stage 1: 40
Nm
• Stage 2: 60°
E98557
9.General Equipment: Transmission Jack
E99060
10.Remove the following items:
1. Torque: 70
Nm
2. Torque: • Stage 1: 140
Nm
• Stage 2: 180°
3. Torque: 125Nm
G1000208en2008.50 Kuga8/2011
204-01- 16
Front Suspension
204-01- 16
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

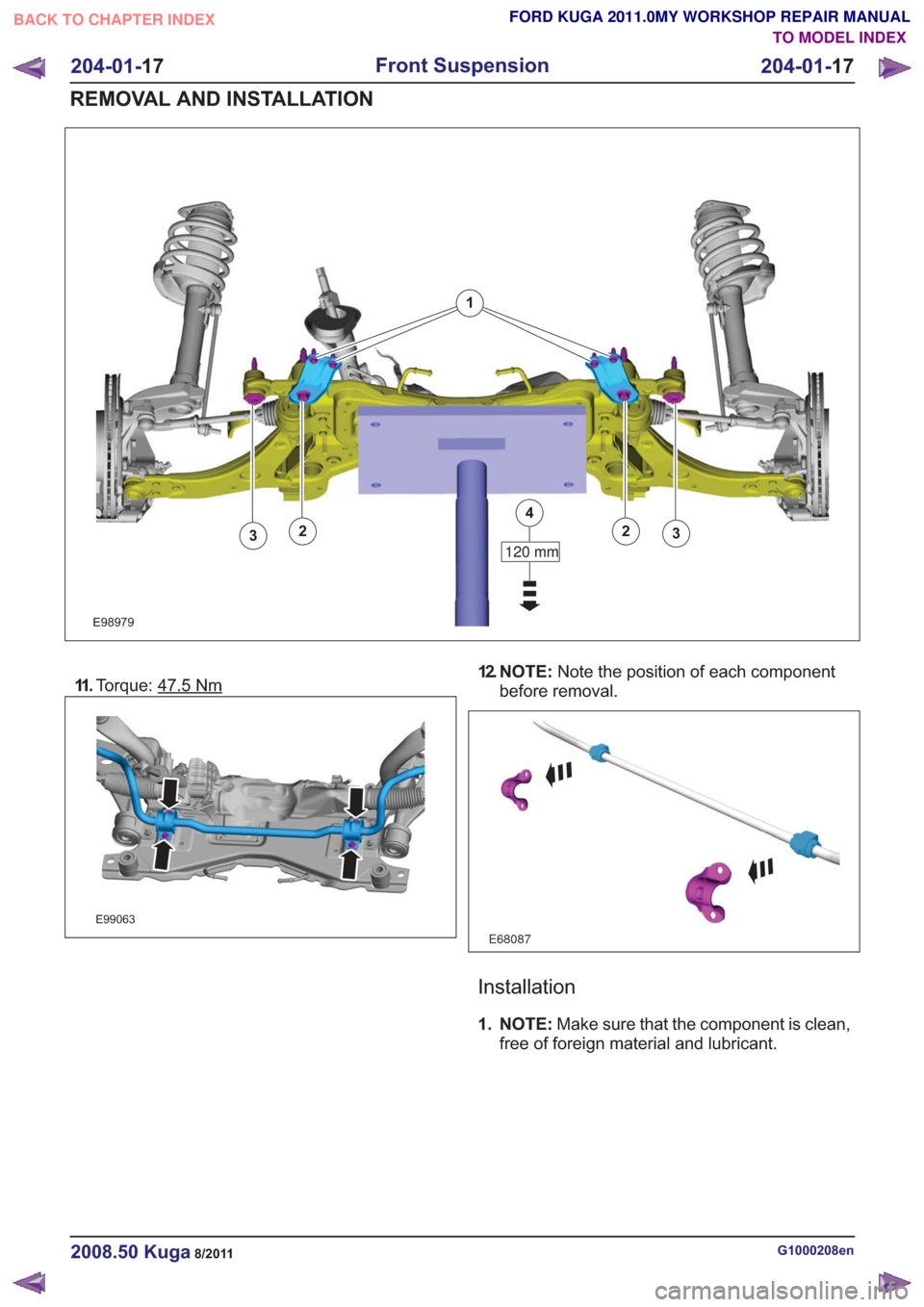

E98979
1
120 mm
4
2233
11 .Torque: 47.5Nm
E99063
12. N O T E : Note the position of each component
before removal.
E68087
Installation
1. NOTE: Make sure that the component is clean,
free of foreign material and lubricant.
G1000208en2008.50 Kuga8/2011
204-01- 17
Front Suspension
204-01- 17
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
