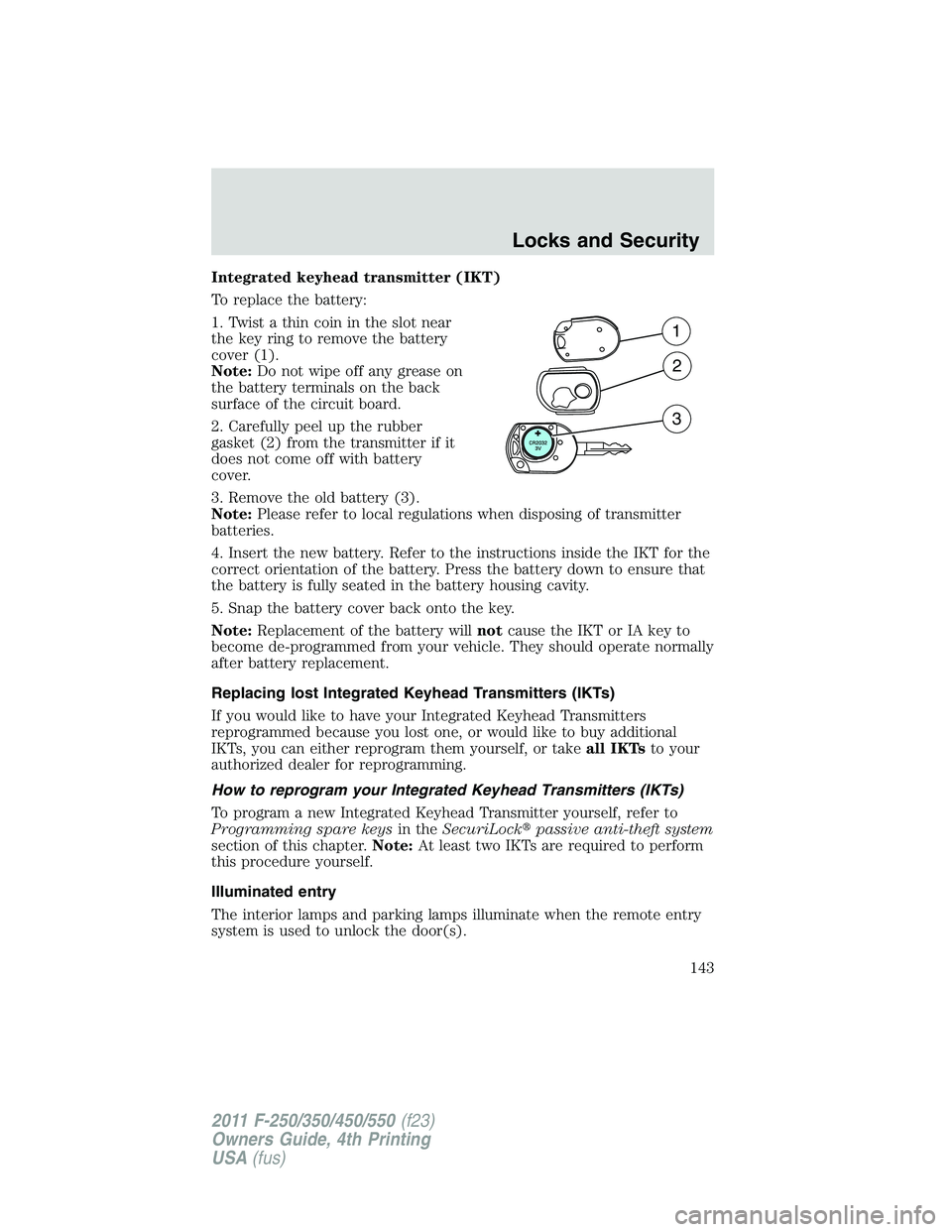

Integrated keyhead transmitter (IKT)
To replace the battery:
1. Twist a thin coin in the slot near
the key ring to remove the battery
cover (1).
Note: Do not wipe off any grease on
the battery terminals on the back
surface of the circuit board.
2. Carefully peel up the rubber
gasket (2) from the transmitter if it
does not come off with battery
cover.
3. Remove the old battery (3).
Note: Please refer to local regulations when disposing of transmitter
batteries.
4. Insert the new battery. Refer to the instructions inside the IKT for the
correct orientation of the battery. Press the battery down to ensure that
the battery is fully seated in the battery housing cavity.
5. Snap the battery cover back onto the key.
Note: Replacement of the battery will not cause the IKT or IA key to
become de-programmed from your vehicle. They should operate normally
after battery replacement.
Replacing lost Integrated Keyhead Transmitters (IKTs)
If you would like to have your Integrated Keyhead Transmitters
reprogrammed because you lost one, or would like to buy additional
IKTs, you can either reprogram them yourself, or take all IKTs to your
authorized dealer for reprogramming.
How to reprogram your Integrated Keyhead Transmitters (IKTs)
To program a new Integrated Keyhead Transmitter yourself, refer to
Programming spare keys in the SecuriLock  passive anti-theft system
section of this chapter. Note: At least two IKTs are required to perform
this procedure yourself.
Illuminated entry
The interior lamps and parking lamps illuminate when the remote entry
system is used to unlock the door(s). 1
2
3Locks and Security
143
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

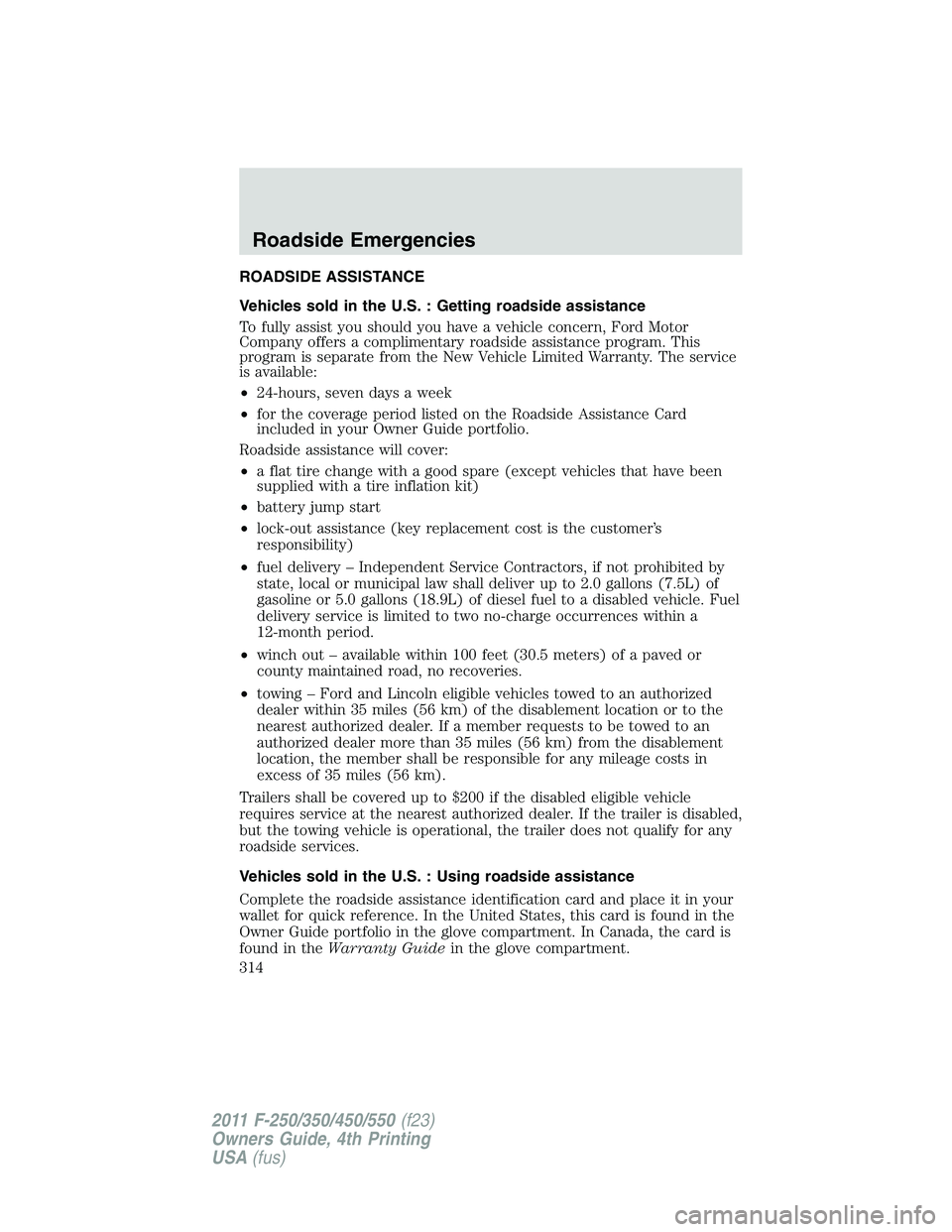

ROADSIDE ASSISTANCE
Vehicles sold in the U.S. : Getting roadside assistance
To fully assist you should you have a vehicle concern, Ford Motor
Company offers a complimentary roadside assistance program. This
program is separate from the New Vehicle Limited Warranty. The service
is available:
• 24-hours, seven days a week
• for the coverage period listed on the Roadside Assistance Card
included in your Owner Guide portfolio.
Roadside assistance will cover:
• a flat tire change with a good spare (except vehicles that have been
supplied with a tire inflation kit)
• battery jump start
• lock-out assistance (key replacement cost is the customer’s
responsibility)
• fuel delivery – Independent Service Contractors, if not prohibited by
state, local or municipal law shall deliver up to 2.0 gallons (7.5L) of
gasoline or 5.0 gallons (18.9L) of diesel fuel to a disabled vehicle. Fuel
delivery service is limited to two no-charge occurrences within a
12-month period.
• winch out – available within 100 feet (30.5 meters) of a paved or
county maintained road, no recoveries.
• towing – Ford and Lincoln eligible vehicles towed to an authorized
dealer within 35 miles (56 km) of the disablement location or to the
nearest authorized dealer. If a member requests to be towed to an
authorized dealer more than 35 miles (56 km) from the disablement
location, the member shall be responsible for any mileage costs in
excess of 35 miles (56 km).
Trailers shall be covered up to $200 if the disabled eligible vehicle
requires service at the nearest authorized dealer. If the trailer is disabled,
but the towing vehicle is operational, the trailer does not qualify for any
roadside services.
Vehicles sold in the U.S. : Using roadside assistance
Complete the roadside assistance identification card and place it in your
wallet for quick reference. In the United States, this card is found in the
Owner Guide portfolio in the glove compartment. In Canada, the card is
found in the Warranty Guide in the glove compartment.Roadside Emergencies
314
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

vehicle’s engine. Refer to Maintenance product specifications and
capacities later in this chapter for more information.
Do not use supplemental engine oil additives, cleaners or other engine
treatments. They are unnecessary and could lead to engine damage that
is not covered by Ford warranty.
Change your engine oil and filter according to the appropriate schedule
listed in the scheduled maintenance information.
Ford production and Motorcraft  replacement oil filters are designed for
added engine protection and long life. If a replacement oil filter is used
that does not meet Ford material and design specifications, start-up
engine noises or knock may be experienced.
It is recommended you use the appropriate Motorcraft  oil filter or
another with equivalent performance for your engine application.
BATTERY
WARNING: This vehicle
may be equipped with more
than one battery, removal of cable
from only one battery does not
disconnect the vehicle electrical
system. Be sure to disconnect
cables from all batteries when
disconnecting power. Failure to do
so may cause serious personal
injury or property damage.
Your vehicle is equipped with a Motorcraft  maintenance-free battery
which normally does not require additional water during its life of
service.
If your battery has a cover/shield, make sure it is reinstalled
after the battery has been cleaned or replaced.
For longer, trouble-free operation, keep the top of the battery clean and
dry. Also, make certain the battery cables are always tightly fastened to
the battery terminals.
If you see any corrosion on the battery or terminals, remove the cables
from the terminals and clean with a wire brush. You can neutralize the
acid with a solution of baking soda and water. Maintenance and Specifications
373
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

MOTORCRAFT PART NUMBERS
Component 6.2L V8 engine 6.8L V10 engine
Air filter element FA-1883 FA-1883
Oil filter FL-820-S FL-820-S
Battery (standard) BXT-65-650 BXT-65-650
Battery (optional) BXT-65-750 BXT-65-750
Spark plugs-platinum 1
1
For spark plug replacement, see your authorized dealer. Refer to the
scheduled maintenance information for the appropriate intervals for
changing the spark plugs.
Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraft  or
equivalent replacement parts. The customer warranty may be
void for any damage to the engine if such spark plugs are not
used.Maintenance and Specifications
406
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

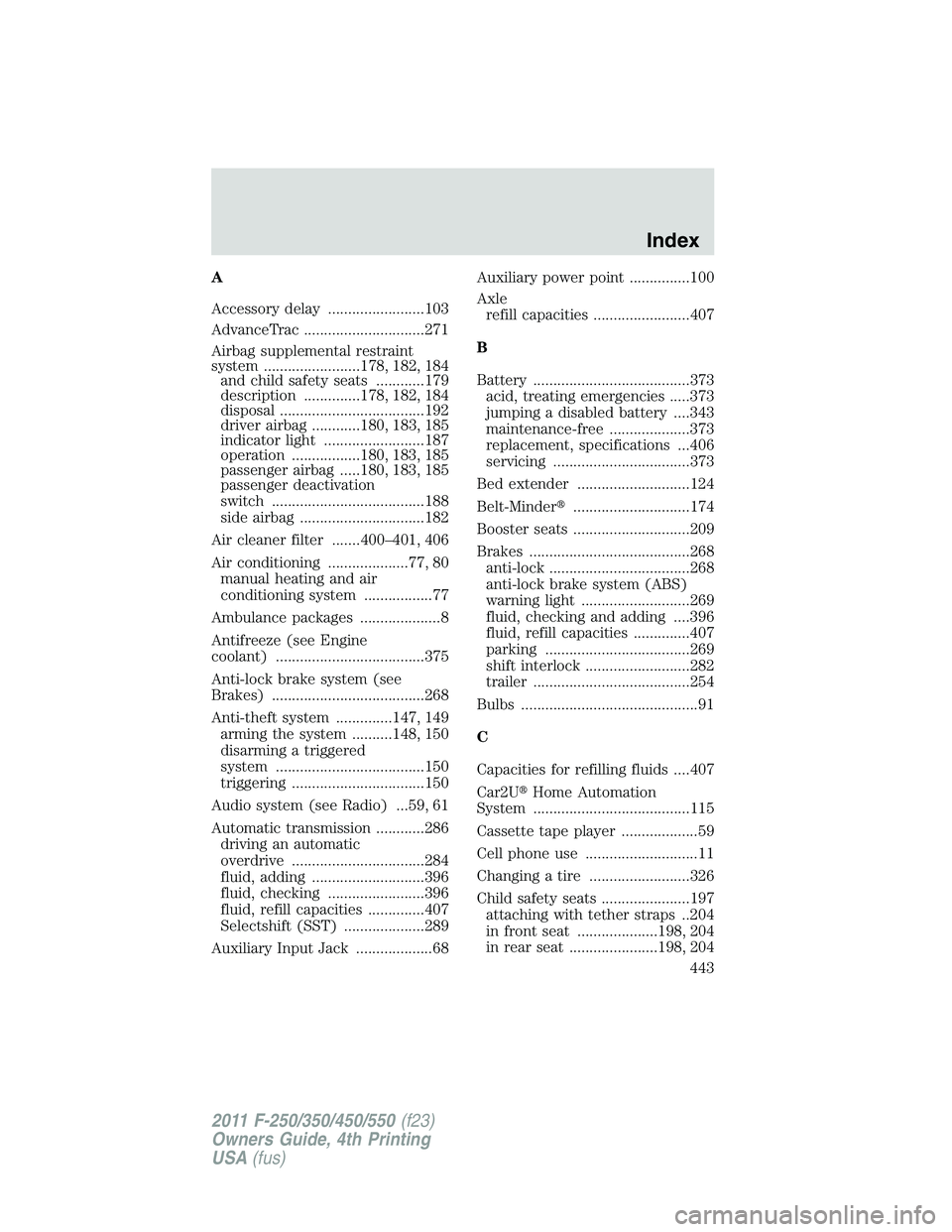

A
Accessory delay ........................103
AdvanceTrac ..............................271
Airbag supplemental restraint
system ........................178, 182, 184
and child safety seats ............179
description ..............178, 182, 184
disposal ....................................192
driver airbag ............180, 183, 185
indicator light .........................187
operation .................180, 183, 185
passenger airbag .....180, 183, 185
passenger deactivation
switch ......................................188
side airbag ...............................182
Air cleaner filter .......400–401, 406
Air conditioning ....................77, 80
manual heating and air
conditioning system .................77
Ambulance packages ....................8
Antifreeze (see Engine
coolant) .....................................375
Anti-lock brake system (see
Brakes) ......................................268
Anti-theft system ..............147, 149
arming the system ..........148, 150
disarming a triggered
system .....................................150
triggering .................................150
Audio system (see Radio) ...59, 61
Automatic transmission ............286
driving an automatic
overdrive .................................284
fluid, adding ............................396
fluid, checking ........................396
fluid, refill capacities ..............407
Selectshift (SST) ....................289
Auxiliary Input Jack ...................68 Auxiliary power point ...............100
Axle
refill capacities ........................407
B
Battery .......................................373
acid, treating emergencies .....373
jumping a disabled battery ....343
maintenance-free ....................373
replacement, specifications ...406
servicing ..................................373
Bed extender ............................124
Belt-Minder  .............................174
Booster seats .............................209
Brakes ........................................268
anti-lock ...................................268
anti-lock brake system (ABS)
warning light ...........................269
fluid, checking and adding ....396
fluid, refill capacities ..............407
parking ....................................269
shift interlock ..........................282
trailer .......................................254
Bulbs ............................................91
C
Capacities for refilling fluids ....407
Car2U  Home Automation
System .......................................115
Cassette tape player ...................59
Cell phone use ............................11
Changing a tire .........................326
Child safety seats ......................197
attaching with tether straps ..204
in front seat ....................198, 204
in rear seat ......................198, 204 Index
